Our D464WP waterproof servo has what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, our digital waterproof servos have the industry’s first IP67 rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the D646WP will dependably keep your mind at ease.

Features

• Industry's First IP67-Rated Waterproof Case
• Strong Three-Pole Ferrite Motor
• Metal Gear Train with MP First Gear
• Dual Ball Bearing-Supported Output Shaft
• 7.4v 2-Cell LiPo Capability
• Standard Programmable Digital Circuitry

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Performance Specifications
Operating Voltage Range (Volts DC): 3.5 ~ 8.4V
Speed (Second @ 60°): 0.16 @ 7.4V
Maximum Torque Range oz. / in.: 161.09 @ 7.4V
Maximum Torque Range kg. / cm.: 11.6 @ 7.4V
Current Draw at Idle: 30 mA @ 7.4V
No Load Operating Current Draw: 330 mA @ 7.4V
Stall Current Draw: 2,200 mA @ 7.4V
Dead Band Width: 2 µs

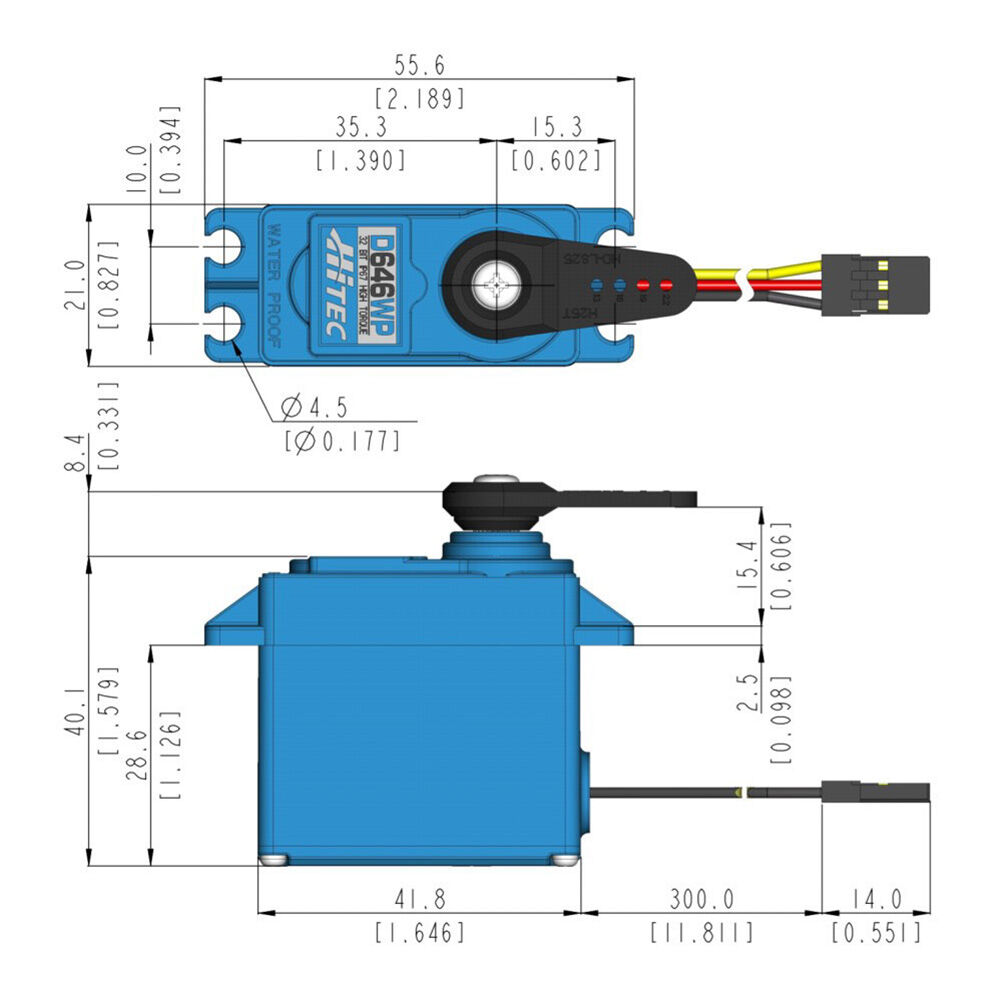

Physical Specifications
Dimensions (Inches): 1.65 x 0.83 x 1.58
Dimensions (Metric): 41.8 x 21.0 x 40.0
Weight (Ounces): 2.15
Weight (Gram): 61.0
Circuit Type: G1 Programable Digital
Motor Type: Cored Carbon Brush
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Standard 25
Case Material: Engineering Plastic
Dust / Water Resistance: IP 67
Connector Gauge (AWG) / Strand Count: 22 / 60
