Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
Speed (Second @ 60°): 0.20 ~ 0.15
Maximum Torque Range oz. / in.: 72 ~ 104
Maximum Torque Range kg. / cm.: 4.8 ~ 7.4
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 320mA
Stall Current Draw: 1,500mA
Dead Band Width: N / A

Physical Specifications

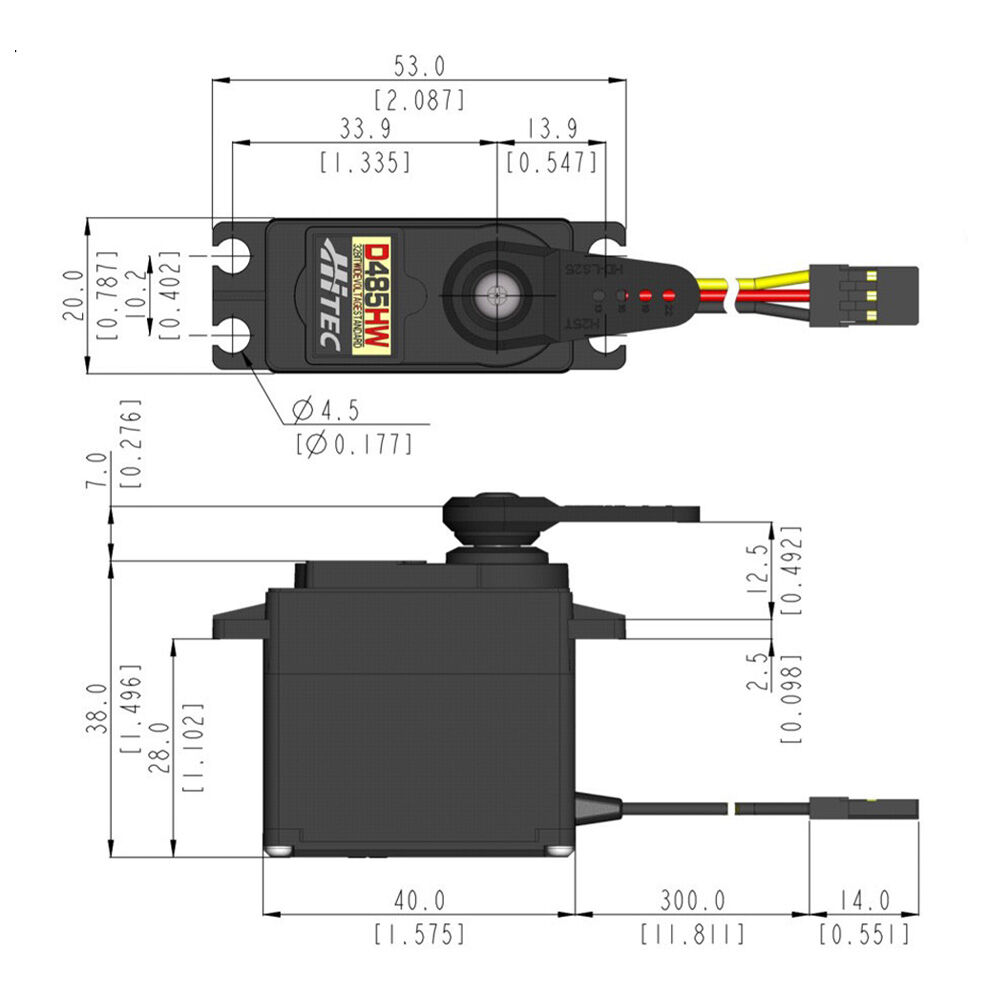

Dimensions (Inches): 1.57 x 0.78 x 1.49
Dimensions (Metric): 39.8 X 19.8 X 38.0
Weight (Ounces): 1.59
Weight (Gram): 45.0
Circuit Type: 32 bit Programable Digital
Motor Type: Cored Metal Brush
Gear Material: MK 1st Gear & 3 Karbonite Resin Gears
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): 25 / 6
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: N / A

SKU HRC36485
Barcode # 0669962364850
Brand Hitec
Shipping Weight 0.1100kg
Shipping Width 0.090m
Shipping Height 0.050m
Shipping Length 0.110m
Shipping Cubic 0.000495000m3
