GensAce GEA200WDUAL-AW Imars Dual Channel AC200W/DC300W Smart Balance Charger

Imar's Dual Battery Charger supports charging and discharging via 2 channels: DC port power supply supports a maximum single port charging of 300W, and AC power supply supports intelligent distribution of total power.

The power is 200W (2 channels), the maximum charging current is 15A, the charging current is adjustable, and the use and operation are simple; 7 operating modes of products include charging, discharging, balance, storage, ExtDischarge, SyncCharging, digital power supply;

During the charging process of the product, the total voltage of the current task, charge/discharge current, working time and other information can be displayed in real time through the display window;

In addition, information about individual cell voltage, internal resistance and temperature can be queried in real time, so that the user can easily understand the battery performance and charging status;

The heat dissipation design can effectively ensure the continuous, stable and reliable operation of the product.

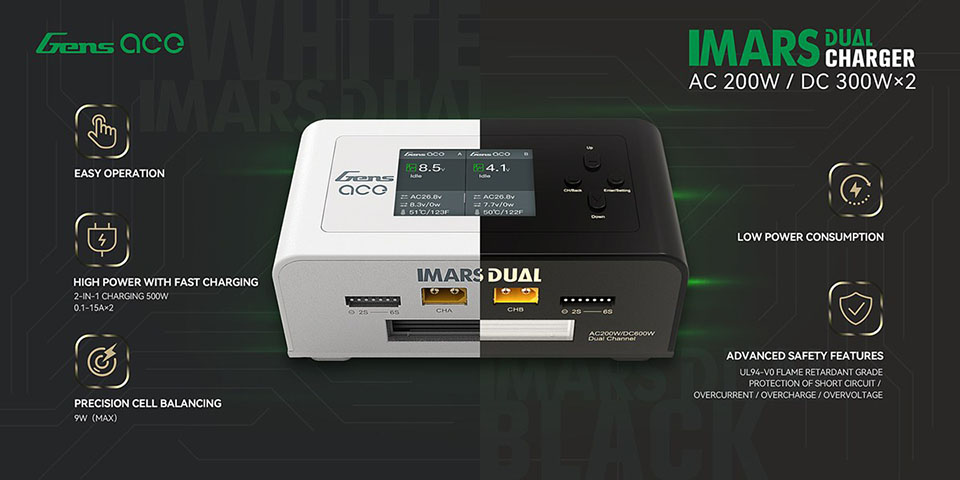

Gens ace Imars double charger for RC

Features:

1. Dual Channel AC/DC Smart Balance Charger - Europe Version
2. Small & Lightweight Portable Design with Wide IPS Display.
3. High charging power, capable of Max15 Amps charging power for one channel, worldwide 100V-240V voltage variety, AC 200 watts, DC 600 watts.
4. External discharge function.
5. Synchronous output, 2 in 1 fast charging.
6. Built-in DC power source for various devices.
7. Controlled heat dissipation system.
8. Temperature compensation function.
9. Advanced safety features, UL94-V0 flame retardant.
    Short circuit/over current/over charge/over voltage protection

Specifications:

-Dimensions: 145x76x62mm
-Net weight: 530g
-Input voltage: AC100-240V DC7-30V
-Output voltage: DC 1~30V
-Max. Input current: DC 30A
-Maximum discharging power: 15W*2 (main port 6W*2, balancing port 9W*2)
-Maximum charging power: 100W*2 DC 300W*2
-Charging current: 0.1-15A*2
-Discharging current: 0.1~ 3A*2
-Cell balancing: 1~6s
-USB output: 5V/2.4A
Display type: 2.4 inch IPS LCD display
-Supported battery chemistries: LiPo/LIHV/LiFe 1~6S; NiMH/Cd 1~16S
accessories included: AC input cable / XT60-T adapter / XT60-EC5 adapter / XT60-EC3 adapter
