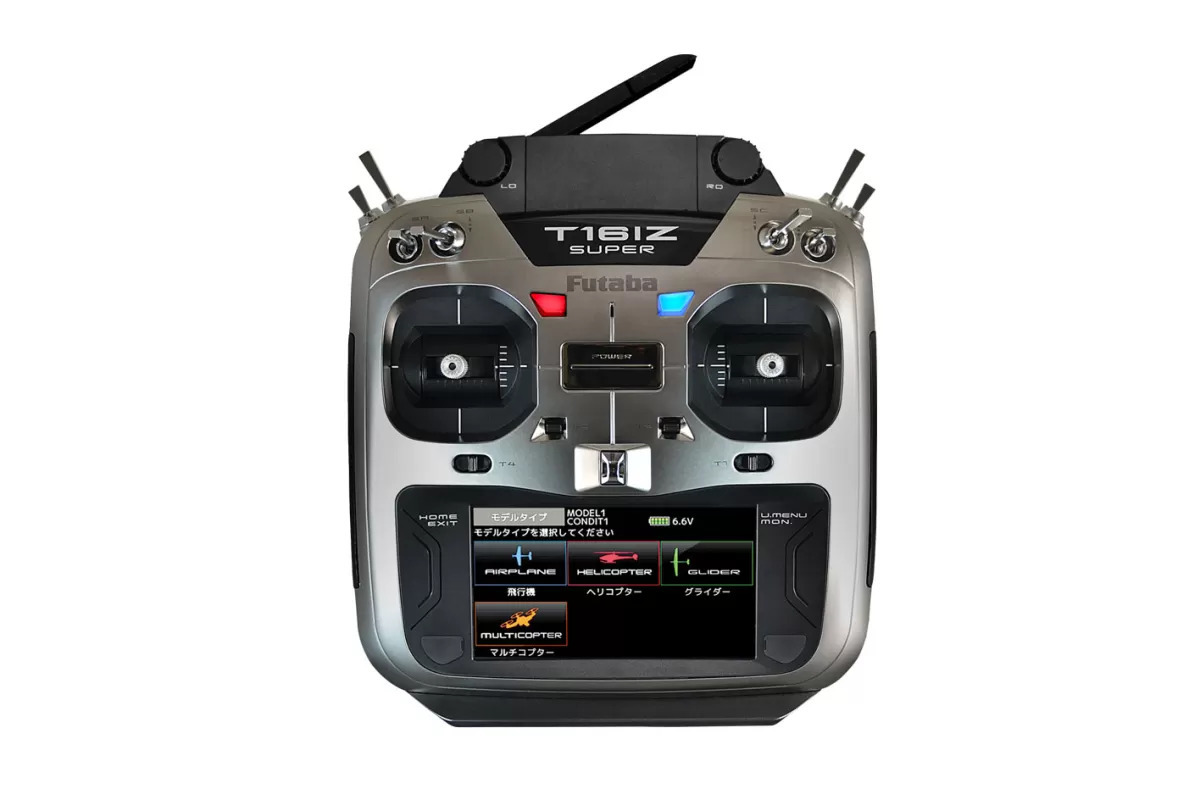

16IZS Transmitter – 18-Channel Computer System


2-Stick, 18-Channel, FASSTest 2.4 GHz System


FEATURES

FASSTEST SYSTEM:
The Futaba 16IZS transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.

S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

USB SIMULATOR CONTROL:
The T16IZS offers USB C compatibility for simulator control when used with Windows OS Joystick function.

COLOR TOUCH SCREEN LCD:
T16IZS has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

MULTI HOLDER:
T16IZS Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.

Voice Telemetry:
The Futaba T16IZS transmitter allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.

SECURE DATA (SD CARD):
Model data files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZS.

HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH):
The high capacity 2S Lithium Polymer battery gives you extended flight time.

EDITING:
The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.

FUNCTIONS:
The internal processor the response time. Most of the mixing functions are operated by curves which give you very precise settings.

STICK:
Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.

VIBRATION FUNCTION:
Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

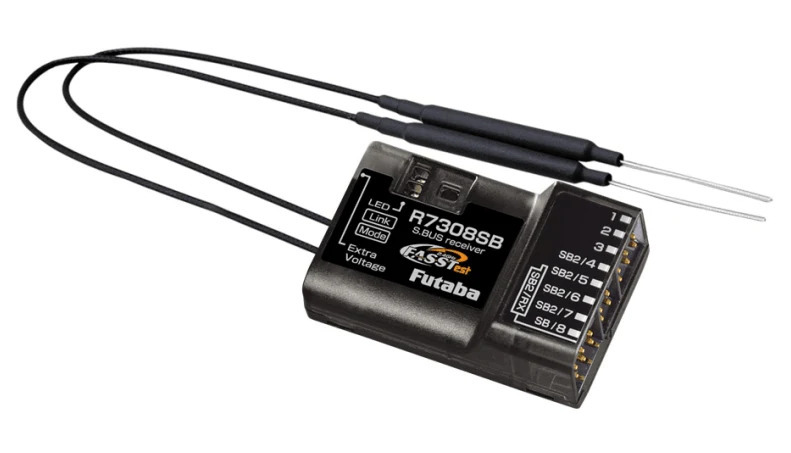

R7208SB:
The system comes with the R7208SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.


CONTENTS

YOUR FUTABA 16IZS TRANSMITTER (PACKAGED WITH A S.BUS RECEIVER) INCLUDES THE FOLLOWING COMPONENTS:

  • T16IZS Transmitter
    – Helicopter Version includes smooth throttle
  • R7208SB Receiver
  • LT2F2000B Lithium Polymer Battery and USB cable for charging
  • Neck Strap
  • Manual (Printed short version. Find full version here)

FUTABA 16IZS TRANSMITTER SPECS

TRANSMITTER FREQUENCY:
2.4 GHz band

OPERATING SYSTEM:
2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System

POWER SUPPLY:
7.4 V LT2F2000B Lithium-polymer battery

RF POWER OUTPUT:
100 mW EIRP


RECEIVER SPECS

R7208SB

SIZE:
24.9 x 47.3 x 14.3 mm
0.98 x 1.86 x 0.56 in

WEIGHT:
12.0 g
0.42 oz

POWER REQUIREMENTS:
6.6 V LiFe Battery

CURRENT DRAIN:
75 mA

RF POWER OUTPUT:
25 mW EIRP


Futaba 16IZS Transmitter Compatible Receivers*

S-FHSS PROTOCOL

  • R2008GS
  • R2008SB
  • R2106SB
  • R2001SB
  • R2000SBM

T-FHSS TELEMETRY PROTOCOL

  • R3001SB
  • R3004SB
  • R3006SB
  • R3008SB

T-FHSS MONO (NON-TELEMETRY)

  • R3206SBM
  • R3106GF

FASST7 AND FASST MULTI

  • R6004FF
  • R6008HS
  • R6014HS
  • R6016HF
  • R616FFM
  • R617FS
  • R6202SBW
  • R6203SB
  • R6208SB
  • R6303SB
  • R6303SBE

FASSTest12 and FASSTest18

  • R7003SB
  • R7006SB
  • R7008SB
  • R7108SB
  • R7014SB
SKU FUT16IZSR7308SBM2
Brand Futaba
Shipping Weight 1.8000kg
Shipping Width 0.260m
Shipping Height 0.180m
Shipping Length 0.270m
Shipping Cubic 0.012636000m3
