Futaba 12K S-FHSS and T-FHSS 12-channel 2.4GHz Radio with R3008SB 8 channel Rx

This is the Futaba 12K which combines first-class performance with incredible versatility to create a system that’s easy to operate, yet feature-packed! Available in systems perfectly matched for airplanes, helis and gliders, the 12K is also compatible with multi-rotors, so pilots get the best of all worlds. Equipped with the rock-solid Futaba S-FHSS and T-FHSS protocols, the 12K is compatible with almost a dozen different Futaba receivers to suit modelers' needs. The 12K can transmit and receive telemetry data via the T-FHSS protocol. Simply install Futaba telemetry sensors (sold separately) to monitor flight data, receive alerts while in flight and more. These sensors allow pilots to keep track of battery voltage, altitude, speed and other key flight functions. In addition to telemetry, the 12K can be used with S.Bus 2 gear to add multiple servos, gyros and more to set-ups with fewer cables. Pilots with non-telemetry set-ups can take advantage of the interference-free S-FHSS protocol. A large, backlit LCD screen, expandable 30-model memory, a 6V 1800mAh NiMH battery and charger are just a few more of the features the 12K has to offer.

FEATURES:

  • 14 channels (12 linear channels and 2 switches)
  • Compatible with T-FHSS and S-FHSS protocols
  • R3008SB 8 channel Receiver with telemetry capability
  • Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four digital trims and two push buttons for quick, easy access
  • Headphone plug, trainer port and S.Bus plug-in
  • S.Bus 2 system allows multiple servos, gyros and telemetry sensors with a minimum number of cables
  • Model types: six types of main wing with three tail types for airplanes, six swash types for helis and multi-rotor functions
  • Improved stick feel with adjustable lengths and tension
  • Included 6V 1800mAh NiMH battery and charger
  • Large, backlit LCD screen with adjustable contrast. Push/dial operation simplifies set-up

INCLUDES:

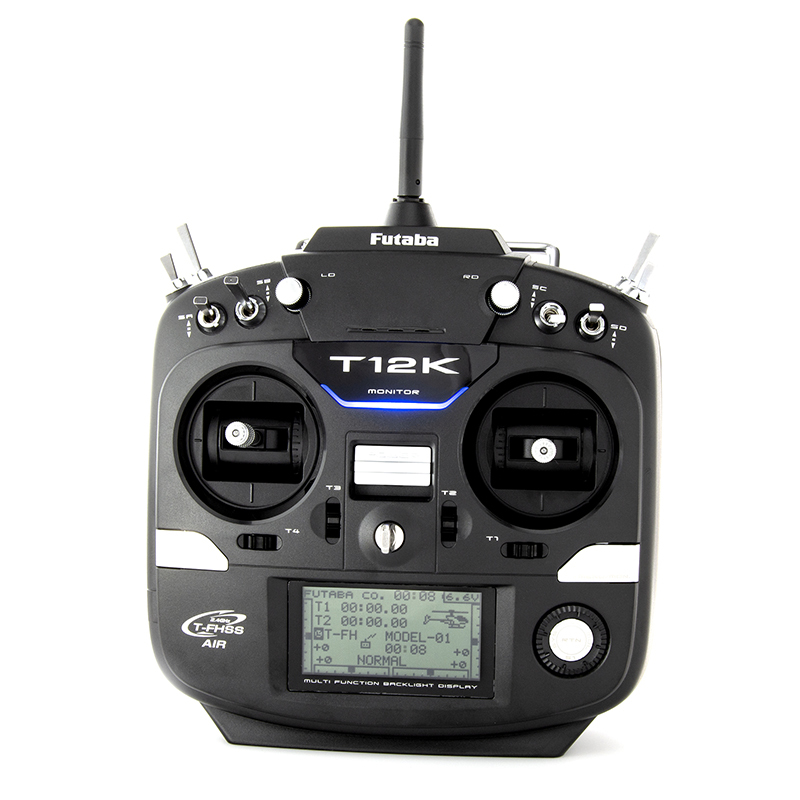

  • Futaba 12K 12-Channel Transmitter
  • R3008SB 8 channel Receiver with telemetry capability

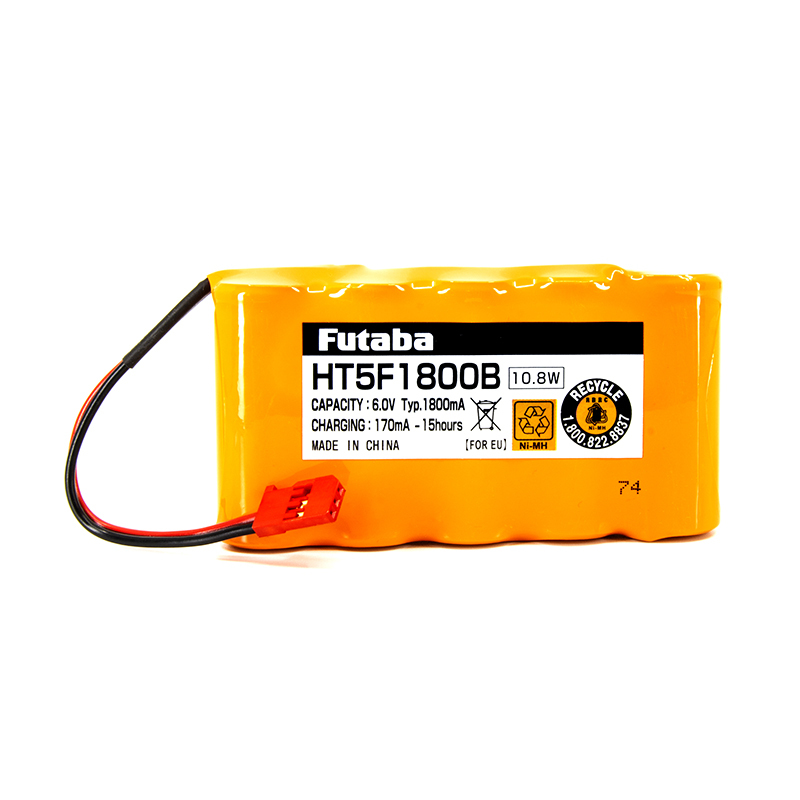

  • 6V 1800mAh NiMH battery and charger
  • Instruction Manual

PRODUCT SPECIFICATIONS:

Number of Channels

12

Modulation / Protocol

S-FHSS and T-FHSS

Band

2.4Ghz

Mode(s)

Mode 1-4 (Default Mode 2)

Model Memory

30 Aircraft

Display

Backlit LCD

Rotary Knobs

1

2-Position Switches

5

3-Position Switches

2

Slider Switches

None

Momentary Switches

1

Gimbals

Dual Ball Bearing

Telemetry

Yes

Voice Alerts

No

Memory Card Support

No

Data Port

No

Upgradeable Firmware

Yes with CIU-2 Interface (FUTM0951)

Trainer System

Yes (Wired)

Dual Rate / Expo

Yes

Throttle Cut

Yes

Servo Speed Adjustment

No

Battery

6V 1800mAh battery (included)

SKU FUT12KR3008SBM2
Brand Futaba
Shipping Weight 1.0000kg
Shipping Width 0.280m
Shipping Height 0.120m
Shipping Length 0.280m
Shipping Cubic 0.009408000m3
