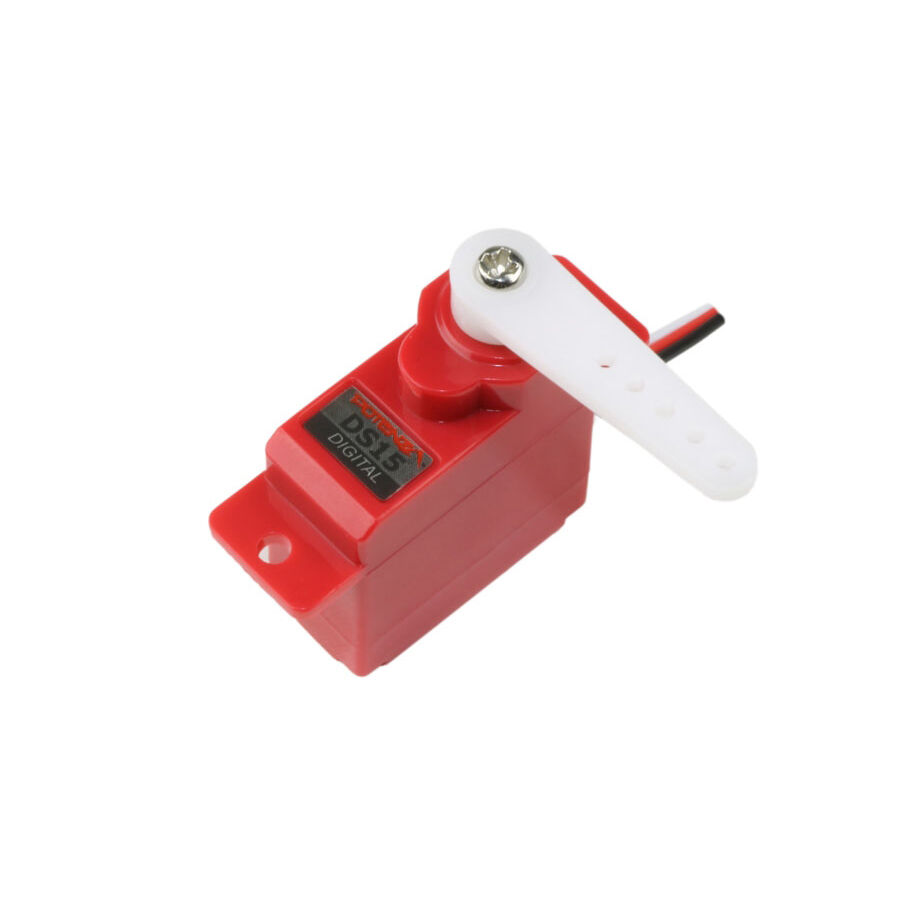

Flex Innovations FPZDS15 DS15 Sub-Micro Servo, 315mm Wire
SKU code: FPZDS15
Make 4 interest-free payments of $8.25 fortnightly and receive your order now.
HIGH PERFORMANCE SUB-MICRO SIZE DIGITAL METAL GEAR 15G SERVO
Featured in the Mamba 10G1, QQ Extra 300 G2.
Features
- Used for All flight surfaces of Mamba 10G1 and QQ Extra 300 G2.
- Metal gears for super durability.
- Low dead-band improved digital amplifier for strong and precise control
- Unbeatable value; compare these features, performance, and price
- Standard Servo Connector
- Optimized for 5v BEC operation
- 350mm Wire Lead
- Works as replacement for DS19
Specifications
Torque: 30 oz/in, 2.2 kg/cm @ 5.5V
Speed: 0.13 sec/60º @ 5.5V
Case Length: 1.02 in, 26 mm
Overall Length: 1.50 in, 38 mm
Case Height (Bottom of Case to Bottom of Mounting Ears): 0.71 in, 18 mm
Overall Height: 1.26 in, 32 mm
Width: 0.47 in, 12 mm
Weight: 0.60 oz, 17g
Motor Type: Coreless
Operating Voltage: 5.0-6.0V
SKU | FPZDS15 |
Barcode # | 0781171816699 |
Brand | FLEX Innovations |
Shipping Weight | 0.0400kg |
Shipping Width | 0.110m |
Shipping Height | 0.040m |
Shipping Length | 0.140m |
Shipping Cubic | 0.000616000m3 |
