Product Information

Designed by Jase ‘The Ace’ Dussia, a 3-time XFC and Tucson Aerobatic Shootout Freestyle champion, the Edge 540 FP 5E is inspired by the aircraft he flew to victory at the 2023 Del Norte Fly Fest: the Flex Innovations Edge 540 120cc. The Edge 540 FP 5E embodies the extremely wide flight envelope of its larger counterpart. From forgiving and predictable low-and-slow characteristics to rapid extreme aerobatics (XA), the Edge 540 FP 5E delivers! Paired with the proven and powerful T-Motor AM40 and equipped with quick and durable Potenza DS17HV servos, the Edge is built to last and perform.

Flex Innovations FP Series

Flex Innovations is thrilled to introduce the Foam Profile (FP) line of aircraft. For years, profile foam aircraft have attracted modelers of all types due to their combination of enjoyment and durability. Now, Flex has committed to revolutionizing this type of aircraft by combining high level performance and equipment with a simple PNP style assembly process. This line focuses on accessibility and compatibility for pilots of all experiences and skill levels. From basic flight practice to high performance aerobatic demand, the FP line will satisfy the needs of all. Additionally, the EPP/carbon fiber construction allows for rigidity in flight and easy repairs. From indoors to outdoors, this line of aircraft offers ease of assembly, transportation, maintenance, and much more!

Features

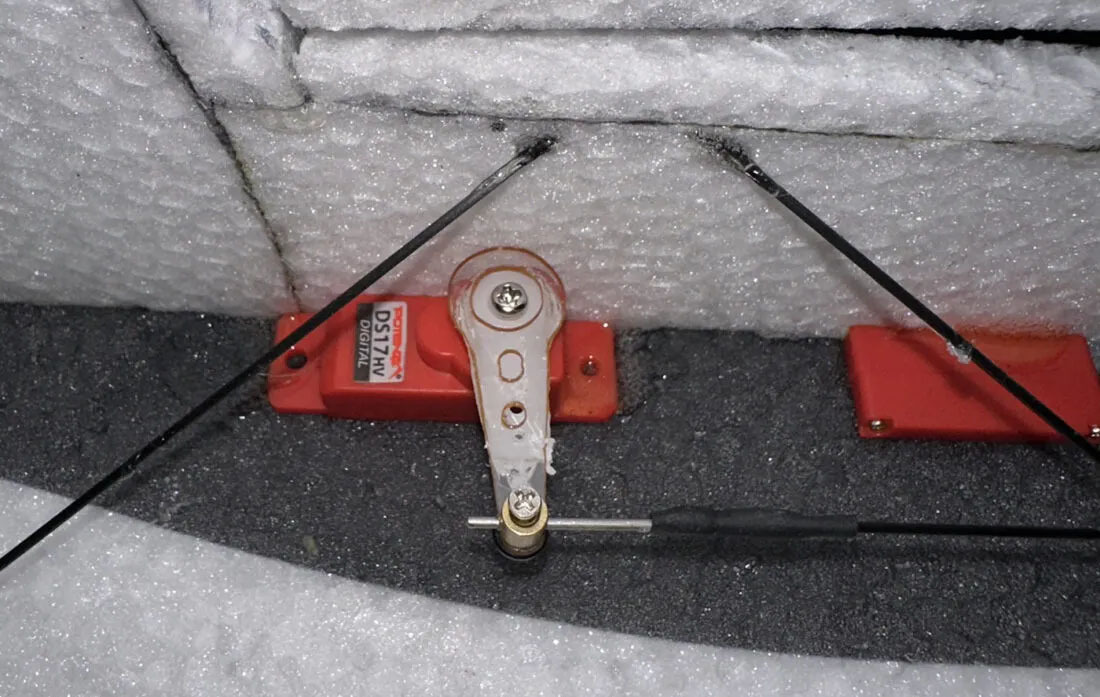

  • 3 – DS17HVB High Voltage Metal Gear Servos
  • T-Motor AM40 1850KV Motor
  • T-Motor AT-20A ESC
  • All possible Carbon Fiber rigging
  • Genuine APC 9×4.1SF 3D Propeller
  • Jinqiang JQ-2118 building adhesive INCLUDED!
  • 6mm EPP construction
  • Next-Gen Carbon Fiber Construction
  • Precise Aerobatics with nearly zero control coupling
  • Incredible looks and performance based on the Flex Edge 540 120cc design
  • Custom control horns for optimized throw and precision

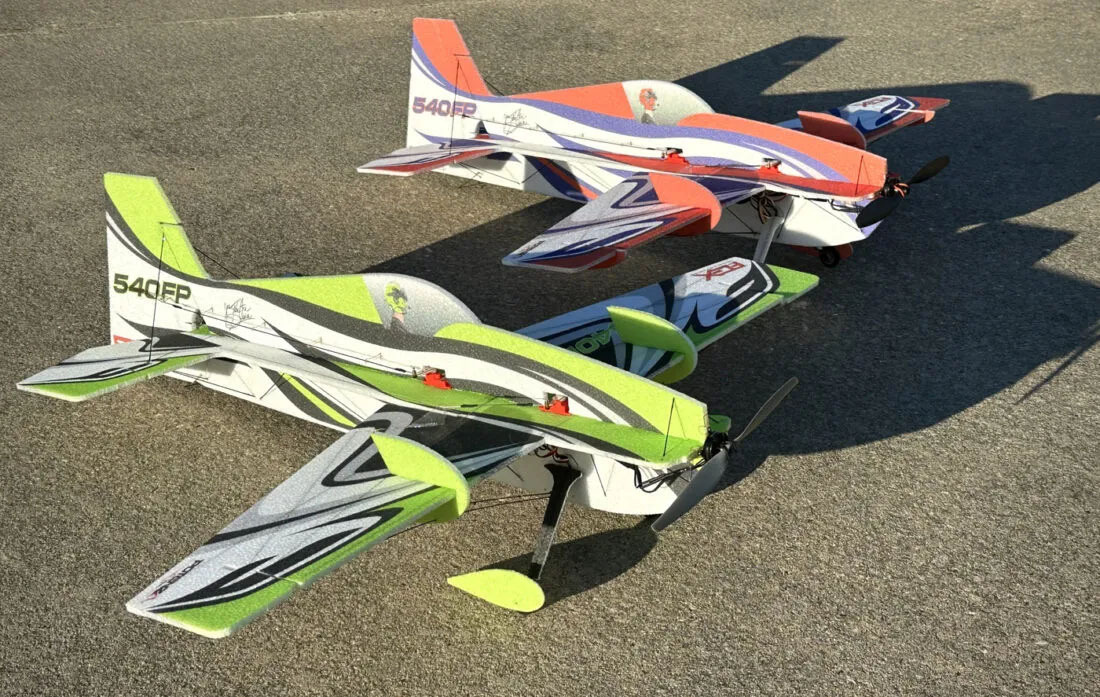

  • Available in two attractive Clint Sweet Design Trim Schemes

What you need

  • 2S 600mAh 45C+ LiPo Battery
  • 4 Channel Computer Radio recommended (5 Channel radio required if Aura 5 is used)
  • Compatible battery charger
  • Medium CA
  • Contact Adhesive

Specs

Length: 34.00 in. (838.2 mm)
Wingspan : 33.00 in. (812.8 mm)
Weight: Aprox 7.05oz (Aprox 195g)
Channels: 4 (5 with Aura 5 Lite)

User Manual Flex Inovations Edge 540 FP

Video

SKU FPM5270B
Brand FLEX Innovations
Shipping Weight 4.0000kg
Shipping Width 0.440m
Shipping Height 0.170m
Shipping Length 1.060m
Shipping Cubic 0.079288000m3
