Introduction

The Spektrum Firma 1/24th Brushless ESC + Motor Combo is a great choice for micro crawlers and more running on 2S LiPo power. It features a high-precision magnetic encoder and rotor position sensor that provides excellent 1 to 1 control feel when driving at any speed and at any angle. Perfectly suited for trail driving and rock crawling competitions. This advancement in sensored motor control allows the ESC to match the throttle input to the motors RPM with unmatched precision. This combo is specifically designed for the Axial® SCX24 & AX24 platform to provide the ultimate performance for maximum power and realism. Preinstalled with 2mm bullet connectors for easy installation.

Download Firma 8A Sensored Brushless ESC / Motor Combo Manual HERE

Features

  • Reliable 4500Kv Sensored Brushless Motor with excellent slow speed control and smooth operation
  • Drop-in conversion to all Axial 1/24th Scale SCX24 & AX24 RTR vehicles.
  • *Note: Axial SCX24 vehicles equipped with HRZ00014 2-in1 Receiver and HRZ00015 transmitter requires an SLT3 Transmitter and receiver upgrade for functionality. Please refer to the manual for more information. (2021 Ford Bronco, Jeep GT Gladiator, and Jeep Wrangler will require this upgrade)
  • All included – includes motor, ESC, sensor wire and pinion gears
  • Crawler Mode: Forward and instant reverse with drag brake
  • 8 Amp (40 Amp Burst) 1-2S Compatible ESC
  • Compact Size and Ready to Install
  • JST PH 2.0 connector to fit the Dynamite 7.4V 350mAh 2S Lipo Battery
  • Durable design and maintenance-free over brushed motors
  • Optimized for efficiency and longer run times

UPGRADE FOR AXIAL SCX24

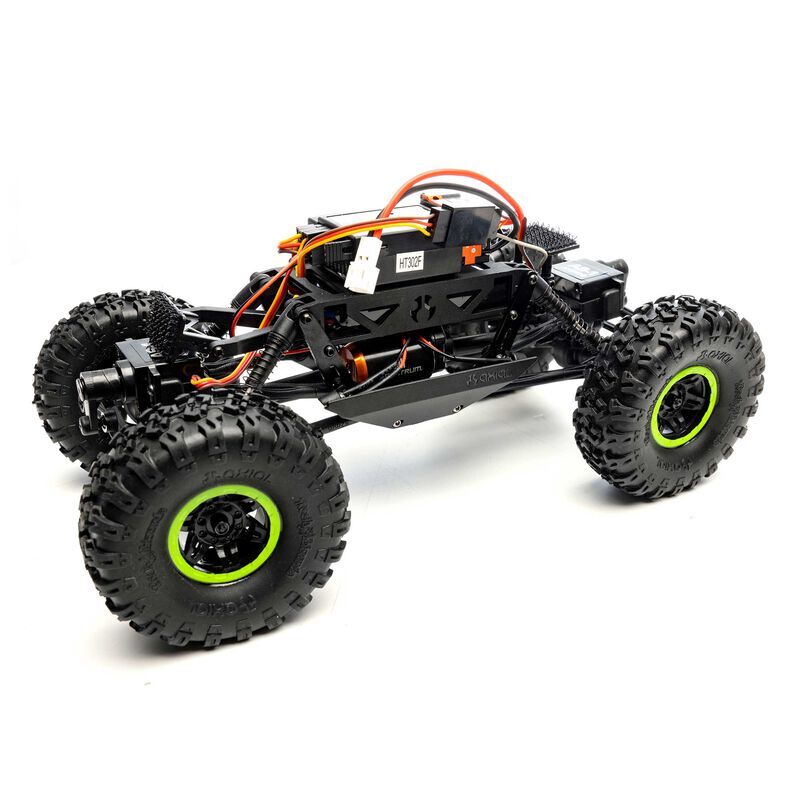

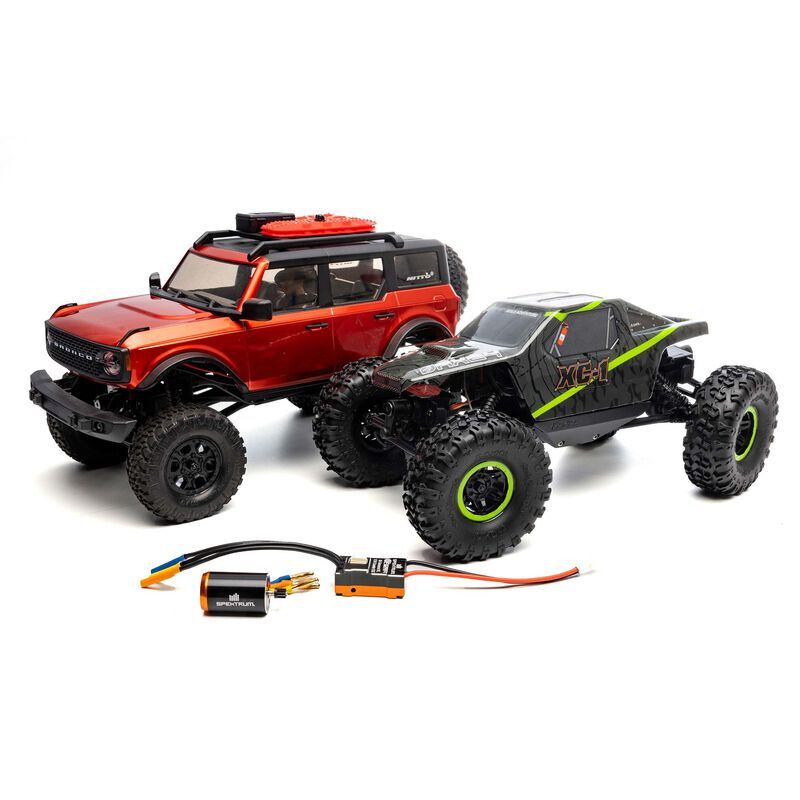

DROP-IN UPGRADE FOR AXIAL SCX24 & AX24 VEHICLES

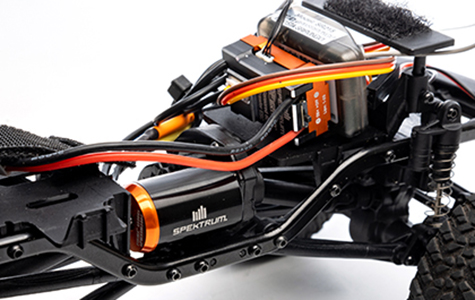

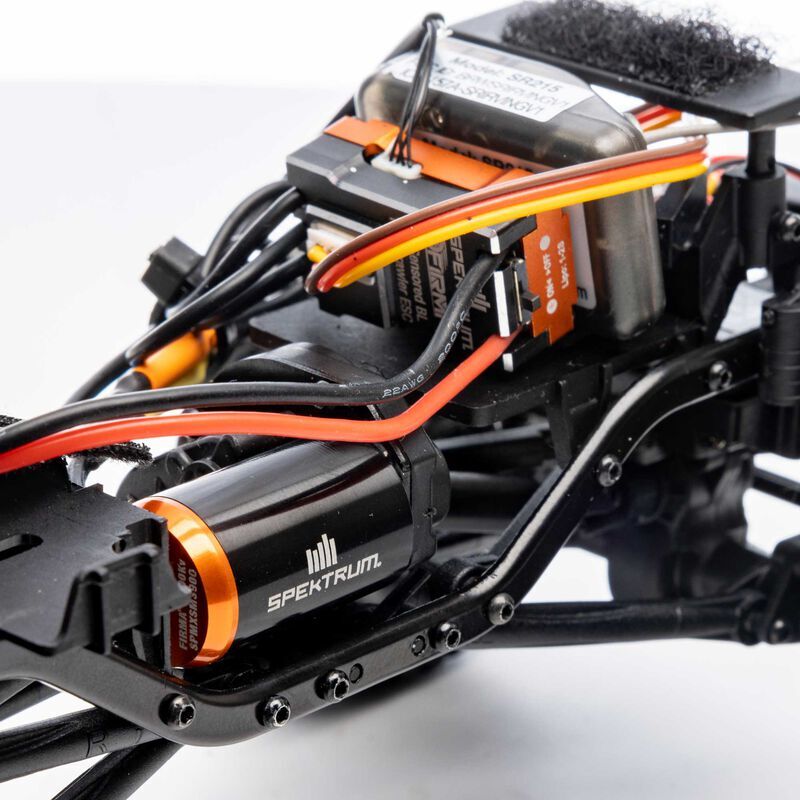

The Spektrum Firma 1/24th Scale Sensored Brushless motor and ESC provides Axial SCX24 & AX24 enthusiast with a drop-in motor & ESC system to take their crawling to the next level.

The all-new AS3X+

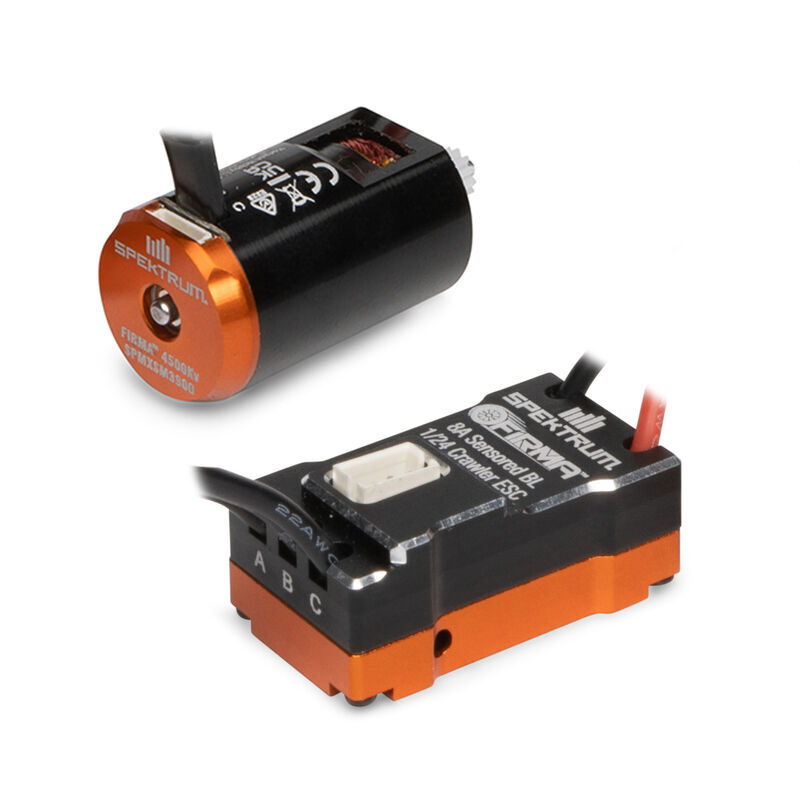

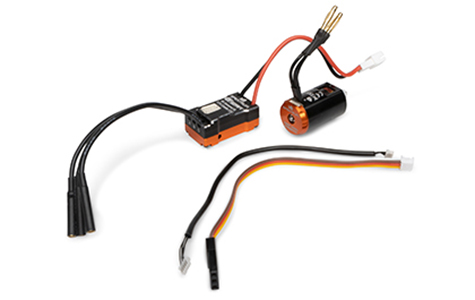

ALL-INCLUDED

System includes motor, ESC, sensor wire and pinion gears and is preinstalled with 2mm bullet connectors and JST PH 2.0 battery connector to fit the Dynamite 7.4V 350mAh Lipo battery included with the Axial SCX24 & AX24 vehicles.

Video

Product Specifications

Auto Cutoff

Yes

BEC

Yes

BEC Continous Current

0.3A

BEC Voltage

5V

Brakes

Integral with ESC

Connector Type

PH 2.0 (High-Current Ultra Micro)

ESC Type

Brushless Sensored

Forward

Yes

Input Voltage

1 - 2S LiPo

Low-Voltage Cutoff Programmable

No

Maximum Burst Current

40A

Maximum Continuous Current

8A

Motor Type

Brushless Sensored

Number of Poles

2

Outer Diameter

0.6" (15 mm)

Output Connector

2mm Bullet

Overload Protection

Yes

Product Height

0.46" (12 mm)

Product Length

1.05" (27 mm)

Product Weight

10g ESC / 16g Motor

Product Width

0.6" (15 mm)

Programmable

No

Reverse

Yes

RPM/Volt (Kv)

4500

Sensored

Yes

Water-Resistant

No

SKU SPMXSEMC18
Barcode # 0605482172124
Brand Spektrum
Shipping Weight 0.6000kg
Shipping Width 0.060m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000288000m3
