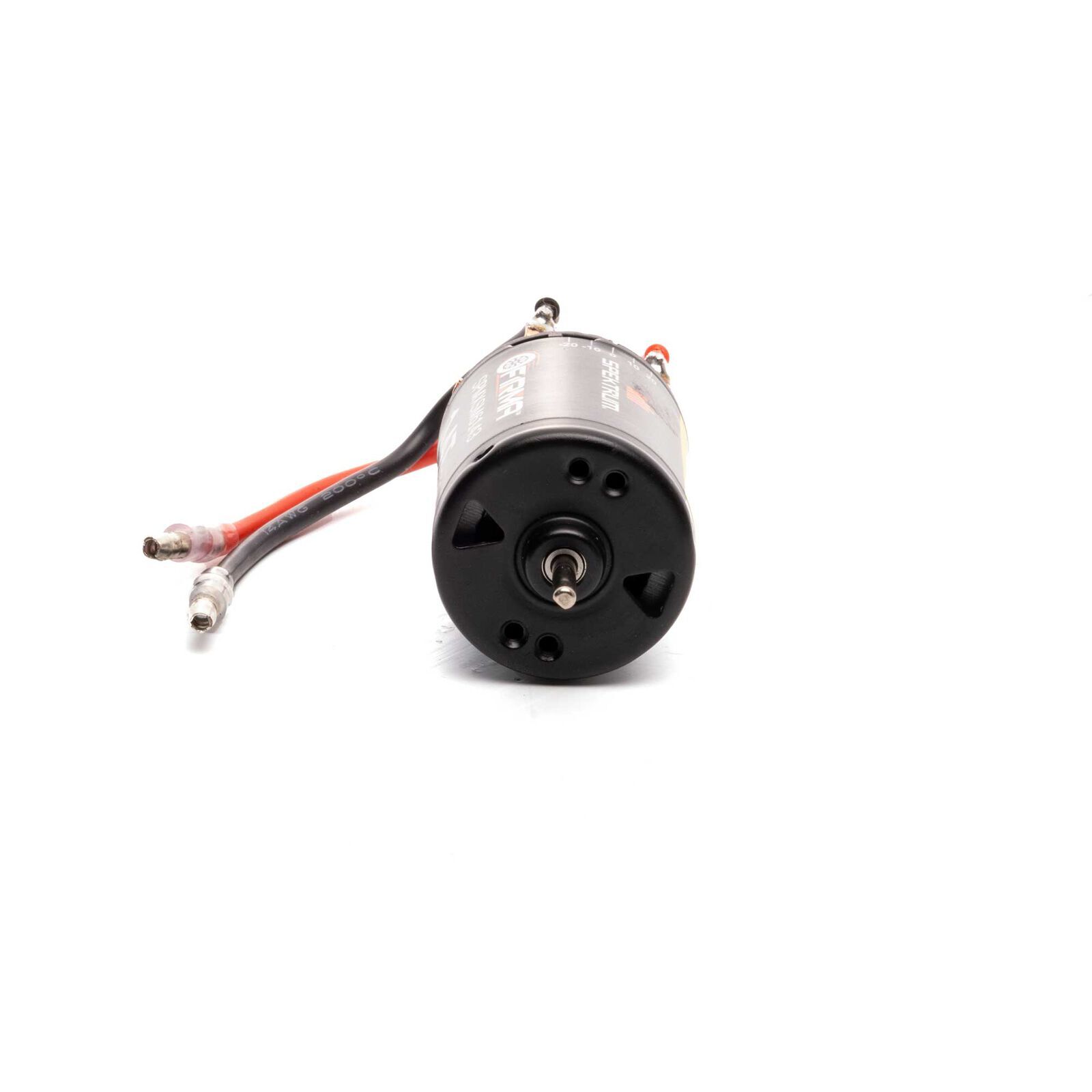

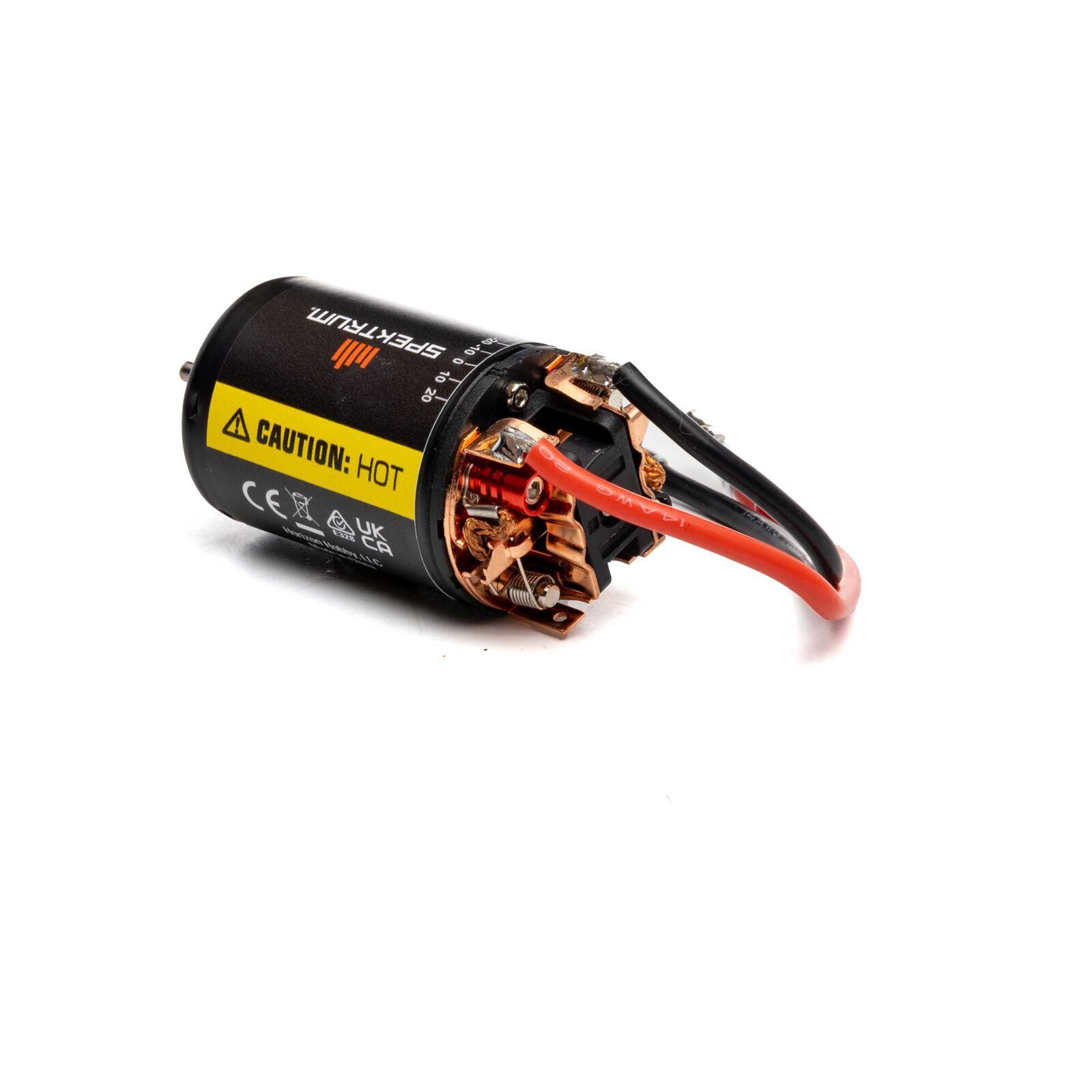

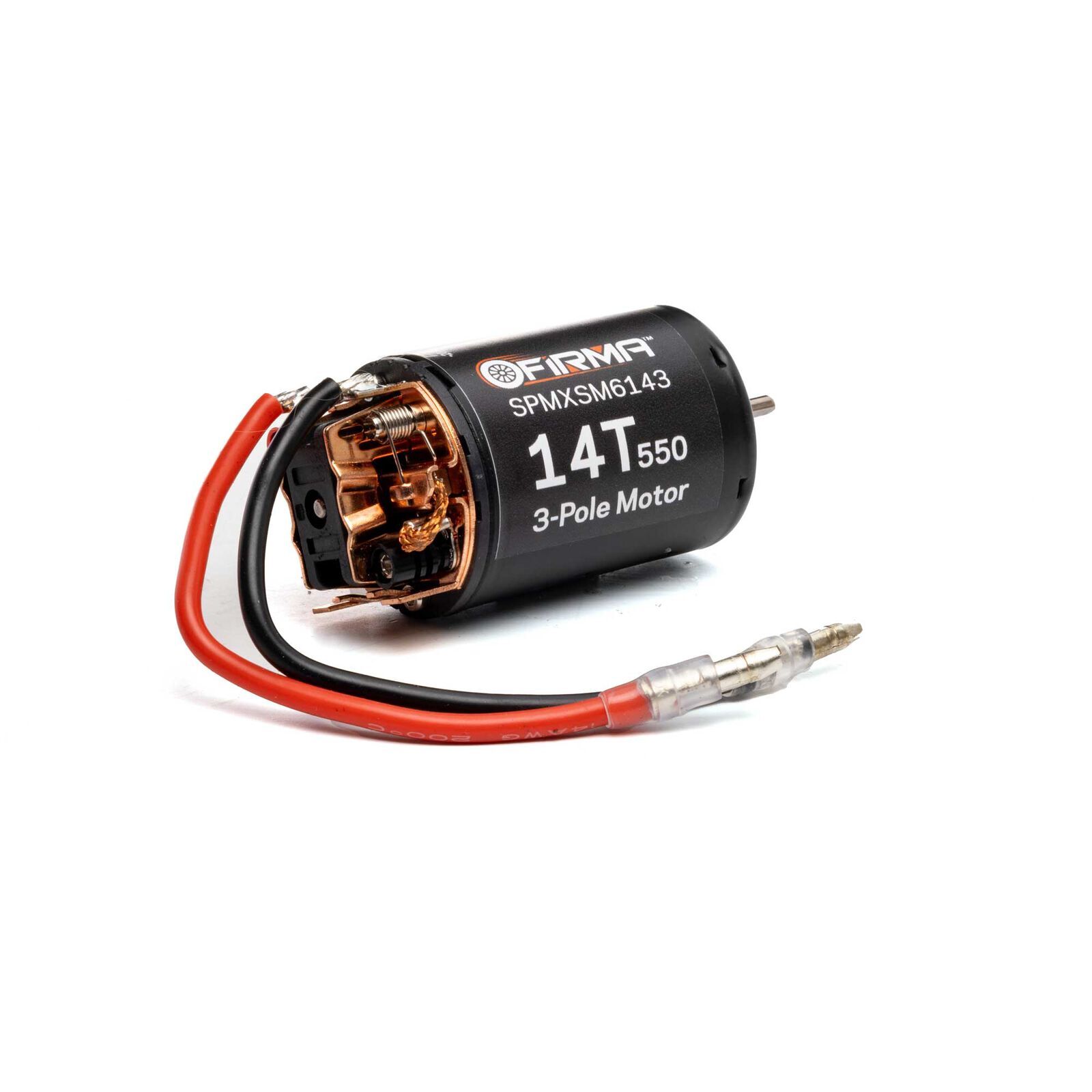

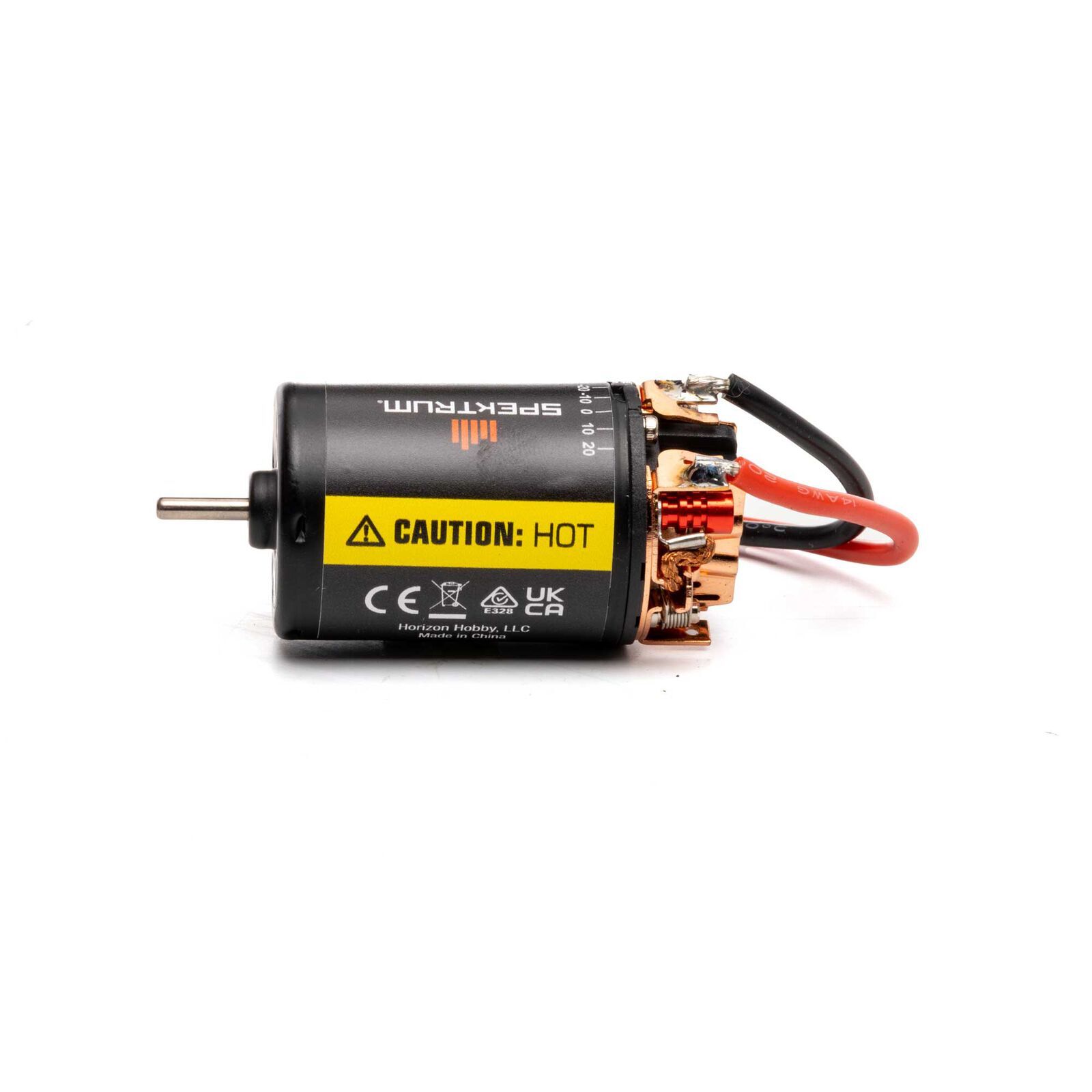

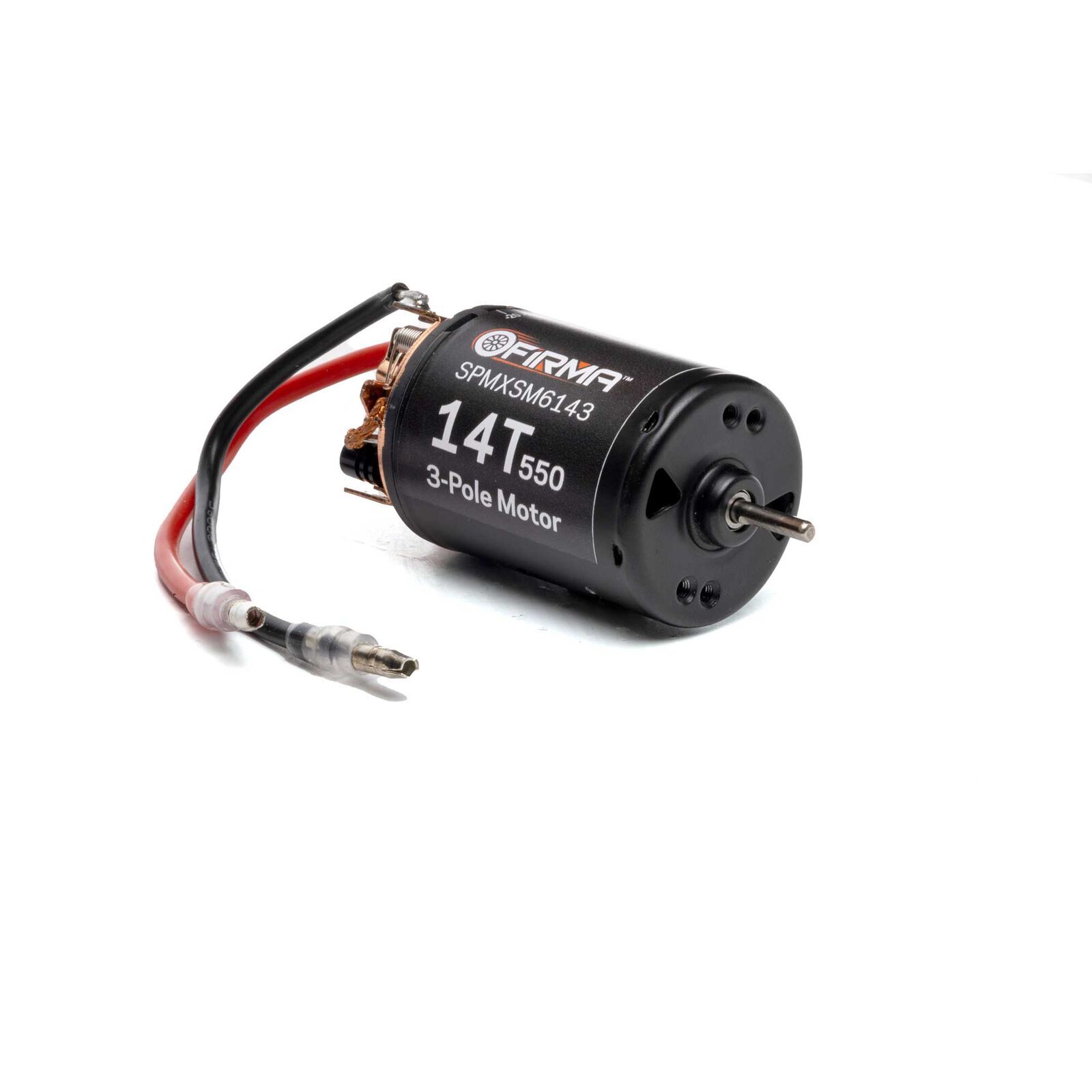

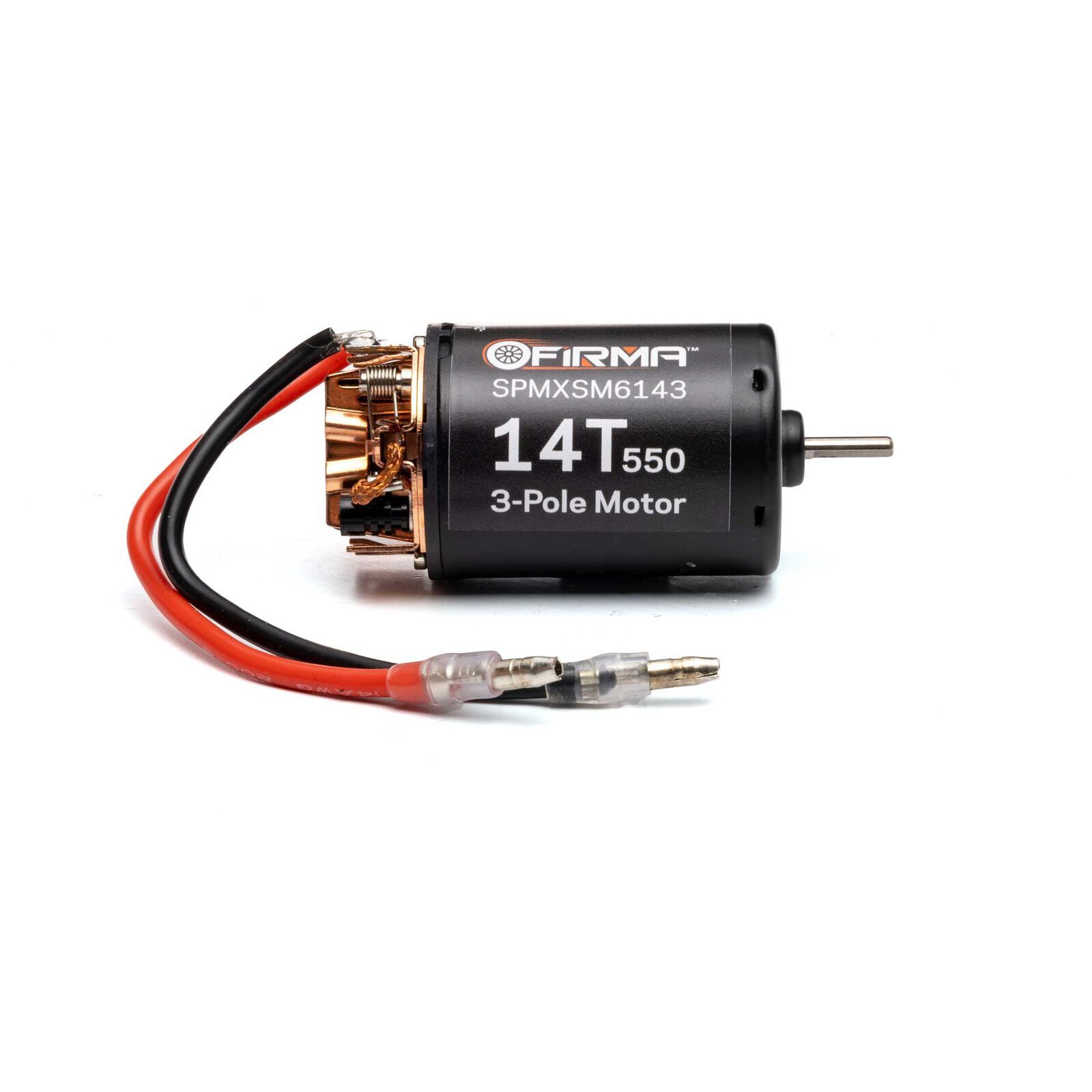

Firma 14T Rebuildable 550 3-Pole Brushed Motor
SKU code: SPMXSM6143
Make 4 interest-free payments of $16.00 fortnightly and receive your order now.
Take To The Track And Trails With Confidence
The Spektrum Firma 3-Pole Rebuildable 550 Brushed Motors offer an impressive low-cost upgrade for brushed esc equipped 1/10th scale on-road, off-road, and crawler vehicles. Featuring a fully rebuildable design, impressive torque and speed, and excellent efficiency.
Key Benefits
- More Torque: Larger 550 size motor produces the highest amount of torque possible
- 3-Pole Design: Industry standard design for max torque and efficiency
- Fully Rebuildable: Easy to replace parts for simple maintenance and increased motor lifespan
- Adjustable Timing: 0 to 20 degree timing adjustments for expert level tuning and increased performance
Features
- Available in 12, 14, and 35 Turn configurations
- 550 can size – perfect upgrade for most 1/10th scale vehicles
- Adjustable timing for clockwise and counterclockwise motor rotation
- Pre-shaped curved face brushes – No break-in period required!
- Wires and 4mm bullets installed – No soldering required!
- Fully rebuildable with an easily accessible commutator and replaceable brushes, springs, and bearings
- Metal shielded ball bearings
Product Specifications
Turns | 14T |
Outer Diameter | 1.4" (36 mm) |
Motor Type | Brushed |
Adjustable Timing | Yes |
Application | 1/10 Scale On-road / Off-road |
Number of Poles | 3 |
Product Weight | 211g (7.44 oz) |
Shaft Diameter | 0.125" (3 mm) |
Water-Resistant | No |
Connector Type | 4mm Bullet |
Motor Size | 550 |
Product Length | 2.3" (58 mm) |
Bushing Or Bearing | Bearing |
Forward | Yes |
SKU | SPMXSM6143 |
Barcode # | 0605482183830 |
Brand | Spektrum |
Shipping Weight | 0.6000kg |
Shipping Width | 0.100m |
Shipping Height | 0.060m |
Shipping Length | 0.120m |
Shipping Cubic | 0.000720000m3 |
