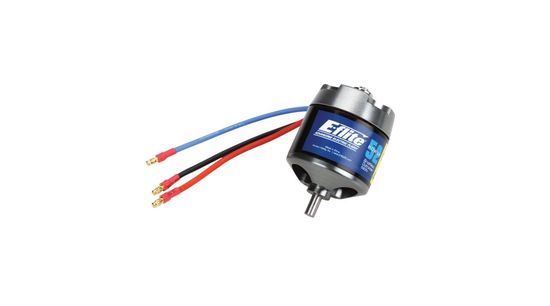

E-Flite Power 52 Brushless Outrunner Motor, 590Kv EFLM4052A
SKU code: EFLM4052A
Make 4 interest-free payments of $56.25 fortnightly and receive your order now.
Key Features
- Equivalent to a 46- to 55-size glow engine for 5.00- to 7.50 lb (2.20 – 3.40 kg) airplanes.
- Ideal for 40- to 50- size 3D airplanes up to 6.00 lbs (2.70 kg)
- Ideal for models requiring up to 1650 watts of power
- High-torque, direct drive alternative to inrunner brushless motors
- Includes mount, prop adapters and mounting hardware
- Quiet, lightweight operation
- External rotor design 6mm shaft can easily be reversed for alternative motor installations
- High-quality construction with ball bearings and hardened steel shaft
- Slotted 14-pole outrunner design
Needed To Complete
80-Amp brushless ESC
4S–6S Li-Po or 14- to 16-cell Ni-MH/Ni-Cd Battery
14 x 7 to 12 x 8 Propeller
Overview
Designed to deliver clean and quiet power, the Power 52 Brushless Outrunner Motor, 590Kv is designed for 40- to 50-size sport and scale airplanes, 40- to 50-size 3D airplanes, as well as models requiring up to 1650 watts of power.
Adjustable Timing: | No |
Cells: | 14â20 Ni-MH/Ni-Cd or 4â6S Li-Po |
Connector Type: | 4mm Bullet |
Idle Current (Io): | 2.3A @ 18.5V |
Input Voltage: | 14.8â22.2V |
Input Watts: | Up to 1650 |
Motor Type: | Brushless Sensorless Outrunner |
Overall Diameter: | 2.00 in (50mm) |
RPM/Volt (Kv): | 590 |
Recommended Prop Range: | 4S: 14 x 7 - 15 x 8; 5S: 13 x 8 - 15 x 7; 6S: 11 x 10 - 12 x 8 |
Recommended Speed Control: | 80-Amp |
Resistance: | 0.016Ω |
Shaft Diameter: | 6mm |
Shaft Length: | 3.1 in (80mm) |
Size: | Equivalent to or surpassing the power of a 50- to 55-size 2-stroke glow engine |
SKU | EFLM4052A |
Barcode # | 0605482053683 |
Brand | E-Flite |
Shipping Weight | 0.6000kg |
Shipping Width | 0.080m |
Shipping Height | 0.080m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000640000m3 |
