Key Features

  • Strut diameter: 4mm

Detailed Information

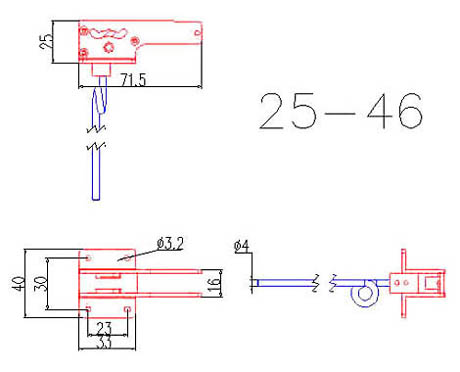

25-46 Size Main Retract Units (mm)

Specifications

  • Current draw Idle: 5mA Operating: 900mA (maximum)
  • Pulse width trigger points Down: 1.331ms Up: 1.690ms
  • Operation with FM and DSM FM: 22ms frame rate, 5V signal DSM: 20ms frame rate, 3.3V signal
  • Sequence time @4.8V 2.75sec @6.0V 2.50sec @7.4V 2.25sec
  • Operating voltage range 4.8—7.4V
  • Aircraft weight 5.00–9.50 lb (2.25–4.30 kg) Unit weight Nose gear: 3.5 oz (99.5 g) Main gear: 2.8 oz (79.5 g) each



SKU EFLG310
Barcode # 0605482009857
Brand E-Flite
Shipping Weight 0.8000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.300m
Shipping Cubic 0.002400000m3
