Product Details

In The Box

• (1) E-flite® EC-1500 Twin 1.5m
• (1) Spektrum™ Servo (installed)
• (7) Spektrum Metal-Geared Servos (installed)
• (2) Spektrum Brushless Outrunner Motors (installed)
• (1) Spektrum Avian™ Dual 40A Brushless Smart Lite ESC (installed)
• (1) Spektrum AR8360T 8-Channel Receiver (installed)
• (1) E-flite® EC-1500 Twin 1.5m Product Manual

Needed to Complete

• (1) Full-range 6–8+ Channel Spektrum™ DSMX®/DSM2® Compatible Transmitter
• (1) 3S 11.1V or 4S 14.8V 3200–6400mAh LiPo with EC3™ or IC3™ Connector
• (1) Compatible LiPo Charger

EC-1500 EFL15750 user Manual Download

Overview

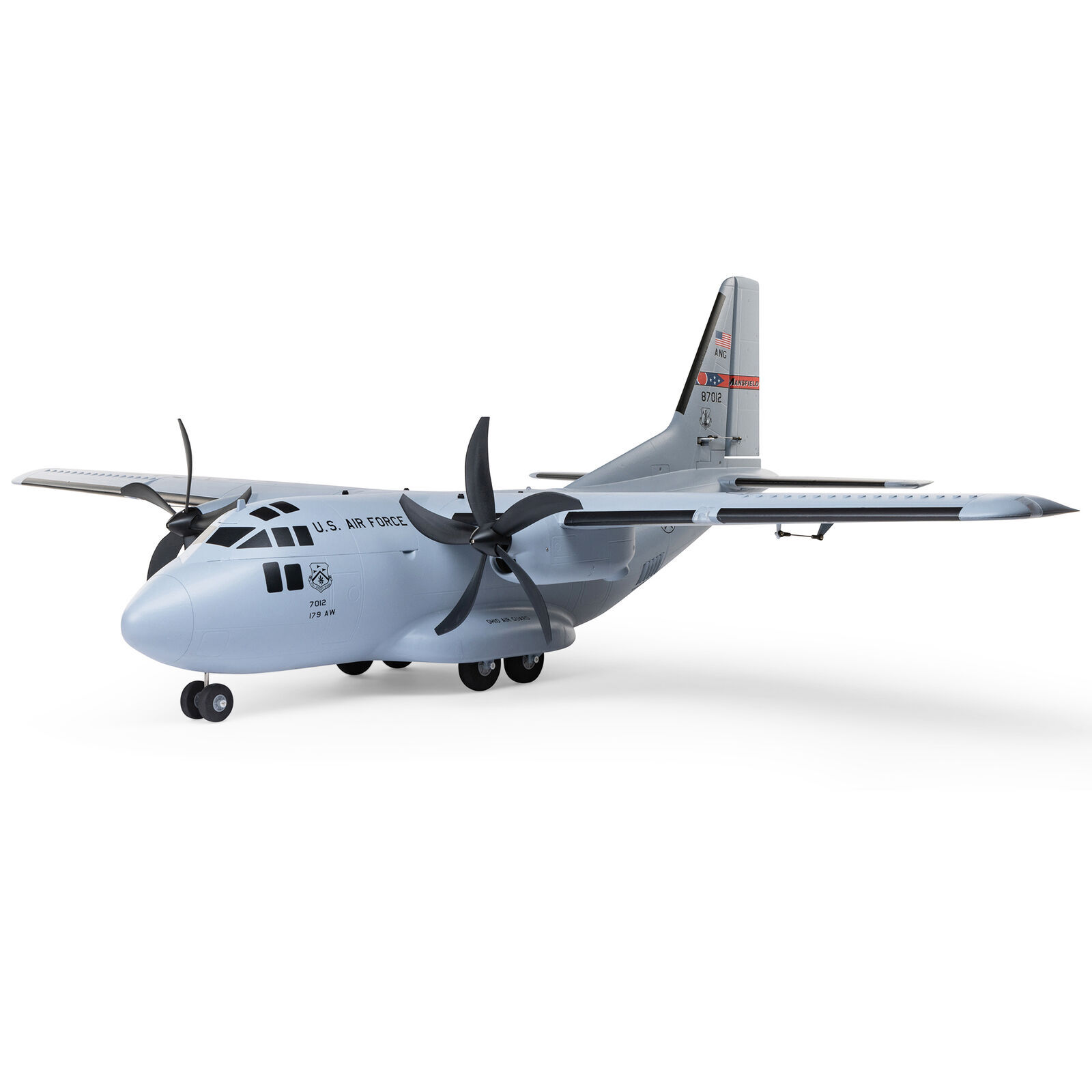

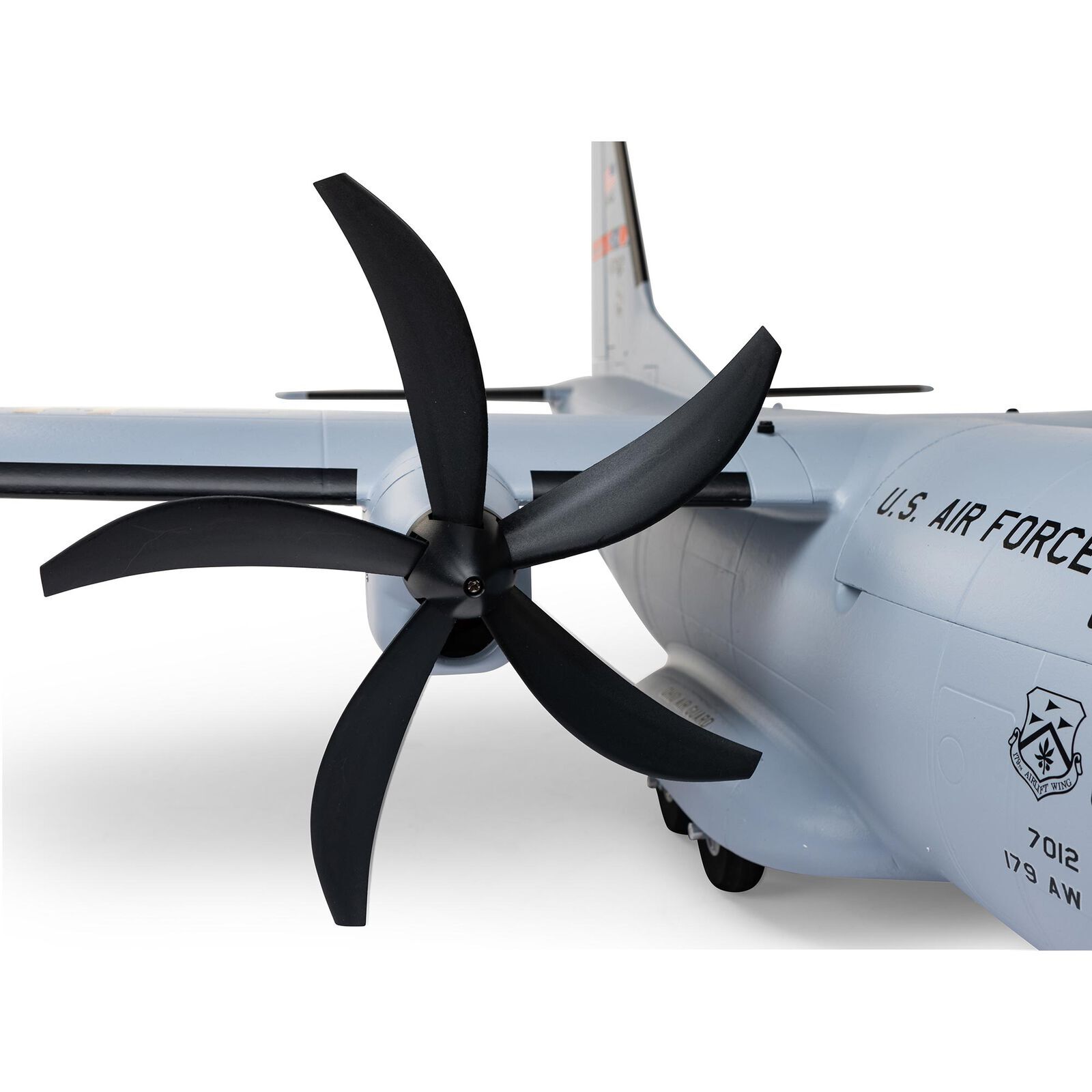

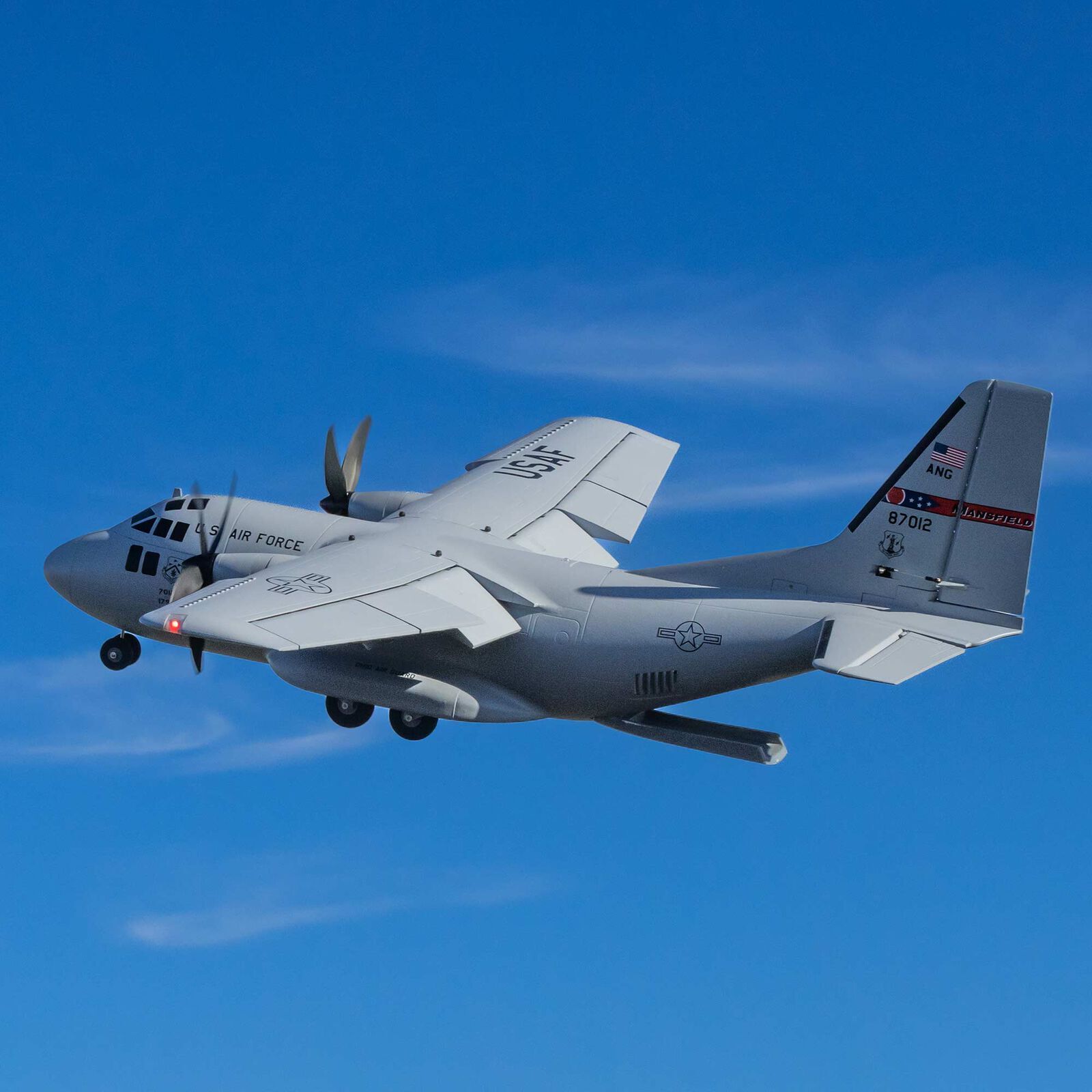

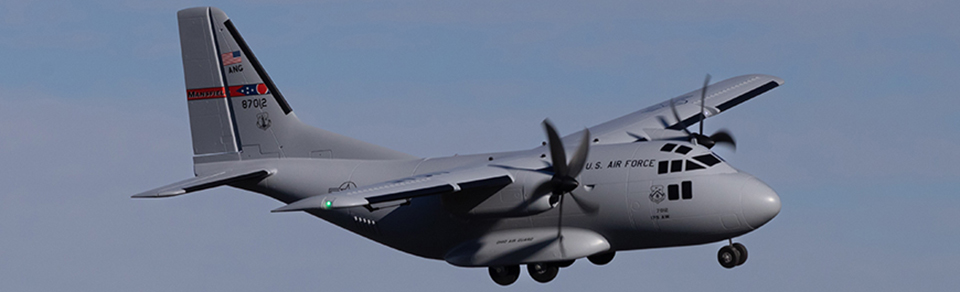

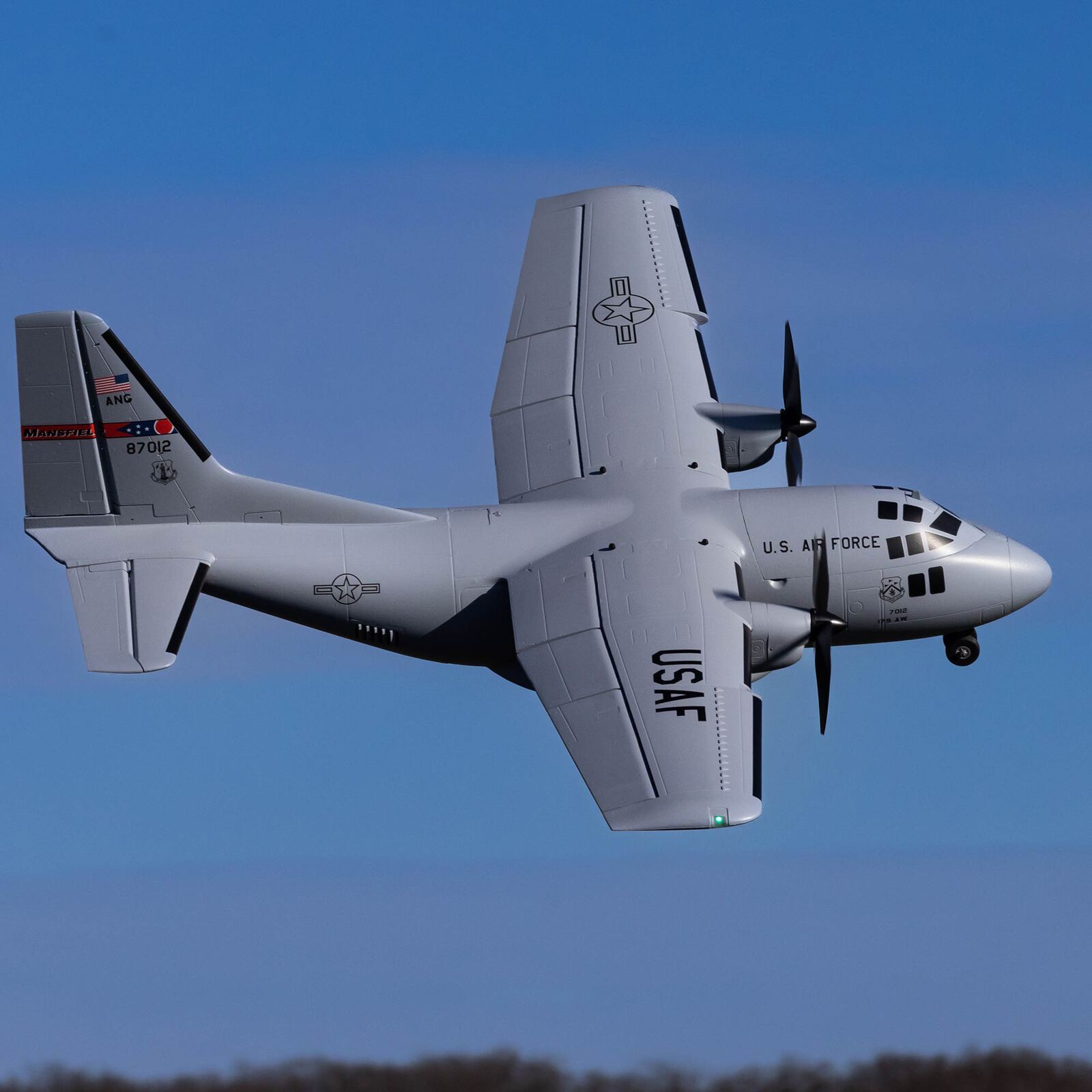

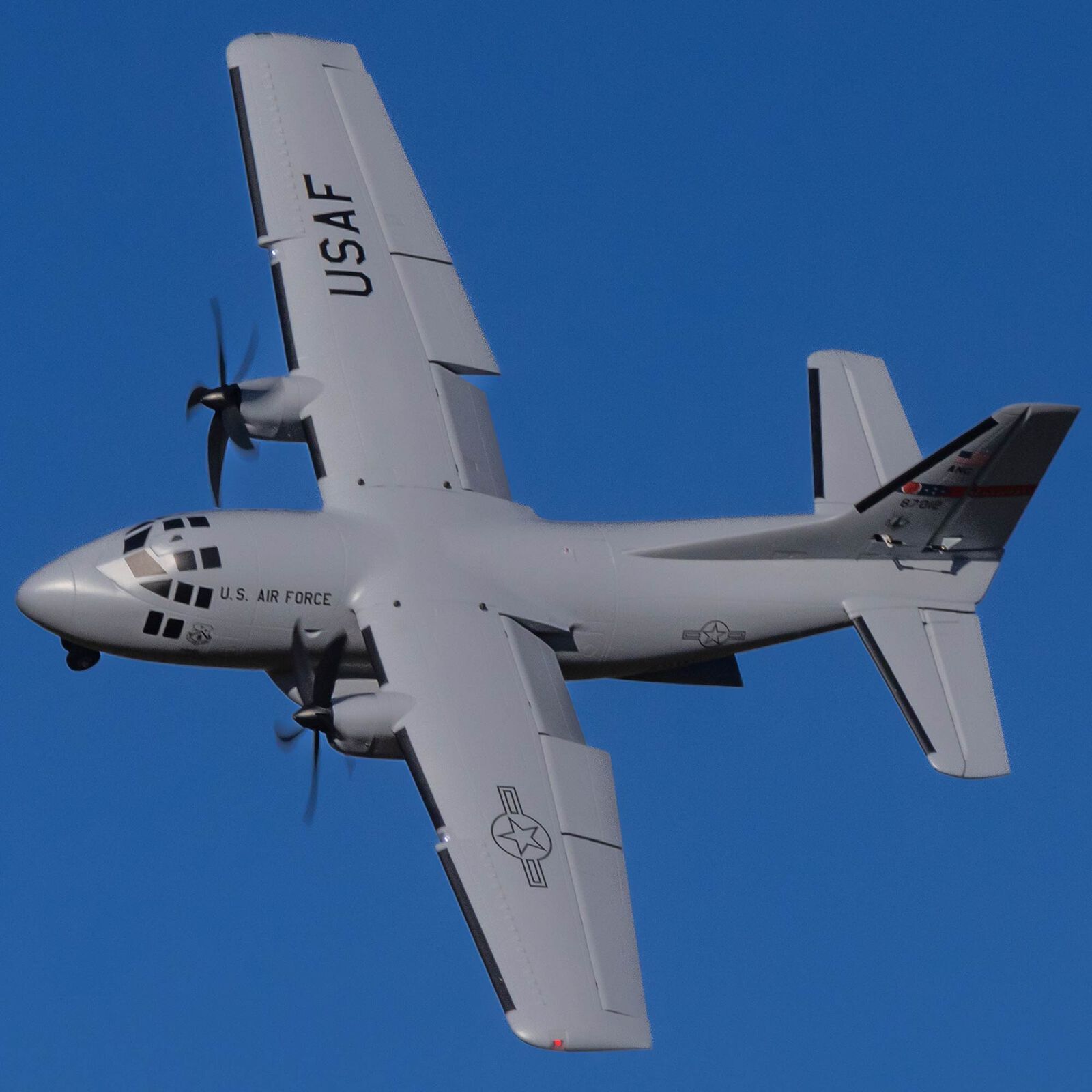

This updated and upgraded E-flite^® EC-1500 Twin 1.5m features a ground-up design optimized for capability, versatility, and FUN to deliver a flying experience you simply can't get with any other airplane! It's effectively many airplanes in one, with a wide flight envelope that includes slow and scale-like to sport flying and even aggressive 3D aerobatic capability. The twin power systems feature brushless outrunner motors with custom five-blade counter-rotating propellers – including updated design bolt-to-the-motor prop adapters for easier and much more secure prop installation. This setup delivers excellent performance with a 3S 3200–6400mAh LiPo battery, or you can install a 4S battery for the power to hover and unlimited vertical capability — without modifications or upgrades! Plus, the motors are matched to an exclusive 40-amp Spektrum^™ Avian^™ Dual Smart ESC that can provide a variety of real-time power system-related telemetry data with Smart and non-Smart batteries via compatible receivers (including the AR8360T installed in the BNF^® Basic version) and Spektrum AirWare^™ equipped transmitters. The BNF^® Basic version is equipped with an AR8360T receiver to provide full-range, real-time telemetry data, including battery voltage, ESC temp, and more — plus differential thrust and motor reversing for special ground handling and other capabilities — along with the benefits of AS3X^® and optional-use SAFE^® Select technologies. This 8-channel receiver, plus selectable-size ailerons and functional flaps that can travel both ways, also makes multiple wing configuration options possible – including "crow" and/or full-span aileron/flaperon/spoileron setups.

There are eight factory-installed servos, including metal-geared servos on all of the control surfaces plus the functional cargo door so you can carry and drop creative payloads from the large cargo bay. Realistic-looking LED landing, navigation, and simulated strobe lights are powered from the flight battery so you can fly from dawn until dusk — from paved, grass, or dirt surfaces; off snow using the included skis; or from large ponds and lakes using optional floats (sold separately). Remove the magnetically secured nose cone to install a GoPro^® or similar camera for recording aerial HD footage or mount a separate FPV camera on the large top hatch (cameras/gear sold separately). Plus, you can use the included decals to customize the now fully-painted gray finish with Ohio Air National Guard, Air Force, Army, Coast Guard, Marines, Navy, and other markings to personalize your model! And the result is the most capable, versatile, and fun to fly twin yet for a wide range of intermediate to experienced pilots interested in scale-like, sport, and even aggressive 3D aerobatic flying.

Exclusive Technologies

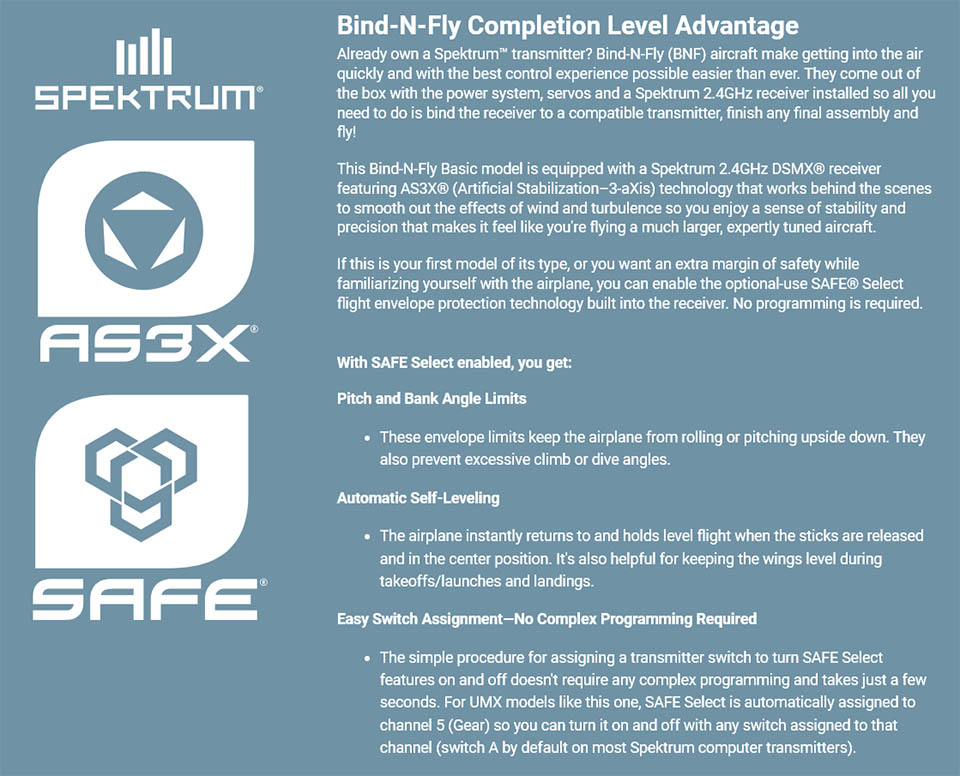

This EC-1500 Twin 1.5m is equipped with exclusive Spektrum^™ AS3X^® and SAFE^® Select technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch! And if you don't want to enable the SAFE Select features, bind the receiver normally, and only AS3X will be active.

Uniquely Capable and Versatile

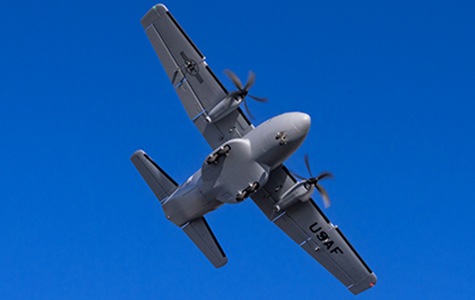

The EC-1500's unique, ground-breaking design makes it capable of slow and scale-like flying, sport flying, and even aggressive 3D aerobatics — all in the same flight! And with numerous landing gear, cargo carrying, camera mounting, and other options, it's incredibly versatile, too.

Wing Configuration Options

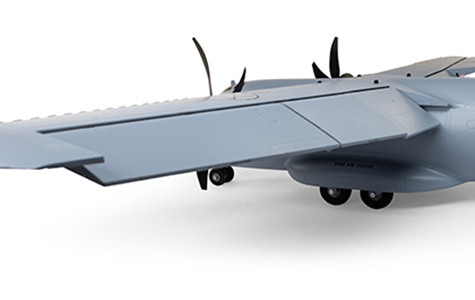

The functional flaps can travel both ways, and you can choose how large the flaps and ailerons are by installing the included joiners in one of two different ways. And because a separate servo controls each surface, multiple wing configuration and mixing options are available (depending on the number of channels of the receiver and transmitter you use), including full-span ailerons that can deliver substantially increased roll authority, flaperons, spoilerons, and even crow!

3S and 4S Compatible

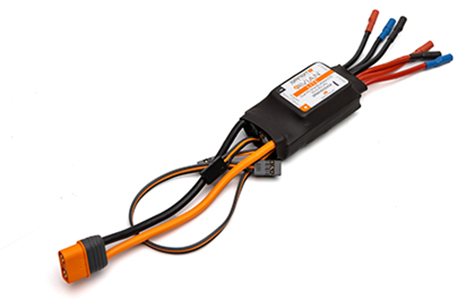

The factory-installed twin brushless power system features a 40-amp Spektrum^™ Avian^™ Dual Smart Lite ESC plus specially-tuned motors that deliver an abundance of thrust with a 3S 3200–6400mAh LiPo battery. Or you can install a 4S battery for plenty of power to hover and unlimited vertical capability without needing any modifications or upgrades!

Functional Cargo Door

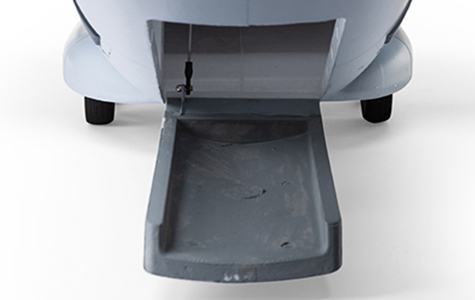

The operational, servo-controlled cargo door has a 2.5 x 4.2 inch (65 x 107 mm) opening and almost 140 cubic inches of cargo bay volume (cargo bay is 2.5 x 4.2 x 12.7 inches / 65 x 107 x 323 mm). It can be used to carry and airdrop everything from parachute men to candy and other creative payloads.

Capable Control

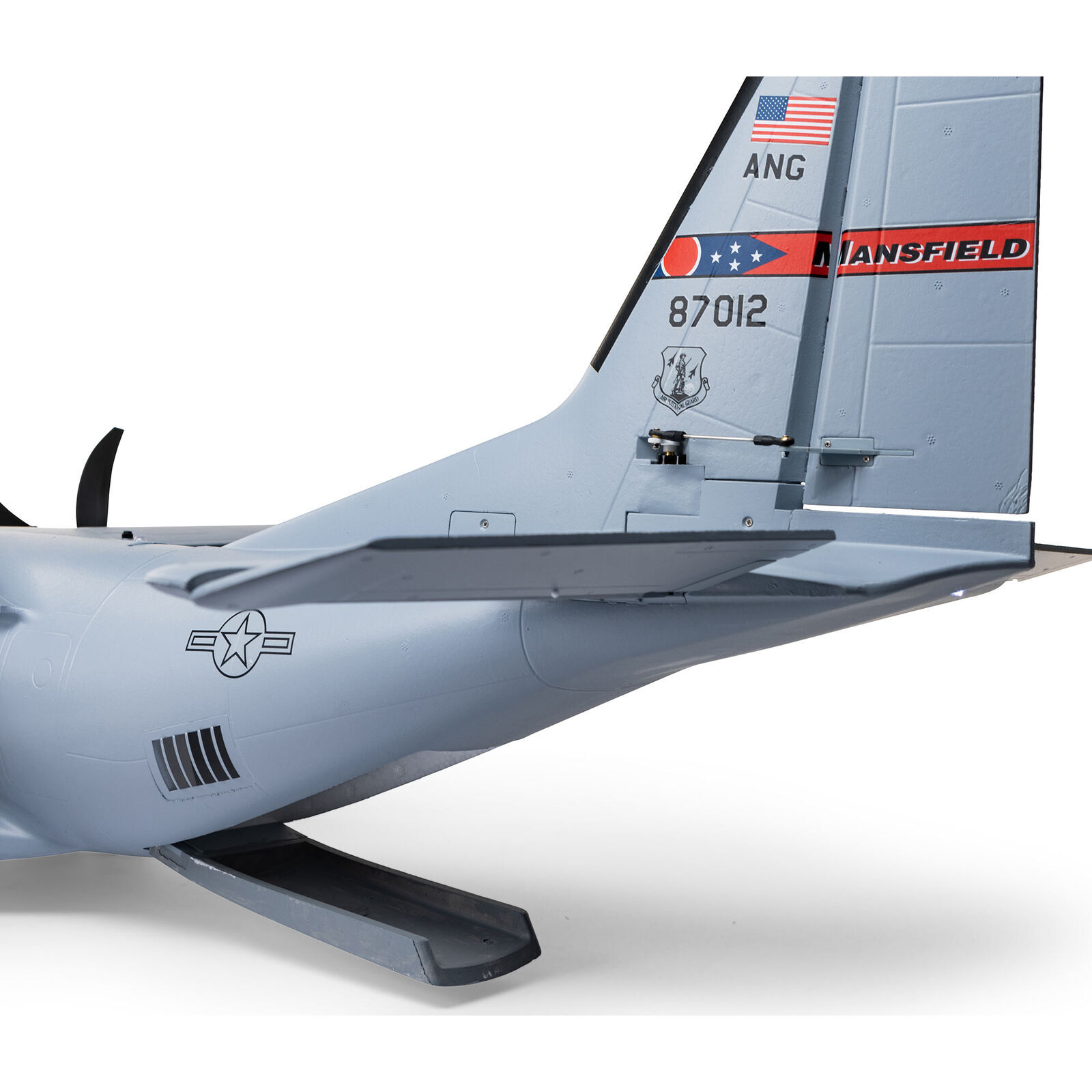

There are eight factory-installed servos in total, including metal-geared servos on all of the control surfaces and the functional cargo door. There are also ball-link equipped linkages plus pocket or CA hinges on the control surfaces for precise control and long-lasting durability.

LED Lights

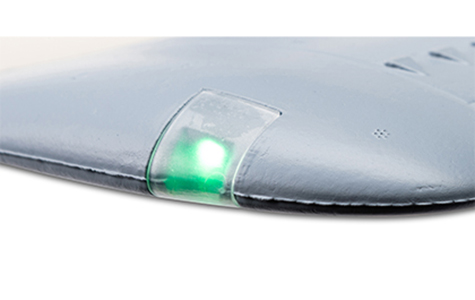

Realistic-looking LED landing, navigation, and simulated strobe lights are factory-installed and powered from the flight battery.

Large, Lightweight, and Durable

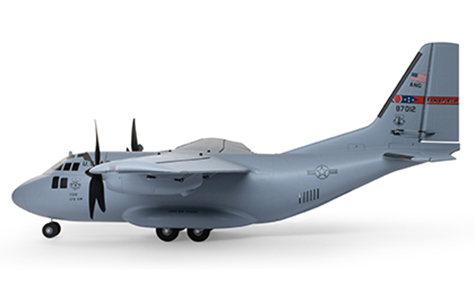

Don't be deceived by the 60" (1.5m) wingspan — because of its wing chord and area, plus the large diameter fuselage and tail surfaces, the EC-1500 is bigger than it may seem. However, it's still lightweight and extremely durable, thanks to the composite-reinforced EPO airframe!

Easy Assembly

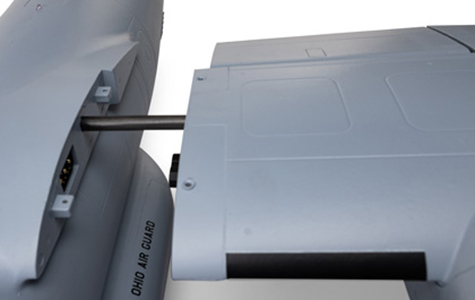

No glue is required for final assembly, and you can have the EC-1500 ready to fly in less time than it takes to charge a battery! The two-piece wing with an innovative hands-free connection system can easily be removed for convenient storage and transport using the thumbscrews, so no tools are required for field assembly/disassembly.

Large, Lightweight, and Durable

Don't be deceived by the 60" (1.5m) wingspan — because of its wing chord and area, plus the large diameter fuselage and tail surfaces, the EC-1500 is bigger than it may seem. However, it's still lightweight and extremely durable, thanks to the composite-reinforced EPO airframe!

Customizable Trim Scheme

The included decal sheets allow you to customize the now fully-painted gray finish with Ohio Air National Guard, Air Force, Army, Coast Guard, Marines, Navy, and other markings to personalize your model.

HD and FPV Camera Options

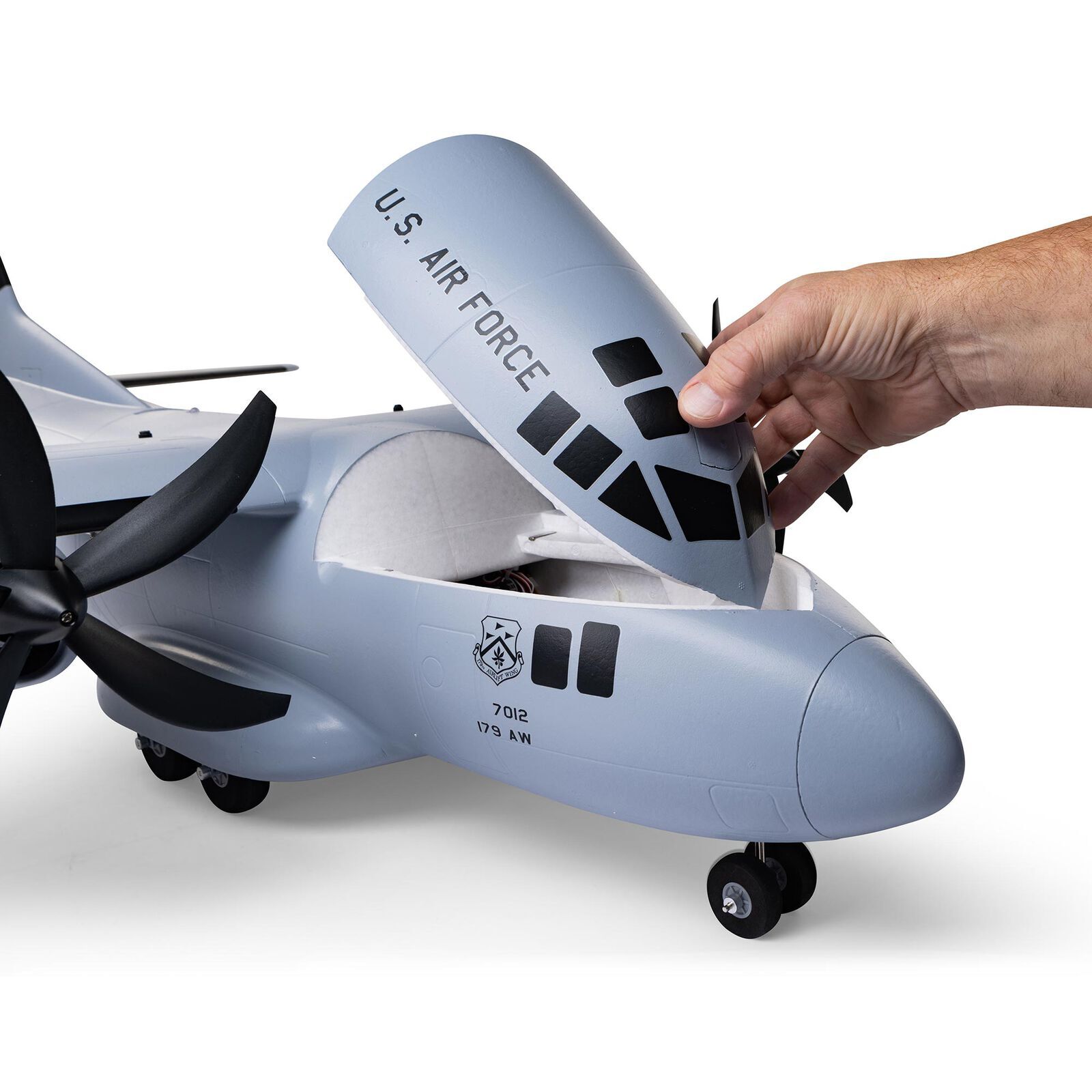

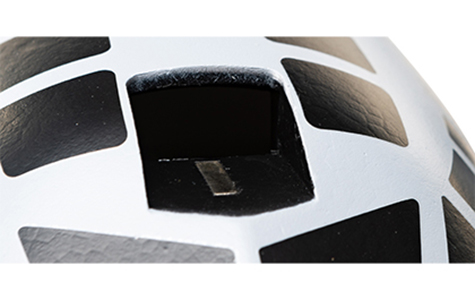

The magnetically secured nose cone can be removed for easy installation of GoPro^® Hero and similar action cameras to record High-Definition footage while you fly (cameras sold separately). You can also install a separate First-Person View (FPV) camera in the mounting position on top of the extremely large, magnetically secured top hatch (FPV camera/gear sold separately).

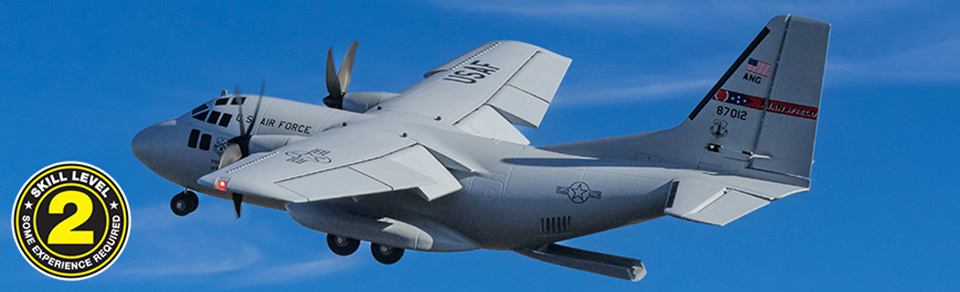

Skill Level 2 – Some Experience Required

Skill Level 2 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up and fly similar class models. And although this BNF Basic version is equipped with optional-use SAFE Select, it's not a suitable first-ever RC aircraft for new pilots, a "next step after a trainer" model for low-time RC pilots, or first 3D capable model for intermediate pilots. You should have the experience and skills necessary to successfully fly higher performance, 3D capable and/or twin-powered models like the E-flite Twin Timber 1.6m, Timber X 1.2m, Extra 300 3D 1.3m, Ultra Stick 1.1m, or other similar class models before attempting to fly the EC-1500 Twin 1.5m.
