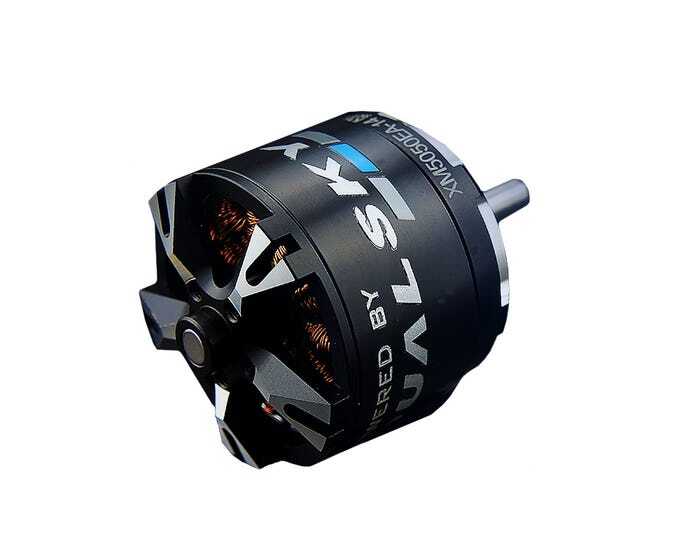

Dualsky XM5050EA-12 610kv Brushless Motor (DSXM51863)
SKU code: DSXM51863
Make 4 interest-free payments of $42.25 fortnightly and receive your order now.
Overview
The new V3 Dualsky XM5050EA-12 features a new Durotate rotor with an optimised back cover that reduces air noise, a new front cover that offers better heat dissipation and a higher density rotor and shell that reduces vibration. Add to this the use of thicker wire with high temperature resistance and the net result is more power and improved efficiency.
Features
- Higher grade curved magnets
- High efficiency, high density Silicon steel
- Tighter tolerances allow a smaller air gap between the stator and the rotor
- High grade enamelled silicon coated wire
- Reduced air noise, less drag, more power
- Lightweight
- M8 propellor mount
Product Information
The new V3 Dualsky XM5050EA-12 features a new Durotate rotor with an optimised back cover that reduces air noise, a new front cover that offers better heat dissipation and a higher density rotor and shell that reduces vibration. Add to this the use of thicker wire with high temperature resistance and the net result is more power and improved efficiency.
Specifications
KV | 610 |
Weight | 290g |
Dimensions (D x L) | 49.5 x 48.2mm |
Diameter of shaft | 6mm |
Spec of Mounting Holes | 4-M4, 30/30 |
Input Connectors | DB4 |
Dimensions of Stator (mm) | 4120 |
Slots & Poles | 12N14P |
Ri (mOhm) | 14.2 |
Io @ 10V (A) | 1.8 |
No. of Cells (LiPO) | 5-6 |
Efficiency Current | 35 |
Burst Current (15S) [A] | 70 |
Peak Power (15S) [W] | 1400 |
Peak Torque | 1.37 |
Recommended ESC | SUMMIT 100 |
Recommended Propeller | 5S: 15x8 6S: 12x10E, 14x6E |
Application | 70E, .50-.60 2-stroke. Up to .82 4st |
SKU | DSXM51863 |
Barcode # | 6941047118638 |
Brand | Dualsky |
Shipping Weight | 0.3500kg |
Shipping Width | 0.200m |
Shipping Height | 0.150m |
Shipping Length | 0.400m |
Shipping Cubic | 0.012000000m3 |
