• The new designed 2nd version software and hardware have many new features.
  •  Supports all motor types up to 210,000 rpm(2 Poles motors).
  • Extremely low resistance, factory high quality MosFETs, for high current usage.
  • Dualsky Governor Mode(DGM) ready.
  • Adjustable cut-off, either motor stop or reduction in power.
  • DLBM on/off - Dualsky Linear Brake Mode. Brake strength can be adjusted by transmitter when switch on.
  • Full protection features including: Low voltage cut-off, Over heating protection, signal loss auto cut-off.
  • Normal, Soft or Super-Soft start up modes available, for both fixed wing and helicopter setups.
  • Smooth and accurate throttle control throughout the range.
  • Throttle digital signal sampling, compatible with the signal frequency of 14 ms Normal mode and 7 ms high-speed mode (HS Mode).
  • Throttle range can be re-calibrated, so suitable for all brands of transmitter.
  • Fully PC programmable when used with Dualsky USB link(#45525).
  • Compatible with programming card(#45200) for easy re-programming at the field!
  • UBEC switching power supply, support up to 6S Lipo, 3A, easily support 4-5pcs of standard Digital Servos.

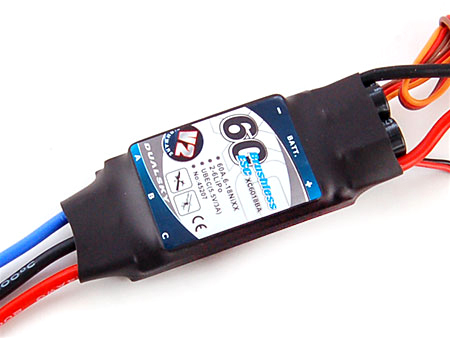

Specs list for DSXC6018BA
Dimensions (L x W x D) 75 x 30 x 14mm
Weight (g) 63
Number of Cells (NiXX) 6-18, 7.2-21.6V
Number of Cells (LiPo) 2-6, 7.4-22.2V
Resistance (Ri) 0.0022Ohm
Max Continuous Current (A) 60
Max Continuous Output (W) 1260
Max Burst Current (A) 80
Max Burst Output (W) 1632
BEC/Dissipative Power 5.5V/3A (Switching)
Programmable Throttle + ProgCARD V2
Input Wires 120mm, 14AWG, DC3
Output Wires 75mm, 16AWG, DB4
Signal Wire 300MM JR



SKU DSXC6018BA
Barcode # 6941047102071
Brand Dualsky
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
