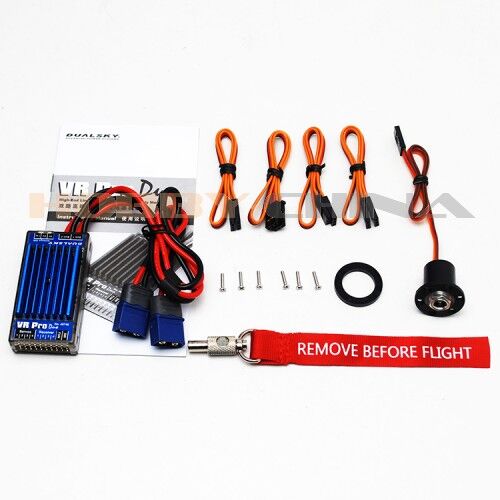

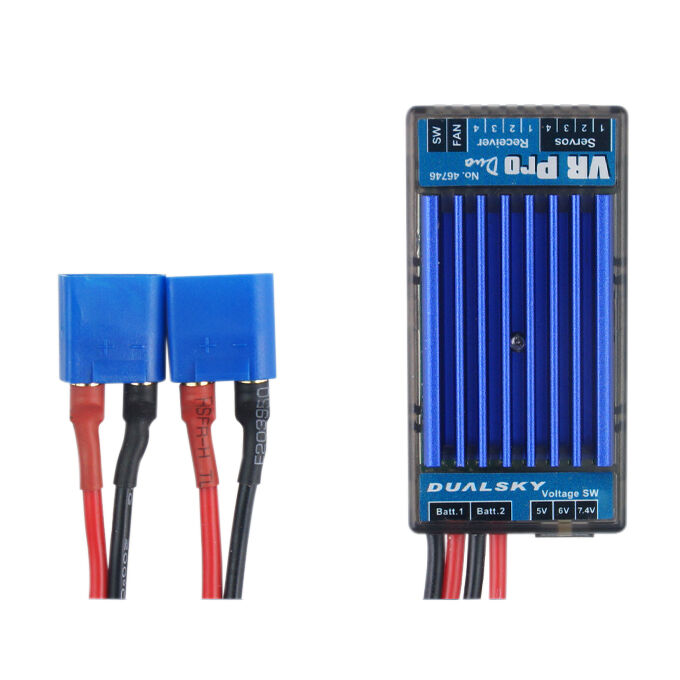

The VR Pro Duo from Dualsky is an outstanding linear voltage regulator that operates with minimal interference and ripple. It allows for two battery input, thus facilitating automatic switching and balancing between the batteries. This input power uses simulated diode dual redundancy. The Duo comes with four current outputs, so you can directly connect four channel servos with ease. This incorporates double MosFET output, independent linear control IC and high output current capability. Both the input and output ports use high quality tantalum capacitors. Dualsky have also designed the Duo to include a low dropout design that makes full use of the cell's capacity, especially in HV mode.

All you have to do is plug and play; there is no need to weld the connectors. For low voltage functionality, there is an internal dual input voltage monitor with memory function. The Duo has a great minimalist design, featuring input and output ports on horizontal rows. It also comes with an FSS-3 failure safety switch with a status indicator. This FSS-3 is precisely controlled by the built-in MCU, which also regulates the internal voltage. This regulator also supports an FSS-4 lightweight switch and comes equipped with a large heat sink and external cooling fan. This gives it great heat dissipation and high overload capacity. You can use the VR Pro Duo with up to ten 30kg digital servos and HV (7.4V) servos. It is a great choice for large, 13kg model aircraft (for example, aircraft with 120cc gasoline power). Order yours now.

VR Pro Duo Design features:

• Miniaturisation design, input & output port using horizontal row;
• Dual battery input design, automatic switching and balancing between batteries;
• 4 current outputs, support 4 channel servos direct connection;
• Plug and play. No need to weld the connectors;
• Internal dual input voltage monitor for low voltage with memory function;
• Support HV servos (7.4V), output voltage is switchable;
• Includes FSS-3, the failure safety switch with status indicator (#46813),
• VR Pro Duo also supports FSS-4 lightweight switch(#46814);
• Equipped with heat sink and external cooling fan (#46816);
• Support up to 10pcs of 30kg digital servo;
• Can be used on the largest 13KG model aircraft, eg.120CC Gasoline Powered Aircraft.

Electrical Features:

• Linear regulator, no interference, low ripple;
• The input power uses simulated diode dual redundancy power supply;
• Double MosFET output, independent linear control IC, high output current capability;
• Low dropout design makes fully use of the cell's capacity, especially on HV mode;
• Large heat sink, good heat dissipation and high overload capacity;
• Built-in MCU precisely controls FSS-3 and internal voltage;
• Fail safe design, ensuring Non-stop work;
• SMT process, ensureing the quality;
• Input & output port all use high quality tantalum capacitors;
• Dualsky Shanghai factory assembled, fully tested before dispatch.
• XT60 Male Plugs

Specifications
