Overview

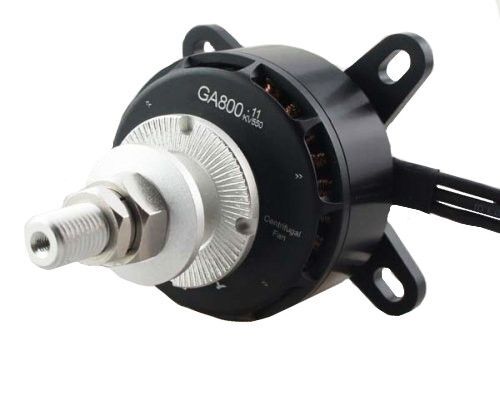

Dualsky GA800.11 500KV Brushless Motor, 1000w, 30E

Features

  • Designed for 30E - 40E class 3D airplane (Up to 55 inch wingspan)
  • Great alternative for a .15-.46ci engine
  • New modular light weight structure
  • Dualsky 28 poles efficient structure
  • Integrated motor mount

Specs

RPM/V KV 550
Weight w/o accessories 160g
Outer Diameter 46 mm
Length w/ mounts 42mm
Length (overall) 74mm
Diameter of Shaft 5mm (internal)   8mm (output)
Mounting holes pitch 52mm to 58mm (D 4.2)
Slots, Poles 24, 28
Idle Current (Io) @10V 1.3A
Resistance (Ri) 42.7 mOhm
Nominal Voltage (V) 22.2V, 6S LiPo
Peak Power [15s] 1000W
Bursts Current [15s] 42A
Cruising Power [8 mins] 500W
Recommended ESC XC406ULT
Propeller 12 x 6 for best efficiency
13 x 6.5 for pilots performance
14 x 7 for extreme thrust
Weight of Sports Airplane Up to 2.2kg
Weight of 3D Airplane 1.5kg to 1.8kg



SKU DSXM51747
Barcode # 6941047117471
Brand Dualsky
Shipping Weight 0.6000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
