Overview

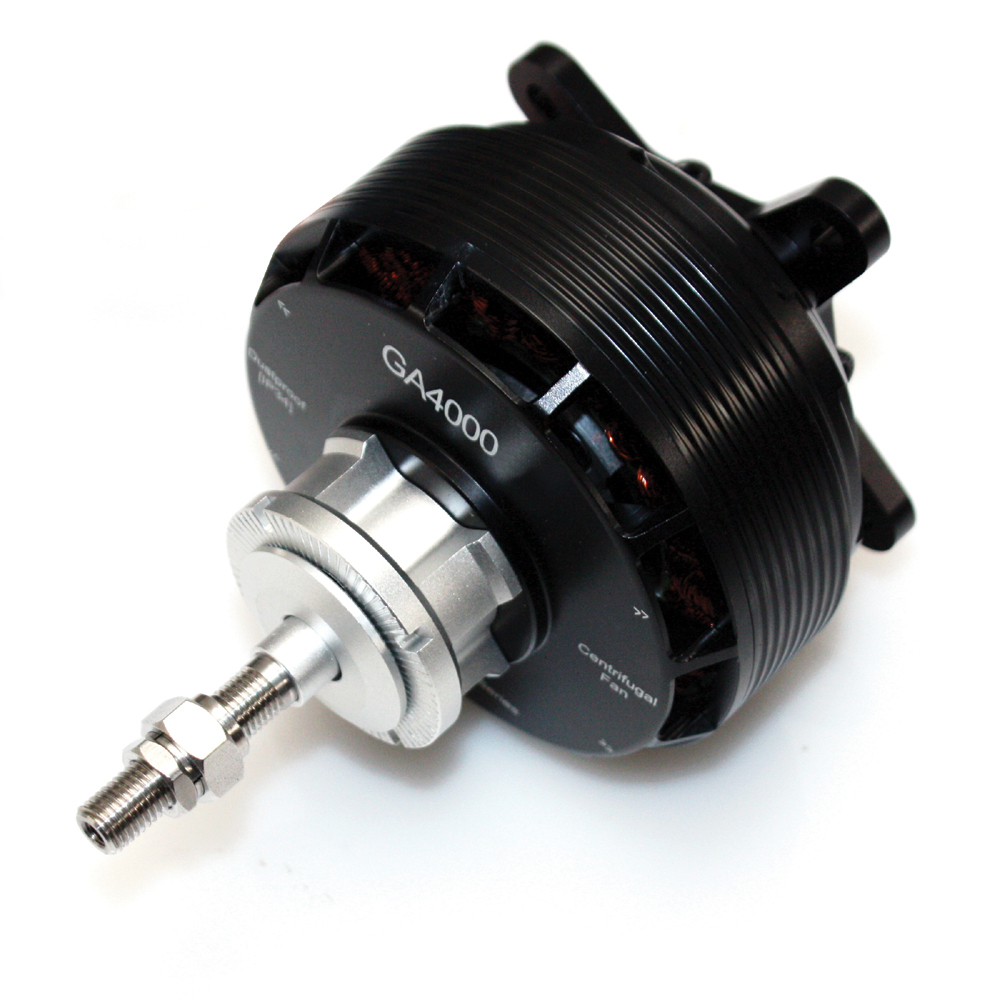

GA motor - For giant RC airplane series

  • High torque design, diameter 90mm outrunner
  • Using 12S and 10S Lipo battery
  • Replacing 60cc gasoline engine
  • Applied up to 10kg 3D model
  • Environmental friendly product

Key features:

  • Dualsky biggest RC motor we have ever produced.
  • New modular light weight structure
  • Dualsky 28 poles efficient structure
  • Driven directly by 90 mm diameter rotor without gearing box
  • Working quietly, no CO2 emission and a wonderful alternative to 50-60cc petrol engine
  • Suitable for less than 10kg 3D/aerobatic models and less than 17kg sport models

Specs

RPM/V
180 RPM/V
Weight
1090g
Outer Diameter
90.2mm
Length w/ propeller mount
92mm
Length w/o propeller mount
78mm
Diameter of Shaft
10mm
Mounting Holes Pitch
100mm
Slots, Poles
24, 28


Idle Current (Io) @ 10V 2.3A
Resistance (Ri) 12.6mOhm
Nominal Voltage 30-51V, 10-12S LiPo
Peak Power [15s] 6800W (9.2HP) @ 8000RPM
Bursts Current [15s] 140A
Cruising Power [8mins] 3500W (4.8HP)
Propeller (Do Not use electric propeller) 22x10, 22x12, 23x8, 23x10, 24x8, 24x9, 24x10, Thrust 17kg (w/fully charged 5000mAh 70C Battery)
Weight of sports airplane Up to 17.1kg
Weight of 3D airplane Up to 11.4kg
Applications Designed for 50-60cc class fixed wing airplane or UAV system



SKU DSXM51295S
Barcode # 6941047115569
Brand Dualsky
Shipping Weight 0.8000kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.120m
Shipping Cubic 0.001440000m3
