Overview

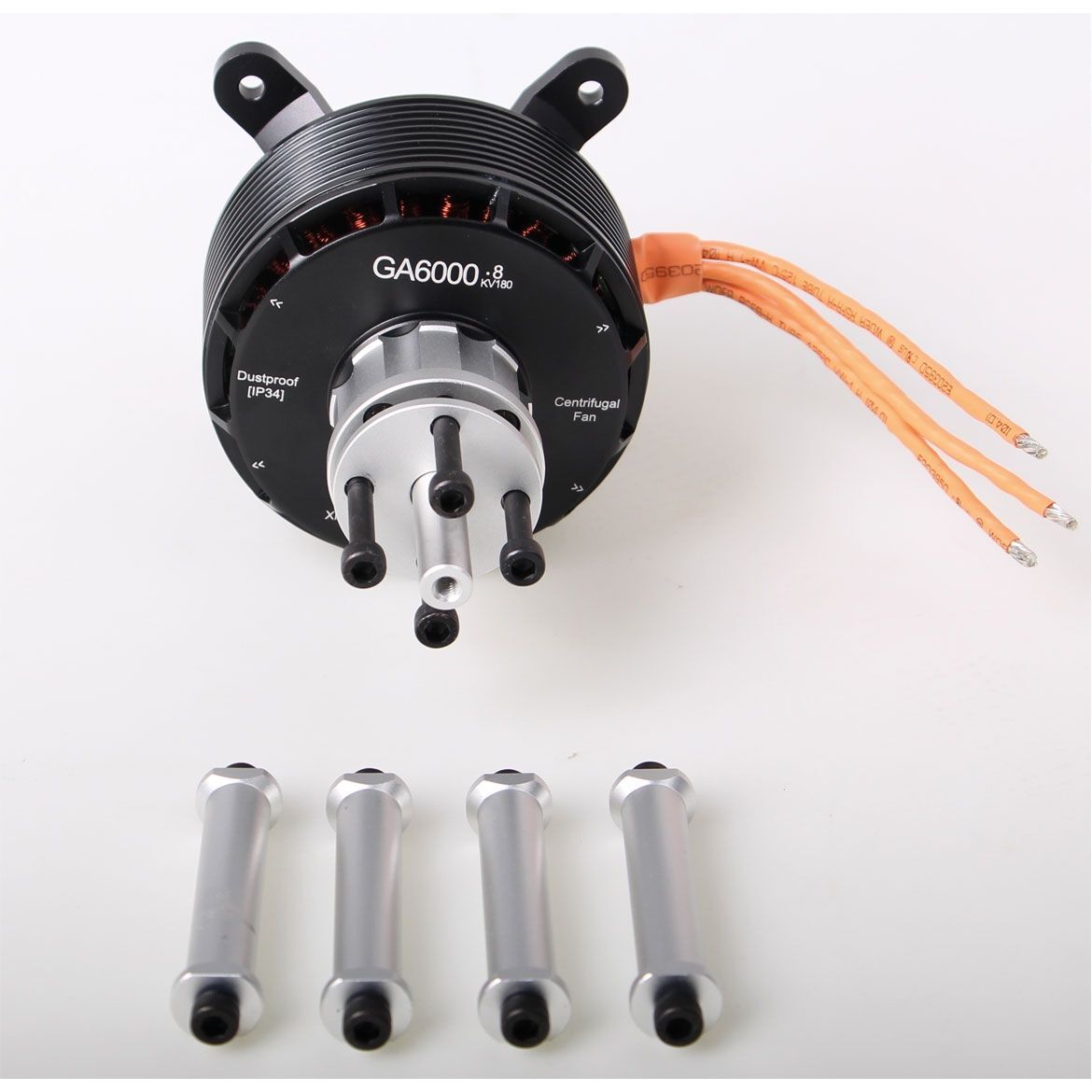

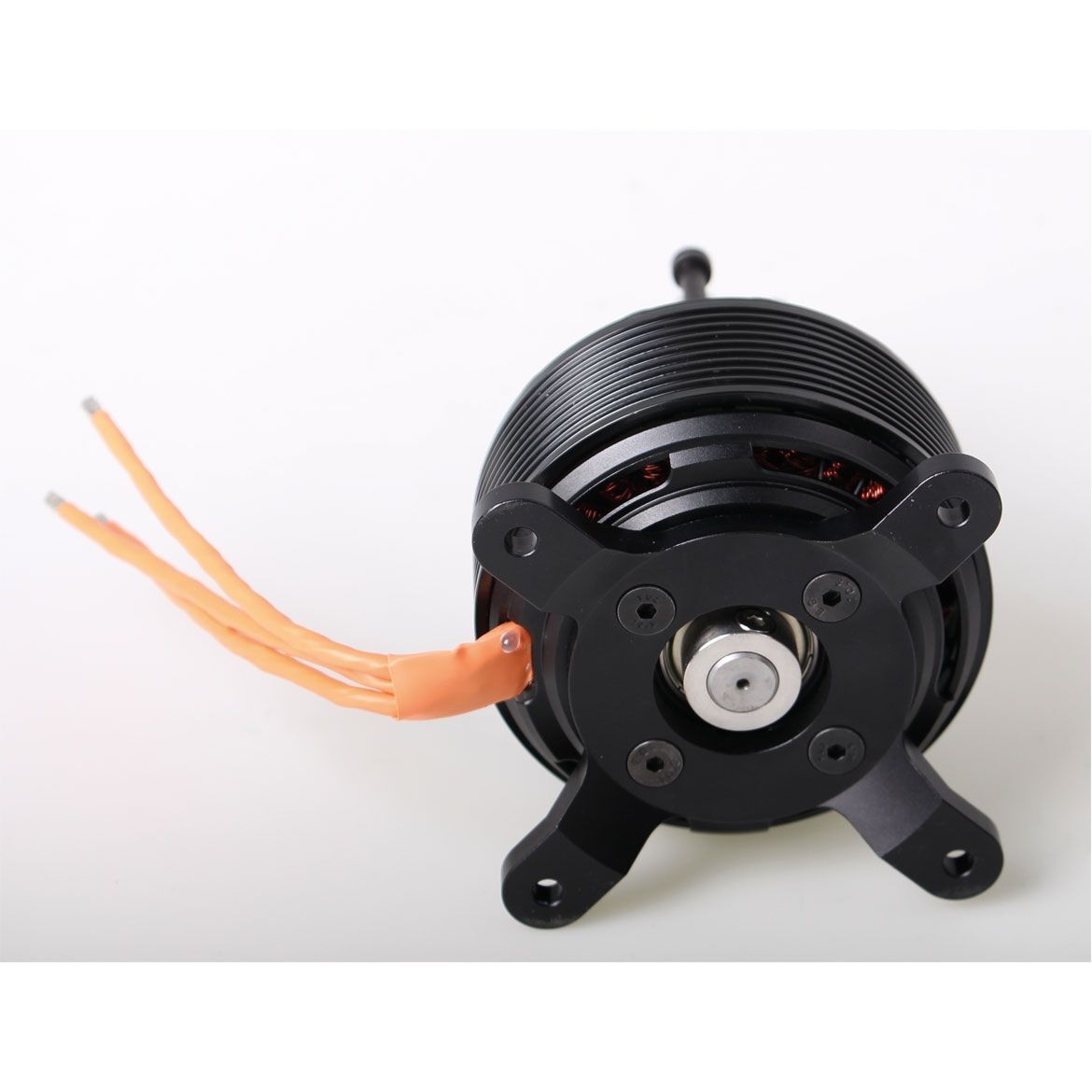

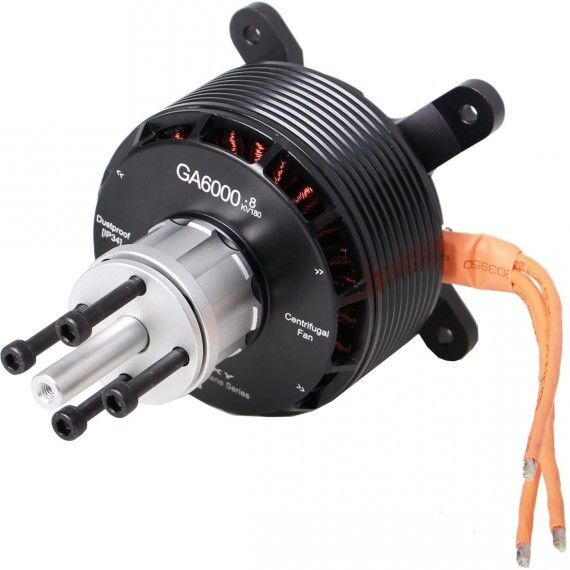

The GA6000.8 is a high torque brushless motor from Dualsky which can work with 10-12S lithium batteries. It is designed for 3D airplanes up to 10kg in weight, sports airplanes up to 17kg in weight or UAV systems. This motor can serve as an alternative to a 55-60cc class gasoline engine.

Features

  • Suitable for 3D airplanes, sports airplanes & UAV systems
  • Brushless
  • Can serve as alternative to 55-60cc gas engine

Specs



RPM/KV 180 RPM/V
Weight w/o accessories 1020g
Outer diameter 90.2mm
Length w/ mounts 101mm
Length (Overall) 141mm
Diameter of shaft 12mm (internal) 10mm (output)
Mounting holes pitch 100mm
Idle current @ 10V 2.1A
Nominal Voltage 30-51V, 10-12S LiPo
Peak Power (15s) 6800W (9.2HP) @ 8000RPM
Bursts current (15s) 140 A
Recommended ESC 130A - 160A HV Series
Propeller 22 x 10, 23 x 8
23 x 10 (Max 7650RPM)
24 x 8, 24 x 9, 24 x 10, 25 x 10
XOAR 24 x 10 CF @ 12S, 125A, Thrust 18KG (No electric propeller allowed)
Weight of sports airplane Up to 17kg
Weight of 3D airplane Up to 10kg
Applications Designed for 55-60cc class, 3D airplanes or UAV systems
SKU DSXM51295
Barcode # 6941047112957
Brand Dualsky
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.006000000m3
