Features
  • Motor structure strength increased by 25%
  • Optimised stress distribution and strength increased but it did not increase the weight.
  • High strength and high toughness main shaft (HRC48)
  • The rotor limit adopts 2 insurance modes of circlip and stainless steel chocks
  • High temperature resistant, high toughness epoxy glue the impact resistance increased about 10G, and the survival ability is greatly improved.
  • High precision double sides dynamic balancing
  • Adopt NMB ball bearing, durable and low noise. ECO 41 and bigger, equipped with 3 ball bearings
  • Optimised heat dissipation ways
  • Motor working life significantly increased by 50% (same load and working environment)
  • Modular design: main shaft, case and accessories (propeller mount and motor mount) are all compatible with the upcoming EA series. Besides, the design of propeller mount is completely implanted from GA series.
  • Up to 500V insulation level. The stator is coated with insulating coating and completely insulated after winding.
  • Waterproof splash. Rustproof main shaft, coil soak insulation, electrophoresis components and coated magnets make ECO V2 waterproof, and no problem working in wet or rain environment.

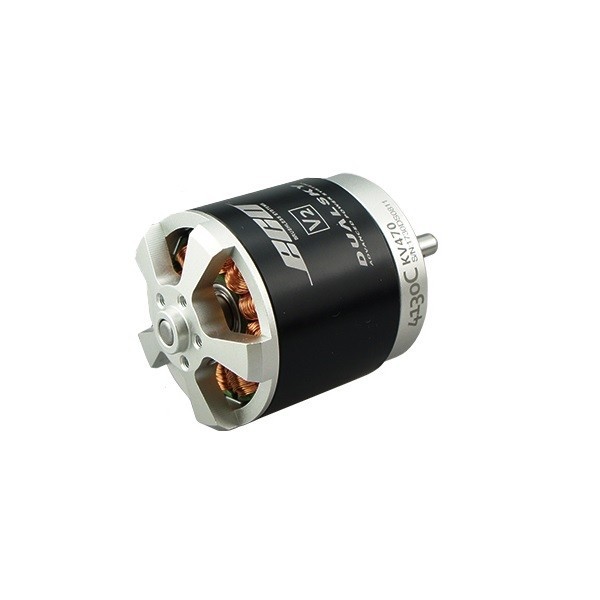

ECO V2 has made great improvements in many respects. It brought new electromagnetic design, more competitive performance and efficiency, long-time endurance and water-proof. This ECO 4130C brushless motor is designed to suit 90E-110E models and double wing 70e models, for example, Sebart Miss Wind.

Specifications

Weight   380g
Turns   5.5
Dimensions   49.5 x 55.2mm
Slots & poles   12N14P
Ri(mOhm)   16.4
Io @10V (A)   1.5
No. of cells (LiPo)   5S - 6S
Max Efficiency Current (A)   54
Max. Burst Current (15S) [A]   90
Max. Power (15S) [W]   1800
Max Torque [N*M]   2.2
RPM/V   470
Shaft Diameter (mm)   6
Mounting Holes pitch   30/30
Input Connectors   GC4.0
Recommended ESC   XC8018BA
Propeller       5S: 18 x 10E, 17 x 8E
    6S: 16 x 8, 15 x 8
Class   0.80-.110 4-stroke



SKU DSXM51677
Barcode # 6941047116771
Brand Dualsky
Shipping Weight 0.5000kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 0.080m
Shipping Cubic 0.000512000m3
