Designed for use with sport or performance planes that require 0.40 4-stroke engines. The C-Series V2 motors are powerful yet very light and are a solid choice for your next build.

Dualsky motors are manufactured to high tolerances using high quality materials and are fairly priced.

So whether you fly in competitions or just love free flying, the DUALSKY C-Series V2 motors will help you keep your all up weight down and your thrust to weight ratio up.

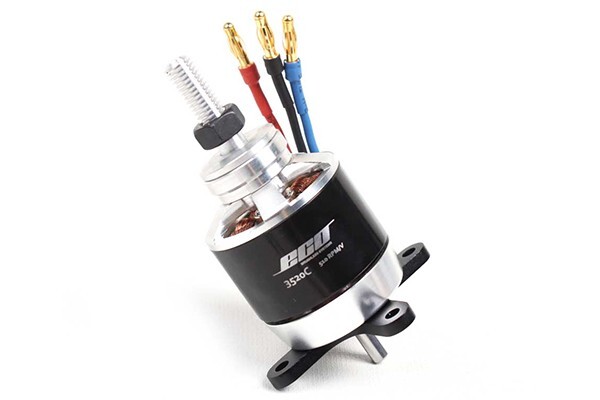

Comes with motor mounting screws, aluminum motor mount, female bullet connectors for the ESC and a bolt on prop hub with a 6mm shaft.

Technical info:

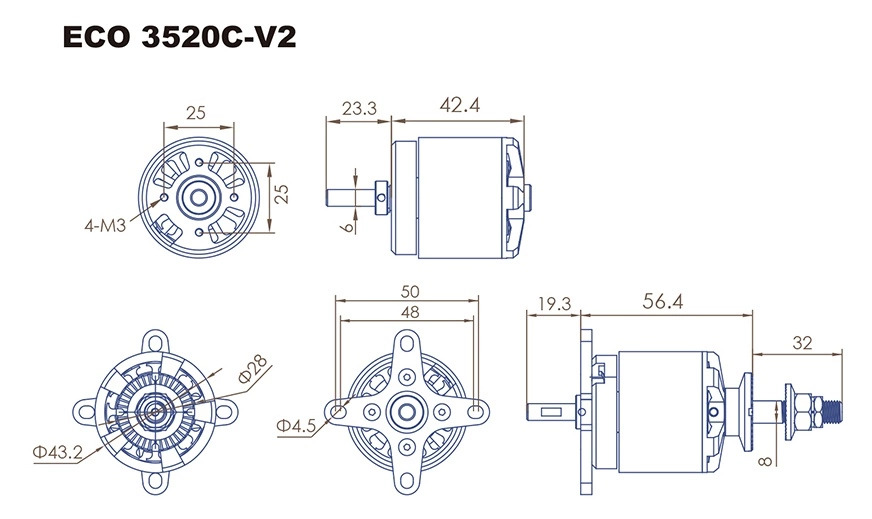

Eco Series ECO 3520C-V2
KV 510
Stator Wind 8 Turns
Stator Teeth / Mag. Poles 12 / 14
Weight w/o wires 210 grams
Outer Diameter 43.2mm
Length 42.4mm
Shaft Dia. 6 mm
Motor Mount Hole Spacing 25x25mm
Motor Idle Current @ 10V 1.2A
Winding Resistance 41.6 mOhm
Max Efficiency Current 29A
Burst Current (15s) 48A
Peak Power Output (15s) 1150 Watts
Recommended ESC 60A min.
Recommended Propellers 5S -15x8 / 15x6  6S -14x6 / 14x7
Prop Thrust Test Data  ns
Prop Thrust Test Data  ns
Airframe Recommendation .50 4-stroke / .32 - .40 2-stroke
SKU DSXM51672
Barcode # 6941047116726
Brand Dualsky
Shipping Weight 0.4000kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000640000m3
