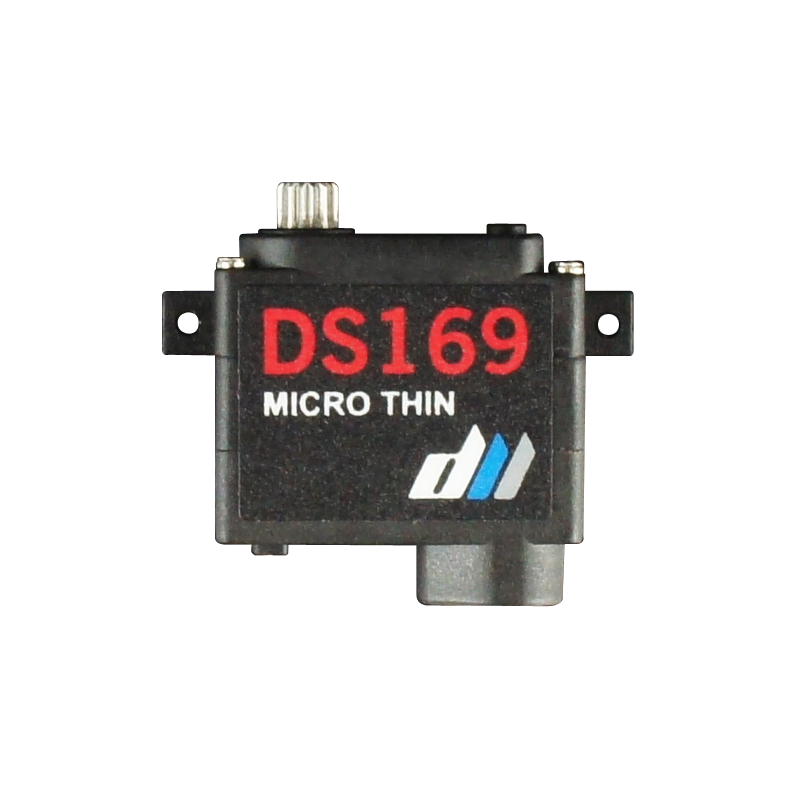

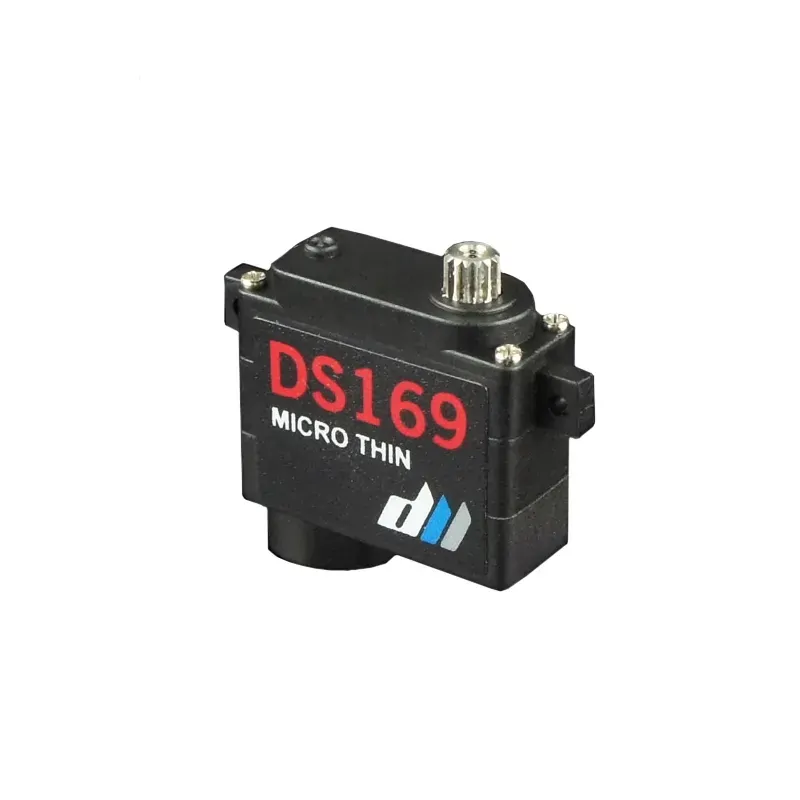

This Dualsky DS169 Flat Thin HV Wing Servo is designed for use in small to large size RC model gliders where space is tight.
The Dualsky DS169F is a new generation micro thin digital HV wing servo that has a powerful coreless motor and a metal gear train that is supported by 2 ball bearings. Weighing a mere 9g it packs some punch on 2S operation, @ 2.8kg.cm torque. Ideally suited to F3K, F5K, RES, e-RES models and for fuselage and aileron operation in F5J models (up to 2kg).

Features

• Good for F3K, F5K, F5J rudder/aileron and RES gliders
• Only 8mm in thickness which makes it suitable for horizontal installation on aileron/flaps
• Precision moulded injection case
• Lightweight and low noise
• Dual ball bearing
• Full metal gear with two steel gears
• suitable for flaps of small series gliders (under 1kg)

Specs

Torque: 6.0V - 2.3kg.cm, 7.4V - 2.8kg.cm
Speed: 0.08 sec/60o, 0.06 sec/60o
Size: 23.5 x 8.5 x 24 mm
Weight: 9 g
Wiring: 12cm/JR
Bearing: Dual BB
Class: Micro thin type for F3K F5K and RES gliders
