This 70 size tuning combo from Dualsky features their ECO 4130C motor and XC8018BA ESC. Suits 60-75 size models.

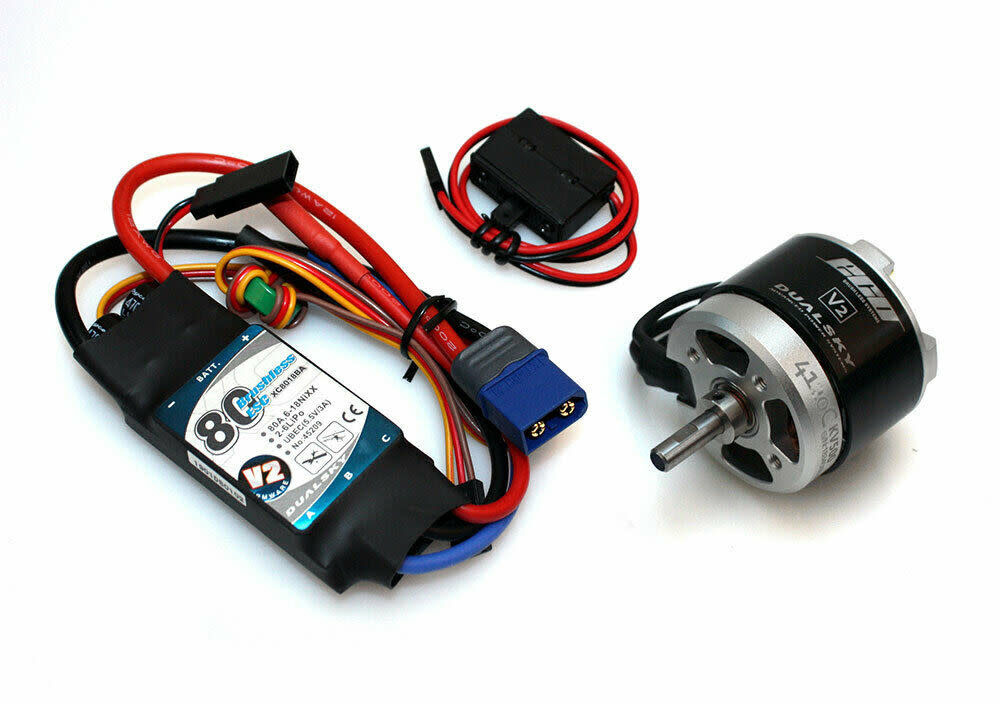

This is the ideal choice for 60-80 size RC aircraft - the Dualsky 70-size tuning combo. This package comes with Dualsky's ECO 4130-375 motor and XC8018BA ESC. If you are completing a kit or looking to upgrade your model's electrics, this convenient package is an outstanding choice, and great value. Designed for 6S operation and 16x10 props.

SPECS

Motor Specs
RPM/V (KV) 375
Weight 380g
Diameter 49.5mm
Length 55.2mm
Diameter of Shaft 6.0mm
Mounting holes pitch 30/30
Slots, Poles 12,14
Idle Current (Io) @ 10V 1.1A
Resistance (Ri) 25.2 mOhm
Cruising Power (W) [8mins] 900W
Bursts Current (15S) [A] 80
Peak Power (W) [15S] 1920
Max Weight of Sport Models 4.5kg
Max weight of 3D Models 3.0kg
Memo .60-.80 2-Stroke Up to .110 4-Stroke

ESC Specs
Dimensions 75 x 30 x 14mm
Weight 71g
Number of Cells LiPo 2-6, 7.4-22.2V
Resistance (Ri) 0.0016
Max Cont. Current (A) 80
Max Cont. Output (W) 1680
Max Burst Current (A) 100
Max Burst Output (W) 2040
BEC / Dissipative Power 5.5V/3A (switching)
Programmable Throttle + ProgCARD+ USB Link
Input Wires 150mm, 12AWG, DC3
Output Wires 90mm, 14AWG, DB4
Signal Wite 300mm JR
Applications .70 Class Aerobatic
SKU DSTC.6A.70EX
Barcode # 6941047191129
Brand Dualsky
Shipping Weight 0.6000kg
Shipping Width 0.120m
Shipping Height 0.120m
Shipping Length 0.200m
Shipping Cubic 0.002880000m3
