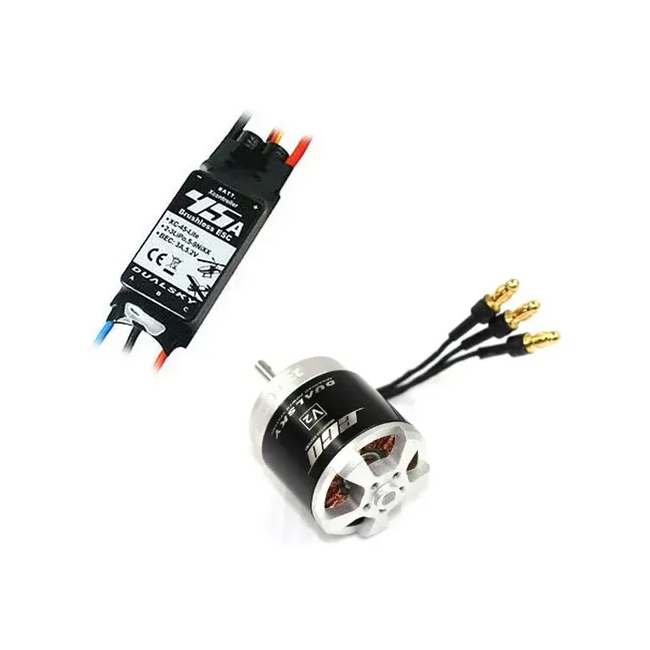

This fantastic tuning combo from Dualsky offers a ECO 2316C motor and XC-45-Lite ESC.  This package is ideal for 480-size, .10-class RC planes or helicopters.  It is simple to operate and compatible with the V2 programming card.  Give your 480-size model the best hardware available.  Order this outstanding tuning combo from Dualsky now.

Features

  • Comes with ECO 2316C motor and XC-45-Lite ESC
  • Ideal for 480-size RC planes or helicopters
  • Compatible with the V2 programming card

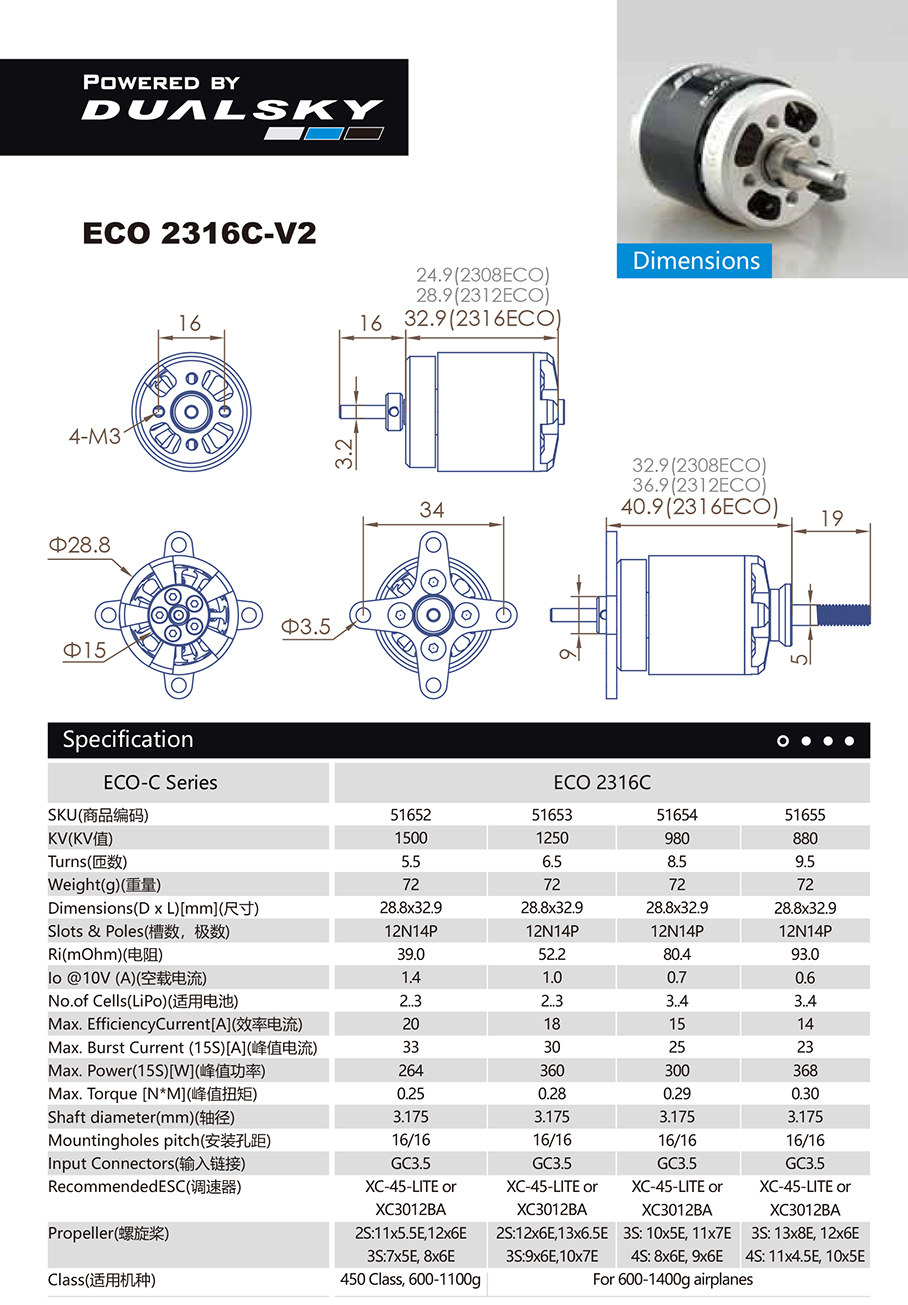

Specifications
Motor RPM/V (KV): 1250
Motor Shaft Diameter (mm): 3
Motor Mounting Holes Pitch: 16/19
Motor Weight (g): 70
Motor Resistance (Ri)(mOhm): 52
Motor Idle Current (Io) @10V (A): 1.1
Motor No.of Cells (LiPo): 2-3
Motor Max. Efficiency Current (A): 20
Motor Max. Burst Current (15s)(A): 28
Motor Approximate Max. Power (15s) (W): 260
Motor Input Connectors: 3.5
Motor Recommended ESC: XC-45-Lite
Motor Prop. Range: 10x5, 12x6
Motor App. Class: 600-1200g
ESC Dimensions (L x W x D) (mm): 67x25x7
ESC Weight, with wires (g): 38
ESC Number of Cells (NiXX): 5-9 cells, 6-10.8V
ESC Number of Cells (LiPo): 2-3s, 7.4-11.1V
ESC Resistance(Ri)(Ohm): 0.0026
ESC Max Cont. Current & Max Cont.Output: 45A, 500W
ESC Max Burst Current & Max Burst Output: 60A, 666W
ESC BEC / Dissipative Power: 5.2V/3A (Linear)
ESC Programmable: Throttle + ProgCARD V2
ESC Signal Wire: 300MM JR

SKU DSTC.3A.480
Barcode # 6941047191075
Brand Dualsky
Shipping Weight 0.2000kg
Shipping Width 0.080m
Shipping Height 0.090m
Shipping Length 0.140m
Shipping Cubic 0.001008000m3
