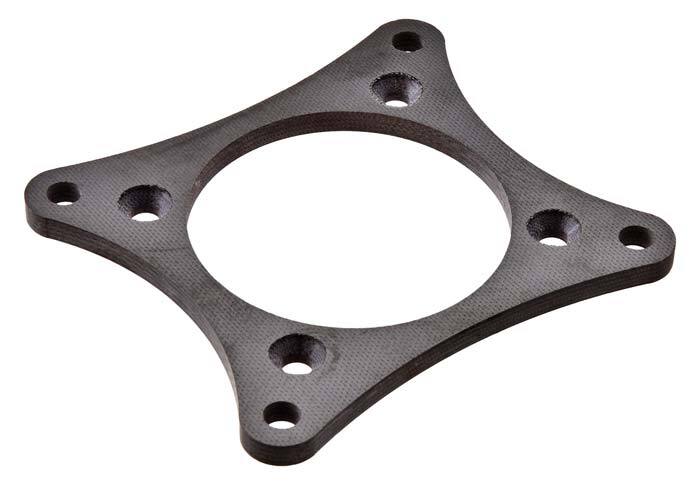

This is the Engine Mount for the DLE 120cc Twin Cylinder Gasoline Engine, DLE120.

FEATURES

Layered carbon fiber construction
Fastens to crankcase, and with the standoffs holds the engine to the
firewall of the airplane

INCLUDES

Engine Mount for the DLE 120cc Twin Cylinder Gasoline Engine

SPECIFICATIONS

Distance between center of Outer Holes: 2.8" (72mm) vertical
Distance between center of Outer Holes: 3.25" (82.5mm) horizontal
Distance between center of Inner Holes: 1.9" (48.9mm) vertical
Distance between center of Inner Holes: 2.3" (59mm) horizontal
Thickness: 0.21" (5.3mm)

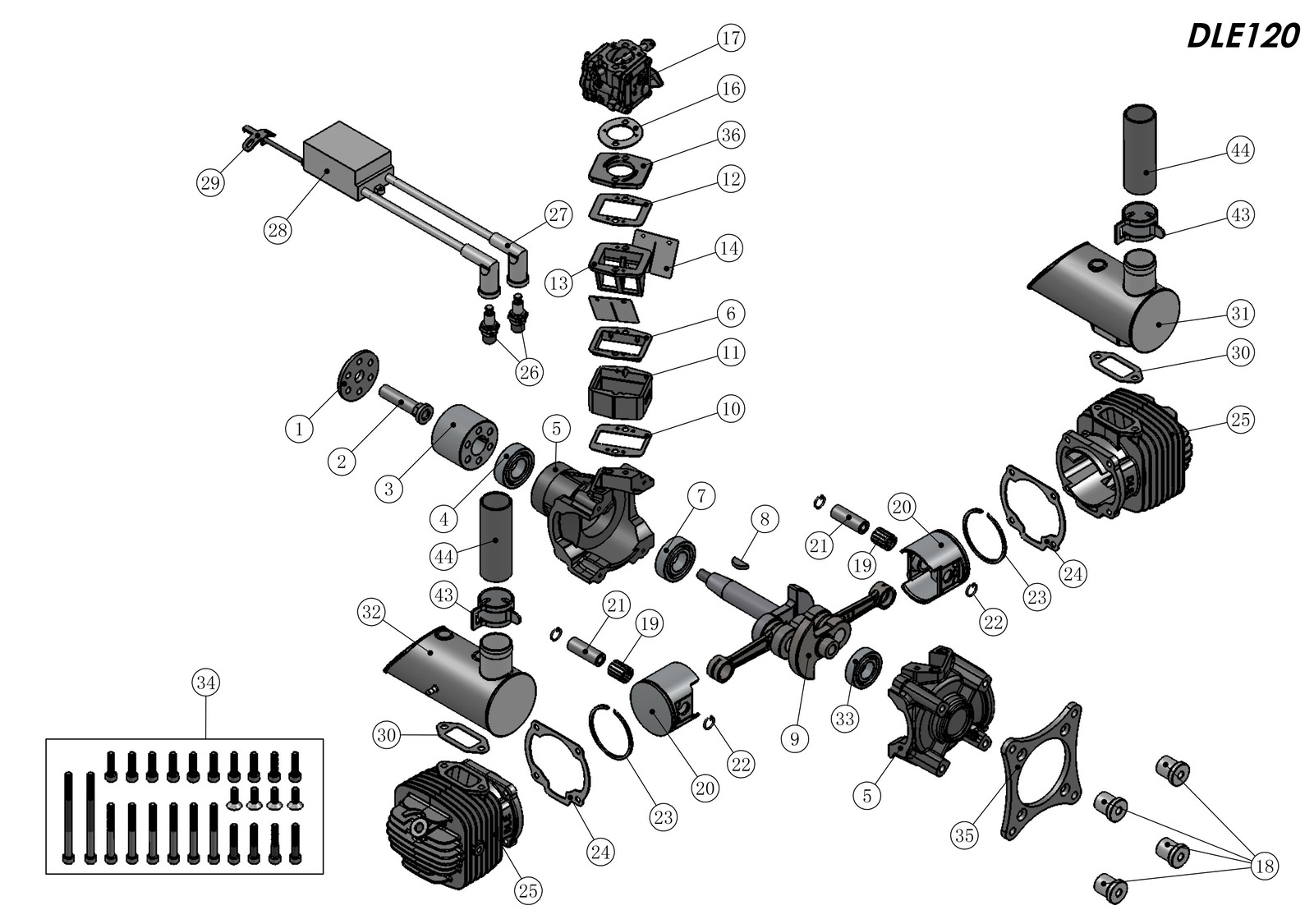

#35 as per the exploded view

SKU 120Y35
Brand DLE Engines
Shipping Weight 0.3000kg
Shipping Width 0.060m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000288000m3
