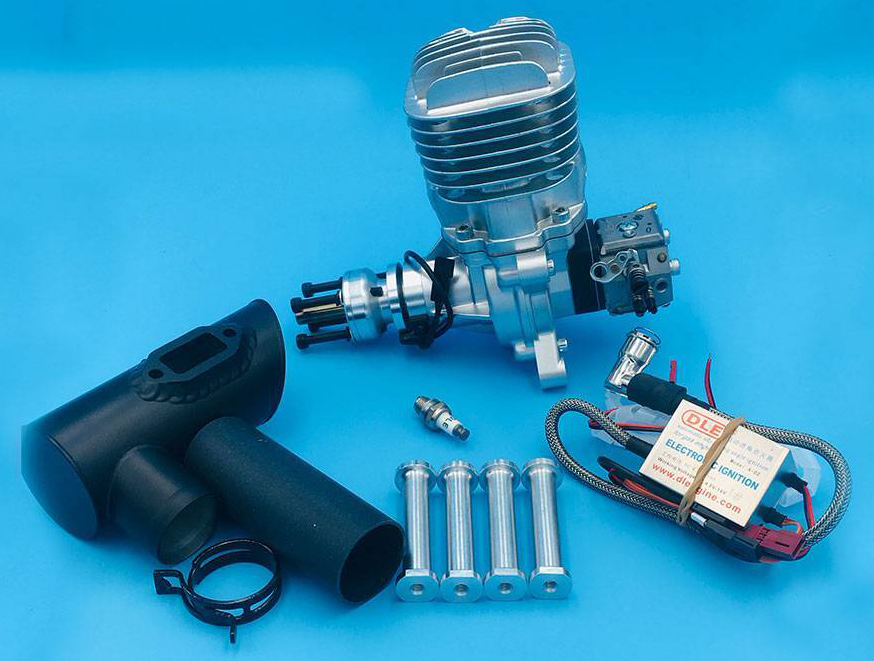

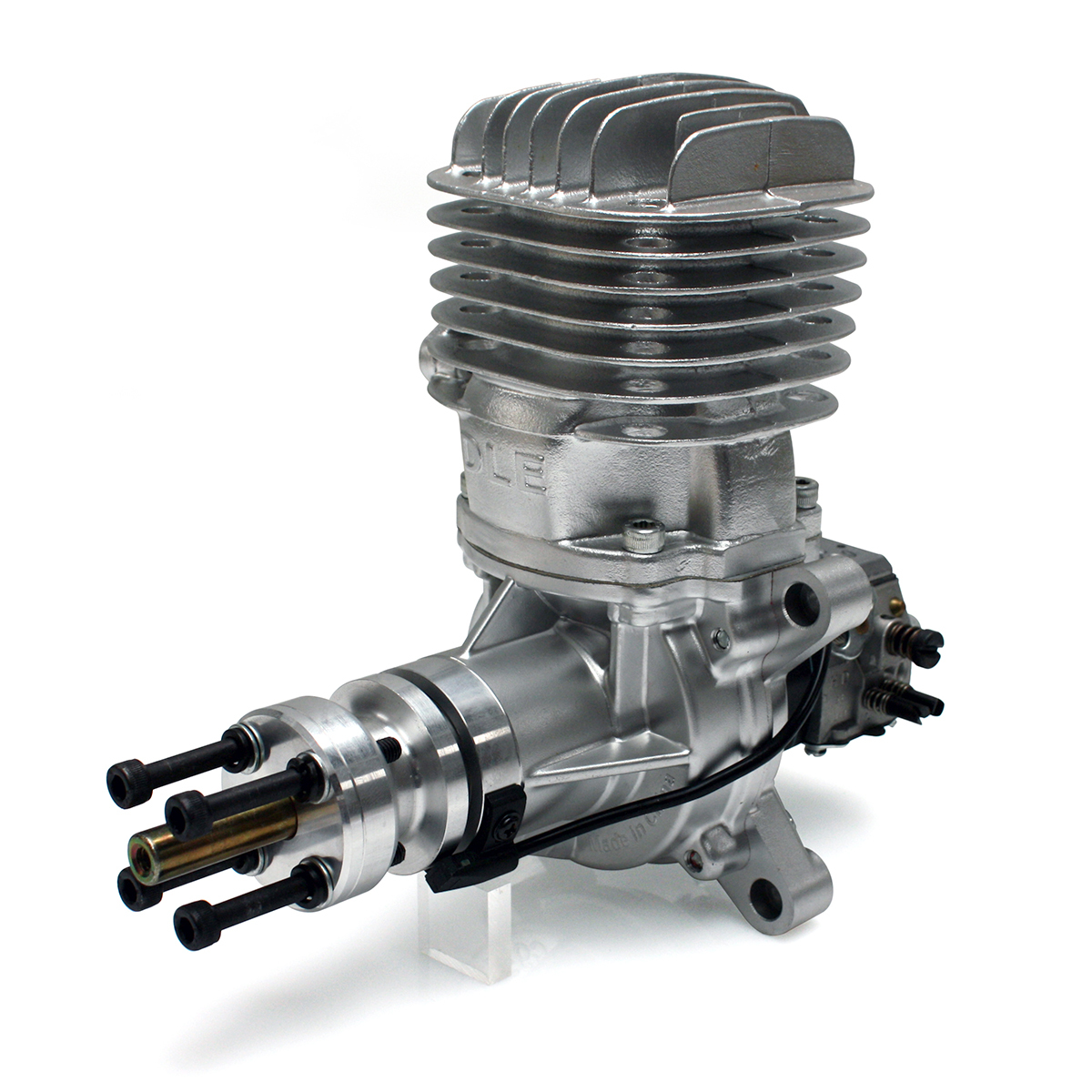

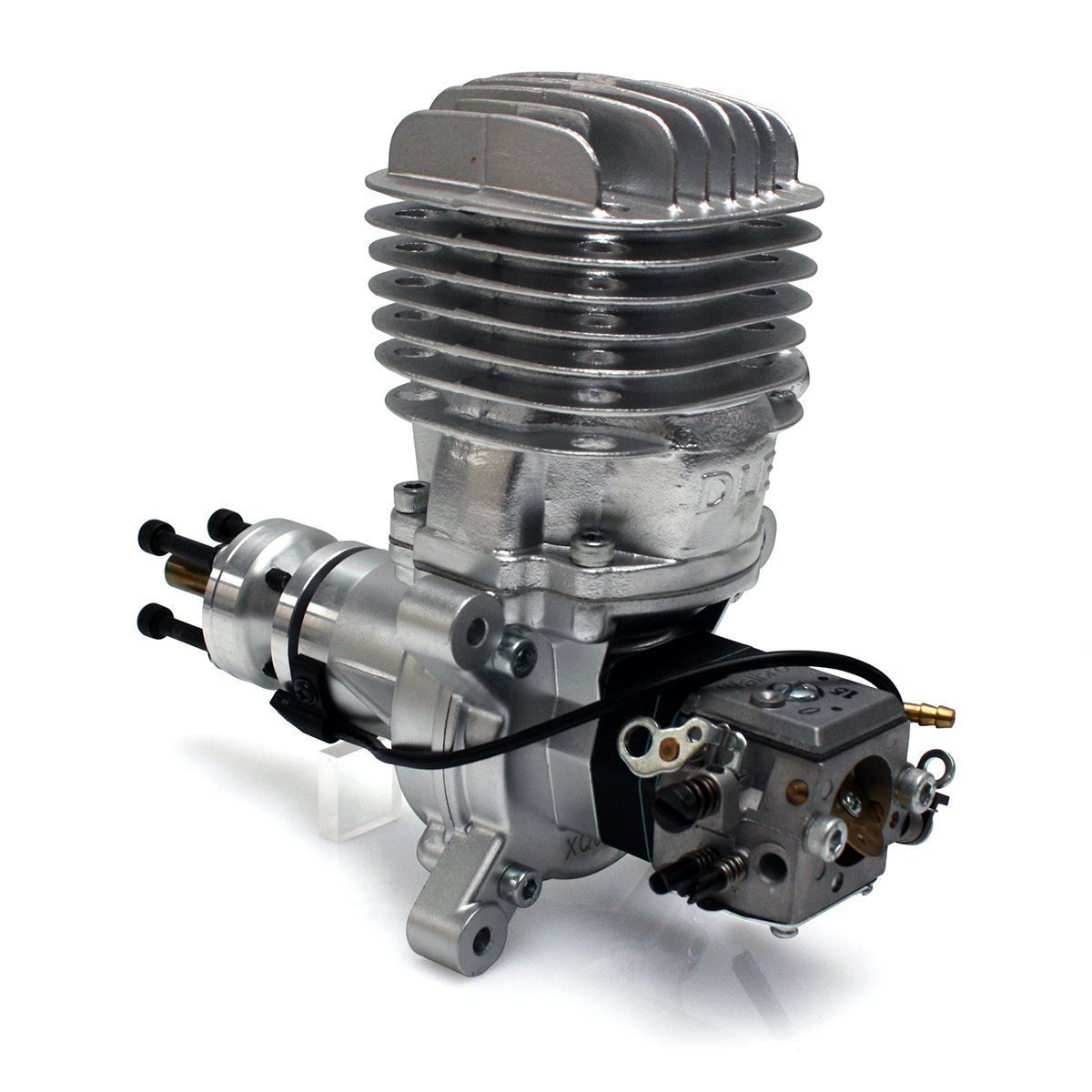

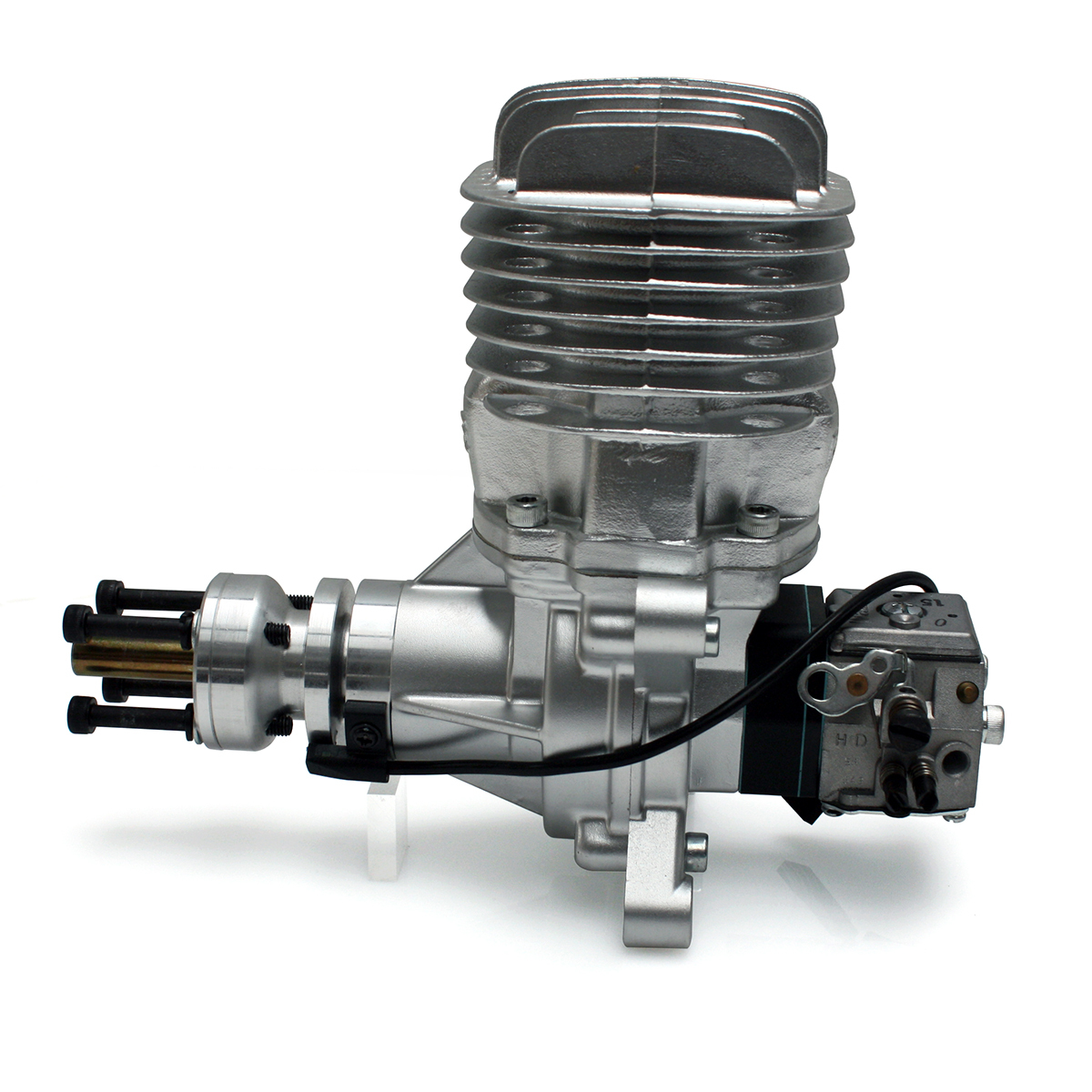

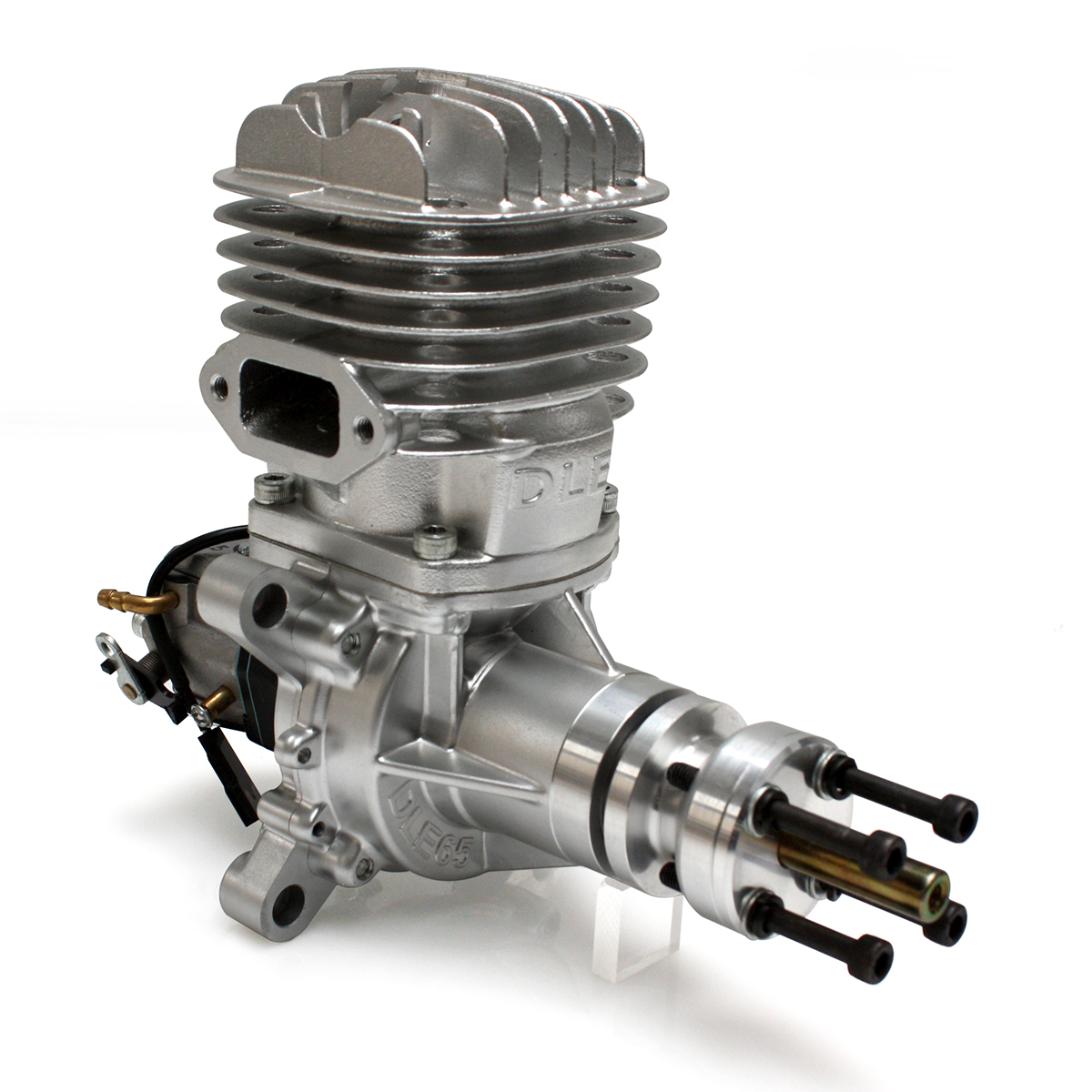

DLE65cc gasoline model engine, launched in March 2020, is a single cylinder two-stroke piston engine. Clean 92 ＃ or above unleaded gasoline is used as fuel, and the proportion of engine oil is 30:1. It is forbidden to mix lubricants of different manufacturers and brands! It will cause serious blockage of carburettor.

IMPORTANT NOTICE: We highly recommend using NGK-CM6 (DLE) spark plugs with this engine for optimum performance.
Official DLE Engines Reseller - Check The DLE Website HERE

Specifications
Performance: 6.5HP/7500rpm
Idle Speed: 1400 rpm/min
Static Thrust: 16kg/100 meters Altitude
Static Thrust: 13.7kg/1800, meters Altitude
Recommended Propeller: 23x10 / 24x8 / 24x9 / 24x10
Spark Plug Type: DLE CM6*
Displacement: 65cm3
Diameter × Stroke: 47x37.5mm
Compression Ratio: 9.2:1
Lubrication Ratio: 30:1
Weight of Main Engine: 1450g
Weight of Exhaust: 170g
Weight of Ignition: 130g
Ignition voltage: 4.8V-12V

SKU DLE65
Barcode # 0000100100327
Brand DLE Engines
Shipping Weight 1.2000kg
Shipping Width 0.250m
Shipping Height 0.120m
Shipping Length 0.350m
Shipping Cubic 0.010500000m3
