Smooth operation - lasting value
Finding an engine with enough power for your model is easy. Finding an engine that offers you more than the DLE-40 Twin? That's next to impossible.

DLE offers the ease and efficiency of electronic ignition, the smooth operation and long life of an opposed twin and the incredible bang-for-the-buck that all DLE engines offer. Features that are extras on other engines are standard equipment on DLE engines. They run from high-dollar items such as electronic ignition and muffler(s) down to conveniences like mounts, spark plugs and connectors.

Performance, plus - that's what you can expect from all DLE Engines.

Features

  • Light, efficient design for a high power-to-weight ratio
  • Lightweight piston for fast acceleration, excellent compression and low vibration
  • CNC-machined parts for high performance and long life
  • Sealed crankshaft bearings

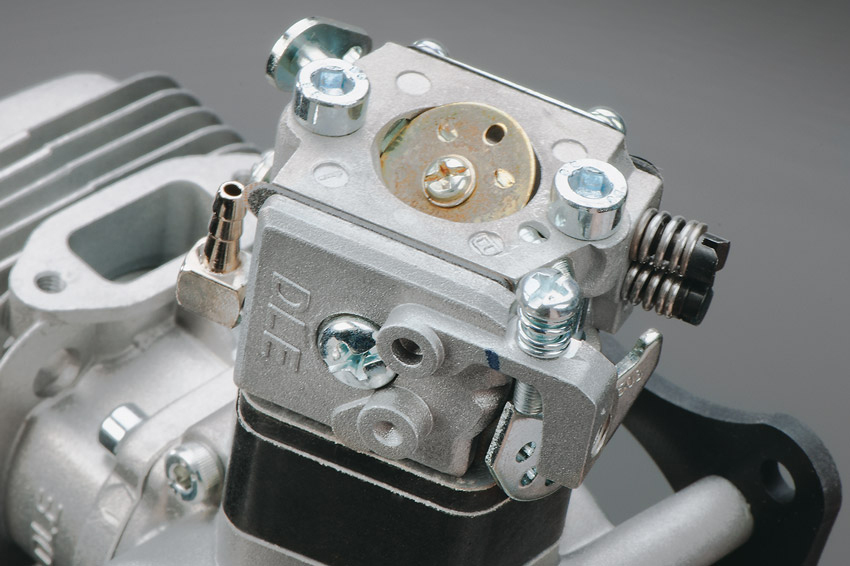

  • Optimised pumper carb
  • Updated mufflers for sound reduction, excellent aeration and power
  • Phenolic insert to insulate carb from crankcase heat

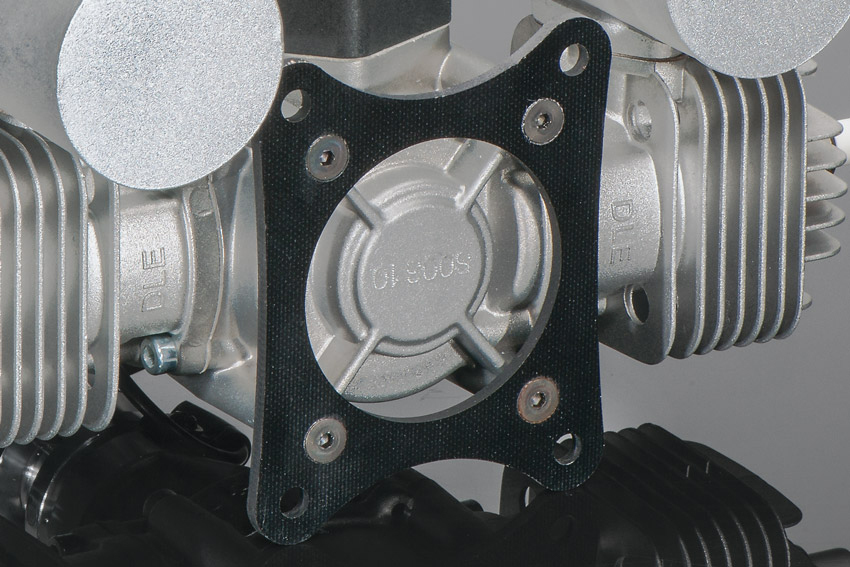

  • Composite backplate mount
  • Opposing cylinders help dampen vibration that can prematurely "age" engines and airframes and reduce engine life.

Official  DLE Engines Reseller - Check The DLE Website HERE

Specifications
Stock Number: DLEG0040
Displacement: 40.0 cc (2.45 cu in)
Bore (x2): 1.26 in (32 mm)
Stroke (x2): 0.98 in (25 mm)
Weight: 3.3 lb (1.50 kg)
RPM Range: 1,500–8,500
Output: 4.8 hp @ 8500 rpm
Requires: Unleaded Petrol (Gasoline), oil, ignition battery & propeller

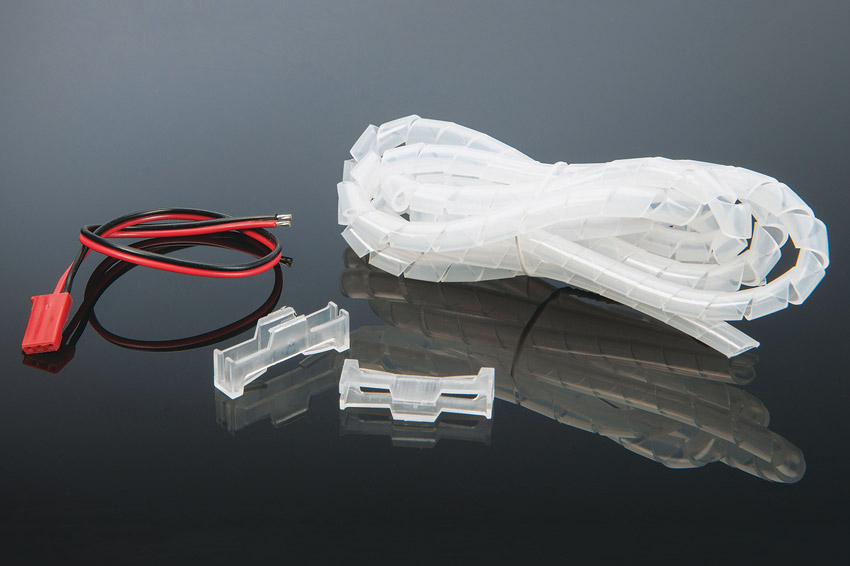

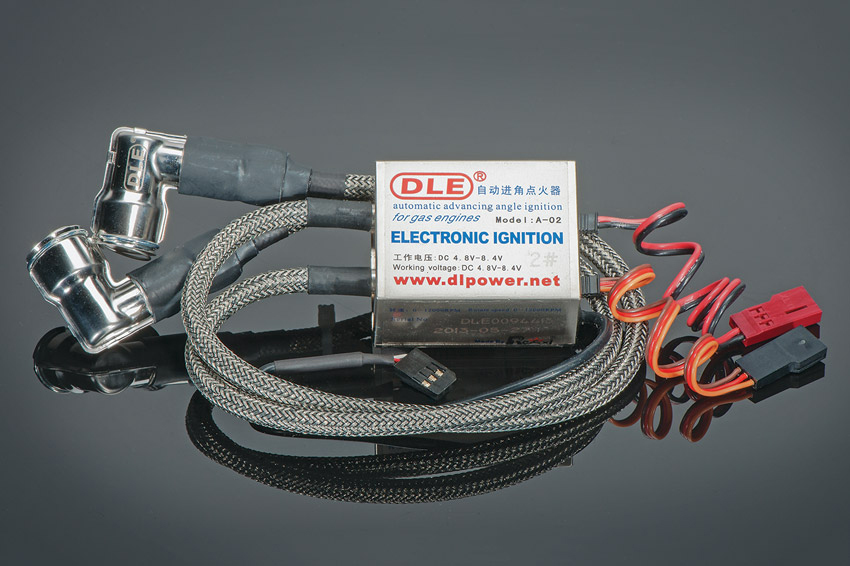

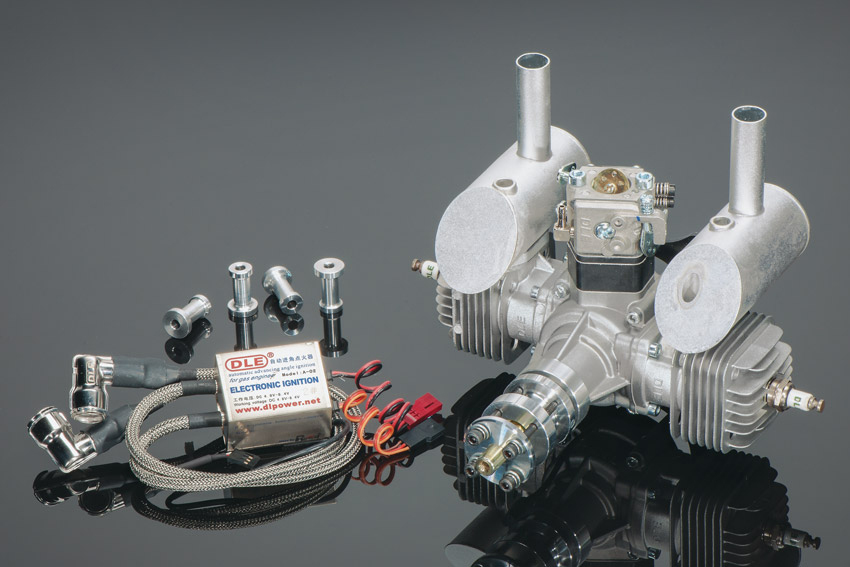

Includes: Electronic Ignition Module, 2 each of Mufflers and Spark Plugs, Mount, Standoffs, Spiral Wire Wrap, Connector Safety Clips and Instruction Manual
Recommended Prop: 19x8, 19x10, 20x8 & 20x10

Technical Data
Ignition Battery: 4.8-8.4 NiCd/NiMH, 6.6V LiFe or 2S LiPo pack (Voltage regulator required if LiPo or LiFe pack is used)
Petrol/Oil Mix: 30:1
Static Thrust: 20.9 lb (9.5 kg) @ 328 feet altitude, 18.7 lb (8.5 kg) @ 1,800 feet altitude
Weight Breakdown: Engine: 2.58 lb (1.17 kg) | Muffler (x2): 3.6 oz (102 g) | Ignition Module: 5.3 oz (149 g) | Standoffs: 0.7 oz (19 g) | Misc: 2 oz (56 g)

SKU DLE40
Barcode # 0000100100051
Brand DLE Engines
Shipping Weight 2.0000kg
Shipping Width 0.230m
Shipping Height 0.170m
Shipping Length 0.260m
Shipping Cubic 0.010166000m3
