Big Power for Big Aircraft
At 21.5 horsepower, the DLE-222 has more than enough power to push your plane through the air. And with an all-up weight of just over twelve pounds, it has the power-to-weight balance to make the most of it. Dual carbs help you fine tune it, sealed bearings keep it running smoothly, and two mufflers keep it down to a dull roar. And for all you get - including mufflers, mount, standoffs and a 6-bolt prop hub - the value-to-price ratio is impressive, too.

IMPORTANT NOTICE: We highly recommend using NGK-CM6 (DLE) spark plugs with this engine for optimum performance.

Features

• New split crankcase for easier servicing (no longer need to send back to factory)
• New Reed Block design
• New Crankshaft design
• Mufflers & gaskets

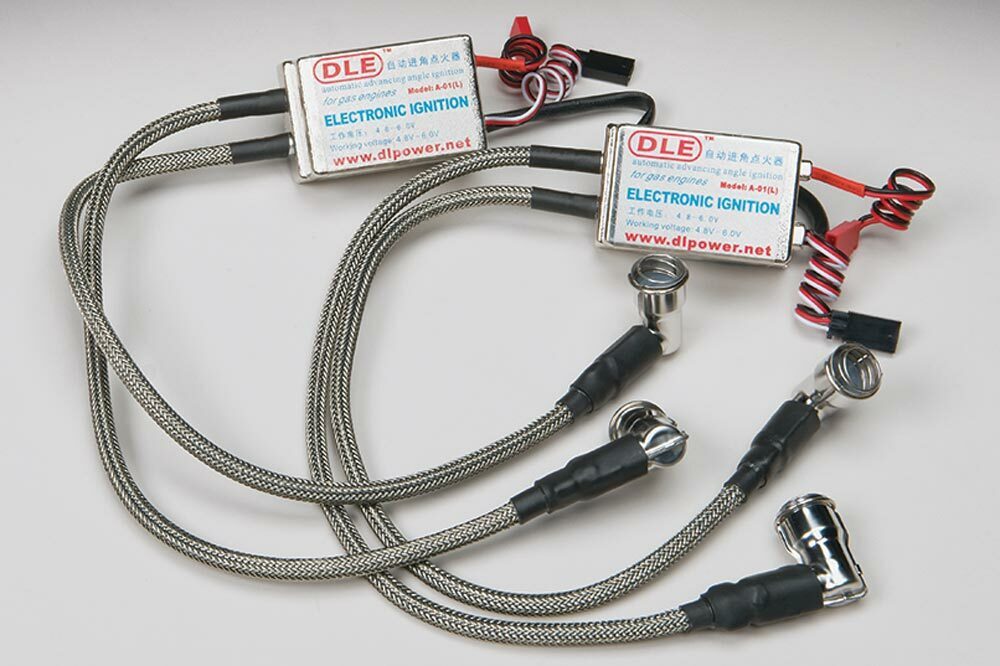

• 2x Ignition Modules (Latest Version able to handle up to 14v)
• Twin carburettors
• 4x Genuine NGK CM6 Spark Plugs (on engines purchased through DL Engines Australia)
• 2-Year Warranty

Official  DLE Engines Reseller - Check The DLE Website HERE

Specifications
Stock Number: DLEG0222
Displacement: 222.5 cc (13.6 cu in)
Bore: 1.77 in (45 mm)
Stroke: 1.38 in (35 mm)
Weight: 12.37 lb (5.61 kg)
RPM Range: 1,000-7,500
Output: 21.5 hp @ 7,500 rpm
Requires: Unleaded Petrol (Gasoline), oil, ignition battery & propeller

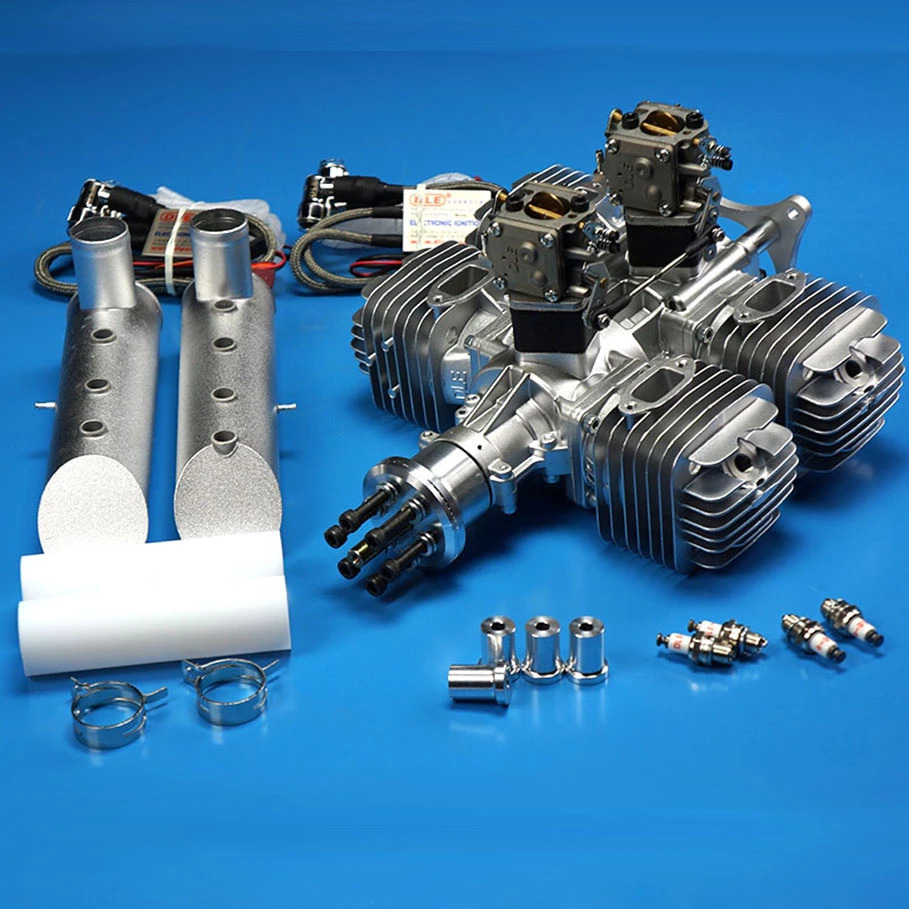

Includes: Dual Electronic Ignition, 2 Mufflers, 4 Spark Plugs, Gaskets, Bolts, Machined Aluminium Standoffs, 6-Bolt Prop Hub, Throttle Arm Extension, Mount and Mounting Template
Recommended Prop: 32x10, 32x12 & 34x10

Technical Data
Ignition Battery: Two 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo Packs (Voltage regulator required with LiPo or LiFe use.)
Petrol/Oil Mix: 30:1
Compression Ratio: 7.6:1
Replacement Spark Plug: DLEG2226 CM6 (DLE) spark plug
