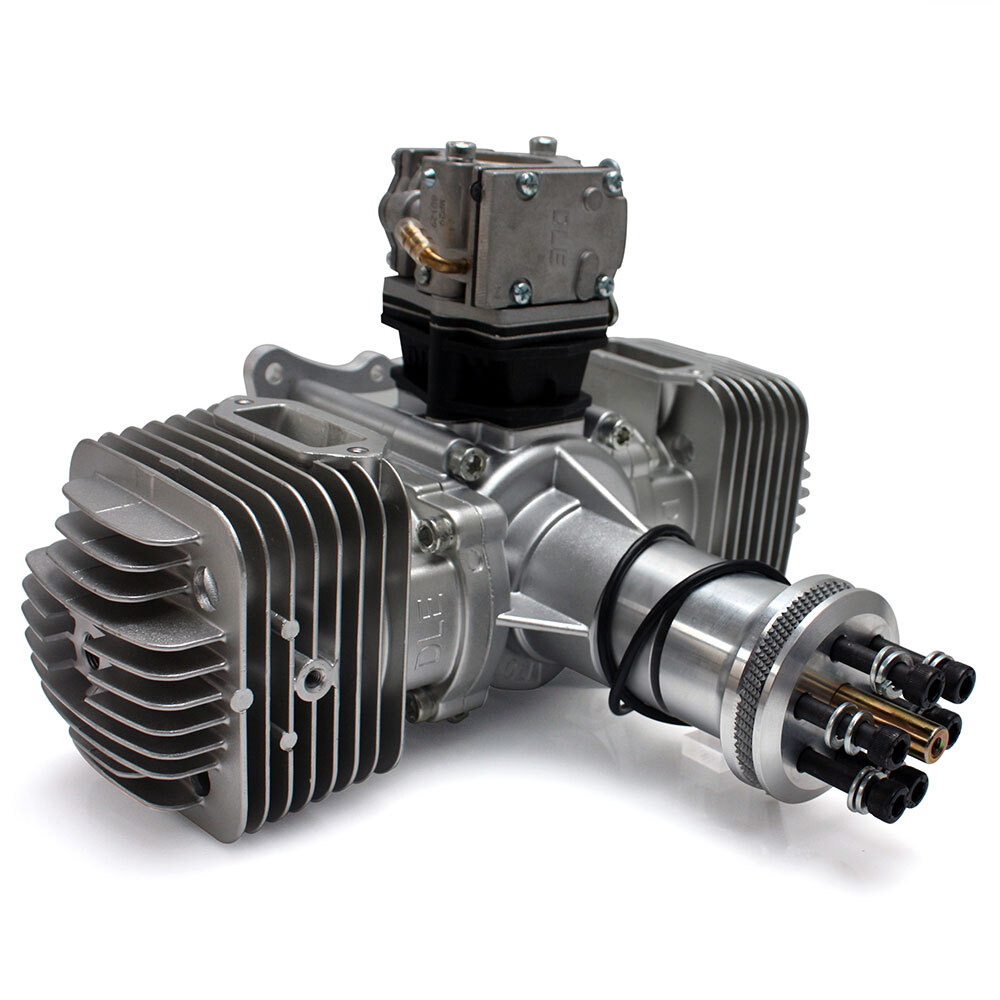

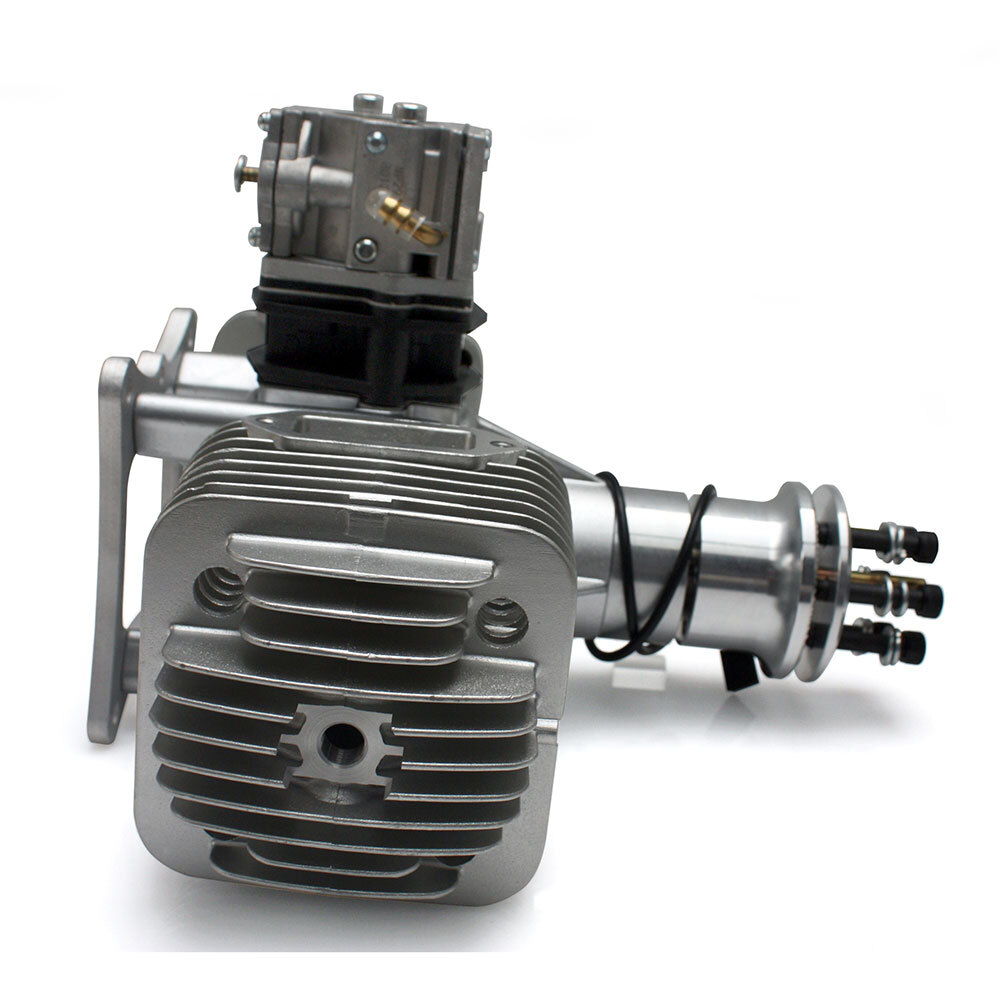

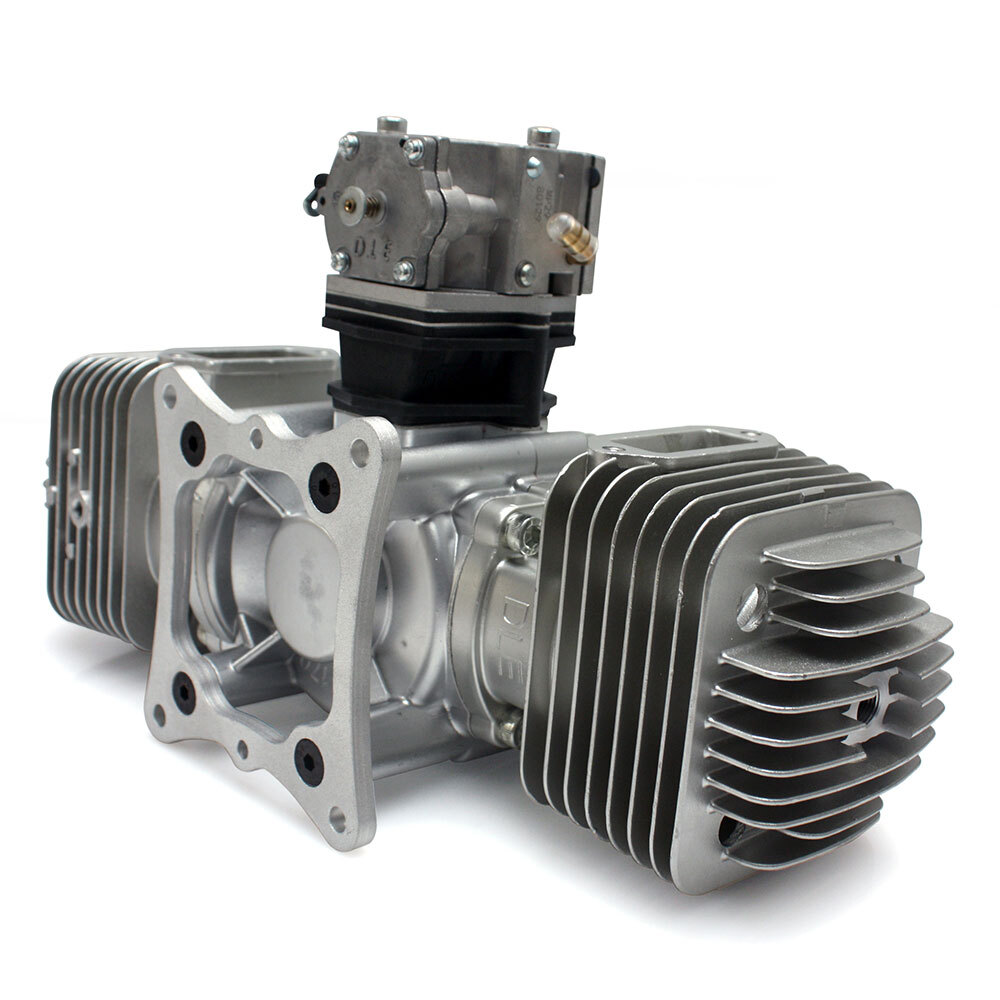

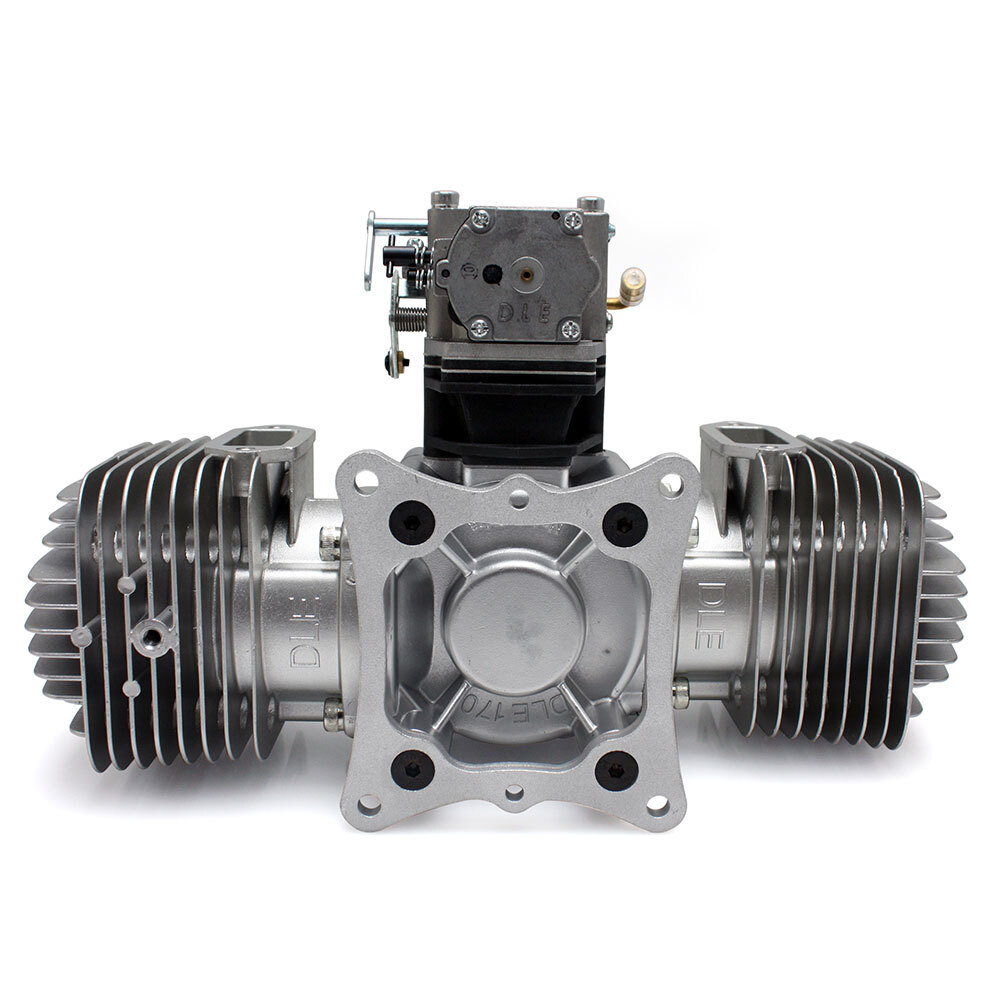

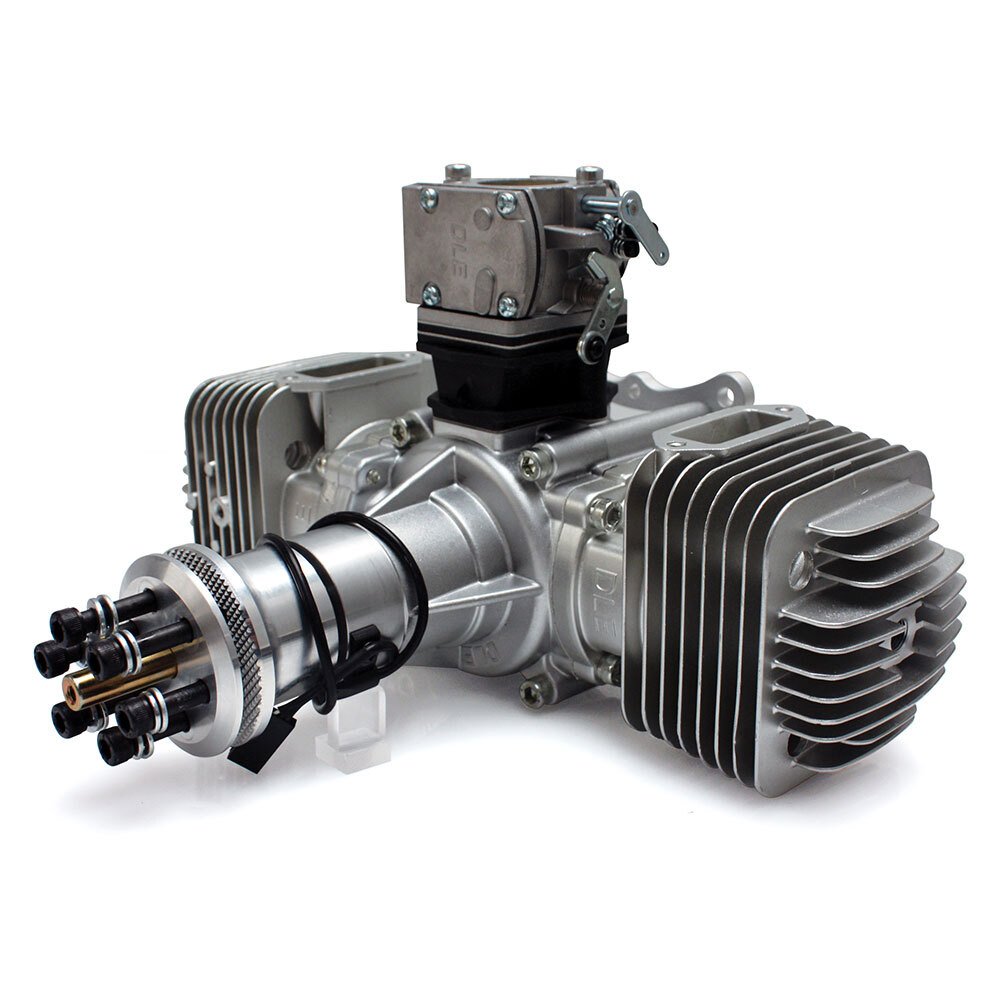

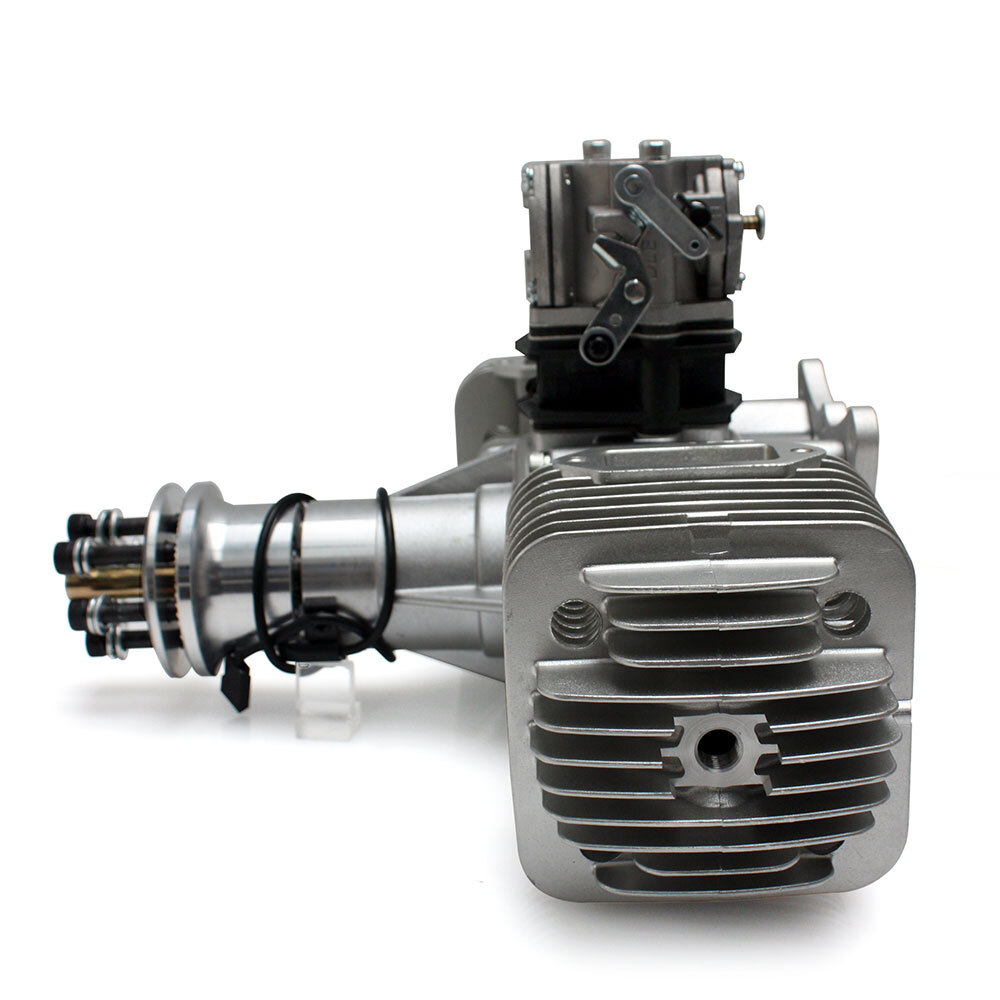

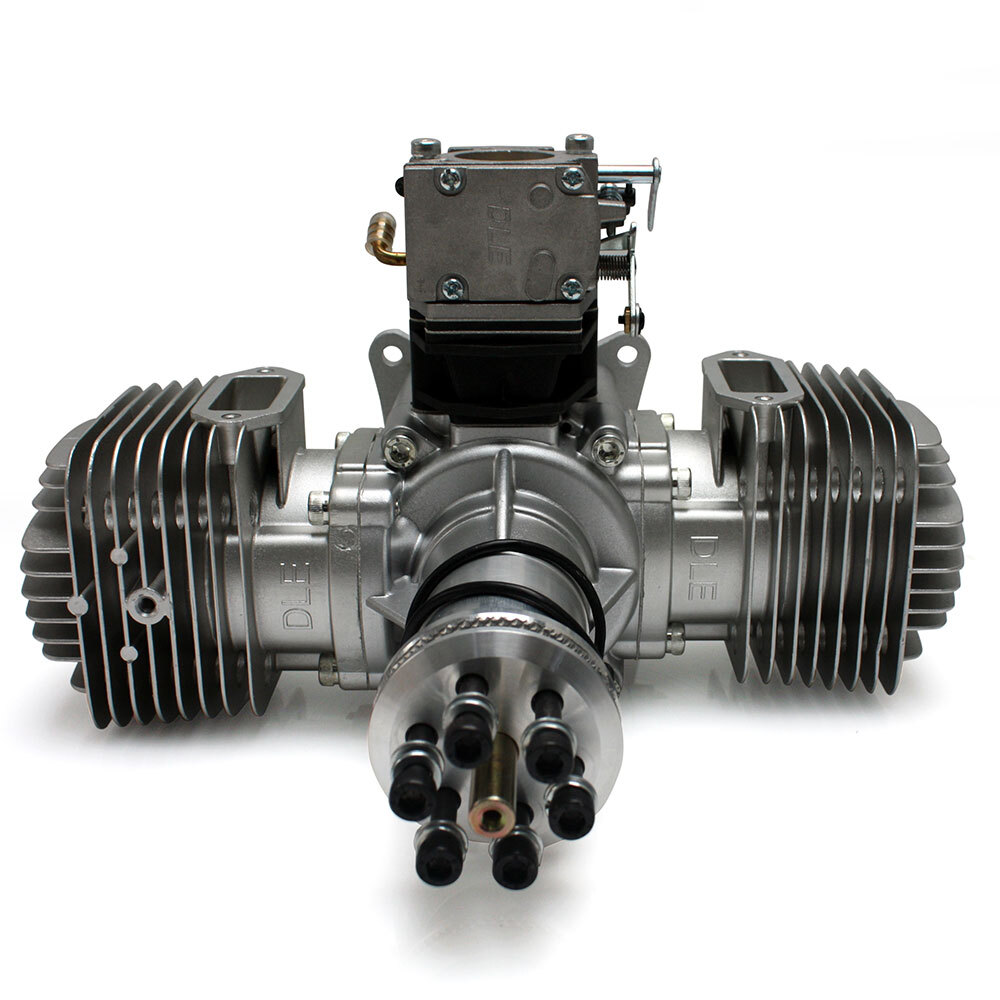

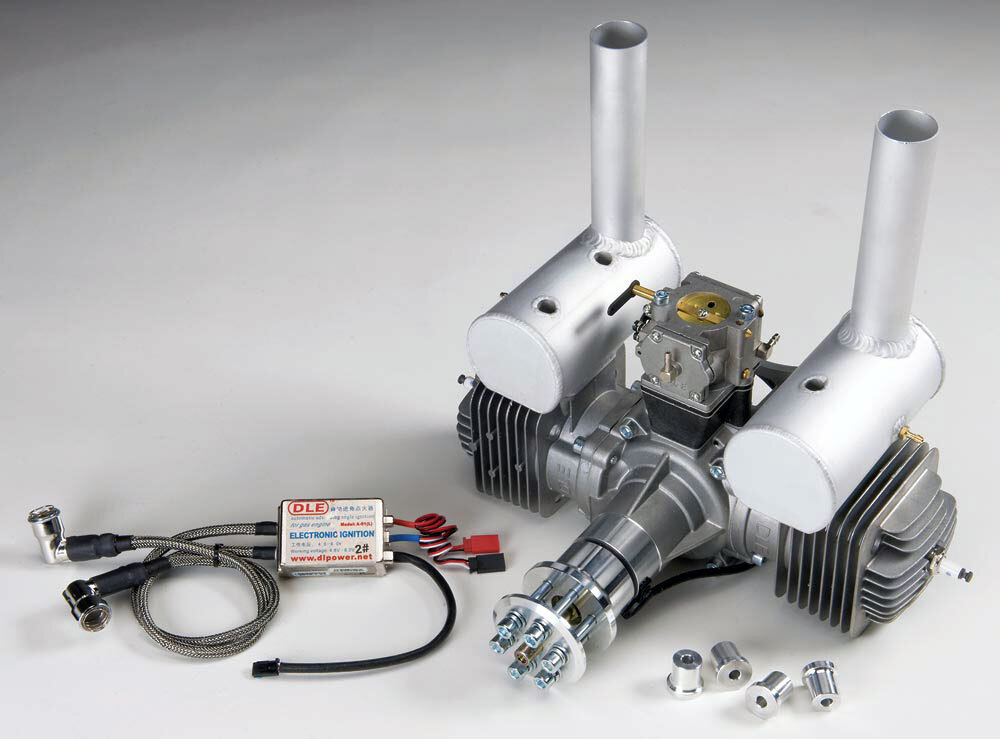

Enjoy plentiful power on demand with the DLE Engine's DLE-170cc Twin Gasoline Engine! Includes advanced CNC machining, an Electronic Ignition Unit, twin mufflers, a customised carburettor and more!

IMPORTANT NOTICE: We highly recommend using NGK-CM6 (DLE) spark plugs with this engine for optimum performance.

Features

  • Three crank bearings, simple design for lighter weight (New cylinder head design)
  • Double V-type reed valves, bottom induction

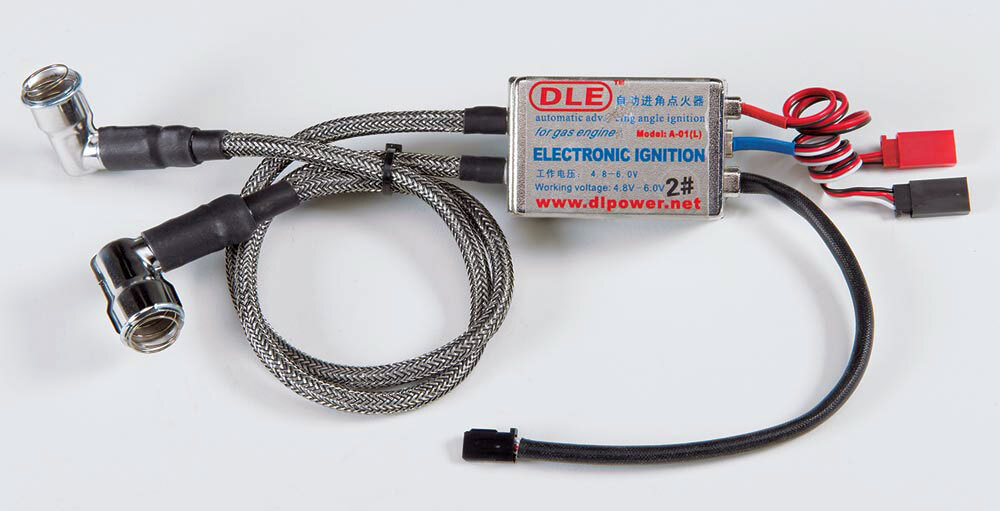

  • Automatic electronic ignition (Now 4.8v - 14v)
  • Customised carburettor
  • Special aluminium alloy crankcase
  • Advanced CNC machining
  • High quality sealed bearings
  • Horizontally opposed twin cylinders for low vibration
  • High power-to-weight ratio
  • Includes mufflers, mount and standoffs
  • Instructions

Official  DLE Engines Reseller - Check The DLE Website HERE

Specifications
Stock Number: DLEG0170
Displacement: 170 cc (10.37 cu in)
Bore: 2.05 in (52 mm)
Stroke: 1.57 in (40 mm)
Weight: 9.06 lb. (4.11 kg)
Output: 17.5 hp @ 7500 rpm
Requires: Unleaded Petrol (Gasoline), oil, ignition battery & propeller
Includes: Electronic Ignition, Mufflers, Spark Plugs, Gaskets, Bolts, Machined Aluminium Standoffs, 6-Bolt Prop Hub, Throttle Arm Extension, Mount and Mounting Template
Recommended Prop: 30x12 & 32x10

Technical Data
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (Voltage regulator required for LiFe or LiPo use.)
Petrol/Oil Mix: 30:1
Compression Ratio: 9.5:1
Replacement Spark Plug: CM6 (DLE) DLEG1826
Weight Breakdown: Engine: 7.83 lb (3.55 kg); Exhaust (2): 7.05 oz (200 g); Ignition: 5.64 oz (160 g)

SKU DLE170
Barcode # 0000100100150
Brand DLE Engines
Shipping Weight 5.5000kg
Shipping Width 0.310m
Shipping Height 0.280m
Shipping Length 0.370m
Shipping Cubic 0.032116000m3
