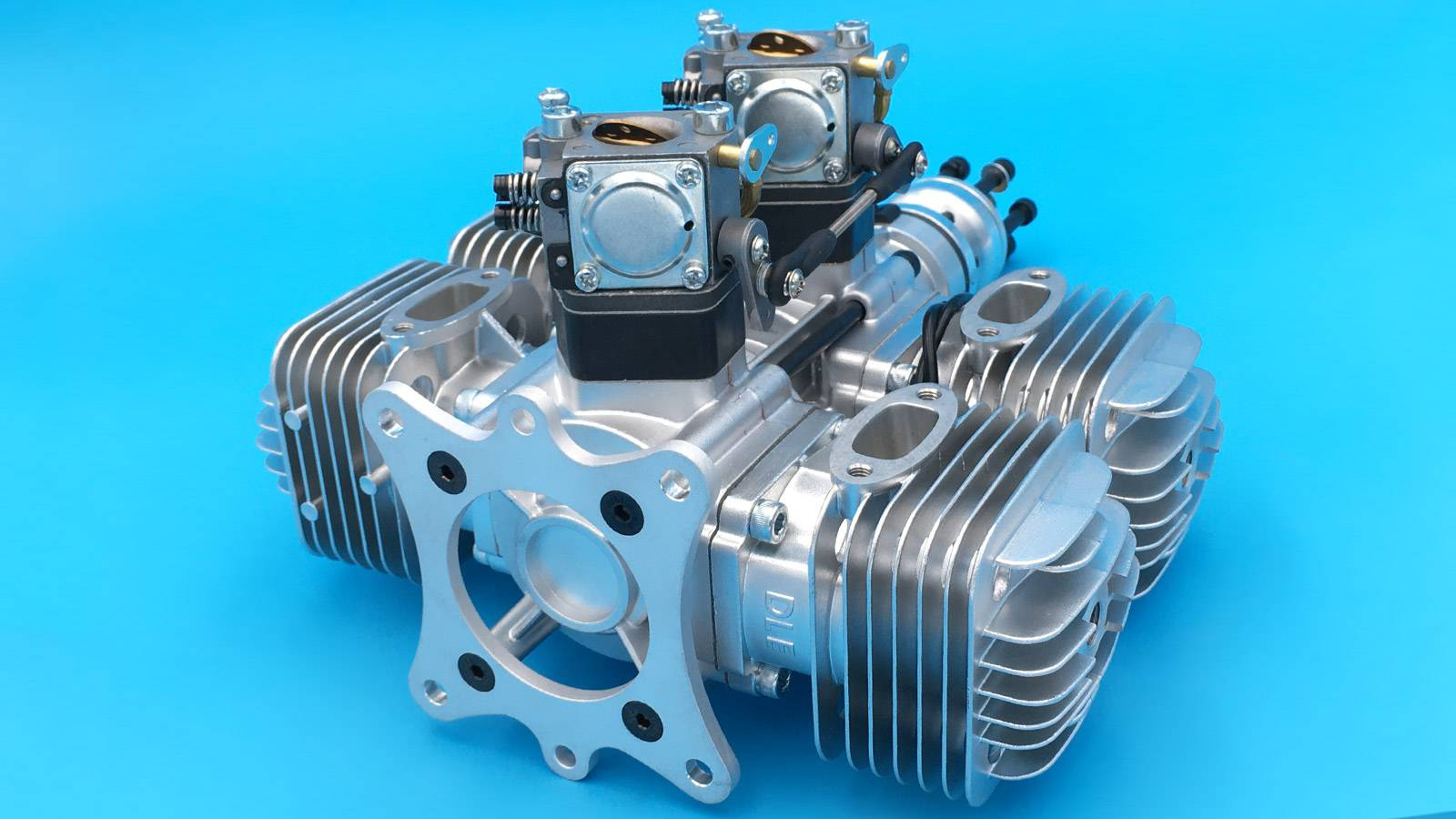

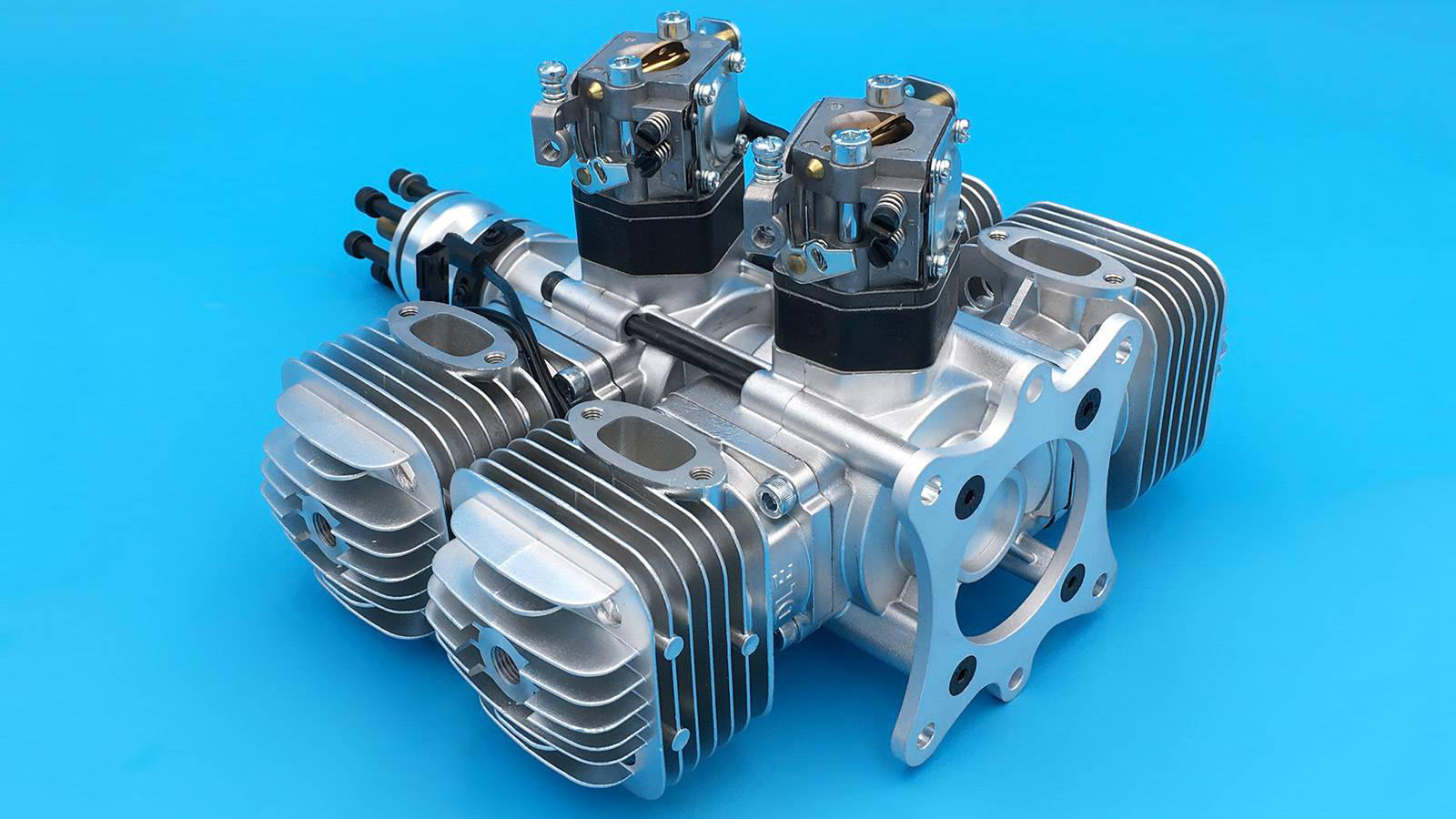

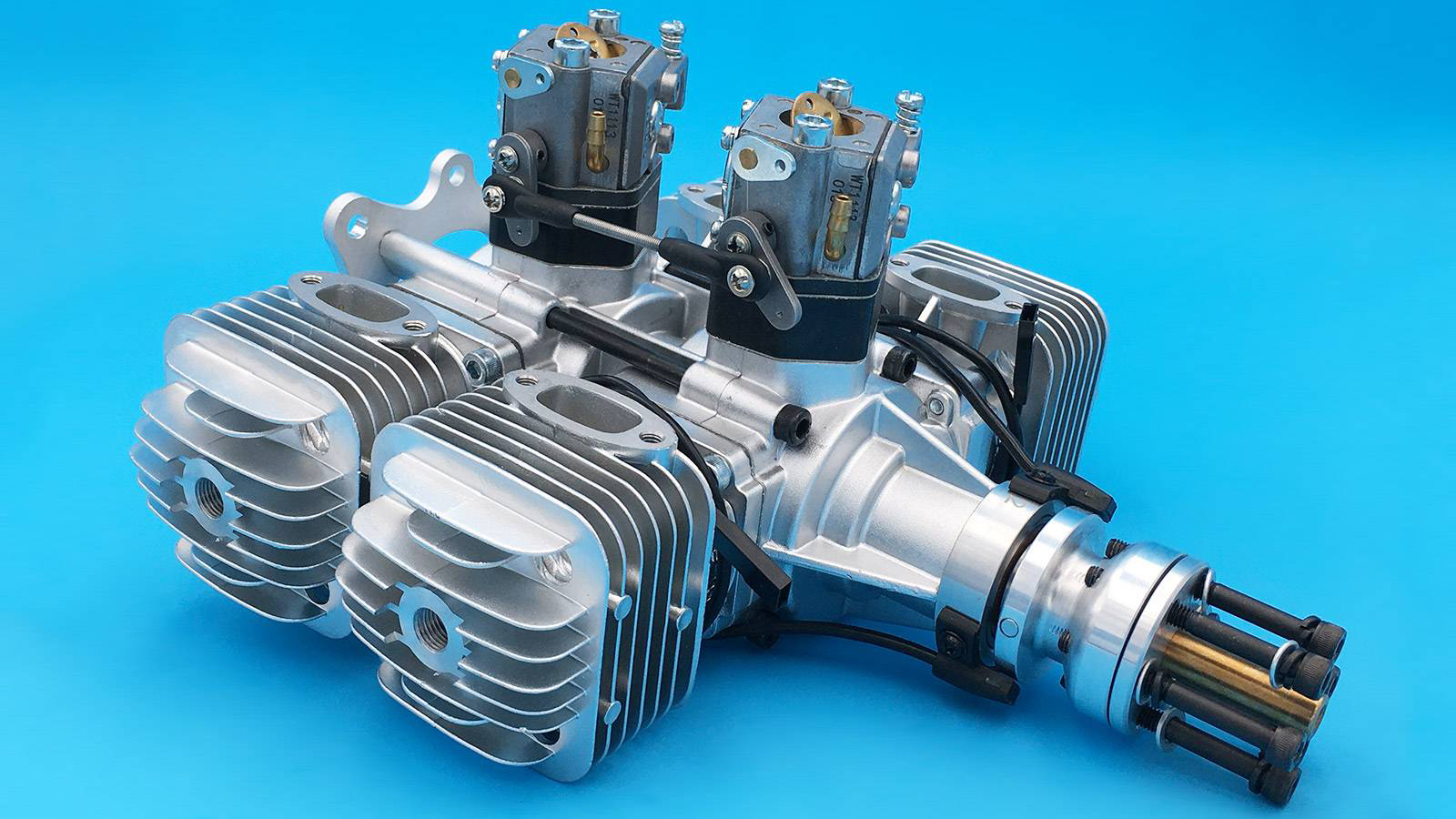

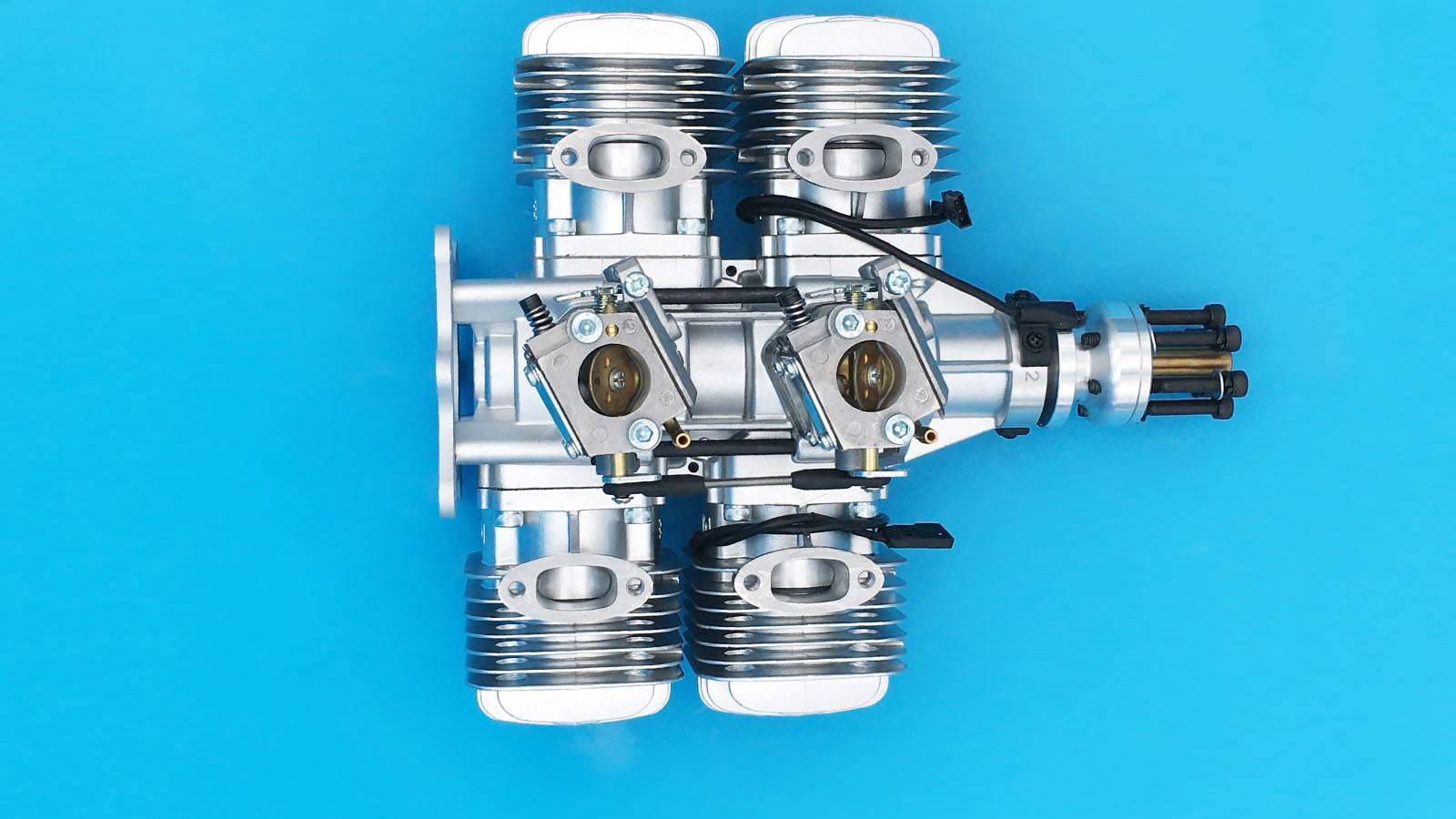

DLE120T4 120cc four cylinder gasoline aero model engine, launched in May 2020, is a four cylinder two-stroke piston engine, which is currently the smallest displacement four cylinder aero model engine of DLE. The fuel uses clean 92 unleaded gasoline and above, and the ratio of fuel to engine oil is 30:1. It is forbidden to mix lubricating oils of different manufacturers and brands! It can cause serious blockage of carburettor.

IMPORTANT NOTICE: We highly recommend using NGK-CM6 (DLE) spark plugs with this engine for optimum performance.

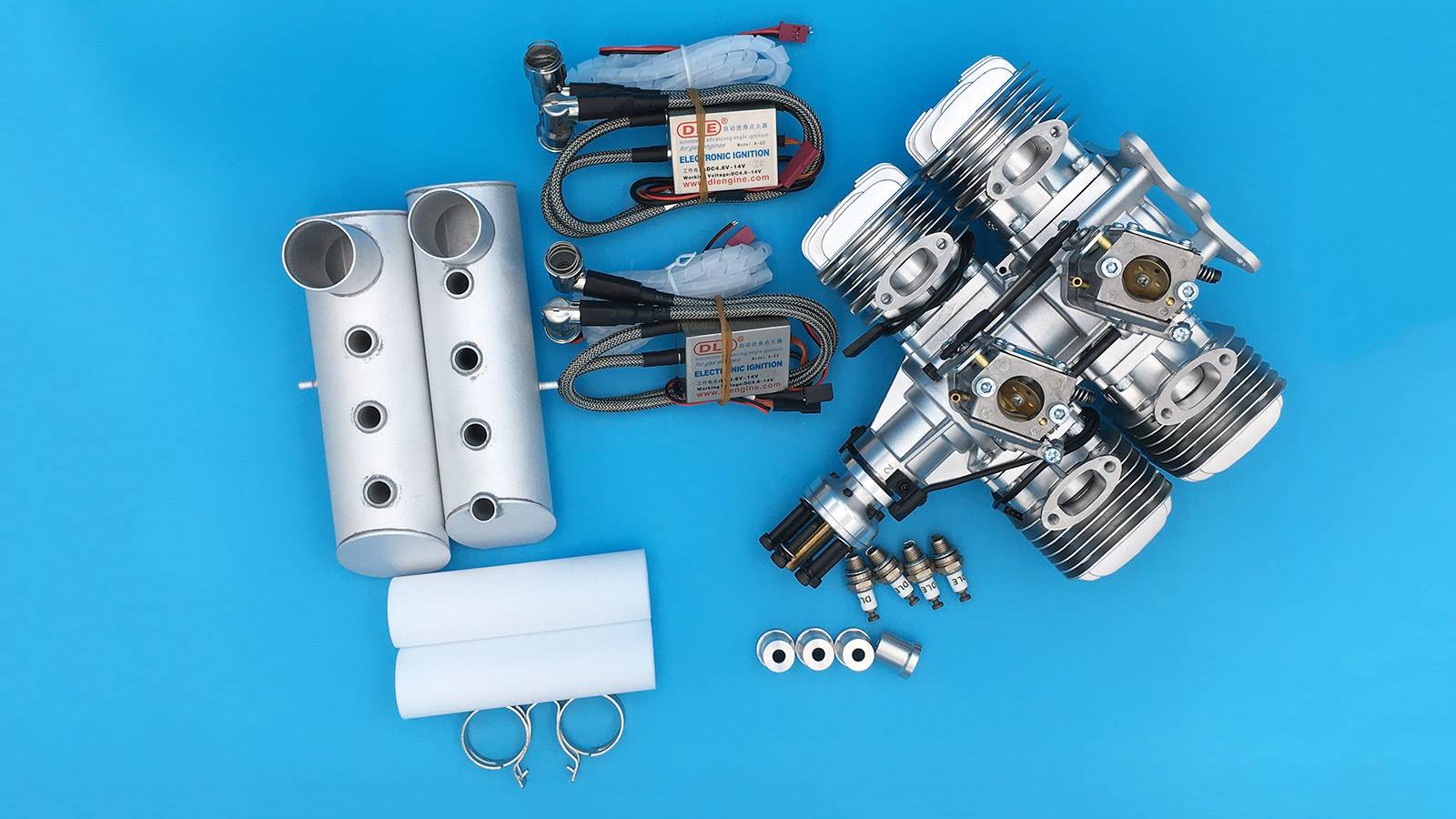

Includes

  • DLE-120-T4 Engine
  • 4.8~14v Electronic (Auto Advancing) Ignition & Spiral Cable Wraps
  • DLE Pump Carburettor and throttle arm extension
  • (2) Mufflers with smoke inlet, Gaskets and Bolts, extensions and clamps
  • Alloy Mounting Plate fixed to engine
  • (2) Safety clips
  • (4) NGK CM6 Spark plugs
  • 2 Year Factory Warranty

Official  DLE Engines Reseller - Check The DLE Website HERE

Specifications
Displacement: 120cm3
Diameter x Stroke: 36mm x 30mm
Compression Ratio: 7.1 :1
Lubrication Ratio: 30:1
Weight of Main Engine: 920g
Weight of Exhaust: 500g
Weight of Ignition: 140g
Ignition voltage: 4.8V-12V
Performance: 12HP/7500rpm
Idle Speed: 1200 rpm/min
Static Thrust: 26.5kg/100 metres Altitude
Static Thrust: 23.5kg/1800 metres Altitude
Recommended Propeller: 27x10, 26x12, 28x10
Spark Plug Type: NGK-CM6 (DLE)

SKU DLE120-T4
Barcode # 0000100100334
Brand DLE Engines
Shipping Weight 4.4000kg
Shipping Width 0.270m
Shipping Height 0.230m
Shipping Length 0.310m
Shipping Cubic 0.019251000m3
