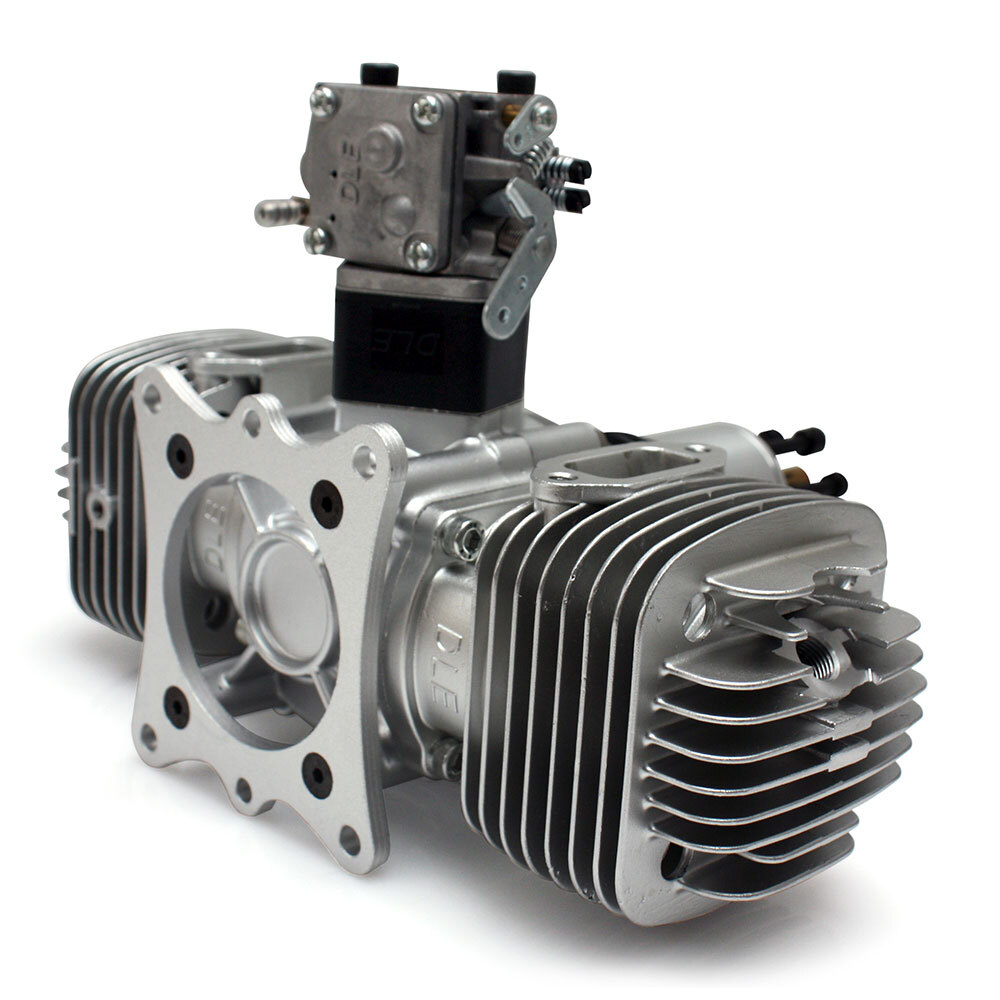

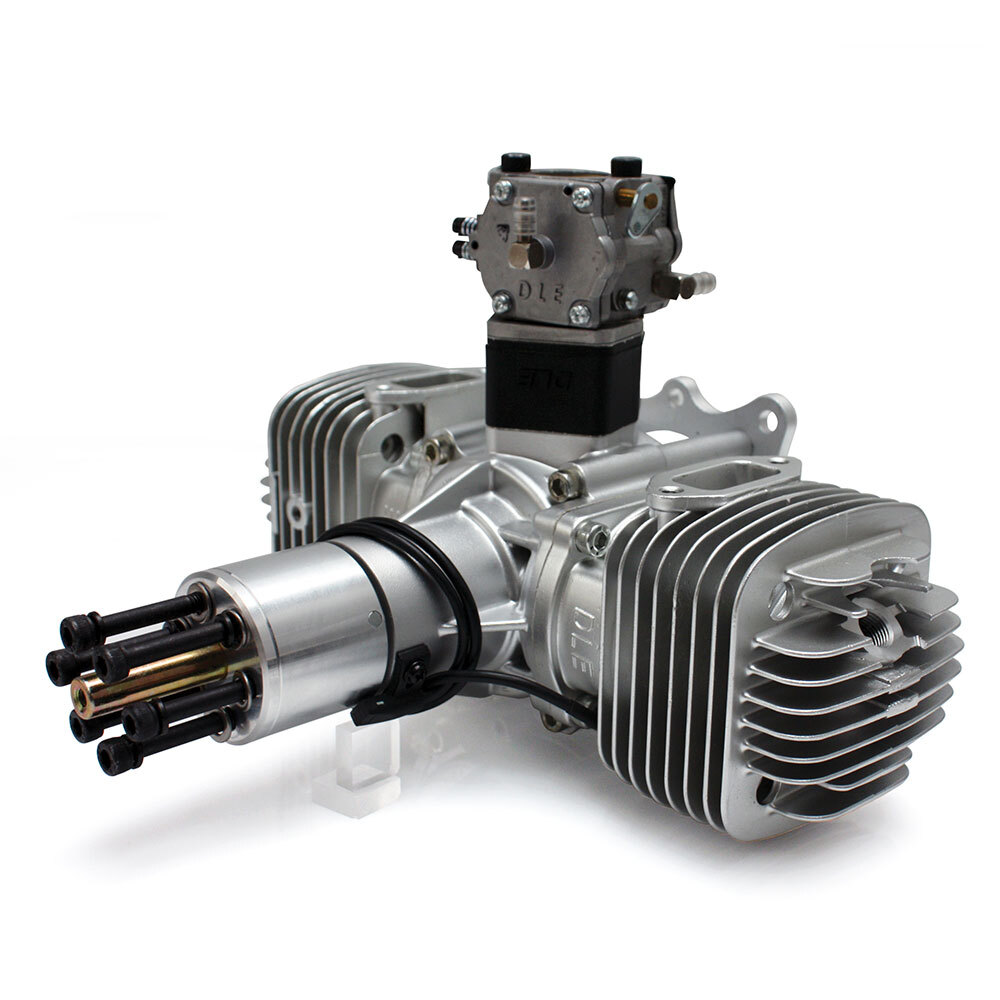

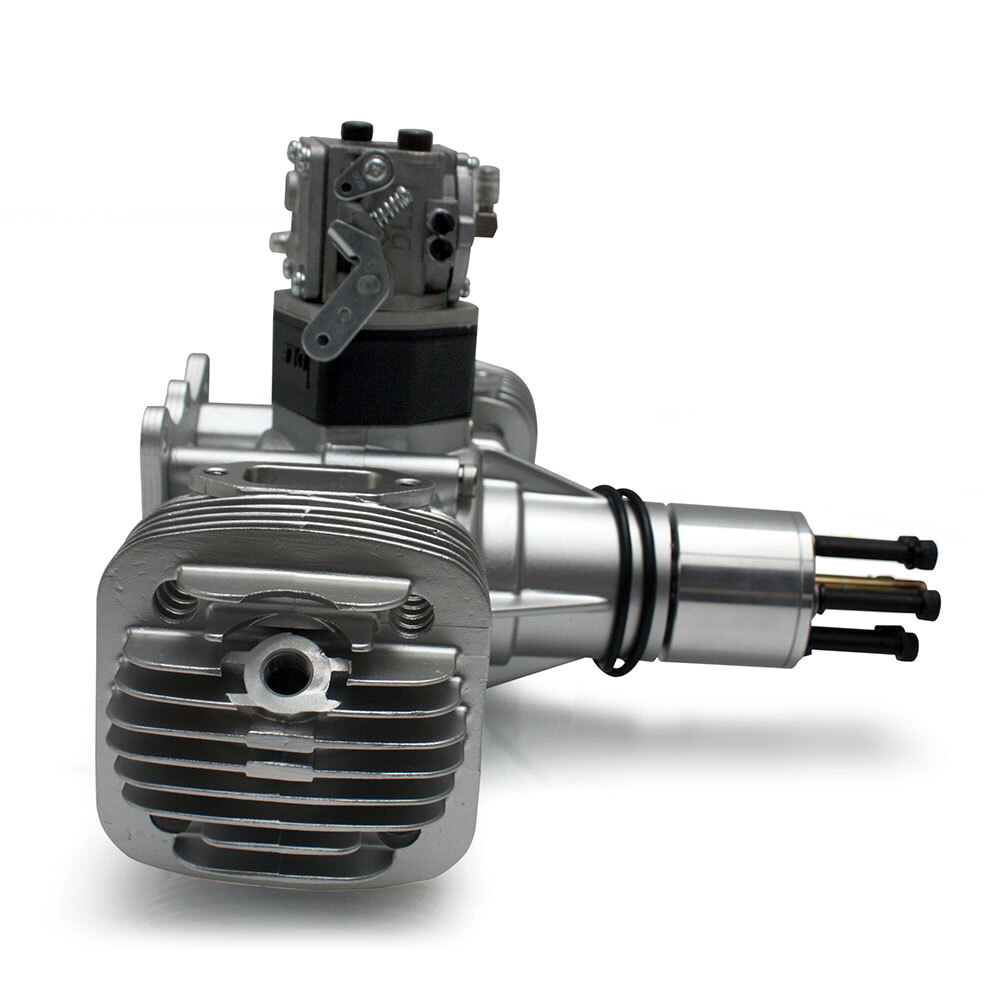

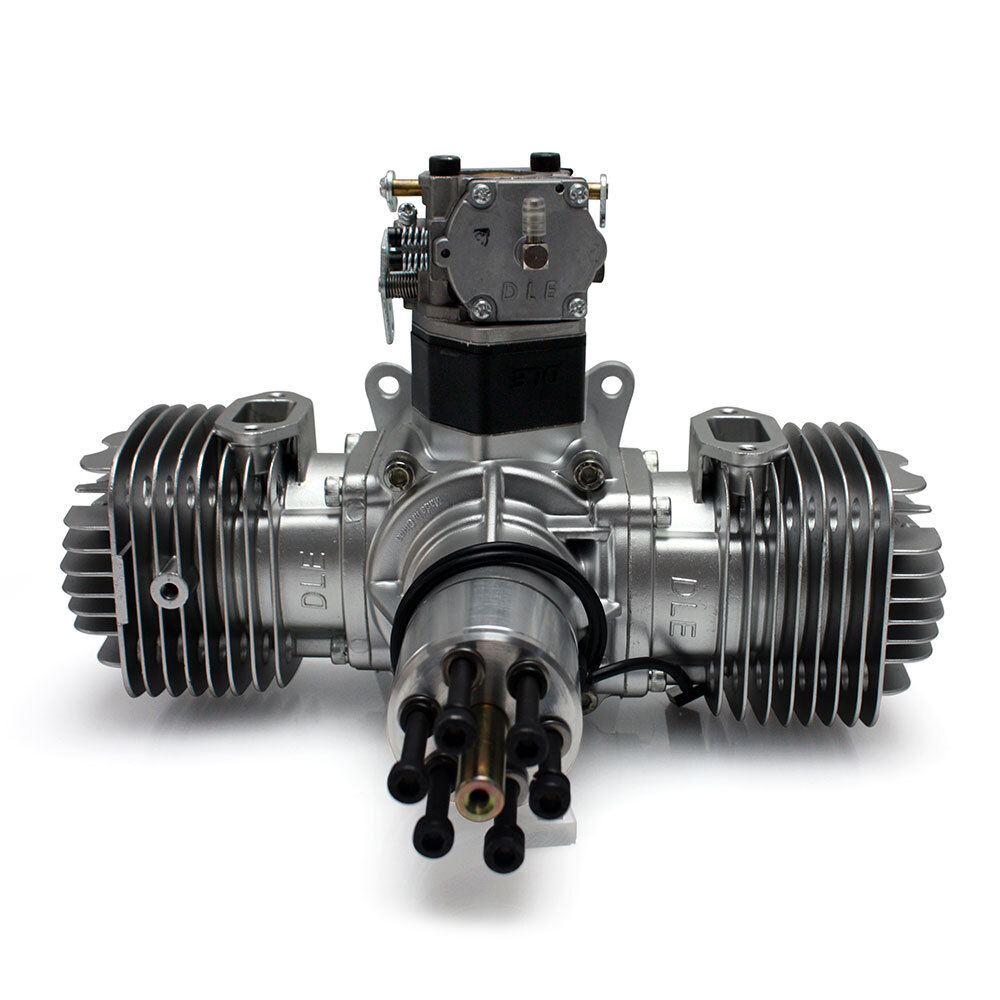

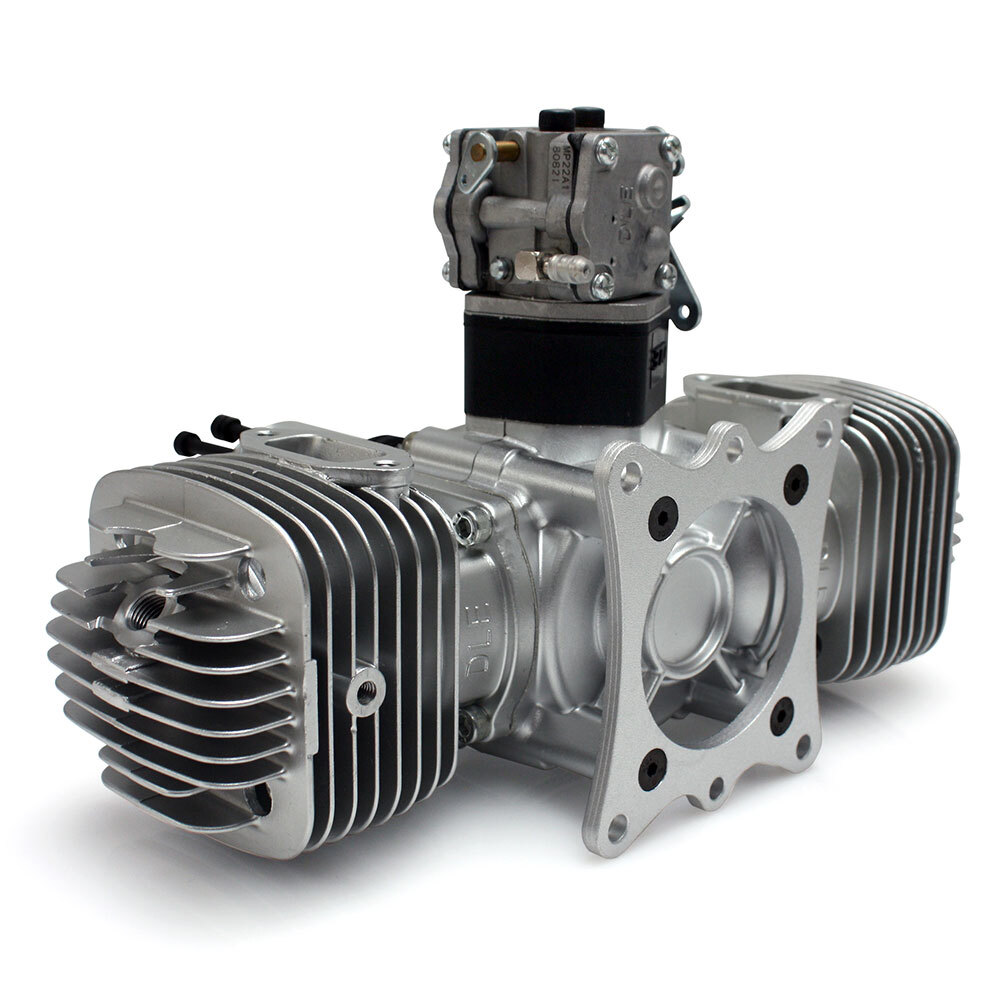

Twin-cylinder power and efficiency
The DLE-120 delivers 50 pounds of static thrust-more than enough power for intense 3D manoeuvres. Twin opposed cylinders reduce vibration and engine wear and increase performance.

Mufflers, standoffs and electronic ignition boost performance even further. The DLE-120 delivers the most punch at the lowest weight and the lowest price of any engine in its class. Pick up the DLE-120 and fly with performance-fuelled confidence.

IMPORTANT NOTICE: We highly recommend using NGK-CM6 (DLE) spark plugs with this engine for optimum performance.

Features

  • Efficient, light design for a high power-to-weight ratio
  • Light pistons for fast acceleration, excellent compression and low vibration
  • CNC-machined parts for high performance and long life
  • Sealed crankshaft bearings
  • Improved piston and cylinder contact area for increased engine lifespan.
  • Matched mufflers included for optimised power

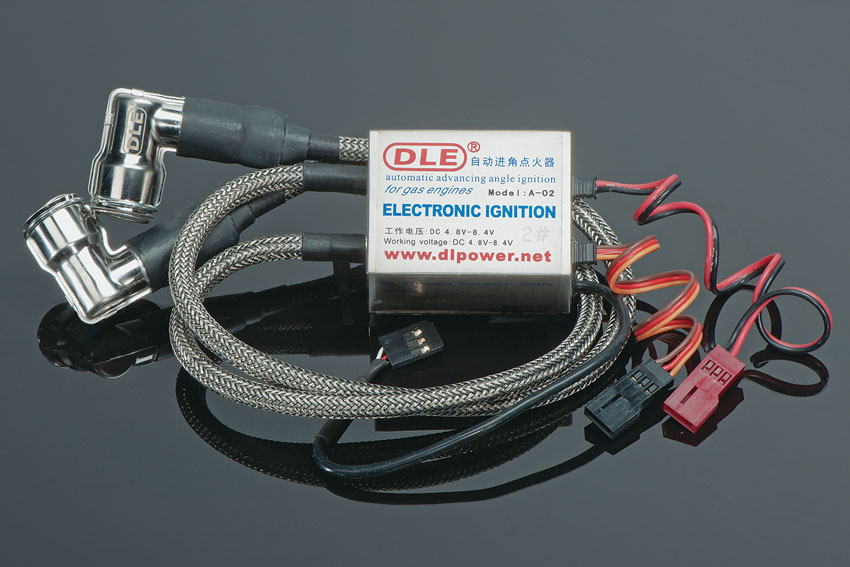

  • Electronic ignition module with spark plugs
  • Standoffs and mount
  • Spiral wire wrap

Specifications
Stock Number: DLEG0120
Displacement: 120.0 cc (7.3 cu in)
Bore: 1.85 in (47 mm)
Stroke: 1.38 in (35 mm)
Total Weight: 6.38 lb (2.895 kg)
Output: 12 hp @ 7,500 rpm

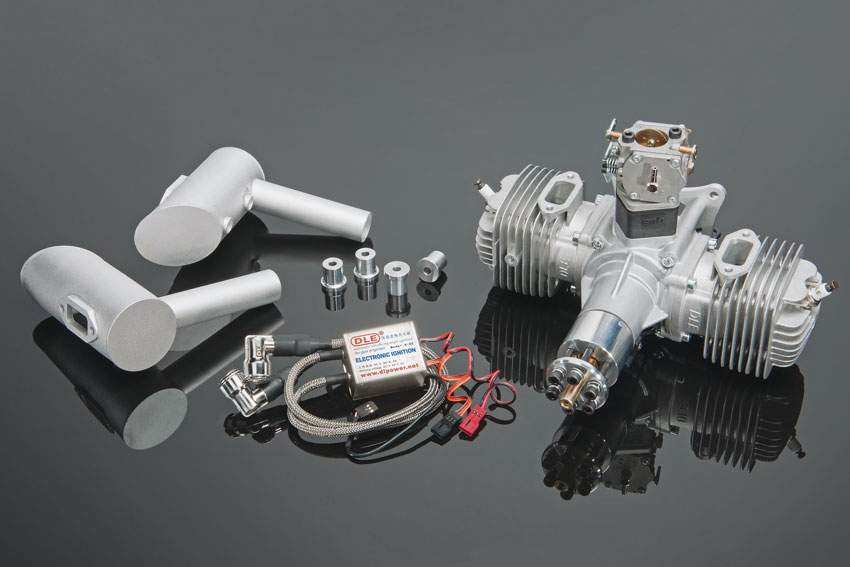

Includes: Electronic ignition module, mufflers, spark plugs, mount, standoffs, spiral wire wrap & connector safety clips, Instructions
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Suggested Propellers: 26x10, 26x12, 27x10, 28x10

Official  DLE Engines Reseller - Check The DLE Website HERE

DLE-120 Technical Data
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 3S LiPo pack (Voltage regulator required if LiFe or LiPo pack is used.)
Gas/Oil Mix: 30:1
Compression Ratio: 10.5:1
Replacement Spark Plug: DLEG1326
Static Thrust: 20.9 lb (9.5 kg) @ 328 feet altitude, 18.7 lb (8.5 kg) @ 1,800 feet altitude
Weight Breakdown: Engine: 5.34 lb (2.42 kg); Muffler 1: 3.6 oz (103 g); Muffler 2: 3.9 oz (111 g); Ignition Module: 5.3 oz (149 g); Miscellaneous: 4 oz (112 g)

SKU DLE120
Barcode # 0000100100136
Brand DLE Engines
Shipping Weight 3.8000kg
Shipping Width 0.270m
Shipping Height 0.230m
Shipping Length 0.310m
Shipping Cubic 0.019251000m3
