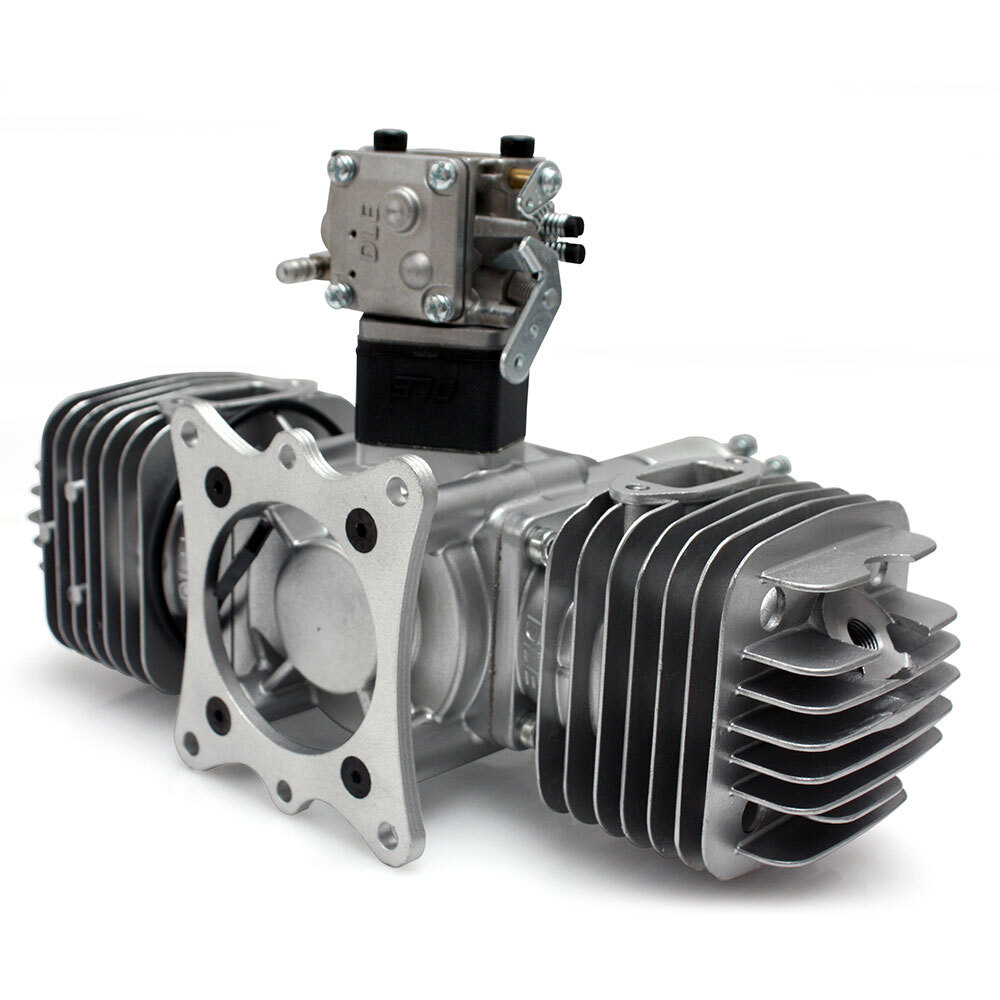

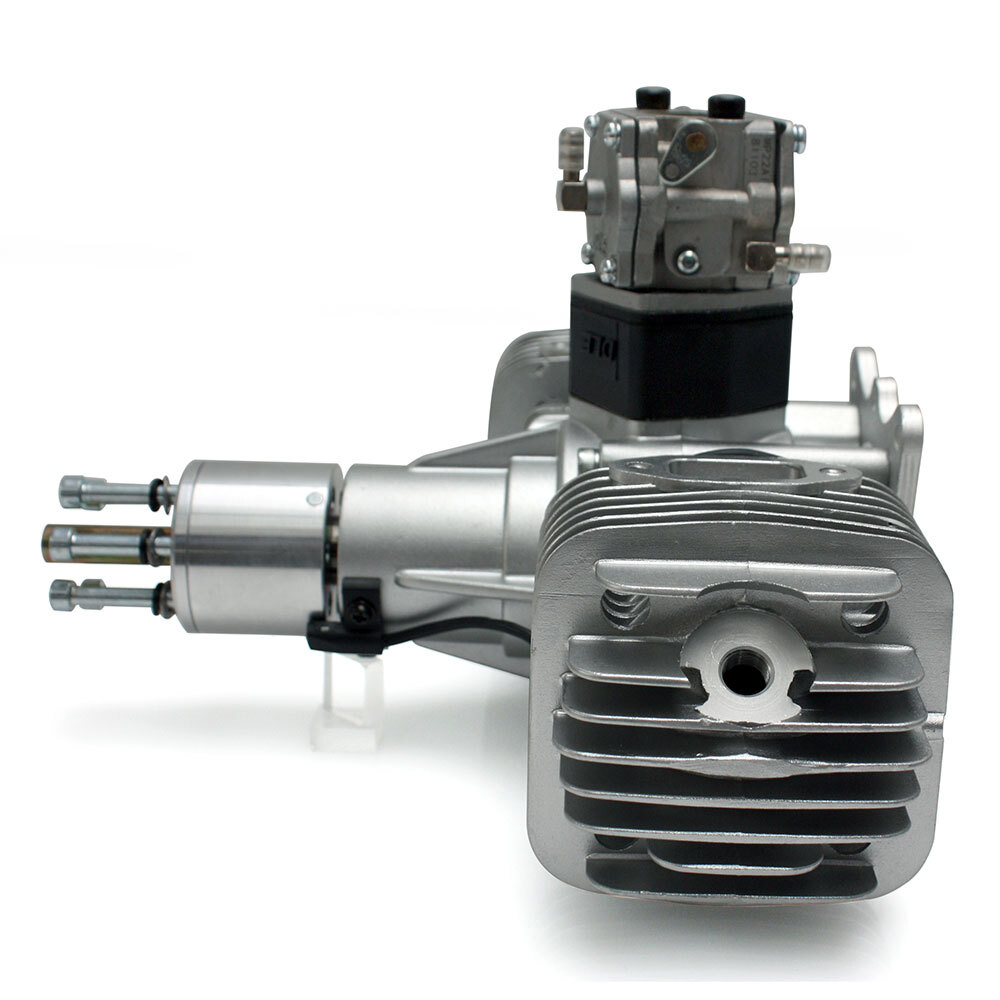

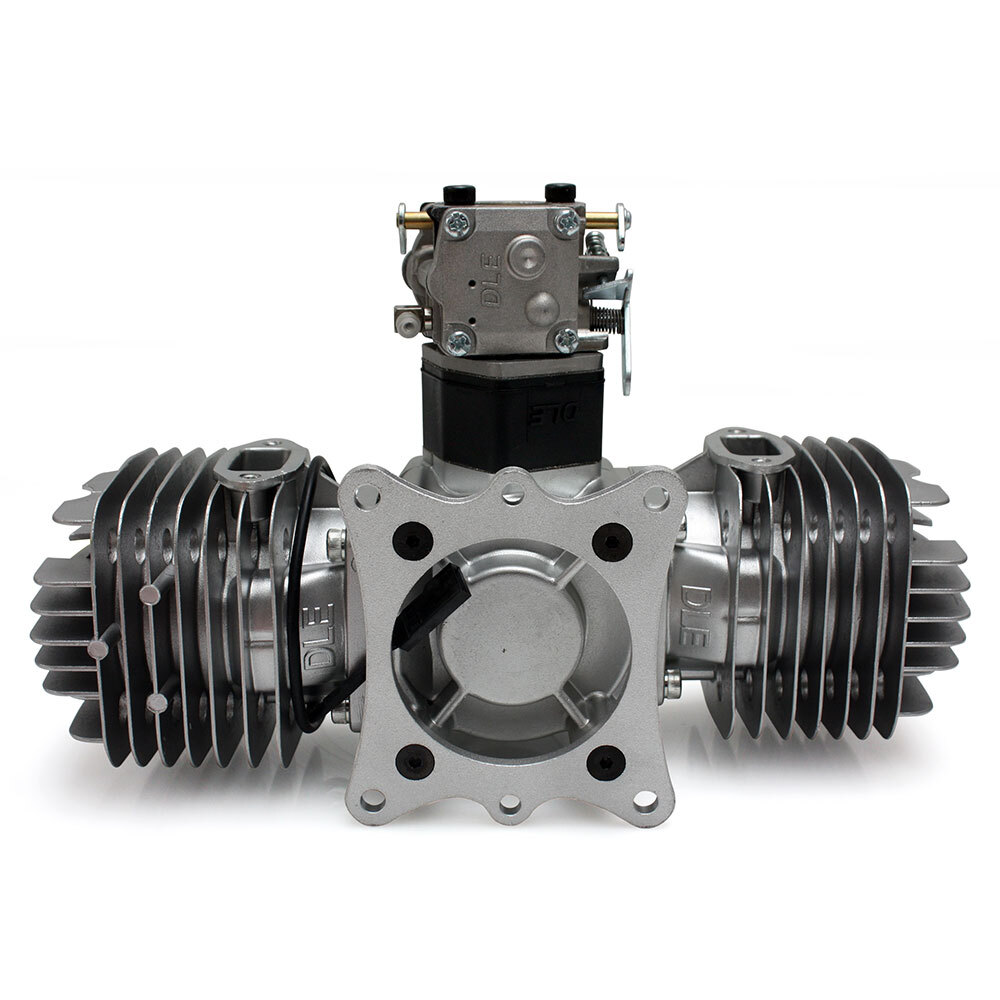

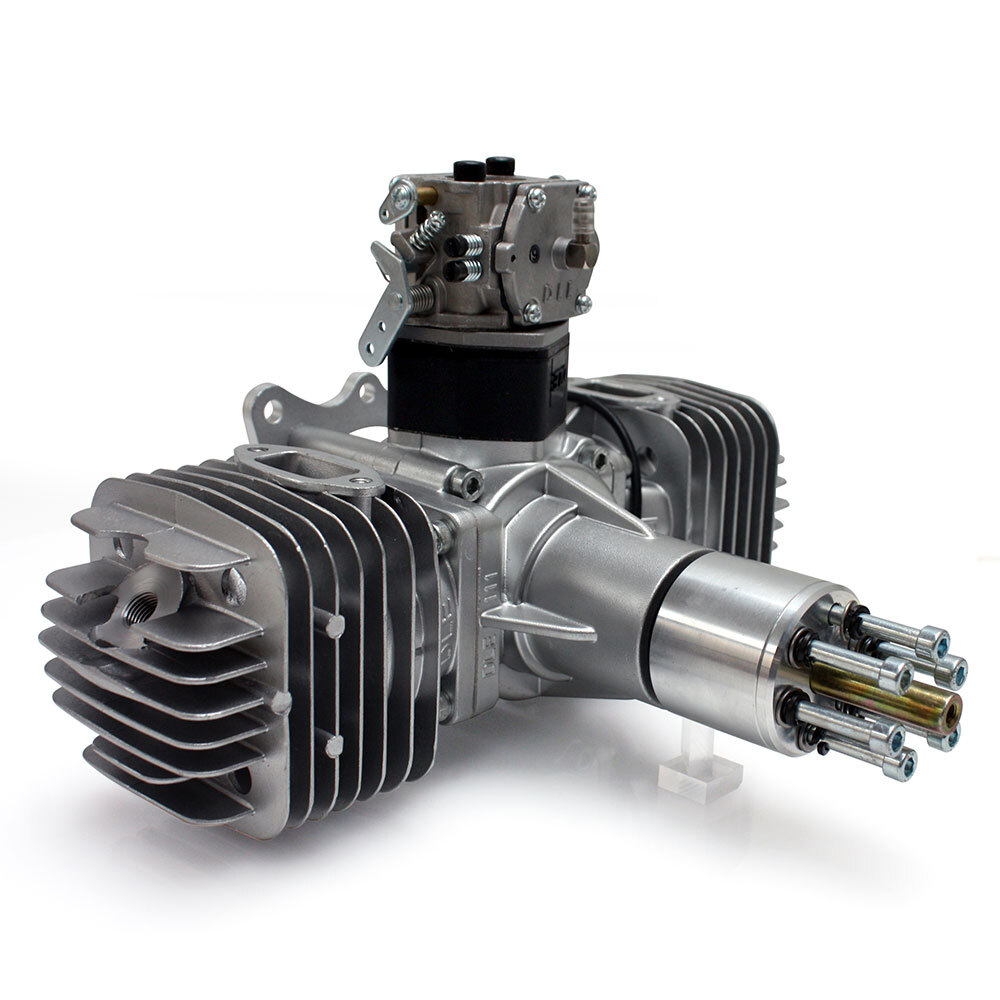

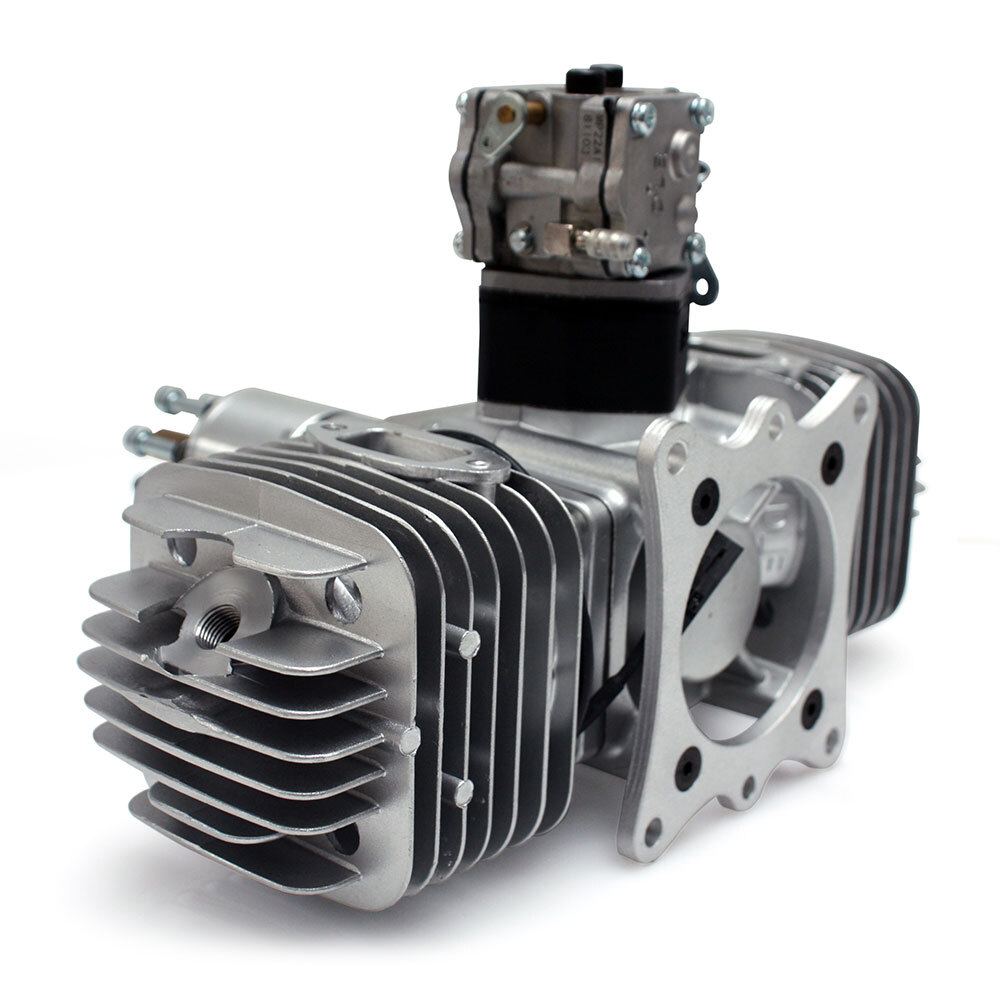

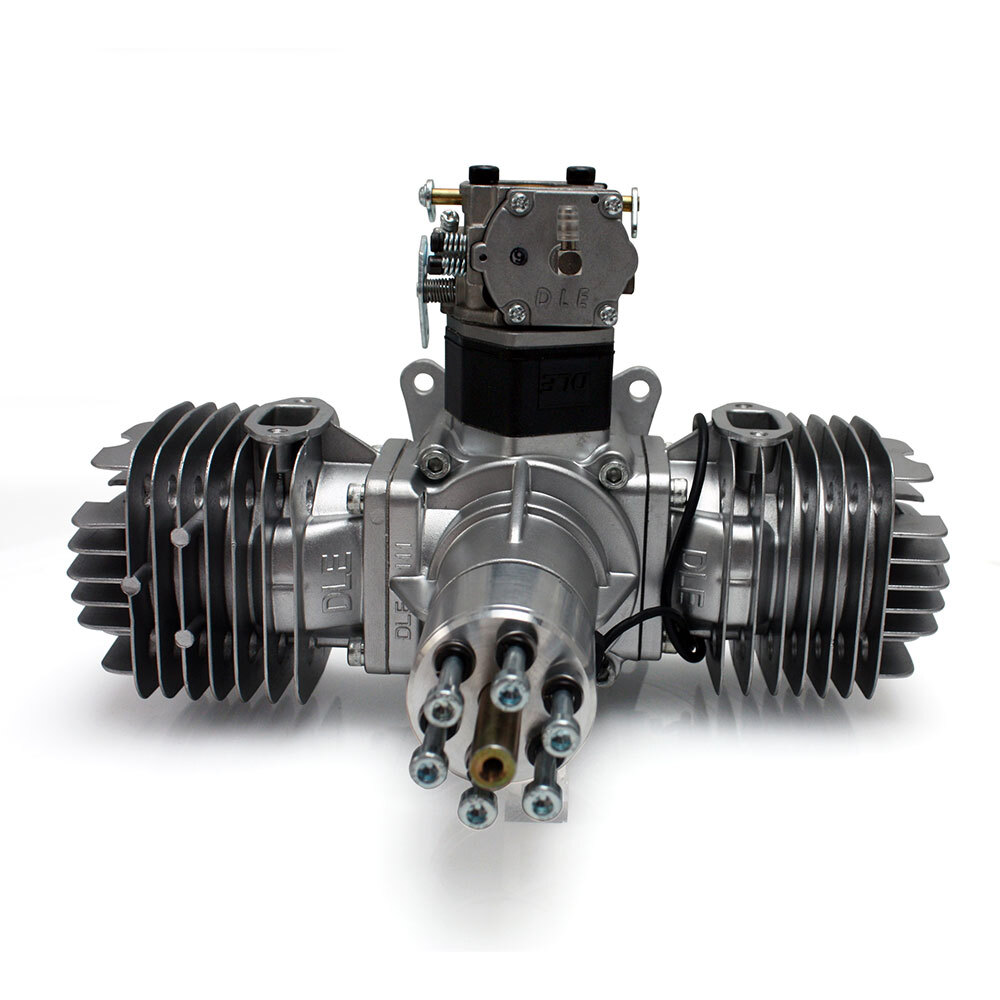

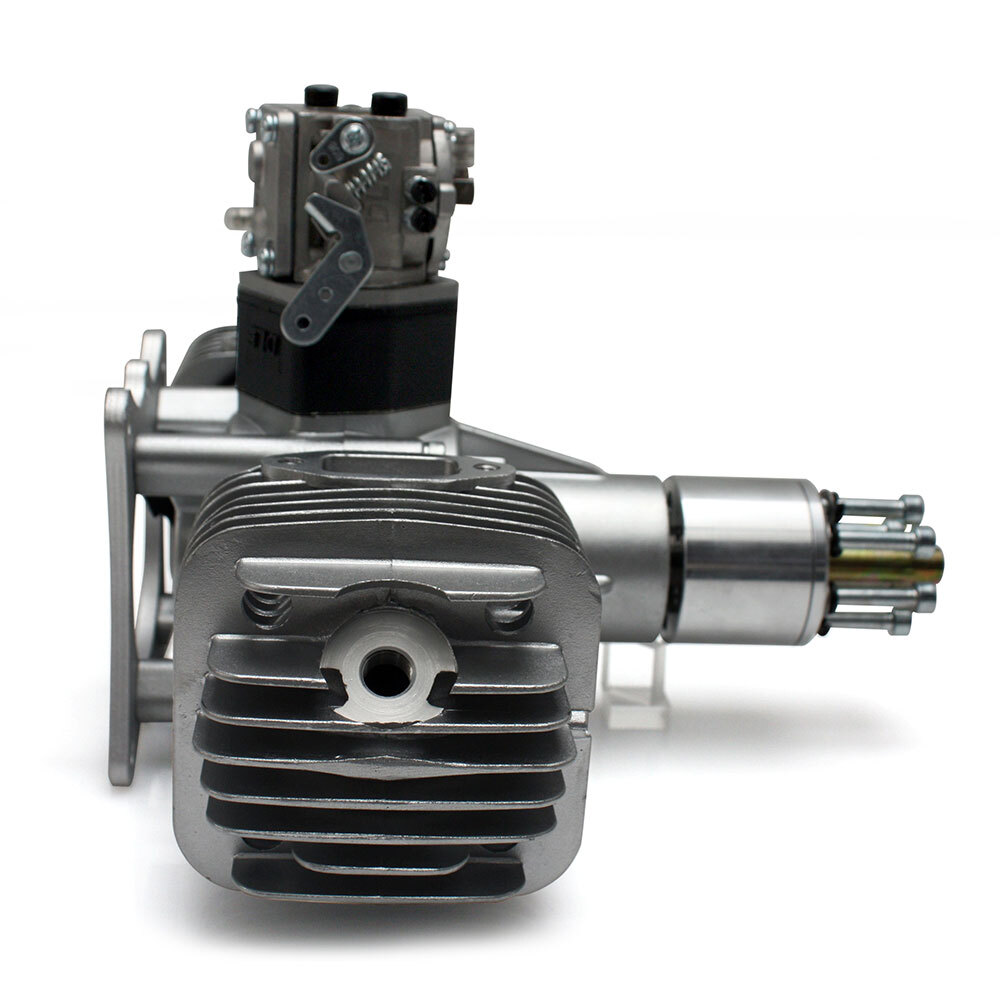

The DLE-111 is an aircraft engine, which combines excellent quality at a very reasonable price. The exceptionally powerful DLE-111 is very well suited to very large aircraft.

DLE provide very good after sales support and should any spares be required they are readily available.

Includes: Engine, 2 x Mufflers, Stand-offs and Ignition Module

IMPORTANT NOTICE: We highly recommend using NGK-CM6 (DLE) spark plugs with this engine for optimum performance.

Features

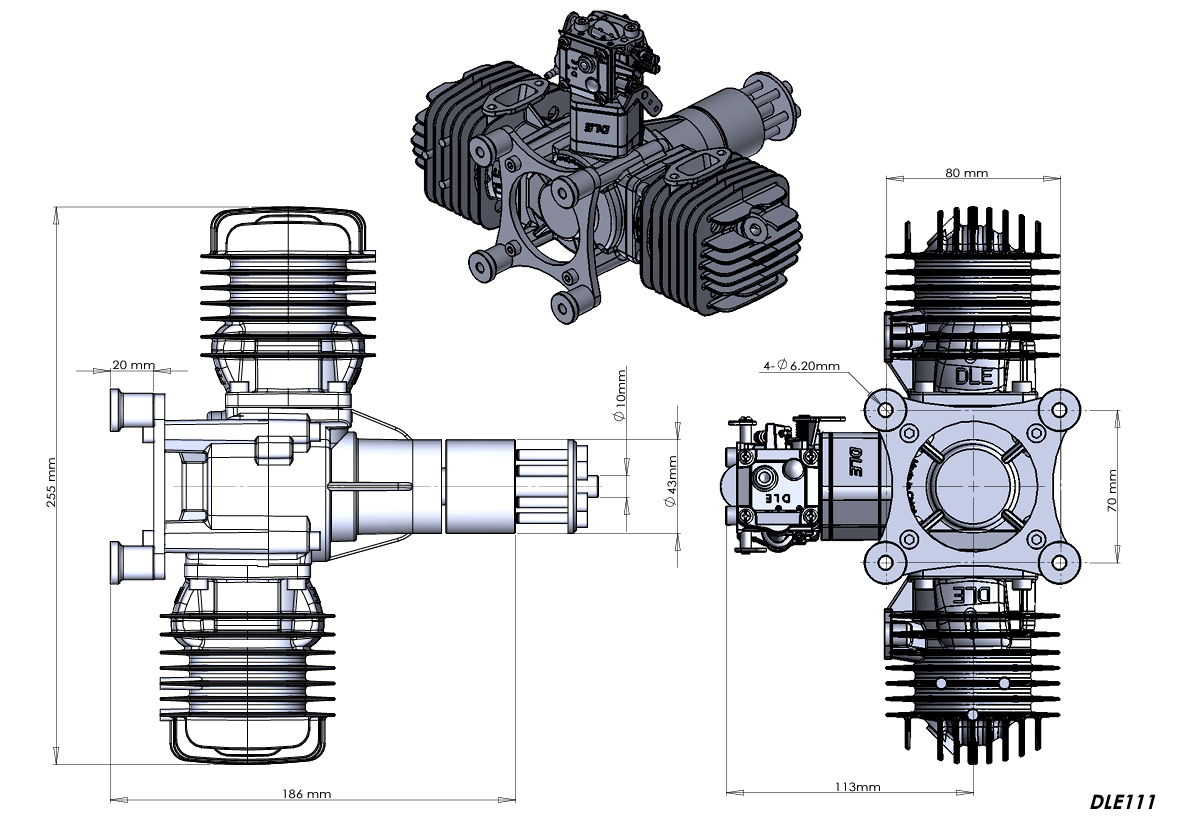

  • Same mounting footprint and prop hub bolt spacing as DA-100
  • Mufflers and exhaust systems designed for the DA-100 / DL-100 will bolt directly onto the DLE-111
  • The DLE-111 is the same as the DL-100 but has different pistons/cylinders/Crankcase with a slightly higher capacity and compression ratio

Includes

  • DLE-111 Engine V3
  • Version 2.0 Electronic (Auto Advancing) Ignition & Spiral Cable Wraps
  • EMAS Pump Carburettor & Composite Throttle Arm Extension
  • Spark Plugs
  • (4) Machined Aluminium Standoffs

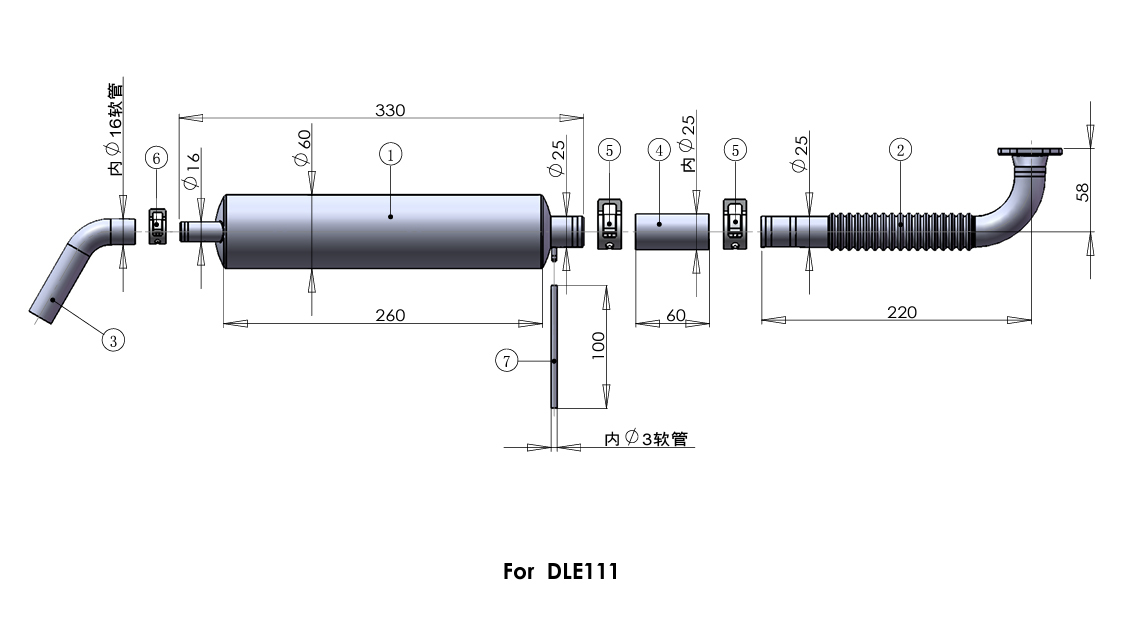

  • Mufflers, Gaskets and Bolts
  • Instructions & Warranty Sheet with Printed Mounting Template
  • 2 Year Factory Backed DLE Engines Warranty

Official  DLE Engines Reseller - Check The DLE Website HERE

Specifications

  • Horsepower: 11.2-HP/7500rpm
  • RPM: 1400-7500 RPM
  • Idle speed: 1400 rpm
  • Static Thrust: 56.2 lb Pulling Force at 100 meters; 46.2 lb Pulling Force at 1800 meters
  • Recommended Props: 26x12, 27x10, 28x10
  • Displacement: 111.2cc
  • Bore and Stroke: 45mm×35mm
  • Compression Ratio: 7.6:1
  • Weight: 5.5 lbs (2500g)
  • Fuel: 30:1 mix ratio
  • Ignition: 4.8 – 14 volts
  • Replacement Spark plug: NGK CM6 or equivalent
SKU DLE111
Barcode # 0000100100129
Brand DLE Engines
Shipping Weight 3.7000kg
Shipping Width 0.270m
Shipping Height 0.230m
Shipping Length 0.310m
Shipping Cubic 0.019251000m3
