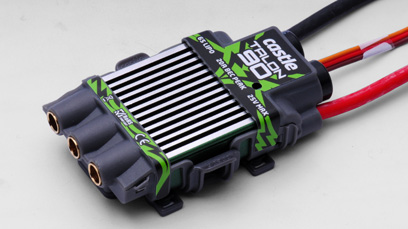

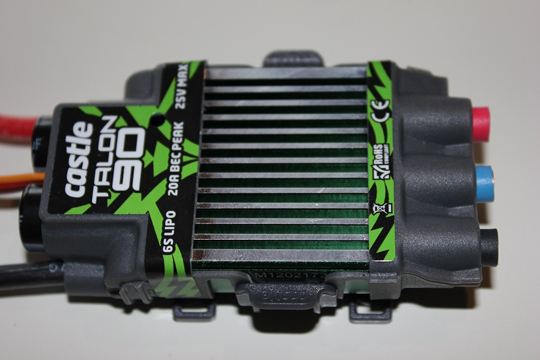

Talon 90: the ESC using the biggest BEC.

Talon 90 sports a BEC made for today’s servos, pumping out as many as 20 amps peak power and 9 amps of constant capacity to keep even the hungriest servos happy.

Great for Helis
Talon 90 is great for helis drawing 2,000 watts on 6S. It’s an excellent match for extreme 500 and 550 class choppers and sport (6S) 600 installations. Needless to say, Talon 90 offers Castle's industry-leading helicopter features, including the amazing direct entry governor mode. Just enter in the desired Revoltions per minute making use of a Castle Link USB adapter (sold separately) and also the free Castle Link GUI running on a Windows PC!

Perfect for Fixed Wing
Talon 90 is wonderful for aerobats up to 10 pounds and scale ships as much as 20 pounds. This particular innovative case makes certain cooling in even the hardest installation locations.
Assembled in the USA and/or Mexico from parts sourced globally.

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

 Supporting 6S(25.2v)brushless motor. Max current : 90A
●Max. BEC output :20 Amp, Continuous: 9 Amp
●Users can adjust and choose the BEC output voltage as 6V or 8V by software
●Ready to fly out of the bag, but users can tap into serious computing capabilities by connecting them to Castle Link software using a Castle Link or upcoming Field Link programming card.
●Comprehensive heli feature set, including direct entry governor mode, autorotation with bailout, and soft start capabilities to protect your gearing (see the screenshot on the right for more details).
●Opto isolated throttle cable helps reduce radio interference.

●Input voltage: 3S to 6S (12V - 25.2V)
●Surge current : 90 Amps
●Surge current : 140Amps(5sec) (with proper air flow and outer temperature is lower than 70°C)
●BEC output voltage: Continuous current 9A; Burst current 20A
●Supporting motor types:2 poles to 10+poles in/outrunner brushless motors
●Max Supporting input voltage:25.2v(6s Li-Po/18 cells Nicad/NiMH)
●Size:80X43X18mm
●Weight:84.5g(With wires)






Input voltage MIN: 3S LiPo
MAX: 6S LiPo
Max continuous amperage at full throttle 90 amps (rating determined with 5mph airflow across the ESC)
BEC voltage (voltage regulator for powering radio and servos) User selectable choice of 6 or 8 volt output
BEC output 20 amp peak*
9 amp continuous
Dimensions Width: 1.7" (43mm)
Length: 3.14" (80mm)
Depth: 0.7" (18mm)

Mounting bracket adds 2mm depth and 8mm width

Weight 3.0 oz. (84.5g) with 150mm power wires and no battery connectors
Items needed for operation or installation
  • Battery connector (sold separately)

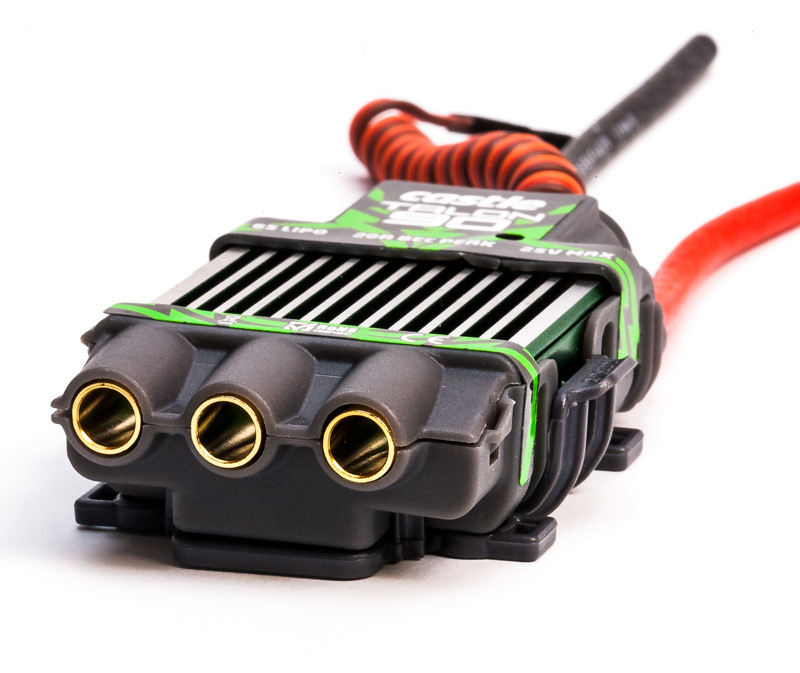

  • Female motor bullets are built into the ESC
  • Matching male bullets are included
Programmability Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.
SKU CSE010009700
Barcode # 0819326010316
Brand Castle Creations
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
