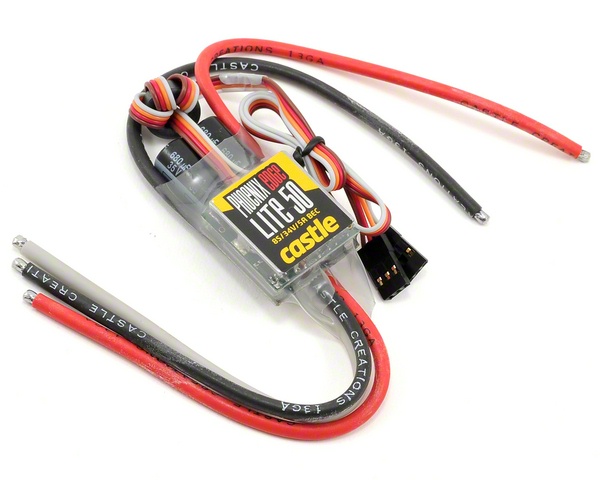

Castle Phoenix Edge Lite 50 34V 50-Amp ESC w/5-Amp BEC 010-0113-00
SKU code: CSE010011300
Make 4 interest-free payments of $44.75 fortnightly and receive your order now.
Castle Phoenix Edge Lite 50 34V 50-Amp ESC w/5-Amp BEC 010-0113-00
Helis: 450 class or Fixed wing: .25 - .35
Technical Specs
Input voltage: MIN: 2S LiPo MAX: 8S LiPo
Max continuous amperage at full throttle: 50 amps*
BEC voltage (voltage regulator for powering radio and sevos): User selectable choice from 5 to 8.4 volt output
BEC output amperage: 5 amp peak**
Size and Weight
Width: 1.0" (25.4mm)
Length: 2.0" (50.8mm)
Height: 0.9" (23.2mm)
Weight w/wires: 2.0 oz (56g)
Weight w/o wires:1.0 oz (28g)
Programmability:
Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software. Castle Field Link Programming Card (sold separately) compatible for select functions.
Connectors: Battery and motor connectors sold separately
Tools needed for installation: Soldering iron and solder to attach bullets to motor wires and battery connector to power wires.
SKU | CSE010011300 |
Barcode # | 0819326010163 |
Brand | Castle Creations |
Shipping Weight | 0.2000kg |
Shipping Width | 0.100m |
Shipping Height | 0.080m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000800000m3 |
