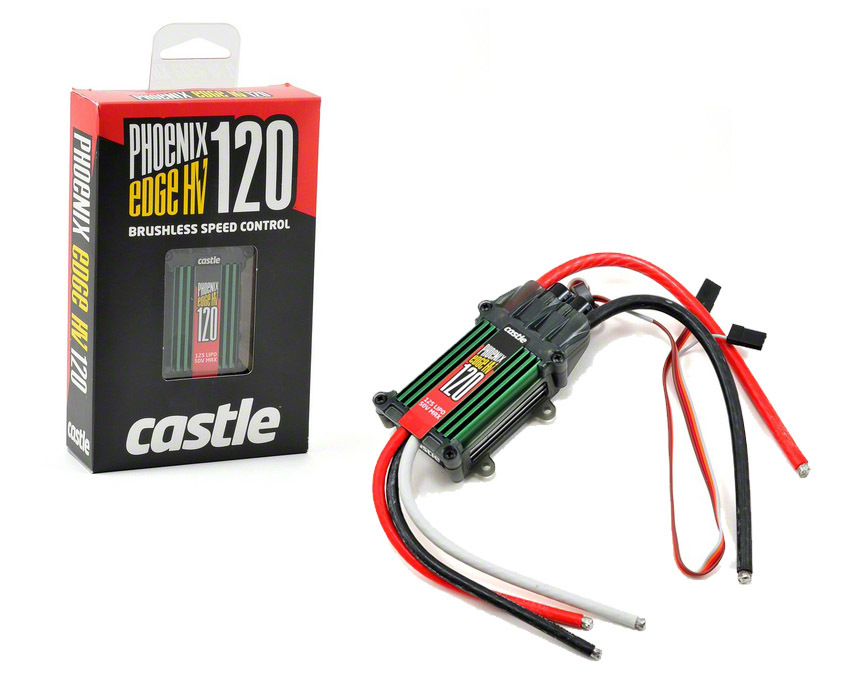

Castle Creations Phoenix Edge 120HV 50V 120-Amp ESC 010-0104-00
SKU code: CSE010010400
Make 4 interest-free payments of $108.75 fortnightly and receive your order now.
With the introduction of the Phoenix Edge series of ESCs our next improvement in speed controller technologies have arrived. The Edge series presents an end user programmable auxiliary cable capable of features modelers only have dreamed about, up till now. The new white auxiliary wire can be used as helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.
The Phoenix Edge series is intended for use in helicopters ranging from 450 to 800 size, and fixed wing aircraft up to 1.20 size and larger. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle Link USB adapter.
Applications
Helis: 550 Class, 600 Class, or 700 Class
Fixed wing: giant scale
Technical Specifications
Input voltage: MIN: 3S LiPo | MAX: 12S LiPo
Max continuous amperage at full throttle: 120 amps*
Size and Weight
Width: 50.8mm (2.0")
Length: 83.6mm (3.3")
Height: 23.2mm (0.9")
Weight w/wires: 148.8g (5.2 oz)
Weight w/o wires: 69.4g (2.4 oz)
Miscellaneous
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
Castle Field Link Programming Card (sold separately) compatible for select functions.
Connectors: Battery and motor connectors sold separately
Tools needed for installation: Soldering iron and solder to attach bullets to motor wires and battery connector to power wires.
*RC HOBBY APPLICATION RATING: 120 amps for the duration of a single 10,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.
SKU | CSE010010400 |
Barcode # | 0819326010064 |
Brand | Castle Creations |
Shipping Weight | 0.2000kg |
Shipping Width | 0.100m |
Shipping Height | 0.080m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000800000m3 |
