Our Mamba Monster X ESC  and 1515-2200Kv V2 are paired together and perform incredibly in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor.  Mamba Monster X takes Castle’s legendary “monster” performance to a whole new level.

New 1515-2200Kv V2 motor now included!  Our commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products are meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we've ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!

Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.

MAMBA MONSTER X FEATURES

• Input Voltage Range : 2s-6s LiPo (ESC Only)
• SMARTSENSE™, SENSORED ONLY and BRUSHED Running Modes
• Selectable 5.5V, 6V, 7.5V, 8V (8A peak) internal BEC (Battery Eliminator Circuit)
• Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
• ESC is housed in a durable injection molded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer.
• Removable 30mm fan
• Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
• DATA LOGGING to capture and record performance data from your vehicle
• AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
• Convenient TRANSMITTER PROGRAMMING for six common adjustable settings inlcuding cutoff voltage and drag brake.
• SMARTSENSE™ uses the motor’s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle’s ultra-efficient sensorless mode.
• CASTLE LINK USB programming kit (coupon included with purchase)
• Optional smartphone-based programming with the B-LINK™ BLUETOOTH ADAPTER (sold separately) and Castle Link App available on Google Play or Apple App Store
• PROUDLY DESIGNED, ASSEMBLED AND SUPPORTED IN KANSAS, USA and backed by Castle Creations' 1-YEAR WARRANTY

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

1515-2200 V2 MOTOR FEATURES

• Input Voltage range: 2s-6s LiPo
• Redesigned stator and rotor assemblies to improve magnetic flux.
• Reduced magnetic cogging, producing less residual drag brake.
• Increased efficiency, resulting in lower temperatures and longer run times.
• Smoother start-up, reducing cogging or stuttering when starting from a stop.
• Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly. (see note above)
• High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
• Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
• Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
• High-Performance 0.2mm Steel Lamination Stacked Stator
• Oversized, low-resistance, gold-plated solder tabs
• Sensor board with High Quality Temperature-Stabilized Sensors
• T6 Aluminum CNC Machines Front/Rear End bell
• Proudly Designed and Supported in Kansas, USA.
• Backed by Castle Creations' 1-YEAR WARRANTY

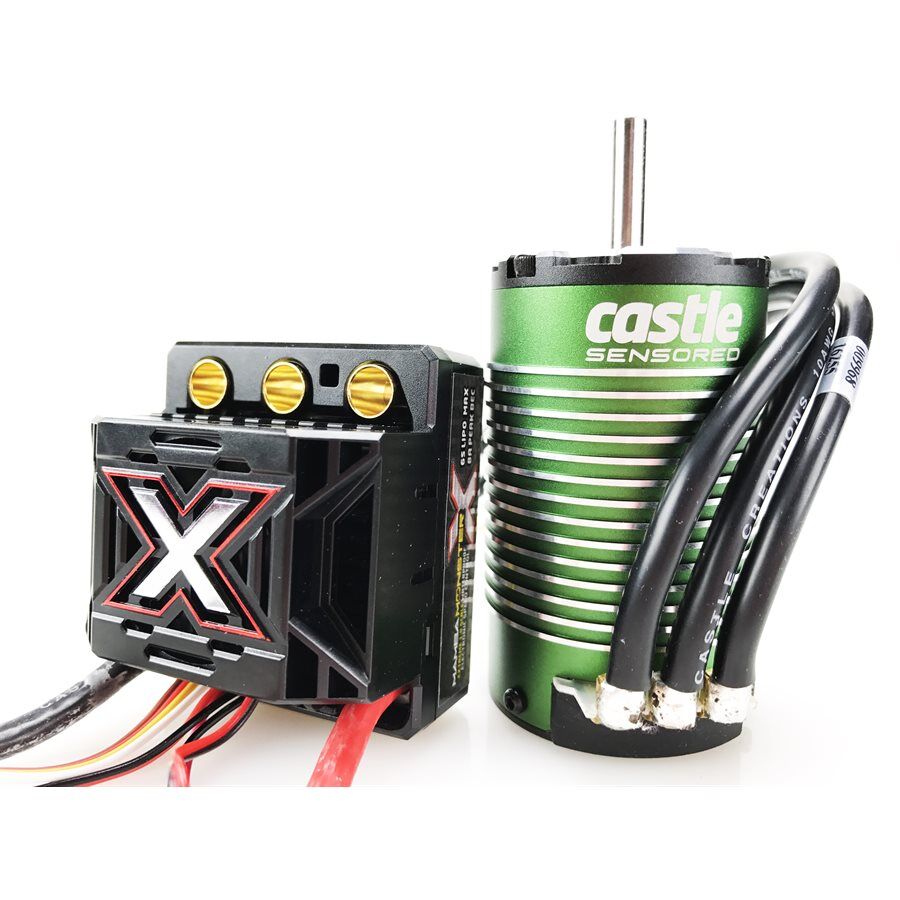

MAMBA MONSTER X ESC W/1515-2200KV V2 COMBO COMES WITH

• Mamba Monster X ESC
• 1515-2200Kv V2 Brushless Sensored Motor
• Castle Sensor Harness Adapter
• 210 mm sensor wire (for sensored operation)
• Coupon for free Castle Link USB
• Mamba Monster X Quick Start Guide and Decals
