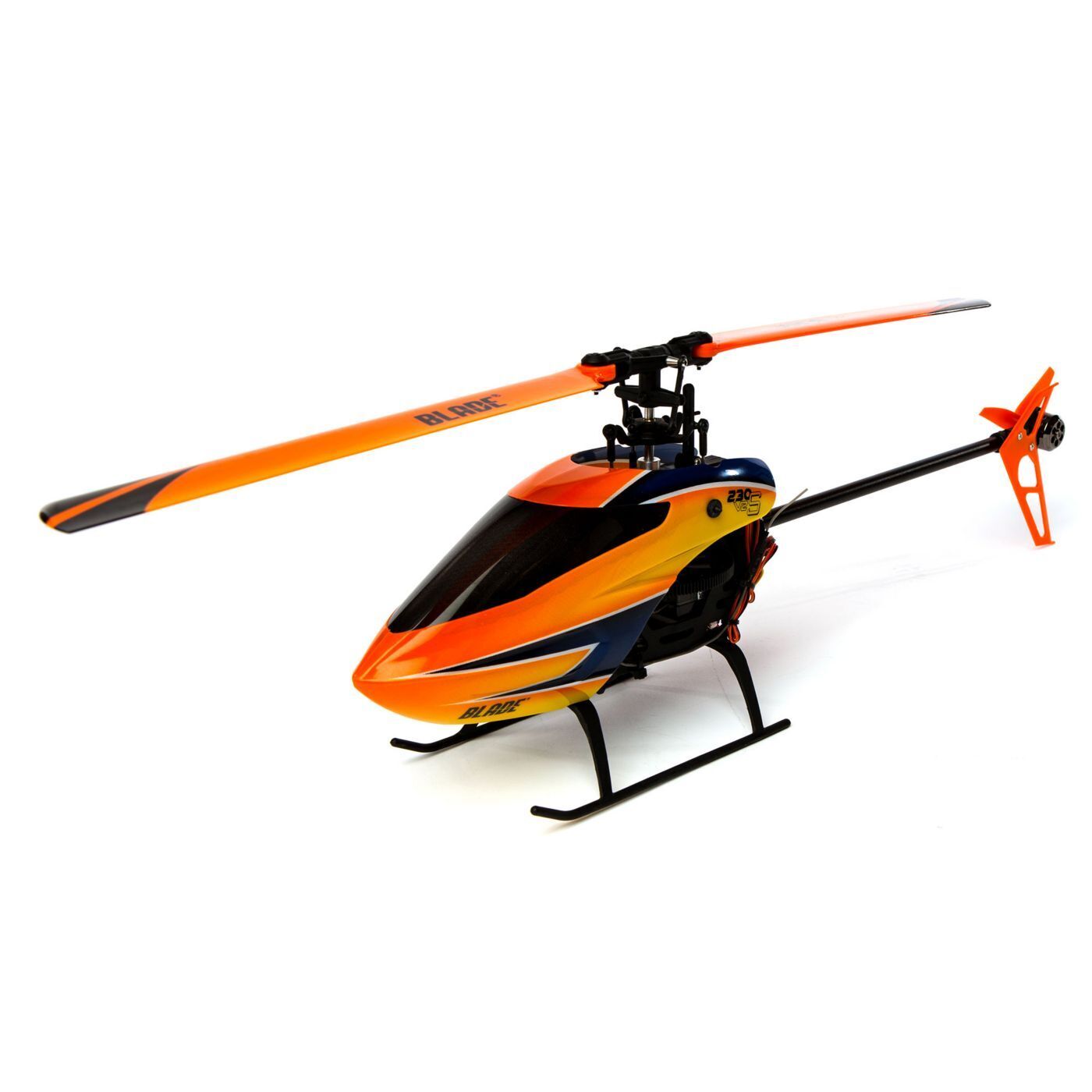

Blade 230S BNF

Product Details



In The Box
  • (1) Fully Assembled Blade 230 S Smart Heli
  • (1) 230 S Smart BNF Basic Manual



Needed to Complete
  • (1) 6+ channel Spektrum™ 2.4GHz DSM2®/DSMX® Transmitter
  • (1) 850mAh 3S 11.1V 30C LiPo Battery with IC2 Connector
  • (1) Compatible LiPo Charger with iC2 to iC3 Charge Adapter (SPMXCA320 recommended)





Download Blade 230S Manual HERE

NOW EVEN EASIER TO FLY

The Blade® 230 S Smart makes learning on a collective pitch heli a breeze. Building off the widely popular platform, this new version adds Smart technology making it easy for pilots to see important information at a glance. For those looking to hone their skills on a collective pitch machine, the 230 S Smart takes the flight experience to the next level. Engineered around the abilities of innovative SAFE® technology, its progressive flight mode system makes flying a collective pitch heli more comfortable, even if it’s your first collective pitch helicopter. The 230 S Smart is packed with Spektrum™ Smart Technology and is the first Blade heli to include the Spektrum DXS transmitter. When flown with the included DXS or Smart compatible transmitters, pilots will automatically be aware of the flight packs voltage. Additionally, the durability of the reinforced frame and main gear, ABS main blades, and metal gear servos are sure to hold up in the event of a crash. The ready-to-fly version comes with a Spektrum DXS transmitter, Spektrum Smart S120 USB charger and a Smart 850mAh 3S Lipo, so it takes no time at all to get in the air!

Please note – Spektrum IC2 connectors and charge leads ARE NOT compatible with EC2 connectors

Features

  • SAFE® Technology: Self leveling modes make learning to fly a collective pitch helicopter easier
  • Progressive Flight Modes: Allows you to grow with this heli and build your collective pitch skills
  • Panic Recovery: Recover the heli to a level attitude with the flip of a switch
  • Smart Technology built in - Provides valuable telemetry feedback to Smart capable Spektrum transmitters
  • Durable: Impact-resistant ABS main blades and reinforced tough composite airframe and tail rotor
  • Metal Gear cyclic servos: Durable, high-speed responsive servos

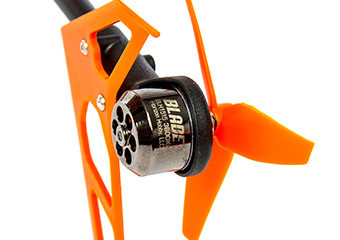

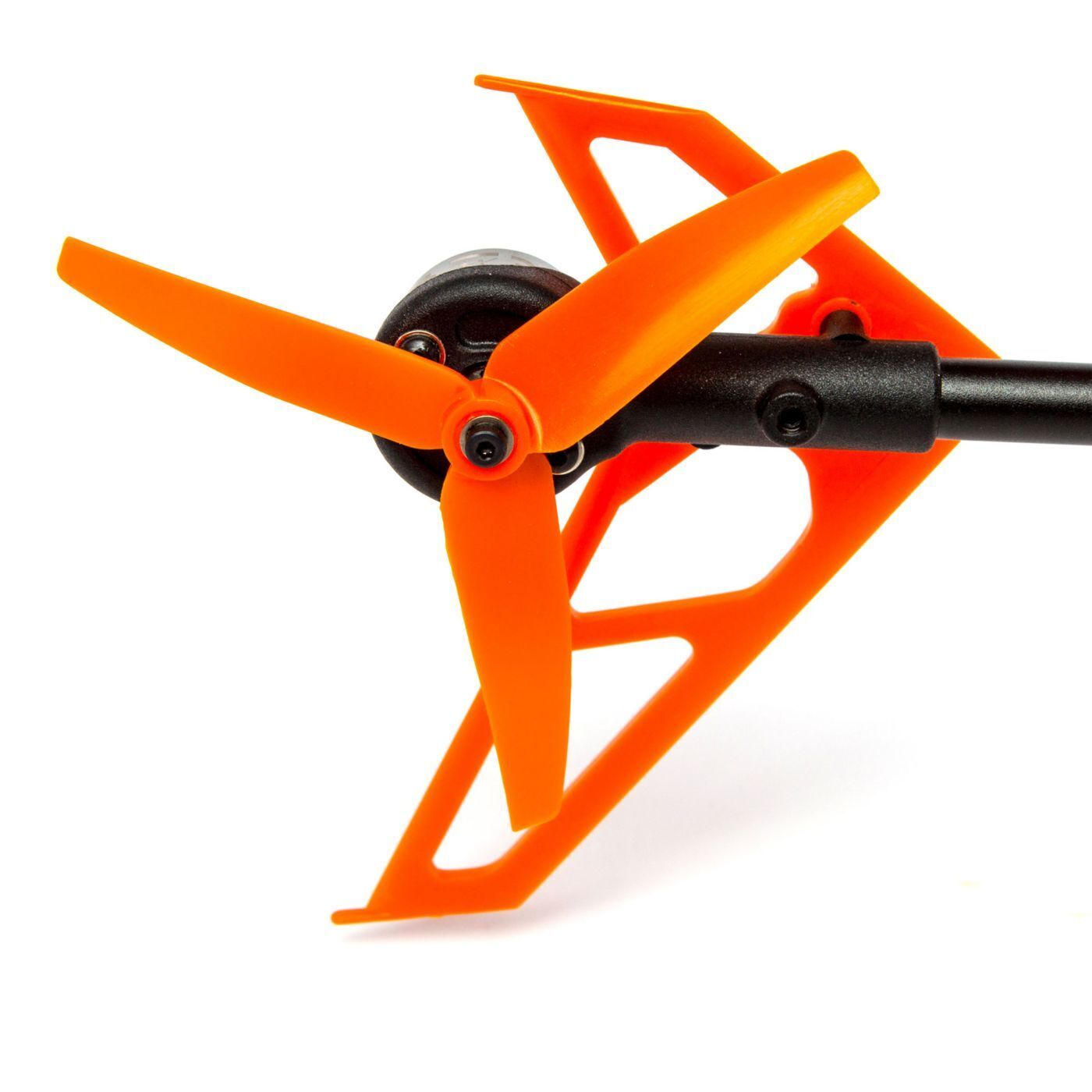

  • Direct Drive Tail Motor: Brushless tail motor delivers impressive heading hold in a simplistic design
  • High Visibility: Vivid canopy and bright main blades and tail make it easy to maintain orientation
  • Fully Assembled: No building necessary
  • 7 minute flight times

Bind and Fly Blade 230S RC Helicopter

BNF SAFE

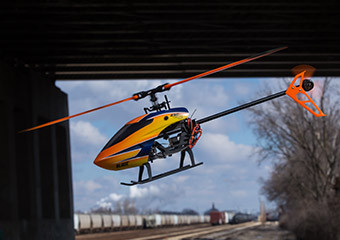

SAFE Technology

Innovative SAFE Technology makes it easy for anyone to fly helicopters with confidence. Flight modes from self-leveling to full 3D allow you to grow your skills with this helicopter, from beginner & intermediate, to advanced maneuvers.

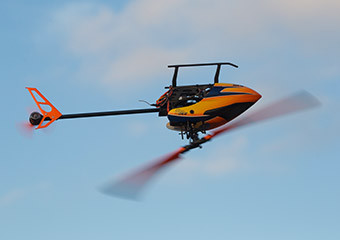

3 Flight Modes

Progressive Flight Modes

  • Stability Mode-Limited flight envelope with self-leveling a bank angle limit.
  • Agility Mode - Full control for sport aerobatics with no bank angle limit.
  • 3D Mode - Turns up the flip and roll rate for 3D capability.

Panic Recovery

Panic Recovery

Quickly return to level flight with the press of a button should you lose orientation, or get into an uncomfortable situation.

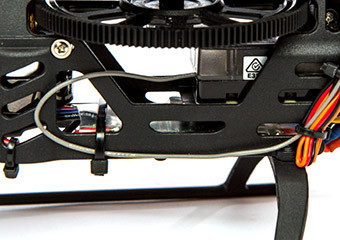

Updated ESC

Updated ESC

Newly refined ESC delivers vastly improved performance, reliability, and tail hold.

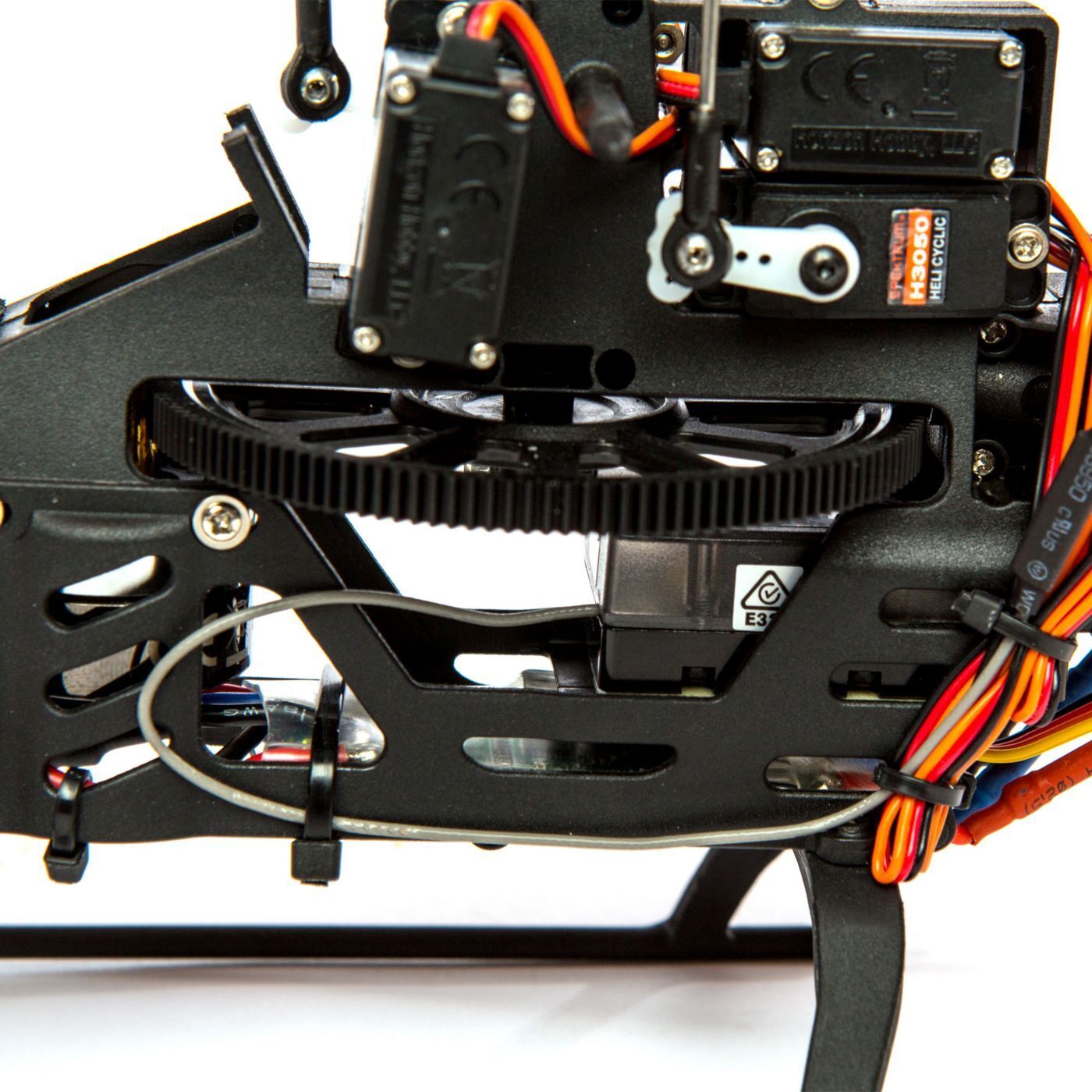

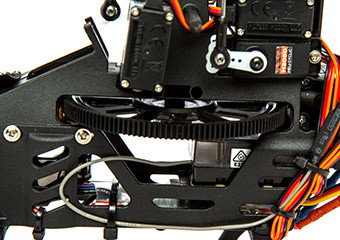

Updated Main Gear

Updated Main Gear

More robust main gear provides greater durability in the event of a crash.

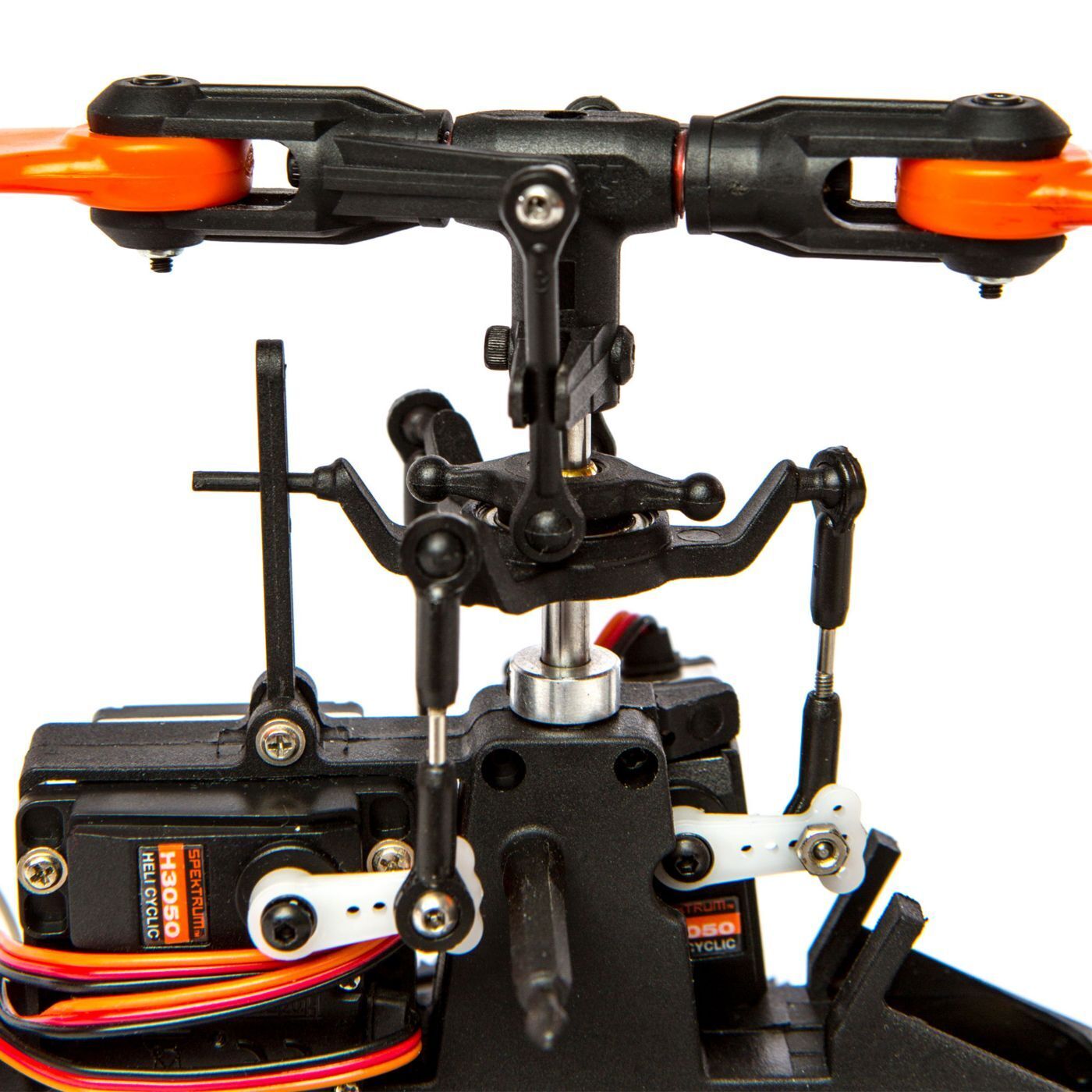

metal Geared Servos

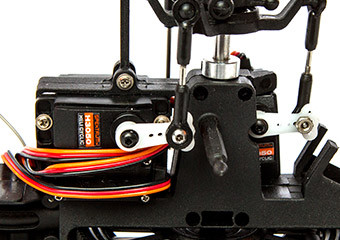

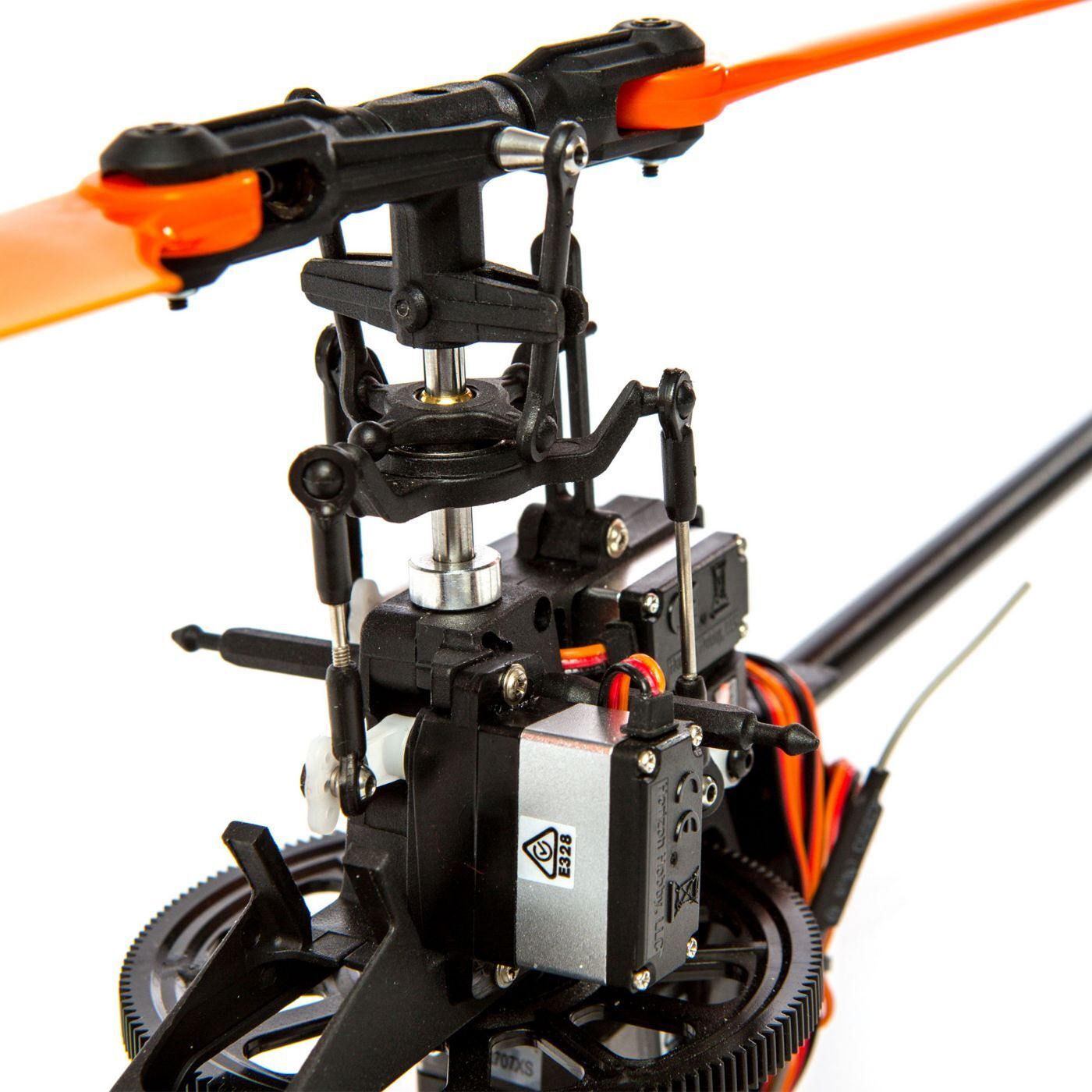

Metal Gear Cyclic Servos

Durable, digital high speed servos offer precise, high-performance control that every heli pilot craves.

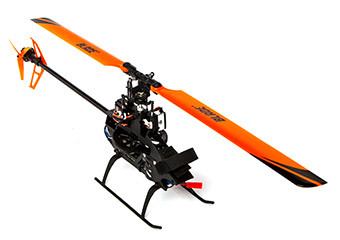

Impact Resistant

Durable

Impact-resistant ABS main blades and newly reinforced tough composite airframe and tail rotor.

Brushless Motors

Brushless Motors

The high-speed brushless main and tail motors work together to deliver a simplified drive system that makes the 230 S V2 light weight and responsive.

Video Overview

Blade 230S BNF RC Helicopter

Product Specifications



Approximate Assembly Time: No assembly required
Approximate Flight Time: 7 minutes
Battery: 11.1V 800mAh 3S 30C LiPo Battery
Canopy/Body Material: Plastic
Channels: 6
Completion Level: Bind-N-Fly Basic
Flying Weight: 11.96 oz (339g)
Height: 6.46 in (164mm)
Length: 18.66 in (474mm)
Main Blade Material: Plastic
Main Frame Material: Plastic
Main Motor Type: Brushless
Main Rotor Blade Length: 9.25 in (235mm)
Main Rotor Diameter: 21.10 in (536mm)
Main Rotor Head Type: Collective Pitch (CCPM) Flybarless
Skill Level: Level 2
Swashplate Type: 120 degree CCPM
Tail Blade Material: Plastic
Tail Drive: Direct Drive
Tail Motor Type: Brushless
Tail Rotor Diameter: 3.25 in (82.5mm)
Width: 3.54 in (90mm)
SKU BLH1250
Barcode # 0605482726464
Brand Blade
Shipping Weight 3.0000kg
Shipping Width 0.240m
Shipping Height 0.200m
Shipping Length 0.600m
Shipping Cubic 0.028800000m3
