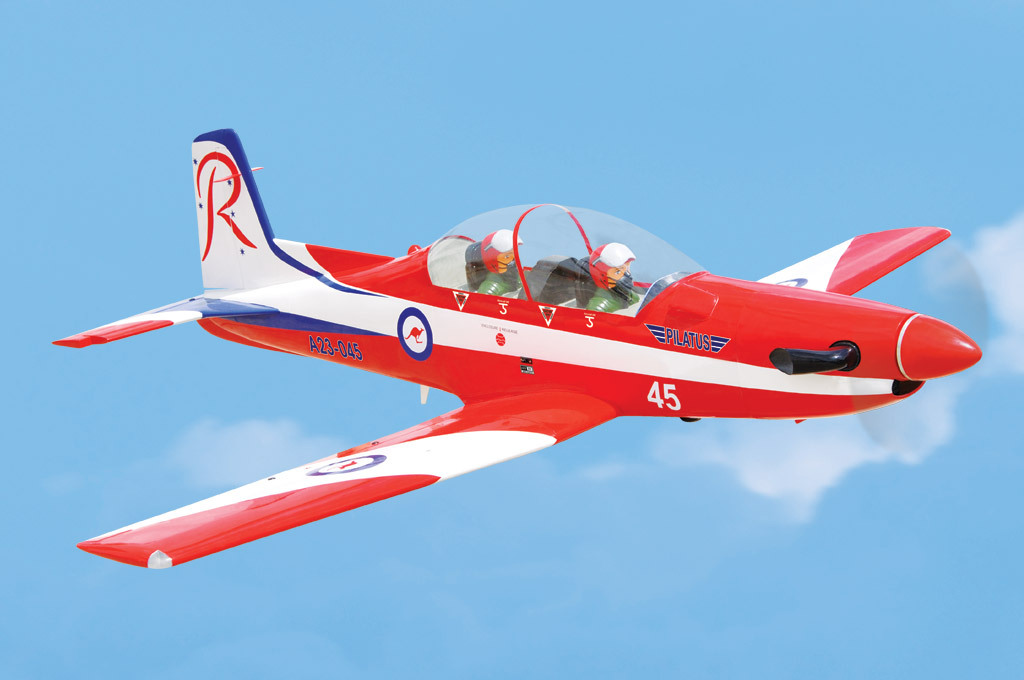

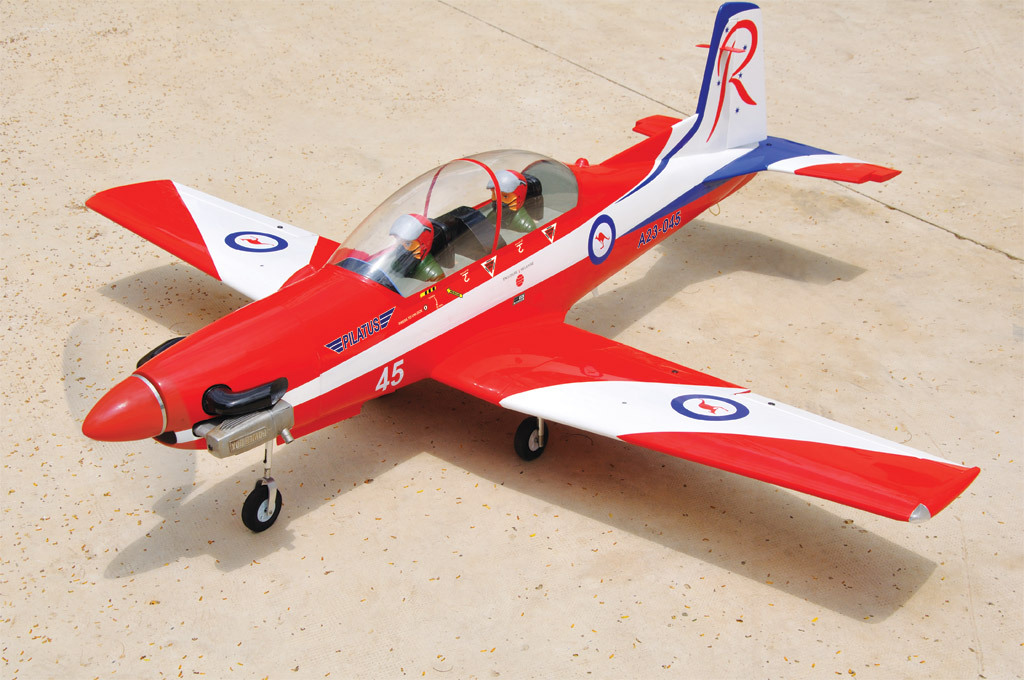

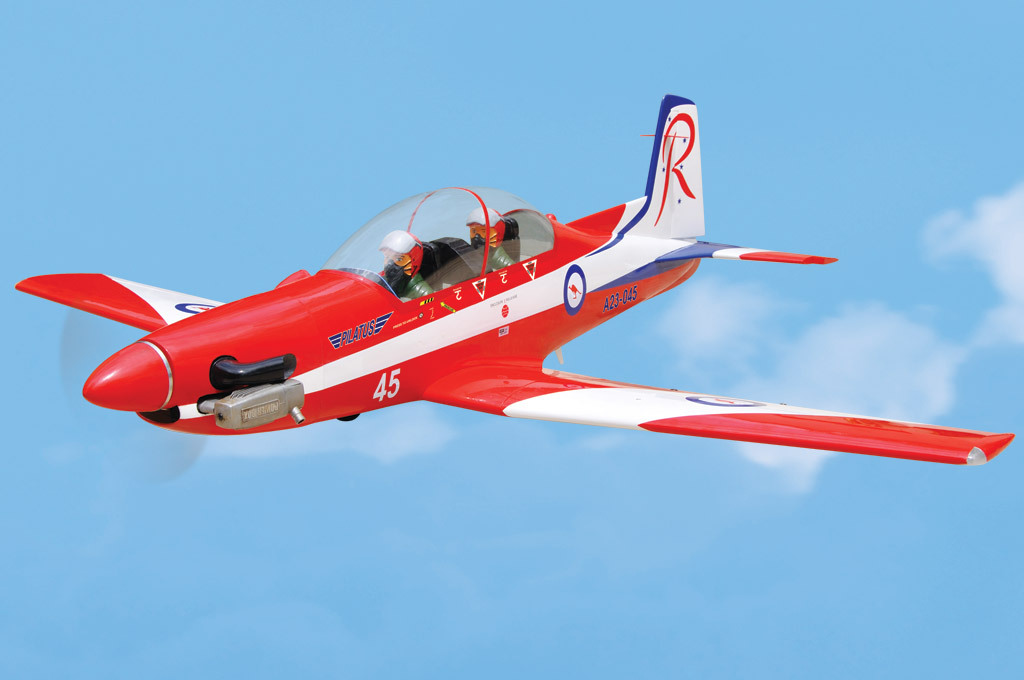

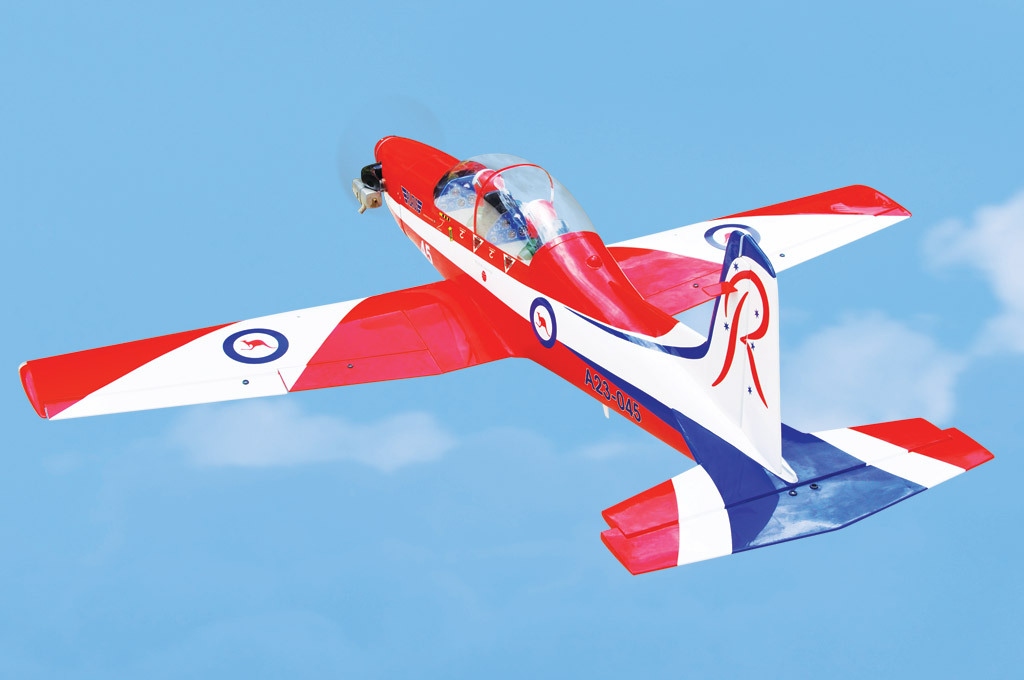

Pilatus PC-9 1840mm (72.44") Wingspan from Black Horse - Balsa Wood ARF - BHPC00

NOW With Electric Retracts

The Pilatus PC-9 is a single-engine, low-wing tandem-seat turboprop training aircraft manufactured by Pilatus Aircraft of Switzerland. Designed as a more powerful evolution of the Pilatus PC-7, the PC-9's first flight was made in May 1984 after which certification was achieved in September 1985. After this, the first production orders for the type were received from the Royal Saudi Air Force, with deliveries commencing in 1985. Since then, more than 250 airframes have been produced across five different variants and the type is employed by a number of military and civilian operators around the world, including the Swiss Air Force, the Royal Australian Air Force, and the Royal Thai Air Force.

The model is scaled to approximately 1:5.5 and attention was paid to a true to original appearance and best flight characteristics. The model was designed for electric drives but can also be operated with an internal combustion engine about 15cc displacement.

Features:

• High level of prefabrication right out of the box
• Lightweight, strong, and partially sheeted laser cut balsa and plywood construction
• Covered in high quality Oracover film
• Large easy access fuel tank/battery/servo access door
• Detailed and hand painted pilot included
• Shock-absorbing suspension struts
• Fiberglass control horns
• Mylar C/A hinges on all control surfaces
• comprehensive control and fitting accessories included
• Two-piece, wings simplify transportation and assembly
• Painted and details fiberglass cowl
• Mounts for both electric and gas power options included
• Electric Retracts (included)
• Fully illustrated instruction manual included and also available for download (see tab above)

Includes:

• Black Horse Pilatus PC-9 1840mm (72.44") Wingspan - ARF

Requires (Electric):

• 6 Channel radio - select a minimum 6 channel radio
• 6 Channel receiver - select a minimum 6 channel receiver
• 1400-1900 Watt Brushless Outrunner Motor
• 60-100 Amp Brushless ESC
• 7x 45g standard servos
• For 8S setup TWO 4 Cell 14.8V 5000 mAh LiPo Batteries with EC5 connector - we recommend TWO
• 2 to 1 EC5 series adapter - we recommend
• Electric propeller
• 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger

Requires (Gas):

• Engine: 20 - 30cc 2-stroke,
• Gas Propeller: 15x8-16x10 2 Stroke, 15x10-17x10 4 Stroke
• 9x 45g standard class servos - we recommend HS-625MG

Model Scale 1/6 Scale

Wingspan 1840mm / 72.44in

Length 1850mm /72.83in

Weight 5300-5600g / 11.66-12.32lbs

CG (Center of Gravity) 96mm from leading edge of wing root

Power System 1400-1900 Watt Brushless Outrunner Motor or 20 - 30cc 2 or 30cc 4-stroke (required)

Electronic Speed Control 60 - 120A (required)

Propeller 16x10 - 17x10 (required)

Servos

• Electric - 7 x 45g standard (required)
• Gas - 8 x 45g standard (required)

Video

Specs

Landing Gear Electronic 90 degree retracts (81 x 44 x 29mm) (required)

Required Battery TWO 4S 14.8V 5000mAh LiPo Batteries (required)

Required Radio 6 Channel (required)

Ailerons Yes

Elevator Yes

Rudder Yes

Flaps Yes

Lights Optional

Hinge Type Fiberglass

Material Balsa and plywood

Skill Level Intermediate

Build Time 6+ Hours

Recommended Environment Outdoors
