Key Benefits

  • Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
  • Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
  • Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features

  • Lightweight design
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion

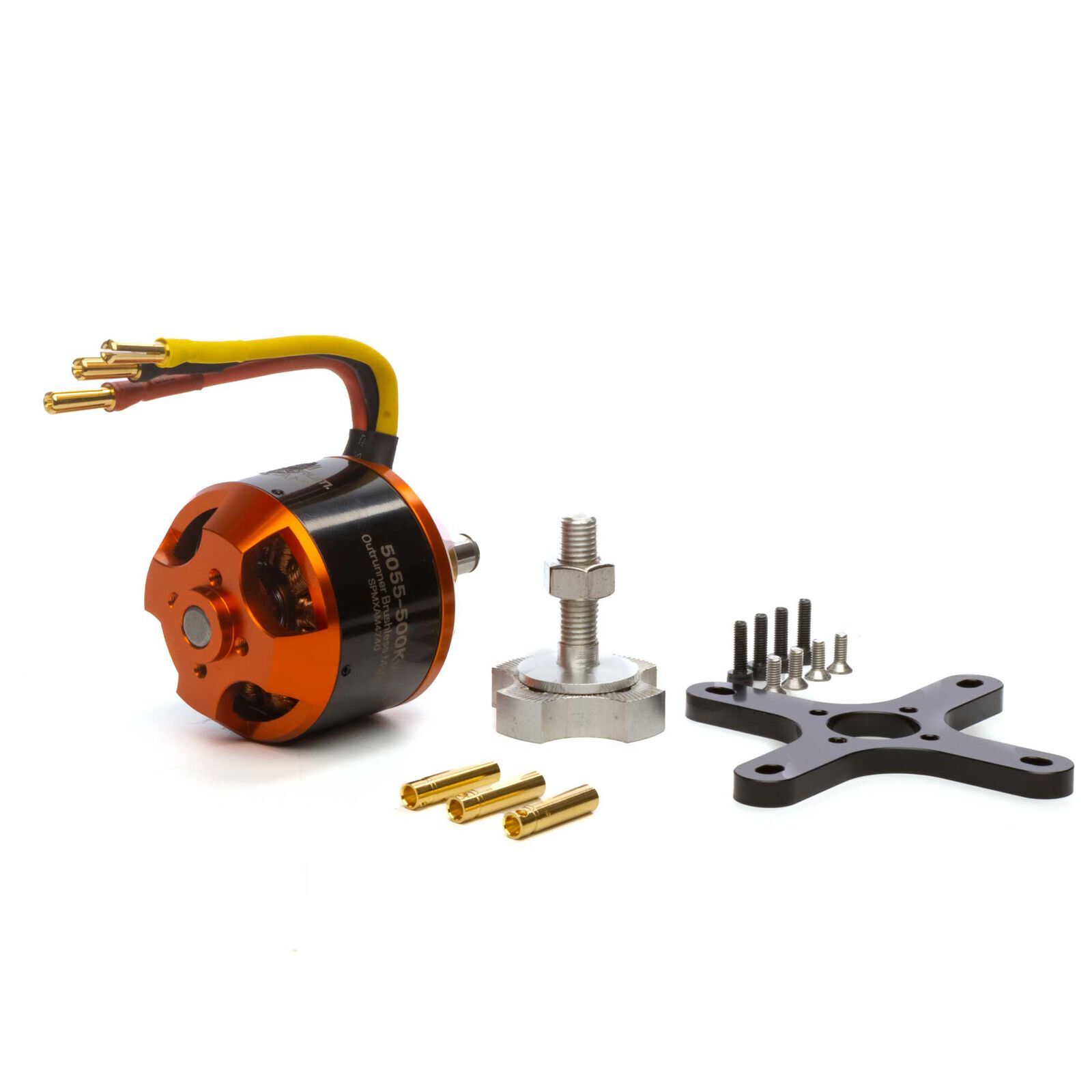

  • Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 60 amp ESC
  • Perfect electric conversion upgrade for .80 size glow combustion power systems

Important Specs

  • Recommended Voltage Range – 18.5 - 22.2V / 5-6S LiPo
  • Recommended Propeller Range – 15x6 to 15x8 Electric Propeller
  • Recommended Model Flying weight – 3D 3175g (7 lbs) - 5215g (11.5 lbs)
  • Max Wattage – 900w
  • Max Current – Max Burst Amps (65A) Max Continuous Amps (55A)

Product Specifications

Constant Wattage 750-999W
Motor Type Brushless
Adjustable Timing No
Integrated ESC No
Motor Design Outrunner
Input Voltage 18.5-22.2V (5-6S LiPo)
Kv Rating 500-749Kv
Motor Output Lead 4
RPM/Volt (Kv) 500
Sensor Type Sensorless
Shaft Length 0.79" (20 mm)
Connector Type 4mm Bullet
Outer Diameter 1.97" (50 mm)
Product Weight 10.5oz (298g)
Shaft Diameter 0.32" (8 mm)
Motor Class Mid Size
Product Length 2.17" (55 mm)
SKU SPMXAM4740
Barcode # 0605482102091
Brand Spektrum
Shipping Weight 0.5000kg
Shipping Width 0.060m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000288000m3
