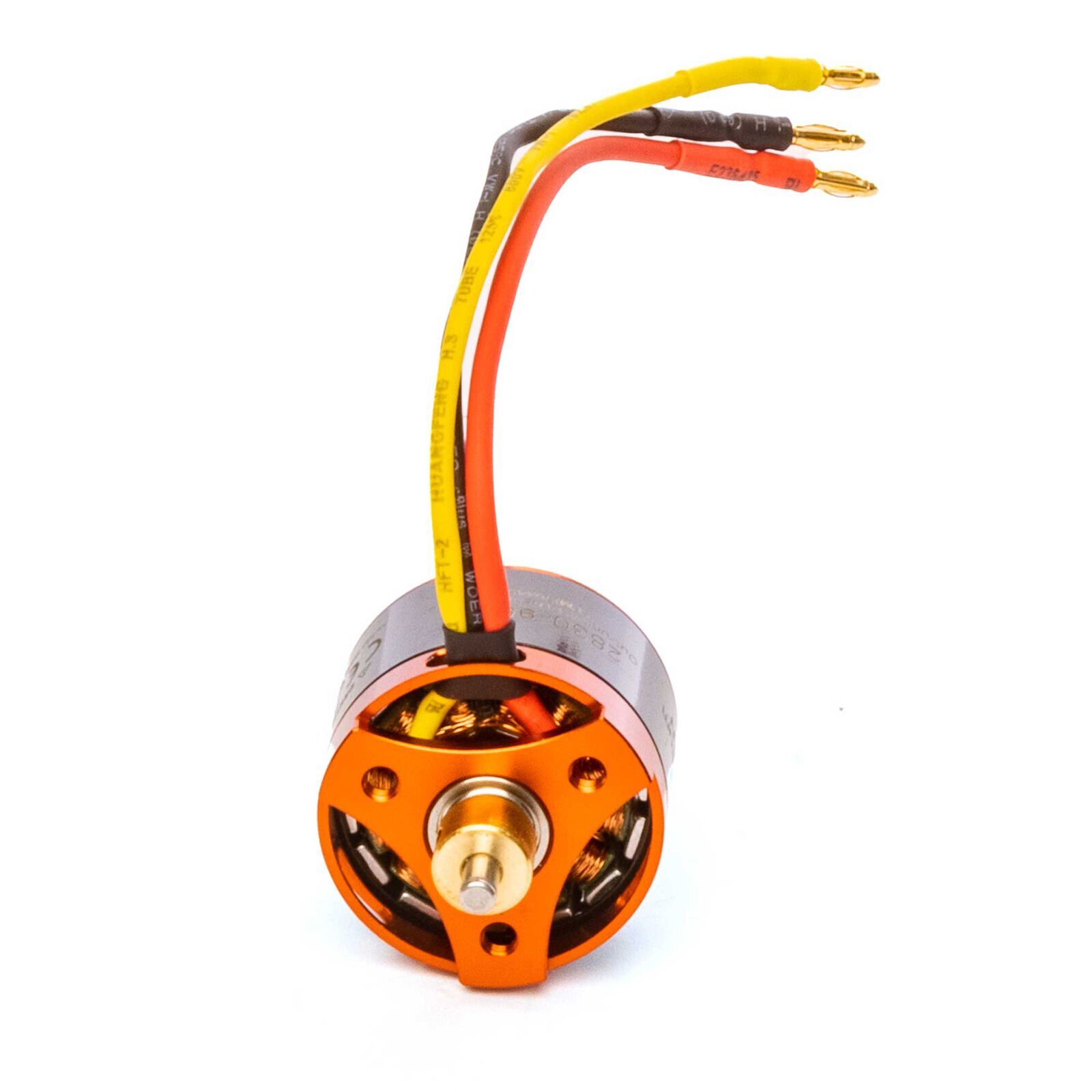

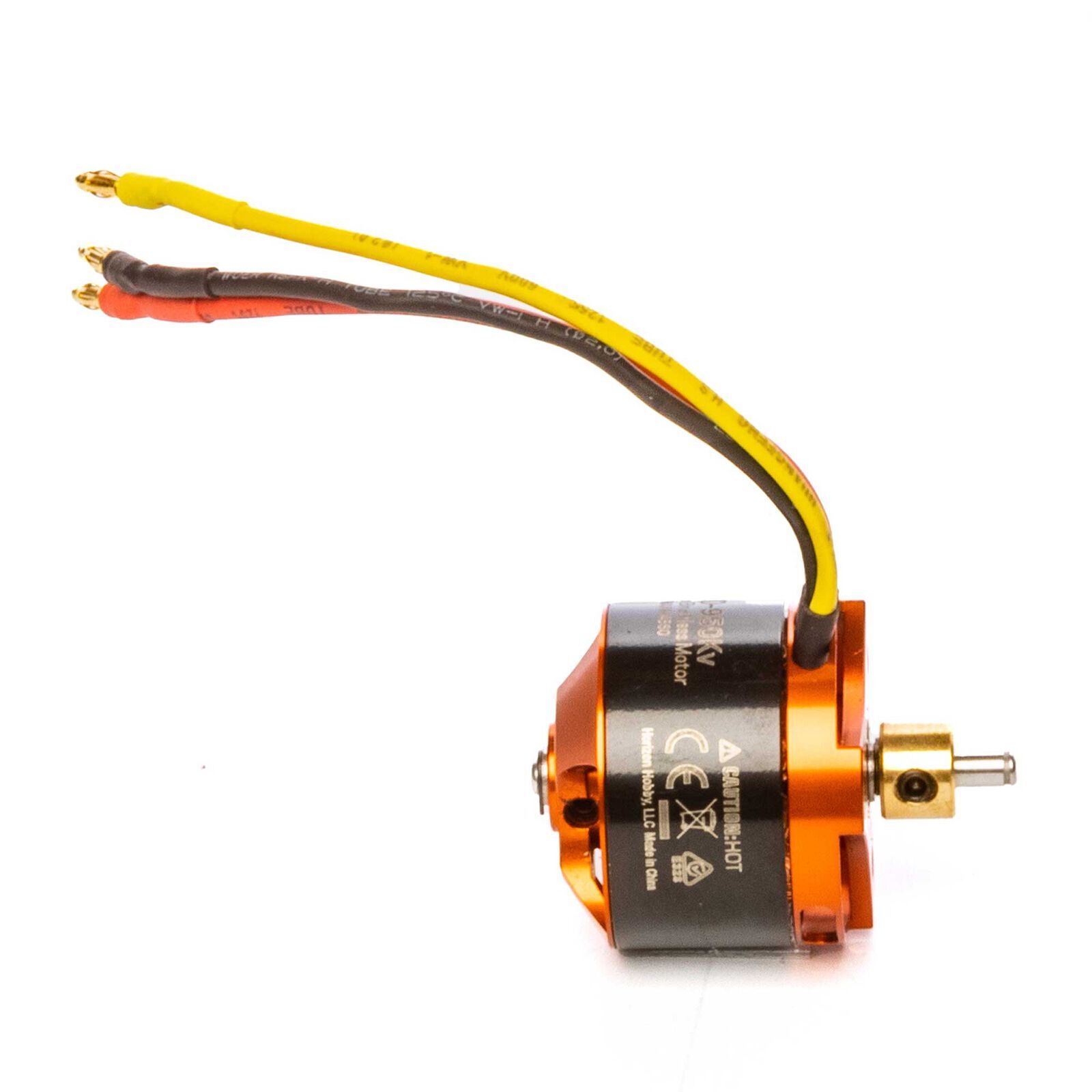

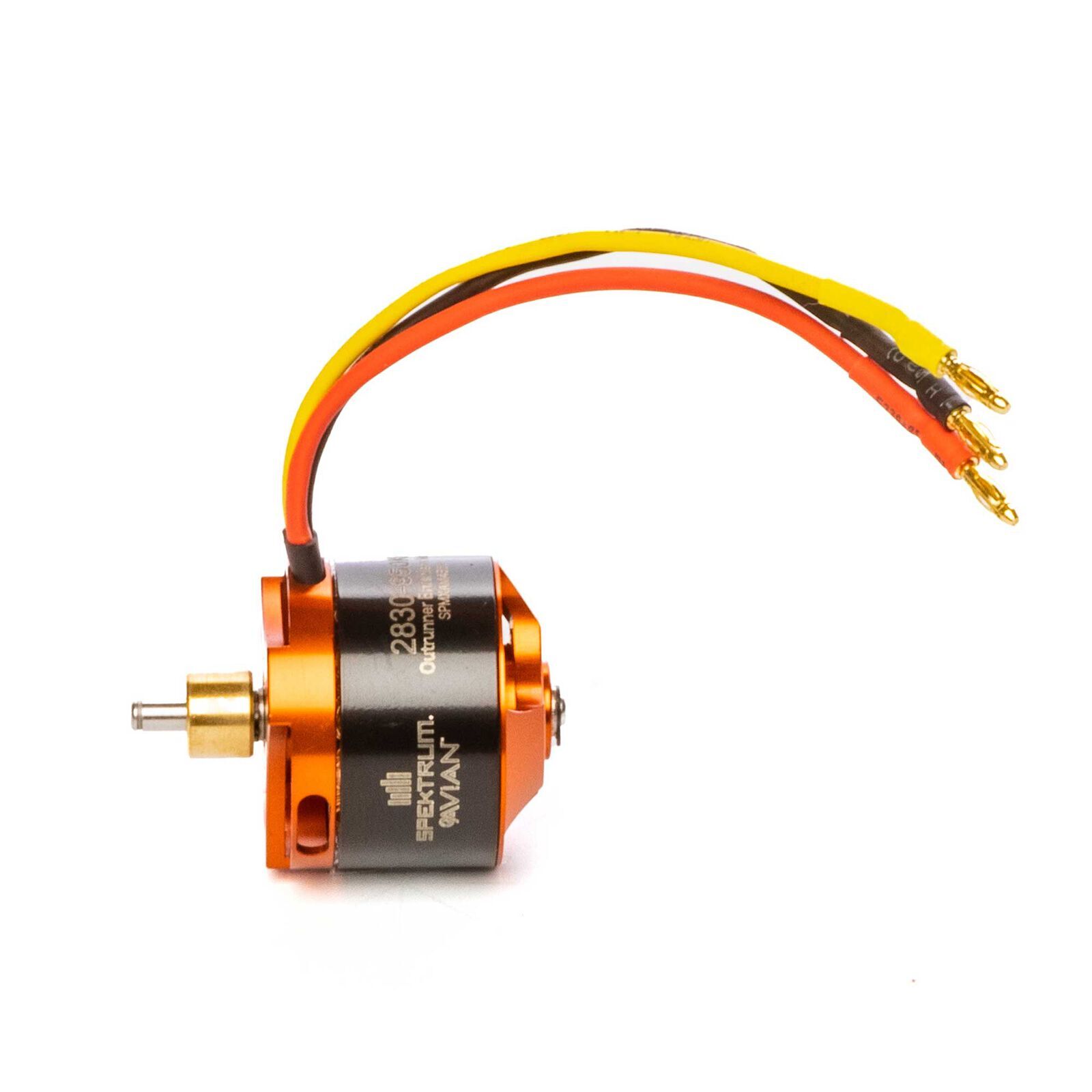

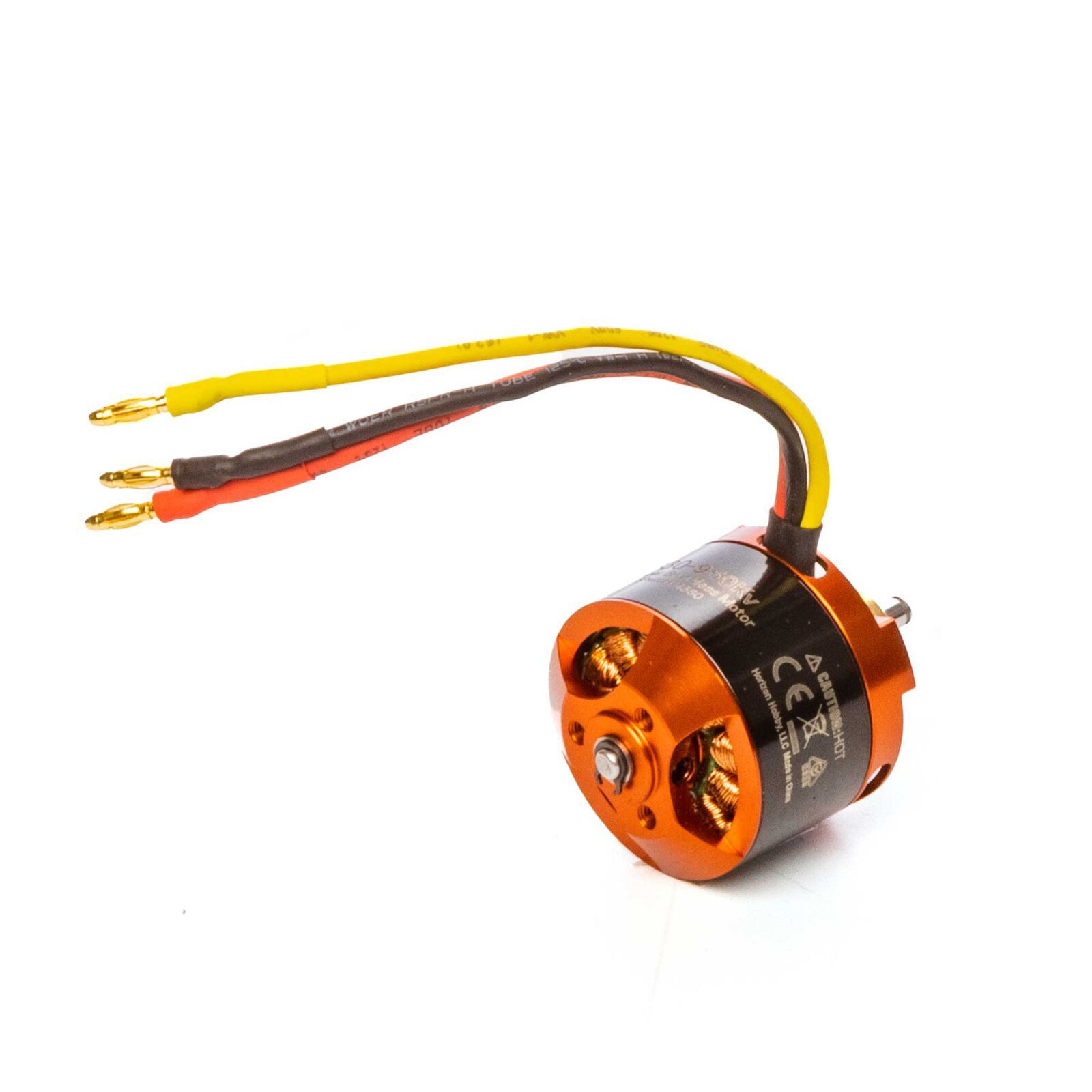

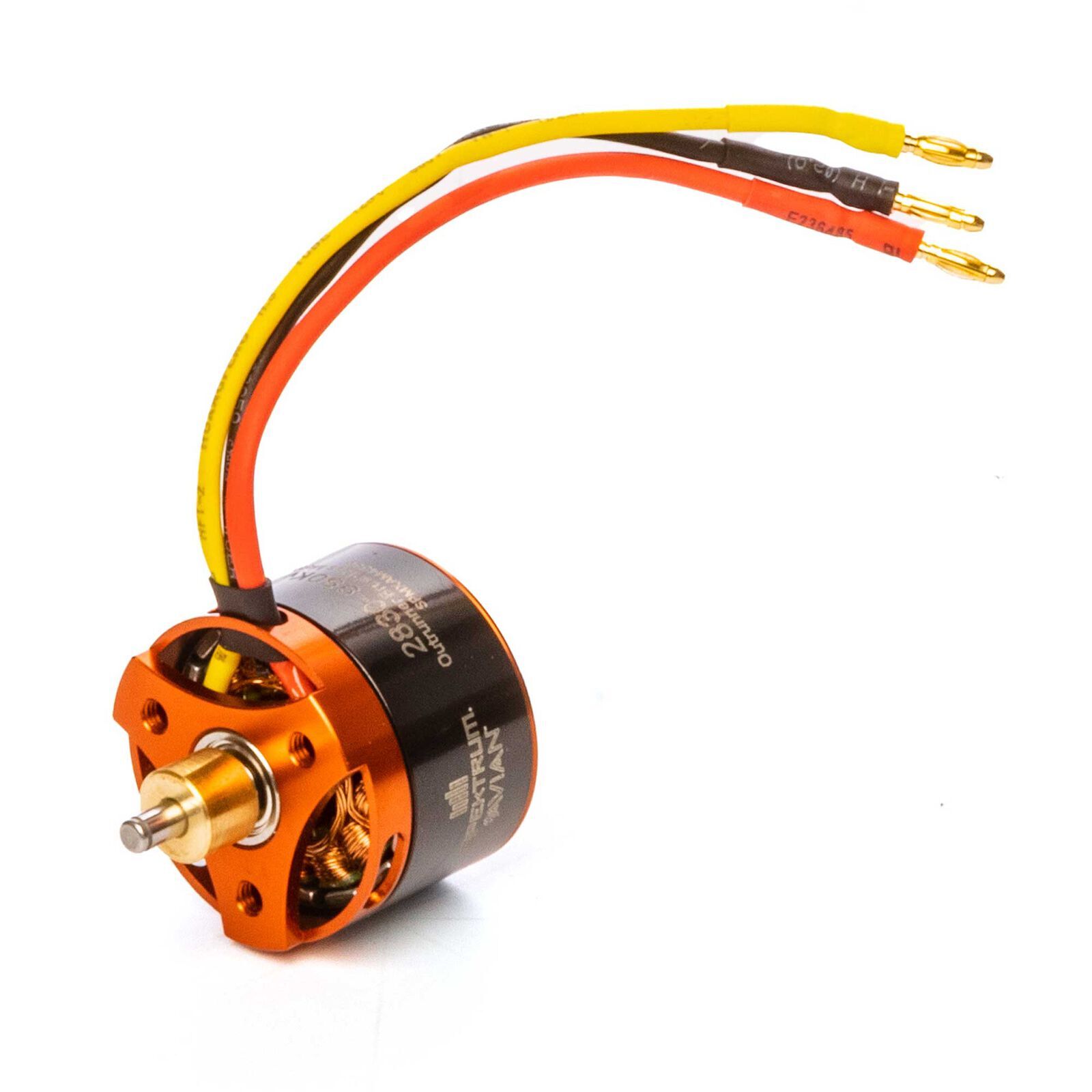

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models

The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits

  • Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
  • Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
  • Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features

  • Lightweight design
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion

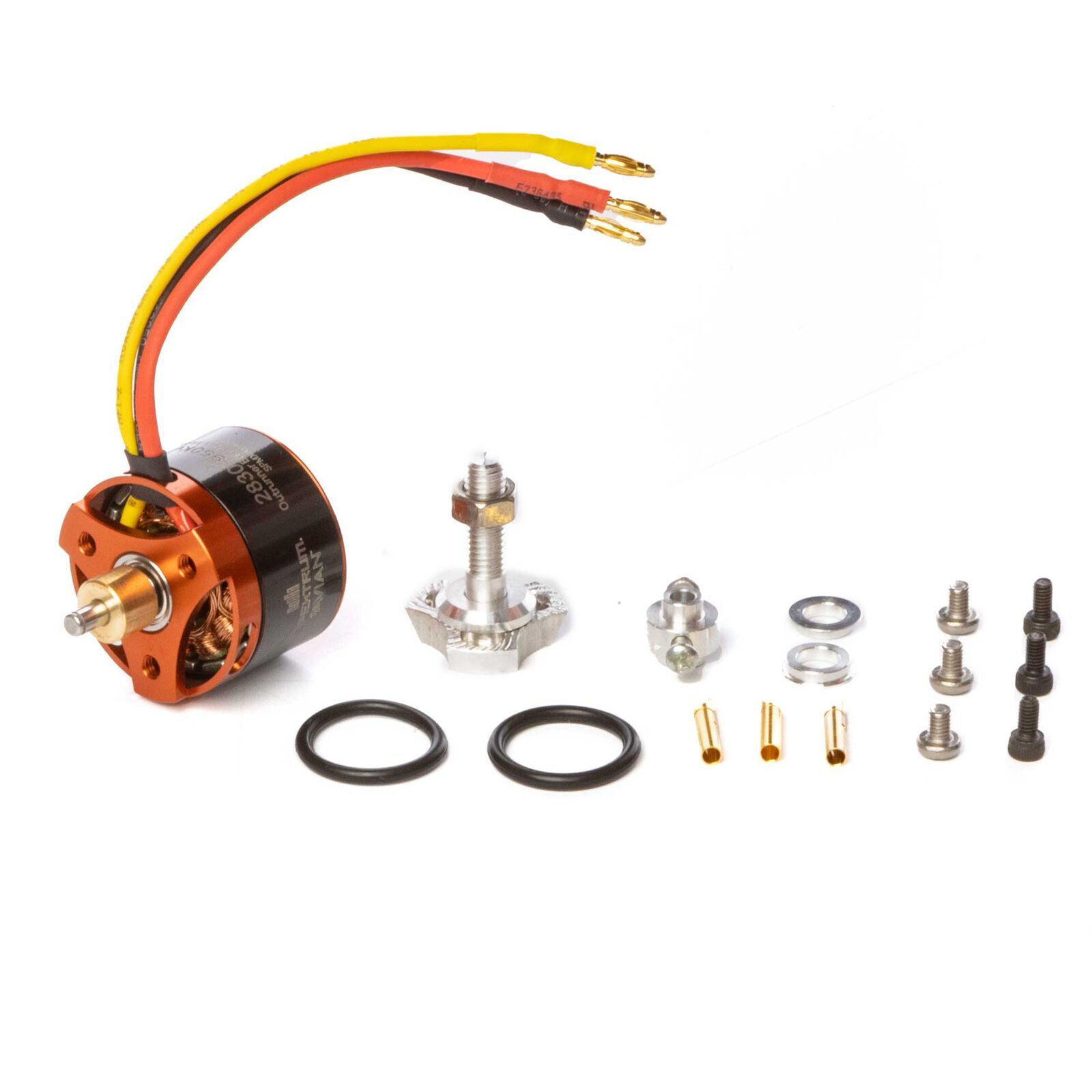

  • Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 30 amp ESC

Spektrum™ Avian™ Outrunner Brushless Motor Instruction Manual - Multilingual

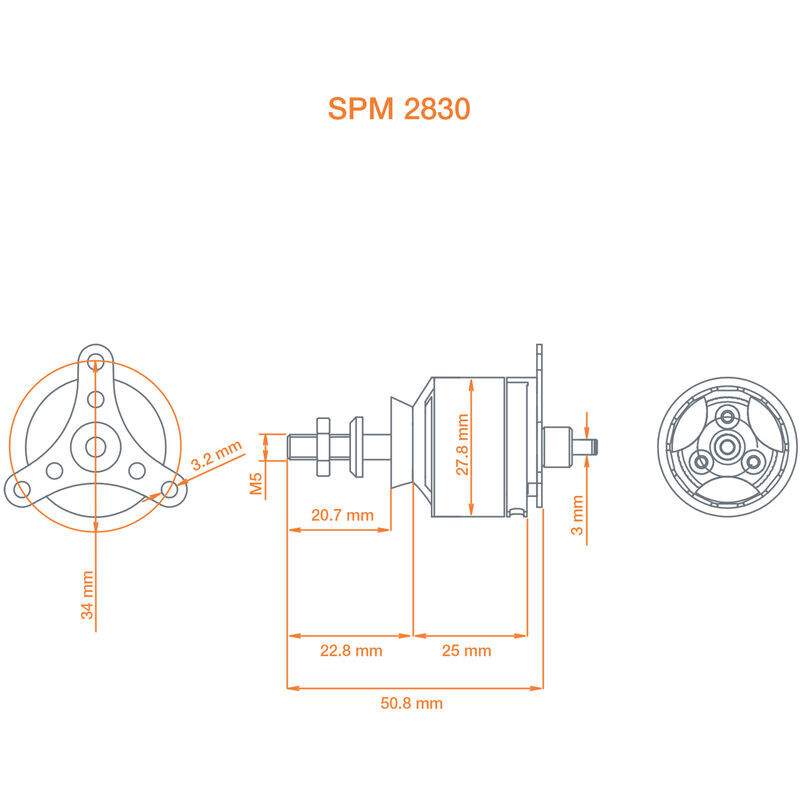

Spektrum Avian Brushless Motor Spec Chart

Important Specs

  • Recommended Voltage Range – 7.4-11.1V / 2-3S LiPo
  • Recommended Propeller Range – 8x6 to 10x4.5 Slow-fly Prop
  • Recommended Model Flying weight – 3D 565g (20 oz) - Sport 905g (32 oz)
  • Max Wattage – 160w
  • Max Current – Max Burst Amps (20A) Max Continuous Amps (14A)
SKU SPMXAM4560
Barcode # 0605482084144
Brand Spektrum
Shipping Weight 0.5000kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.120m
Shipping Cubic 0.000576000m3
