OVERVIEW:

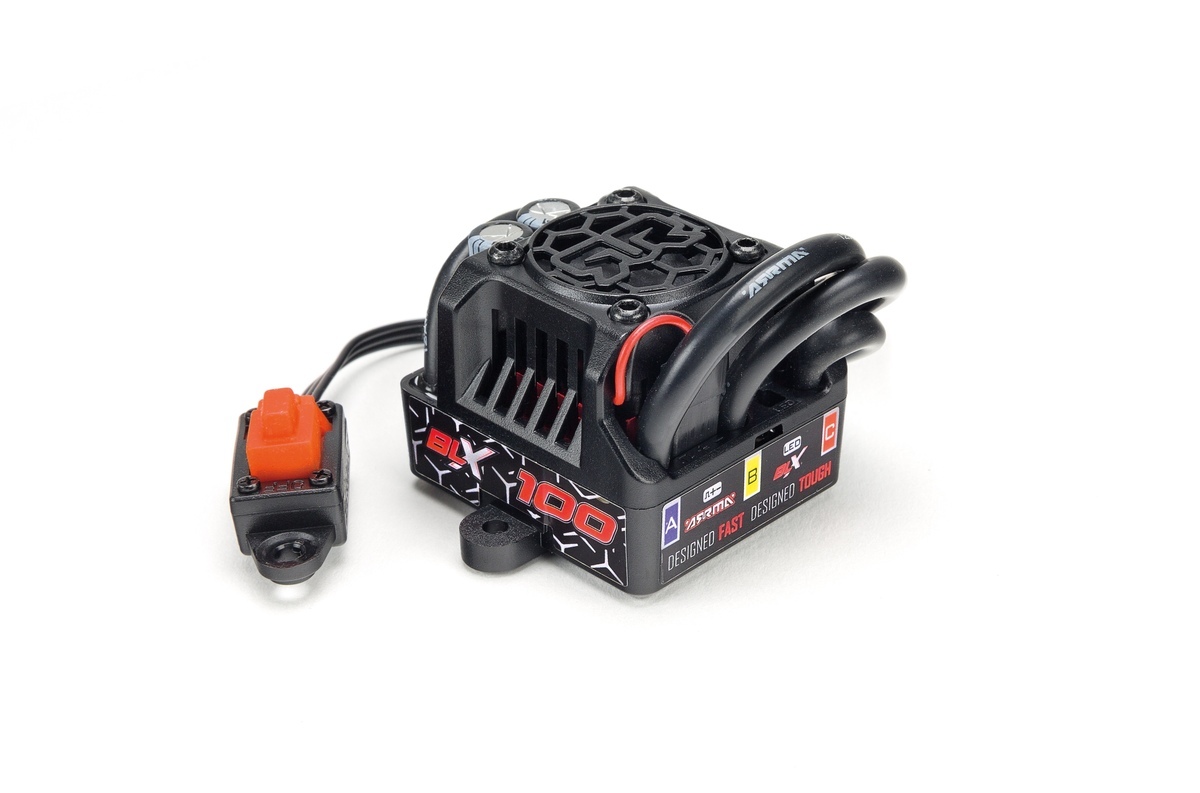

The BLX100 100A waterproof ESC provides consistent power control and is 3S LiPo ready.

FEATURES:
Fitted with a super-reliable EC5 connector and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX100 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

SPECIFICATION

Battery usage   2S LiPo (7.4V) or 3S LiPo (11.1v) / 4-9 Cell NiMH
Low Voltage Cut-Off (LVC)   3.4V per cell
Thermal Protection Temperature   125°C / 257°F
Over-Voltage Protection   Over 12.6V
BEC Voltage   6V
BEC Current   4A
ESC Length   43mm / 1.69"
ESC Height   34mm / 1.34"
ESC Width   54.5mm / 2.15" (Inc hold-down tabs)
ESC Weight   120g / 4.2oz
Receiver Wire Length   170mm / 6.70"
Battery Wire Length   125mm / 4.92"
Motor Wire Length (Inc Connector)   200mm / 7.87"
Switch Length   110mm / 4.33"
Switch Width   12.8mm / 0.5"
Switch Height   18mm / 0.71"
Motor Bullet Connector Size   4mm / 0.16"
Wire Specifications   12AWG
ESC Battery Connector Type   EC5




























INCLUDES:
1 x BLX100 Brushless 3S ESC

Compatible With:

  • Big Rock 4x4 BLX 3S
  • Granite 4x4 BLX 3S
  • Senton 4x4 BLX 3S
  • Typhon 4x4 BLX 3S
