Granite 4x2 Boost Mega 500

Product Details

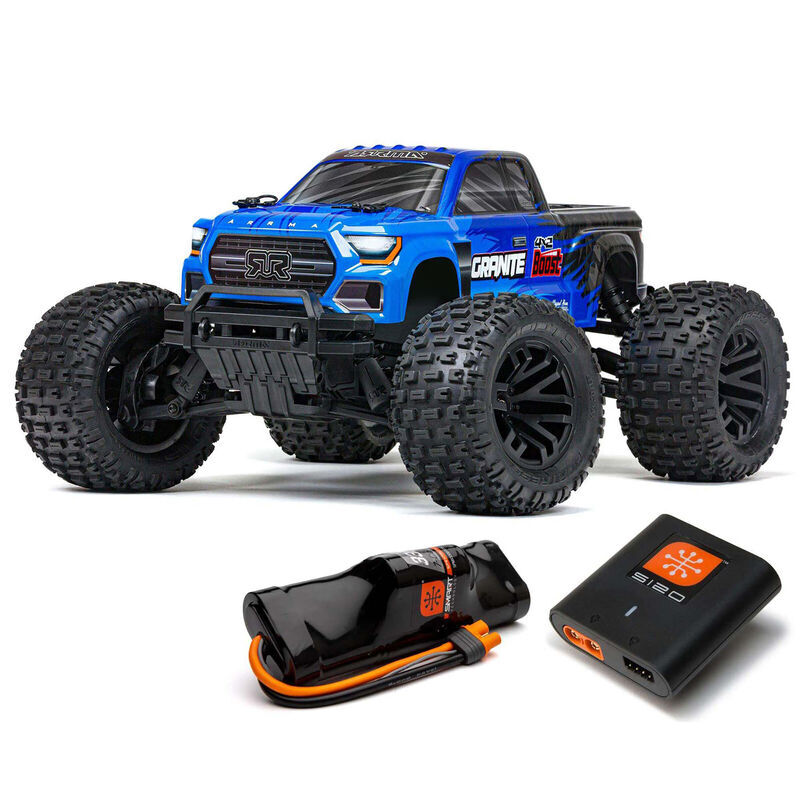

In The Box
(1) 1/10 GRANITE 4X2 BOOST MEGA 550 Brushed Monster Truck RTR
(1) Spektrum™ SLT™ 2-in-1 40A ESC & Receiver
(1) ARRMA MEGA 550 12T Brushed Motor
(1) Spektrum 2.4GHz SLT2™ Transmitter
(1) Spektrum S650 Waterproof Digital Servo
(1) Spektrum S120 USB-C Smart Charger
(1) Spektrum Smart 8.4V 3300mAh 7-Cell Hump NiMH Battery
(4) AA Transmitter Batteries
(1) Product Manual

Needed to Complete
(1) 18W+ QC 2.0 or 3.0 USB Charge Adapter

Download ARRMA 1/10 Granite 4x2 Manual HERE

New Features

  • 2-Wheel drive 4X2 transmission that's upgradable to 4X4 (using 4X4 BOOST Transmission Upgrade Set)
  • Spektrum 2.4GHz SLT2 transmitter with 50/75/100% throttle modes
  • Spektrum SLT 2-in-1 40A ESC & Receiver
  • Spektrum Smart 8.4V 3300mAh 7-Cell Hump NiMH Battery included
  • Spektrum S120 USB-C Smart Charger included
  • AA transmitter batteries included

Additional Features

  • MEGA 550 12T brushed motor
  • Spektrum S650 waterproof digital servo offering 84 oz-in of torque
  • Metal internal geared diff
  • 1.35 module input and main diff gear teeth
  • Strong composite chassis with extended height dirt defenders
  • Impact absorbing bumpers
  • Steering system with stone clearance
  • Easy-access modular design — power, diff, and electronics modules can be removed for maintenance quickly and easily
  • Double-wishbone suspension front and rear for great handling
  • Vented dBoots Fortress MT tires that disperse water for improved durability
  • 2-year limited warranty — see website for details

Overview
If you're looking for your first hobby-quality RC basher vehicle, nothing else compares to ARRMA 4X2 BOOST 550 MEGA Brushed 2WDs. It's not just the characteristic ARRMA speed and durability that sets them apart. Based on the proven ARRMA 4X4 platform, ready-to-run 4X2 BOOST 550 MEGA Brushed 2WD vehicles can be upgraded easily to 4-wheel drive and 3S brushless power whenever you're ready. What's more, they also offer great value.

Even without those upgrades, the GRANITE 4X2 BOOST 550 MEGA Brushed 2WD monster truck can reach speeds of 30+ MPH in optimum conditions using optional gearing. For all-terrain toughness, it includes a strong composite chassis and retained hinge pin plates; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber shielded bearings throughout. The GRANITE 4X2 BOOST is engineered to outlast other beginner-level bashers.

It retains the ingenious modular chassis design perfected by ARRMA engineers for easy component access. Separate, easily removable modules for the power system, electronics, and differential components make routine vehicle maintenance fast and simple.

The self-bleeding, oil-filled shocks with silicone O-rings use a tried and tested, coil-over design for effortless maintenance and amazing handling. Their innovative rod-end has a molded-in spring perch for extra toughness. High chassis guards limit the amount of dirt and debris that can get into the chassis tub. Shock-absorbing loops keep the front and rear bumpers secured to the chassis, offering defense against heavy impacts.

The GRANITE 4X2 BOOST 550 MEGA Brushed 2WD monster truck comes with the Spektrum SLT2 transmitter and SLT 2-in-1 40A ESC and receiver. The transmitter is ergonomically designed for long periods of fatigue-free driving and has a foam wheel for precise fingertip control. New drivers will be able to set throttle limits at 50% or 75% until ready to unleash the full speed potential.

Tough, multi-spoke black MT wheels with vented dBoots Fortress MT tires give the GRANITE 4X2 BOOST 550 MEGA Brushed 2WD effective traction for bashing on almost any terrain — including off-road, dirt, grass, parking lots, paved and asphalt surfaces.

The GRANITE 4X2 BOOST is brushless-ready, so you can easily upgrade from its included 550 MEGA brushed power system to 3S brushless power whenever you're ready for the increased performance. And with the 4X4 BOOST Transmission Upgrade Set (ARA210003, sold separately), the extra traction of 4-wheel drive is just three simple steps away!

Video Overview

4X4 BOOST Transmission Upgrade

SIGNATURE EASY-ACCESS MODULAR DESIGN

The 1/10 scale GRANITE 4X2 BOOST 550 MEGA Brushed 2WD monster truck incorporates the signature ARRMA easy-access modular design. Separate, easily removable chassis modules for the power system, electronics, and differential components make routine maintenance fast and simple.

strong composite chassis

STRONG COMPOSITE CHASSIS

Contributing to the GRANITE 4X2 BOOST monster truck's unstoppable performance are a strong composite chassis; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber-shielded bearings throughout. Extended height dirt defenders limit the amount of dirt and debris that can get into the chassis tub.

4X4 BOOST Transmission Upgrade

UPGRADEABLE TRANSMISSION

Using the 4X4 BOOST Transmission Upgrade Set (sold separately), the 1/10 scale GRANITE 4X2 BOOST 550 MEGA Brushed 2WD monster truck can easily be upgraded for the extra traction of 4-wheel drive in just three simple steps.

Upgradable Motor and ESC

UPGRADEABLE POWER SYSTEM

The 1/10 scale GRANITE 4X2 BOOST 2WD monster truck is based on the proven ARRMA 4X4 platform. That means you can easily upgrade from its included 550 MEGA brushed power system to 3S brushless power whenever you are ready for the increased performance.

4X2 BOOST 2WD

MULTI-TERRAIN dBOOTS TIRES

Tough, multi-spoke black MT wheels with vented, multi-terrain dBoots Fortress MT tires give the GRANITE 4X2 BOOST 2WD effective traction for bashing almost anywhere, from dirt and grass to parking lots, paved, and asphalt surfaces.

SPEKTRUM SLT2 2.4GHZ 2-CHANNEL TRANSMITTER

SPEKTRUM SLT2 2.4GHZ 2-CHANNEL TRANSMITTER

The included Spektrum SLT2 transmitter is perfectly balanced for fatigue-free bashing and has a foam wheel for precise fingertip control. New bashers can set the throttle limits at 50% or 75% until ready to use the full speed potential.

Boost Mega 550

Product Specifications

Ball Bearings Rubber shielded bearings throughout
Battery Included
Body Painted, decalled and trimmed
Brakes Integral with ESC
Charger Included
Chassis Molded Composite
Completion Level Ready-To-Run
Connector Type IC3
Differential Metal Gear Diff
Drive Type Forward/Brake/Reverse
Drivetrain 2WD
Final Drive Ratio 18.5
Front Track 13.46 in (342mm)
Gear Pitch 48P
Internal Gear Ratio 2.85
LiPo Compatibility 2S
Max Battery Dimensions 6.14 x 2.01 x 1.89 in (156 x 51 x 48 mm)
Motor Size 550
Motor Type Brushed
Pinion 14T
Power System MEGA
Power Type Electric
Product Height 8.11" (206 mm)
Product Length 17.76" (451 mm)
Product Weight 6.38 lb (2.9kg) with battery
Product Width 13.46" (342 mm)
Radio Included
Rear Track 13.46 in (342mm)
Receiver Included
Scale 1/10
Servos Included
Shock Type Oil-Filled, Coil-Over Springs
Speed Control Included
Spur Gear 91T
Suspension Independent
Tire Tread dBoots® Fortress™ MT
Top Speed 30+
Vehicle Size Standard
Vehicle Type Monster Truck
Water-Resistant Yes
Wheel Hex Size 14mm
Wheel Width 2.09
Wheelbase 11.3" (287 mm)
SKU ARA4102SV4T2
Barcode # 5052127042819
Brand Arrma
Shipping Weight 5.0000kg
Shipping Width 0.390m
Shipping Height 0.240m
Shipping Length 0.530m
Shipping Cubic 0.049608000m3
