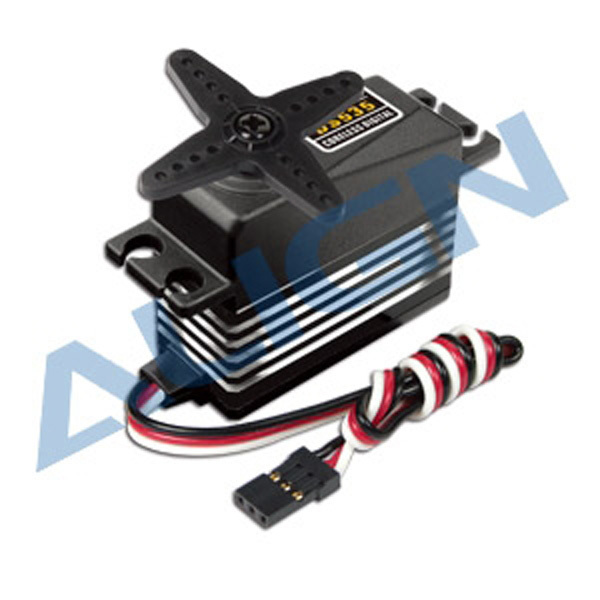

• Coreless Motor Design for fast speed, high efficiency, and low power consumption.
  • Higher signal resolution for smooth movements.
  • Response time of 0.035s/60°. High rigidity metal gears with high precision and durable structure characteristics.
  • Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
  • Supports high voltage 8.4V.
  • Powerful and precise servo suitable for T-Rex 500 CCPM cyclic and rudder servo use.

Specifications
  • Stall torque: 5.0kg.cm(6.0V) 6.5kg.cm(8.4V)
  • Motion speed: 0.05sec/60°(6.0V) 0.035sec/60°(8.4V)
  • Rating voltage: DC 6.0-8.4V
  • Temperature range: -20°C ~ +60°C
  • Dimension: 35.1 x 15.1 x 29mm
  • Weight: 29g

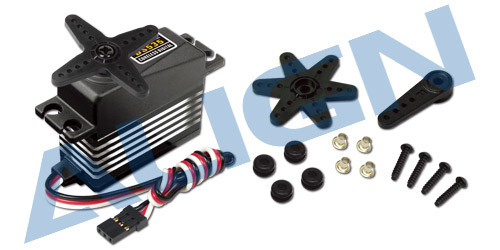

Accessories:
  • DS535 Digital Servo x 1
  • Servo Arm x 1
  • DS515/525 Servo Arm Set x 1
  • Socket Button Head Self Tapping Screw x 4(T2.6x12mm)
SKU HSD53502
Barcode # 4713413996155
Brand Align
Shipping Weight 0.5000kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 0.080m
Shipping Cubic 0.000512000m3
