High rigidity, shock resistant metal gears.
Coreless Motor Design for fast speed, high efficiency, and low power consumption.
Higher signal resolution for smooth movements.
Fast speed with high torque of 9.0kg/cm. High strength composite alloy gears with durable structure characteristics.
Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
Supports high voltage 8.4V.
Powerful and precise servo suitable for T-Rex 500 CCPM cyclic use.

Specification:

Stall torque: 6.5kg.cm(6.0V)
                    9.0kg.cm(8.4V)
Motion speed: 0.085sec/60°(6.0V)
                       0.065sec/60°(8.4V)
Rating voltage: DC 6.0-8.4V
Temperature range: -20°C ~ +60°C
Dimension: 35.1 x 15.1 x 29mm
Weight: 36g

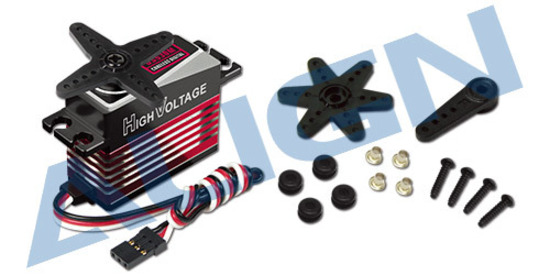

Accessories:

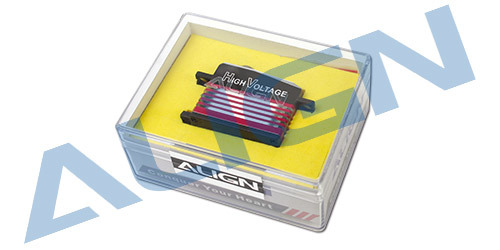

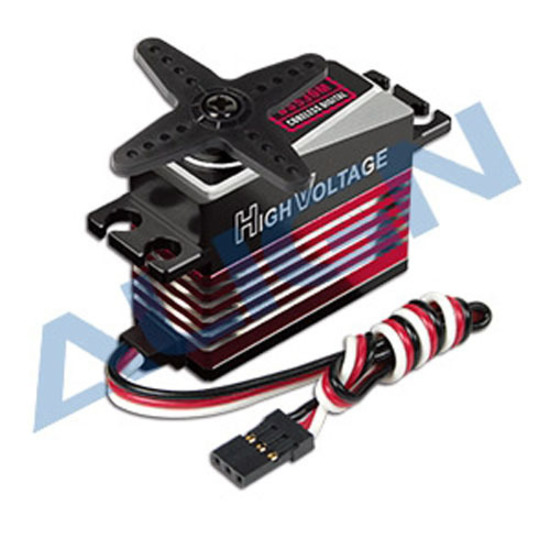

  • DS530M Digital Servo x 1
  • Servo Arm x 1
  • DS515/525 Servo Arm Set x 1
  • Socket Button Head Self Tapping Screw x 4(T2.6x12mm)
SKU HSD53001
Barcode # 4713413996094
Brand Align
Shipping Weight 0.5000kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 0.080m
Shipping Cubic 0.000512000m3
