Instructions: Specification:

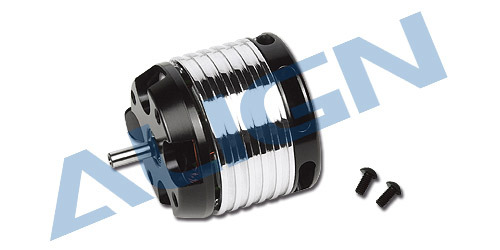

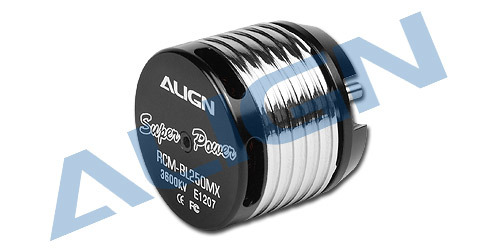

1.The 250MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
2.The 250MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
3.High torque, high efficiency, low temperature variant, stable and quiet.
4.Japanese made high-speed ball bearings, powerful magnetic outrunner rotor.
5.Suitable for all T-REX 250 class machines.

●Input voltage:2S~3S 2-3cell Li-Po
●Max continuous current:16/24A(5sec)
●Max output power:Approx. 170w/250W(5sec)
●KV value:3600KV
●Stator Dimension:1910
●Stator Arms:9
●Magnet Poles:6

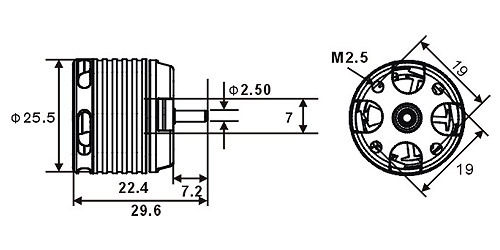

●Dimension:spindle 2.5xΦ25.5x22.4mm
●Weight:Approx. 33.5g
Accessories:
●Socket button head screw(M2.5X5mm) x 2
●ALIGN standard 3mm gilt terminal x 3set
