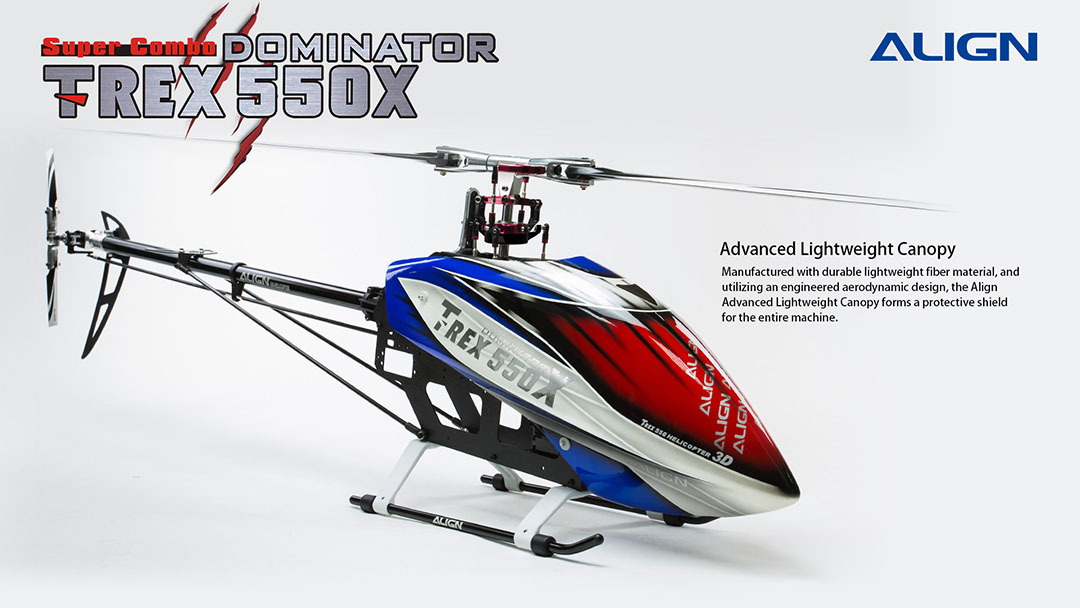

The NEW T-REX 550X is definitely a significant leap forward in performance, enhanced by increased power, the integration of numerous innovative design changes, and lightweight improvements. The T-REX 550X performance is outstanding!

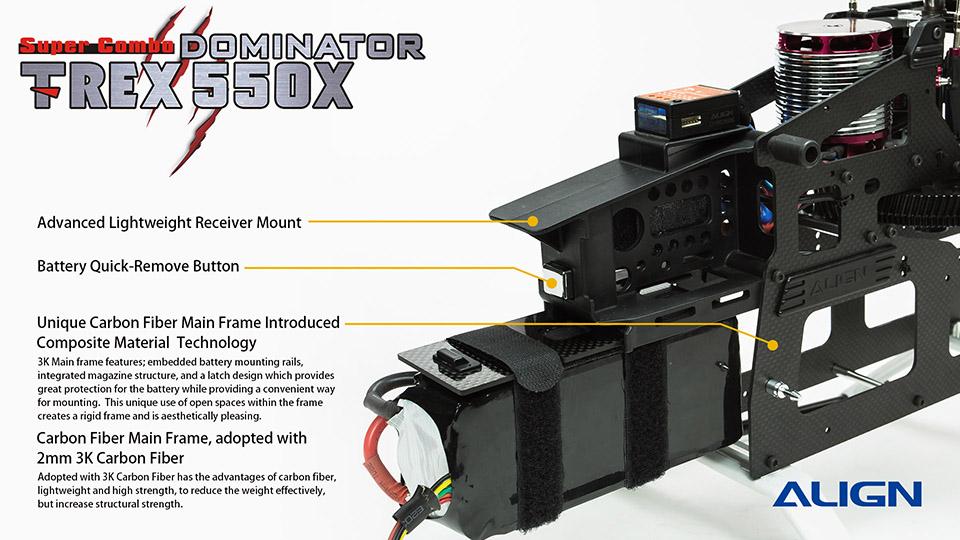

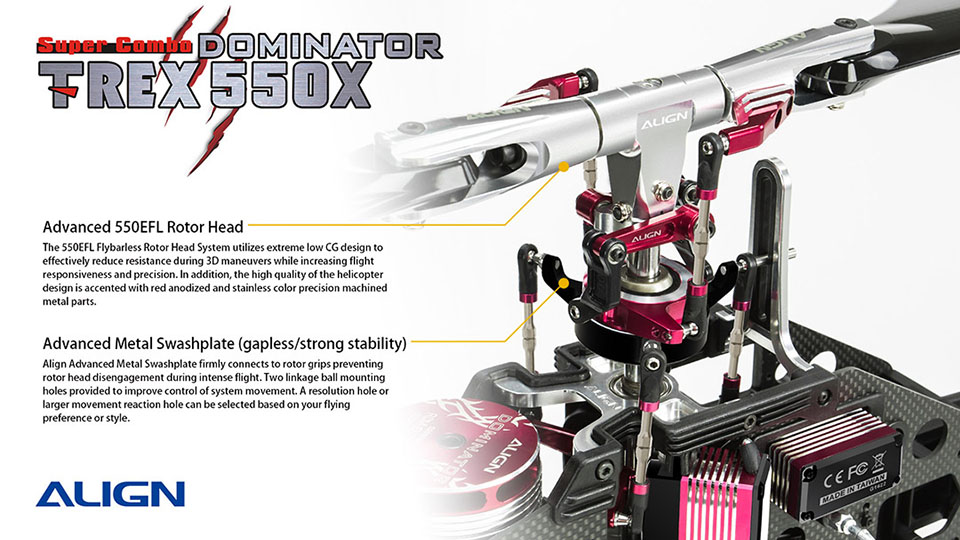

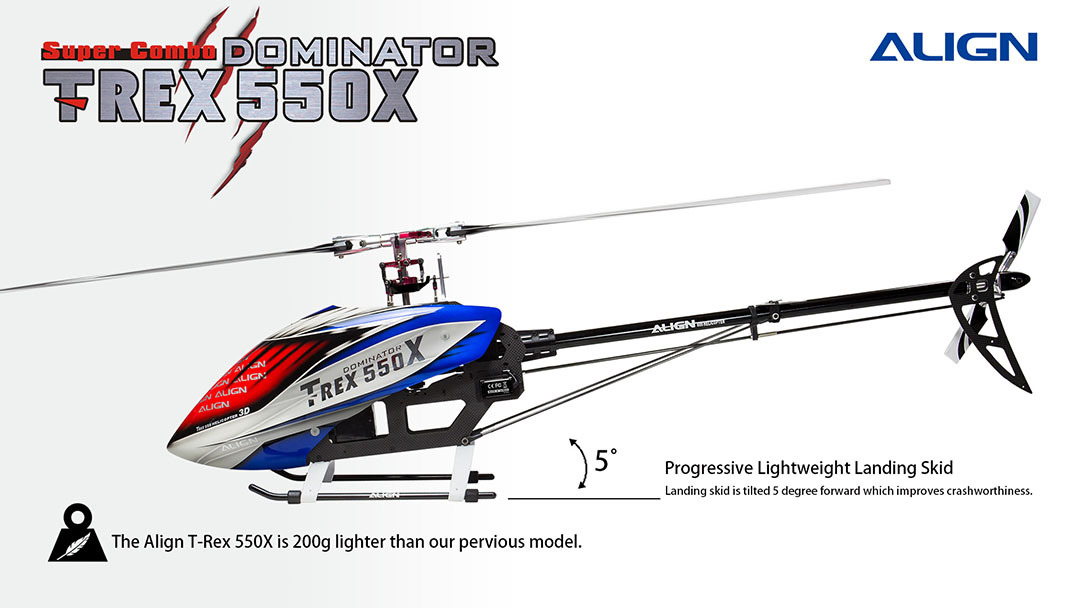

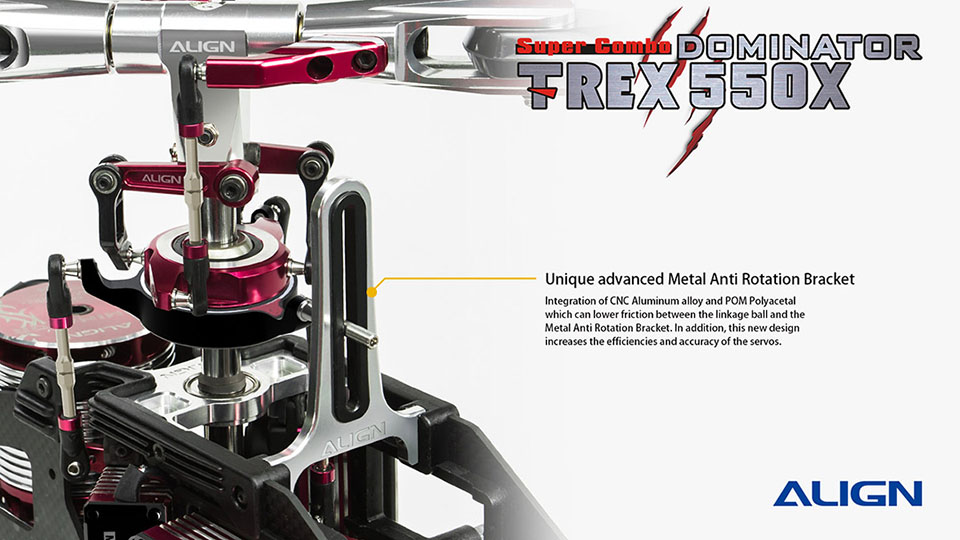

The brand new FL Flybarless Rotor Head System utilizes an extremely low CG design, reducing resistance during 3D maneuvers while increasing flight responsiveness and precision. A progressive design adds a gloss silver and red anodizing appearance which continue our quality development based on our 700 class helicopter. The T-REX 550X main frame utilizes composite material integration technology on carbon side frame plates, including the addition of battery mounting side rails, and a top motor mount design. In addition, the T-REX 550X’s lightweight design is 200~250g (Combo250g/Super Combo 200g) lighter than our pervious model, this effectively increase the power and improves flight time.

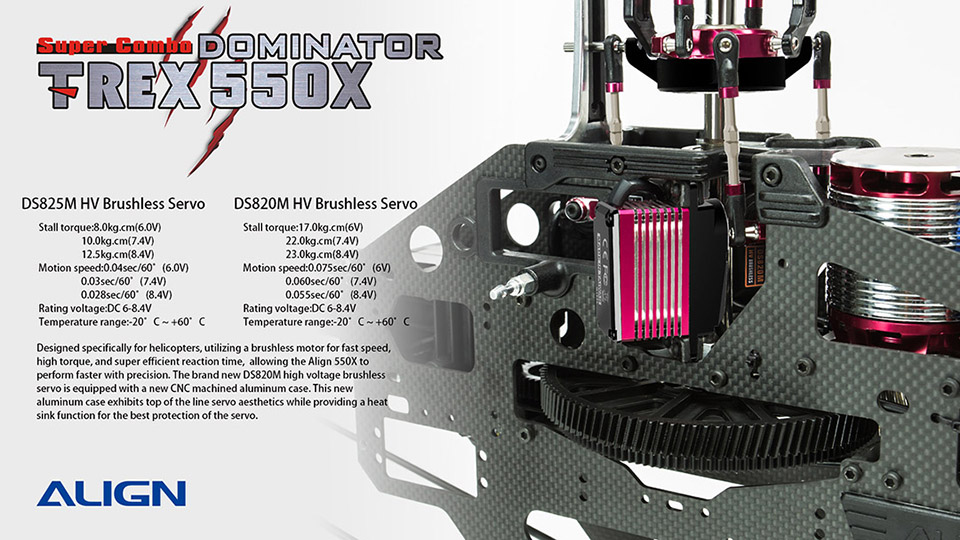

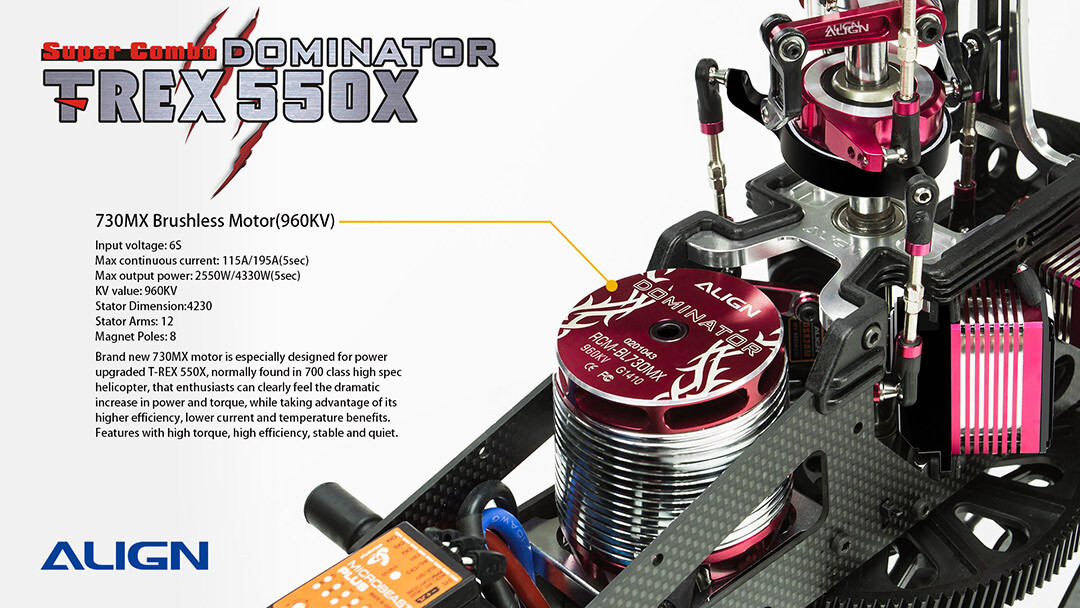

The T-REX 550X utilizes the powerful 730MX(960KV/4230) motor and our RCE-BL100A Brushless ESC which both are highly efficient providing superior power, improving the performance of the 6S power system. The NEW DS820M/DS825M high voltage brushless servos are extremely efficient and out perform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.

With improved performance and increased power, as well as included top of the line electronic equipment. The new T-REX 550 X will arouse your enthusiasm and devotion to the T-REX Family.

Focus Shots

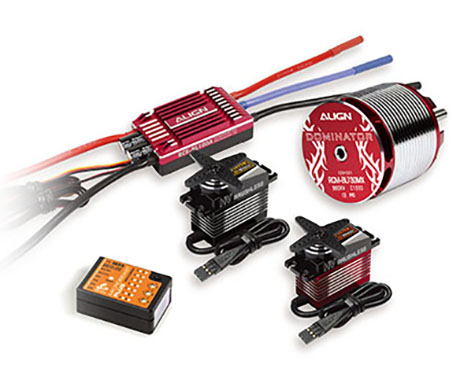

Included

●RCE-BL100A Brushless ESC x 1
●730MX Brushless Motor(960KV/4230) x 1
●DS820M High Voltage Brushless Servo x 3
●DS825M High Voltage Brushless Servo x 1

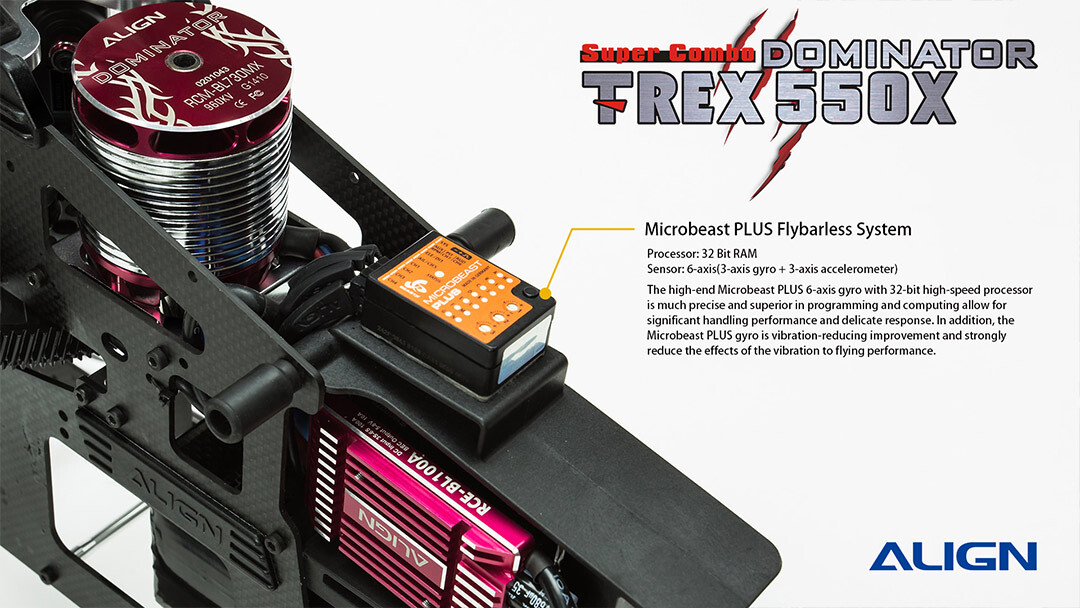

●Microbeast PLUS Flybarless System x 1

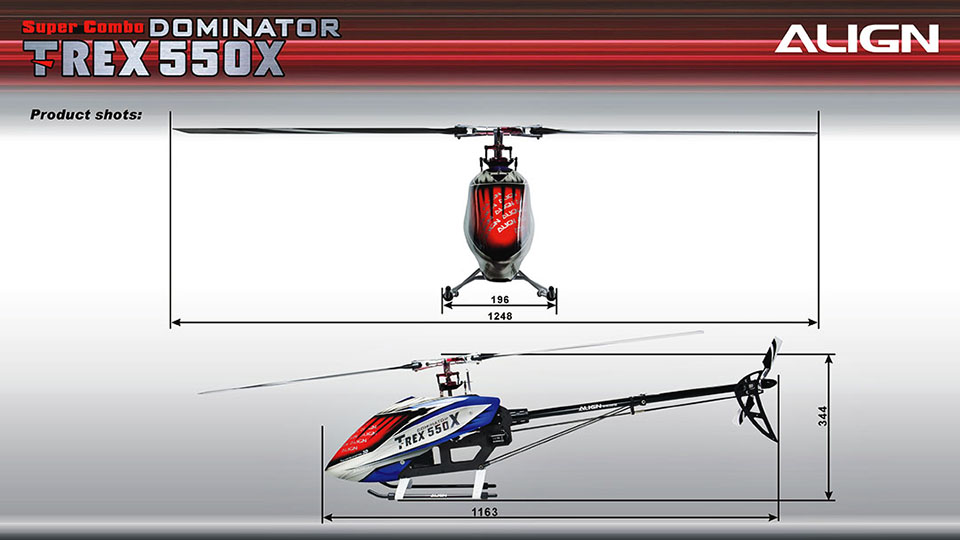

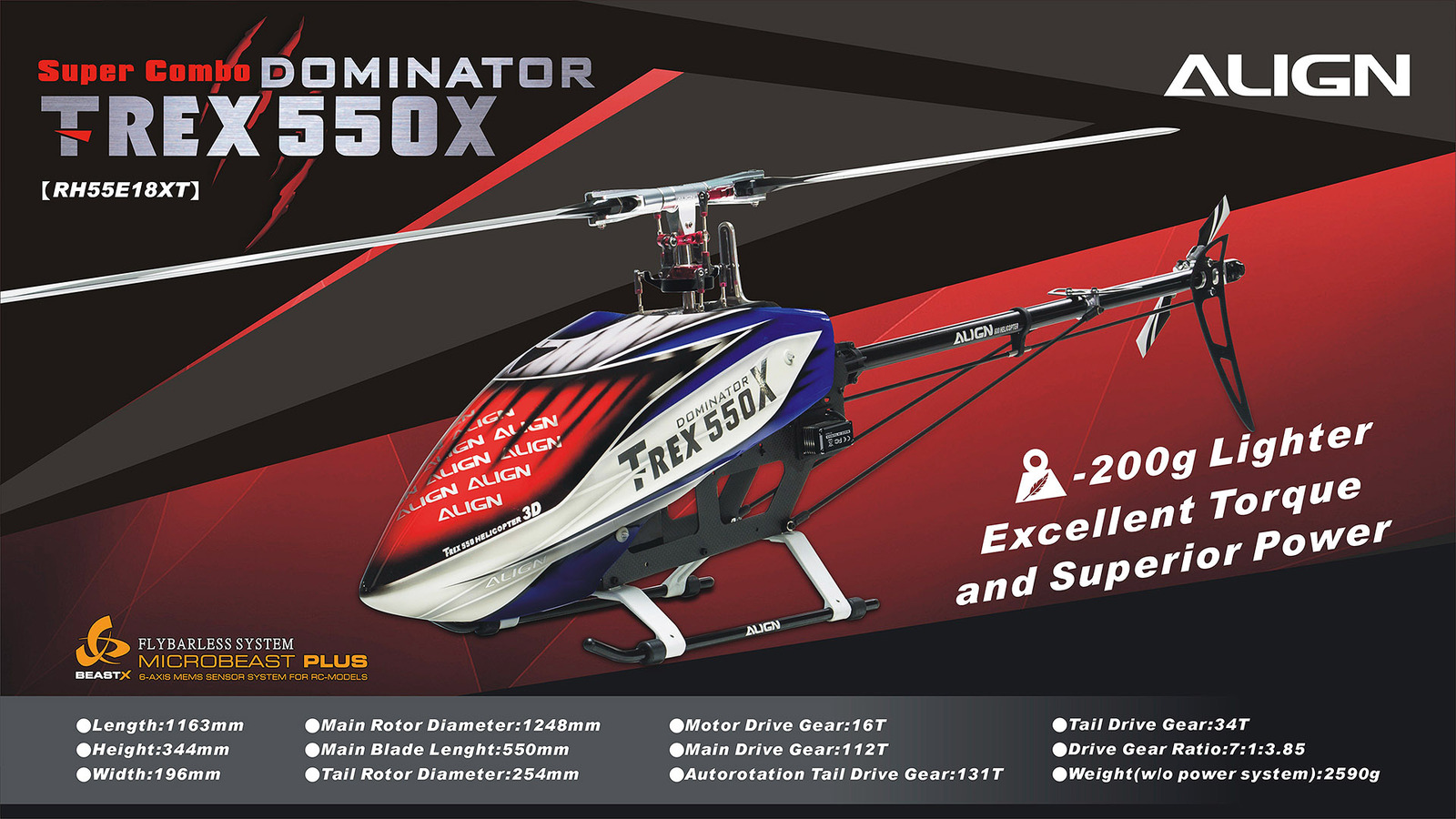

Specification

●Length:1163mm
●Height:344mm
●Width:196mm
●Main Rotor Diameter:1248mm
●Main Blade Lenght:550mm
●Tail Rotor Diameter:254mm
●Motor Drive Gear:16T
●Main Drive Gear:112T
●Autorotation Tail Drive Gear:131T
●Tail Drive Gear:34T
●Drive Gear Ratio:7:1:3.85
●Weight(w/o power system):2590g

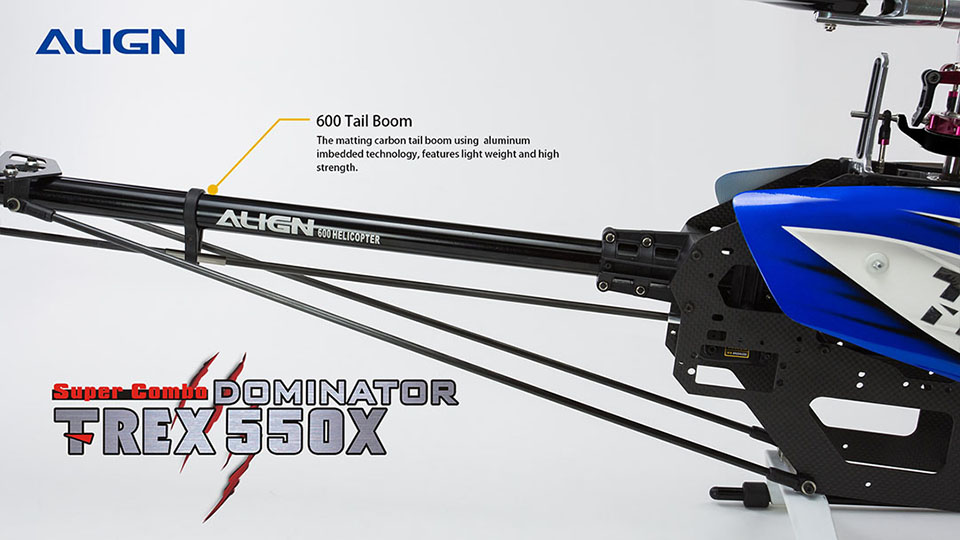

●With 600 Tail Boom


Accessories

●T-REX 550X DOMINATOR Set x 1set
●550 Carbon Fiber Blades x 1set
●95mm Tail Blades x 1set
●730MX Brushless Motor(960KV/4230) x 1
●DS820M High Voltage Brushless Servo x 3
●DS825M High Voltage Brushless Servo x 1
●RCE-BL100A Brushless ESC x 1
●Microbeast PLUS Flybarless System x 1



Radio transmitter and electronic

equipment required for assembly(To Complete the Heli)

1.Transmitter(6-channel or more,helicopter system)
2.Receiver(6-channel or more)
3.Pitch gauge or Digital Pitch Gauge
4.6S Li-Po 2600~5200mAh battery x 1



SKU RH55E18X
Barcode # 4713413701155
Brand Align
Shipping Weight 5.0000kg
Shipping Width 0.250m
Shipping Height 0.170m
Shipping Length 0.770m
Shipping Cubic 0.032725000m3
