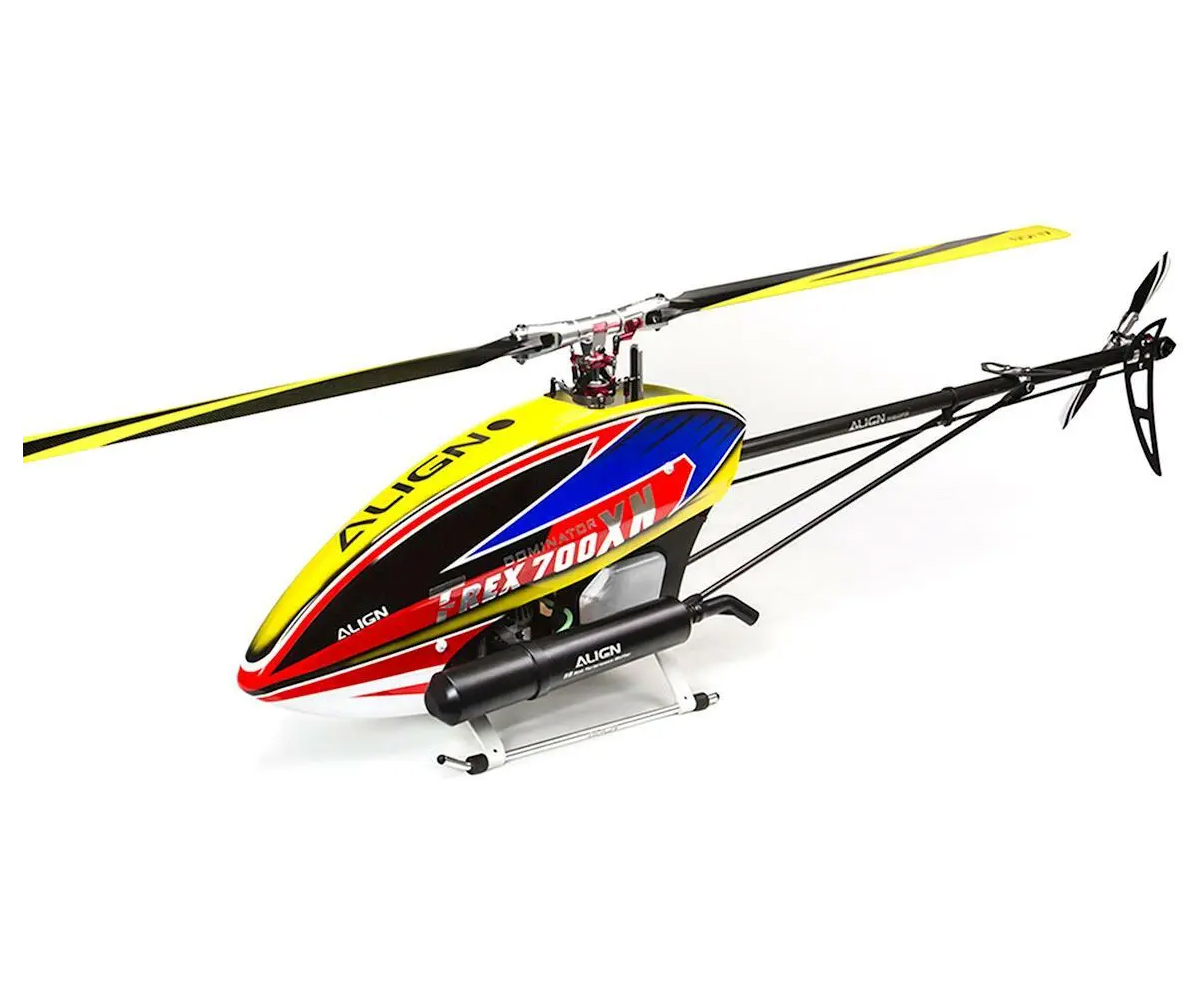

Name: Align RH70N11XW T-REX 700XN RC Helicopter Combo
Brand: Align
Price: 2249.10 AUD
Availability: OutOfStock




How long has it been since you have heard the roaring sound of a nitro motor? How long have you had passionate feelings to own a nitro helicopter? The new combination of steel, precision parts, and lightweight is the ultimate perfect innovative design, the new generation T-REX 700XN. T-REX 700XN adopts the new direct to swashplate servo design, compared to the previous generation T-REX 700N’s push-pull mode control, provides precise and fast control! Utilizing the 700X Flybarless Rotor Head System features an extremely low Center of Gravity (CG) design, to effectively reduces resistance during 3D maneuvers, and increase flight responsiveness and precision. This designed maintains a 90-degree symmetrical angle between the Rotor Grip Arms and Linkage Rods for superior stable flight performance. The Engineered Narrow Body Design efficiently decrease gear abrasion and frame deformation during flight. The T-REX 700XN maintains the proper CG, by moving the engine forward to allow the fuel tank to be positioned in the center of the main shaft. CG remains consistent as the fuel level changes during flight. The new steel alloy clutch liner is durable with temperature control designed to avoid the exploding clutch liner or a breaking clutch housing. The steel alloy clutch liner extends the life to over a 1000 flights. The Receiver Mount provides cable and wiring protection, and easy to maintenance by removing a few screws from the mainframe. The new high voltage output: 6A 7.4V BEC with down / regulation system for constant power to the CCPM server channel for receivers and servos. Includes a built-in one-button push glow plug igniter eliminating the hassle of using traditional electric clip plug on igniters. Also increased external high-frequency filter capacitance to effectively reduce the interference generated by external noise; such as high-speed and high torque servos. The brand new DS820M/DS825M high voltage brushless servos use brushless motors for fast speed, high torque, superior, and efficient reaction time allows the Align 700XN precise, fast performance. The new CNC machined aluminum case design is aesthetically appealing while acting as a highly efficient heat sink. The new generation of T-REX 700XN innovative design will excite your inner soul to bring back your passion for nitro!

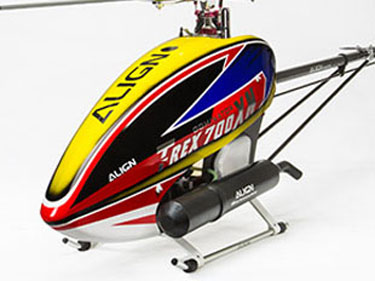

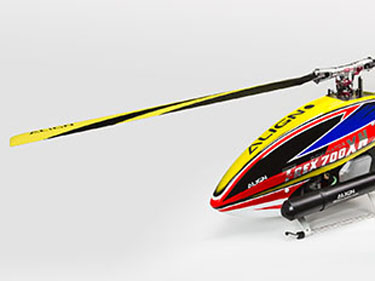

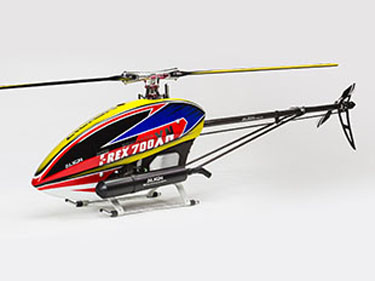

After performing many tests to determine the most efficient aerodynamic canopy we are pleased to release this brand new lightweight canopy! This ultimate canopy made of glass and carbon fiber is lightweight and achieves best dynamic performance. Also a new unique paint scheme for the newest member of the T-REX family.		Specifically designed for a nitro helicopter to provide superior flight stability, and enhance the power for better control. A new blonde yellow layering paint scheme creates a stylish look.

Landing skid is tilted 5 degree forward which improves crashworthiness.		Engineered Narrow Body Design efficiently decrease gear abrasion and frame deformation during flight. The Align T-REX new narrow body design is stronger and increases flight durability.

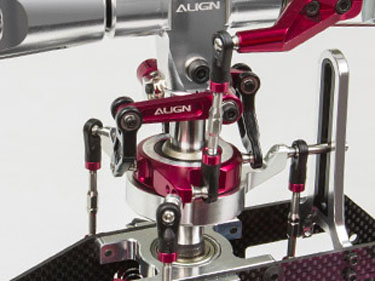

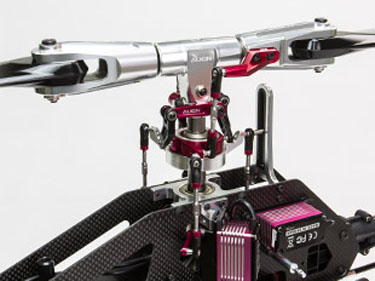

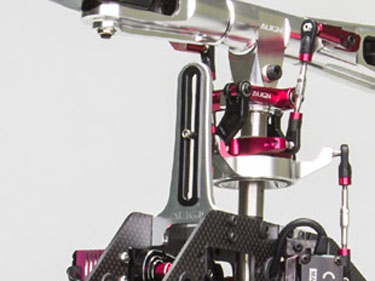

The new direct to swashplate servo design provides precise and fast control. Designed to maintain a 90-degree symmetrical angle between the Rotor Grip Arms and Linkage Rods for superior and stable flight performance.		Align Advanced Metal Swashplate strongly connects to the rotor holder grips preventing rotor head disengagement during intense flight. Two optional linkage ball mounting holes allow for personal selection of resolution based on desired flight performance.

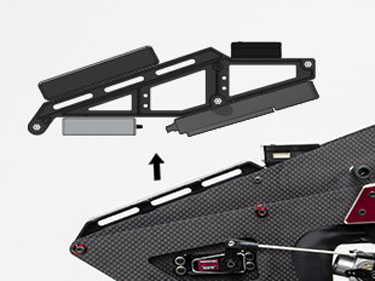

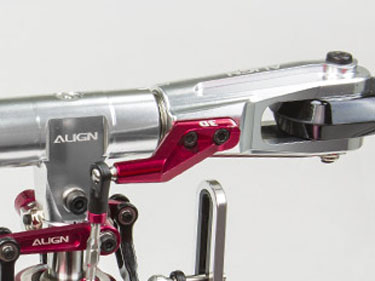

Two new CNC blade holder arms are extraordinarily clean and smooth in appearance. After several modifications, we are releasing the new 3D Blade Holder Arms allowing for excellent fine accuracy control and effectively doubling flight stability, stimulating infinite flight possibilities.		Receiver mount provides cable and wiring protection, easy to maintain equipment by removing a few screws from the mainframe.

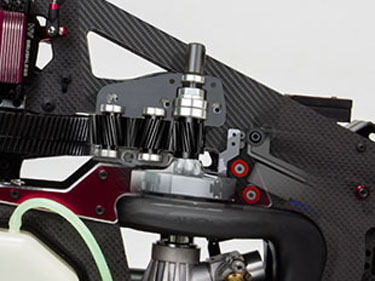

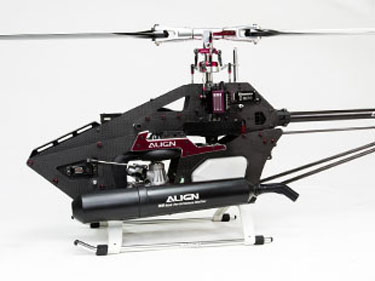

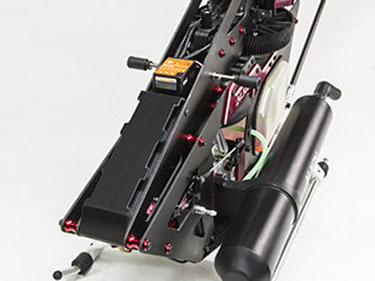

Maintaining the proper Center of Gravity CG is important for helicopters. After extensive Research and Development, moving the engine forward allowed the fuel tank to be positioned in the center of the main shaft. This optimum location for the fuel tank permits the 700XN to maintain consistent CG as the fuel level changes during flight.		The idler pulley helical gear improves rotation stability and effectively reduces the load from the gears while increasing bearing capacity. The gears made of steel alloy are high strength and wear resistant. The new steel alloy clutch liner is durable with temperature control avoiding the exploding clutch liner or breaking clutch housing.

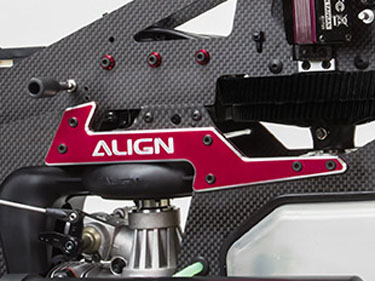

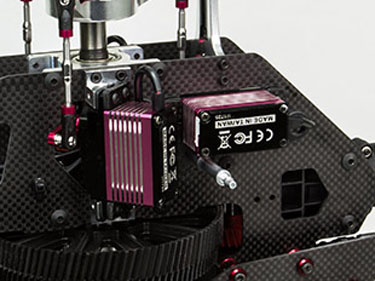

CNC metal reinforcement plate and brace align with frame mounting bolts effectively increasing the torsional strength of the mainframe. Under extreme 3D maneuvers, you can feel the improved reinforcement to the mainframe. Also, the plate helps with engine cooling and adds additional protection for the motor.		Designed specifically for helicopters, utilizing a brushless motor for fast speed, high torque, and superior, efficient reaction time allows the Align 700XN precise, fast performance. The brand new DS820M high voltage brushless servo has a with a new CNC machined aluminum case. The new aluminum case design is aesthetically appealing while acting as a highly efficient heat sink for superior protection of the servo.

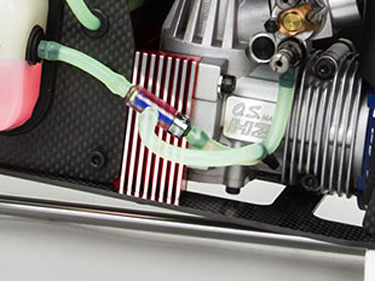

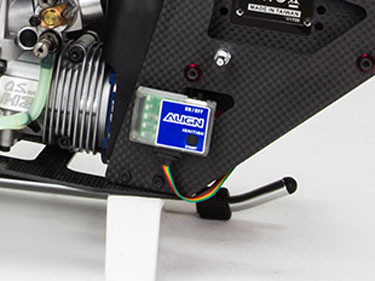

High voltage output: 6A 7.4V BEC with down / regulation system for stable power to the CCPM server channel for receivers and servos. Includes a built-in one-button push glow plug igniter eliminating the hassle of using traditional electric clip plug on igniters. Also increased external high-frequency filter capacitance to effectively reduce the interference generated by external noise; such as high-speed and high torque servos.		An integrated motor mounting bracket allows for efficient heat dissipation from the motor. The superior Cooling Motor Mount is CNC from high strength aluminum alloy, and anodized for aesthetically pleasing appearance.

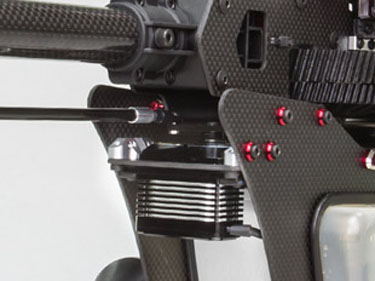

Integration of POM Polyacetal into the CNC Aluminum alloy Anti-Rotation Bracket reduces friction between the linkage ball and the metal Anti-Rotation Bracket while improving the efficiency and accuracy of servo performance.		Dual-sided tail servo mount strengthens the entire frame structure while allowing for better accessibility when servicing the 700XN. New 8mm Carbon Fiber Tail Boom Brace are stronger and lighter weight to improve tail control.

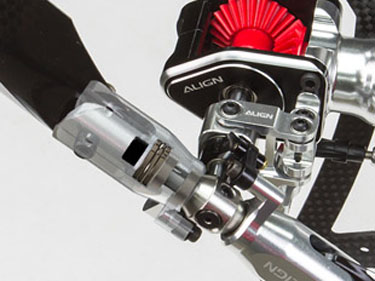

Brand new strengthened precision design with high-end M4x8 hexagonal screw upgrade. The new rigid design improves and strengthens the entire structure enhancing tail performance for all pilots.

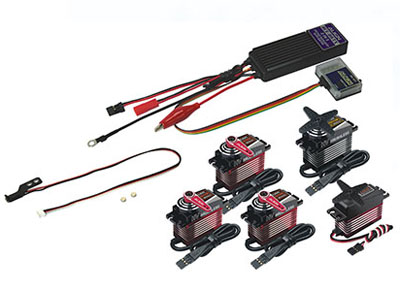

Electric equipment DS820M High Voltage Brushless Servo x 3 DS825M High Voltage Brushless Servo x 1 DS530 Digital Servo x 1 B6TX 2 In 1 Voltage Regulator Combo x 1 Governor Sensor x 1

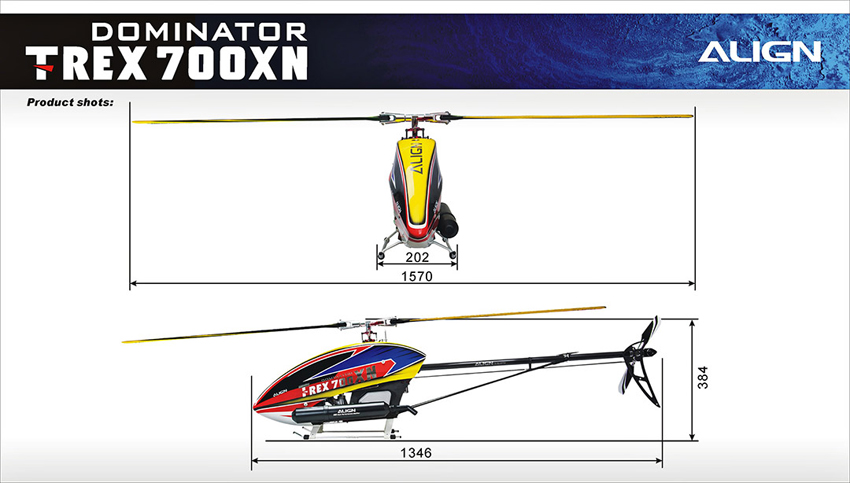

Specification Length: 1346mm Height: 384mm Width: 202mm Main Blade Length: 700mm Main Rotor Diameter: 1570mmTail Rotor Diameter: 281mm Motor Drive Gear:13T Main Drive Gear:107T Autorotation Tail Drive Gear: 104T Tail Drive Gear: 22T Drive Gear Ratio: 8.23:1:4.73 Fuel Tank Capacity: 630cc. Takeoff Weight: Approx. 4540g	Accessories T-REX 700XN Kit Set x 1 set 700 Carbon Fiber Blades x 1 set 106mm 3K Carbon Fiber Tail Blades x 1 set DS820M High Voltage Brushless Servo x 3 DS825M High Voltage Brushless Servo x 1 DS530 Digital Servo x 1 B6TX 2 In 1 Voltage Regulator Combo x 1 Governor Sensor x 1
Radio transmitter and electronic equipment required for assembly: Transmitter(7-channel or more, helicopter system) Receiver(7-channel or more) Engine starter x 1 Fuel pump x 1 91~105 Engine x 1 Engine fuel x 1 Digital Pitch Gauge

SKU	RH70N11X
Brand	Align
Shipping Weight	6.5000kg
Shipping Width	0.290m
Shipping Height	0.190m
Shipping Length	1.000m
Shipping Cubic	0.055100000m3
