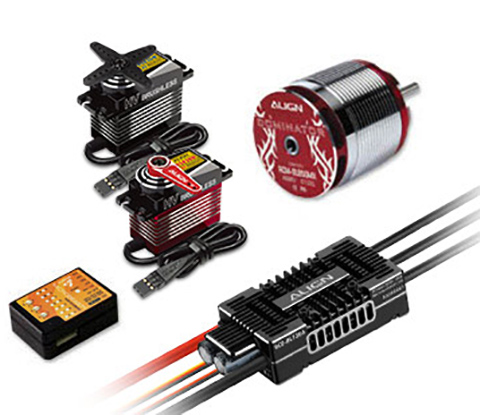

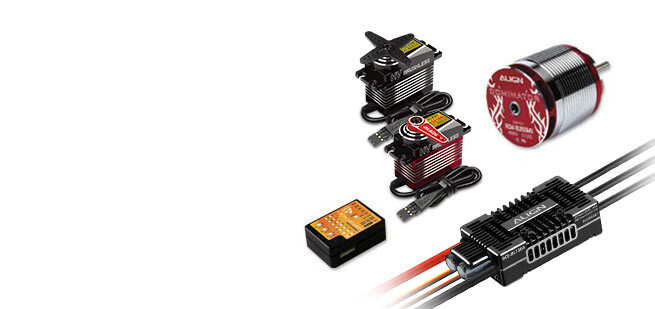

Electric equipments:

●RCE-BL150A Brushless ESC x 1

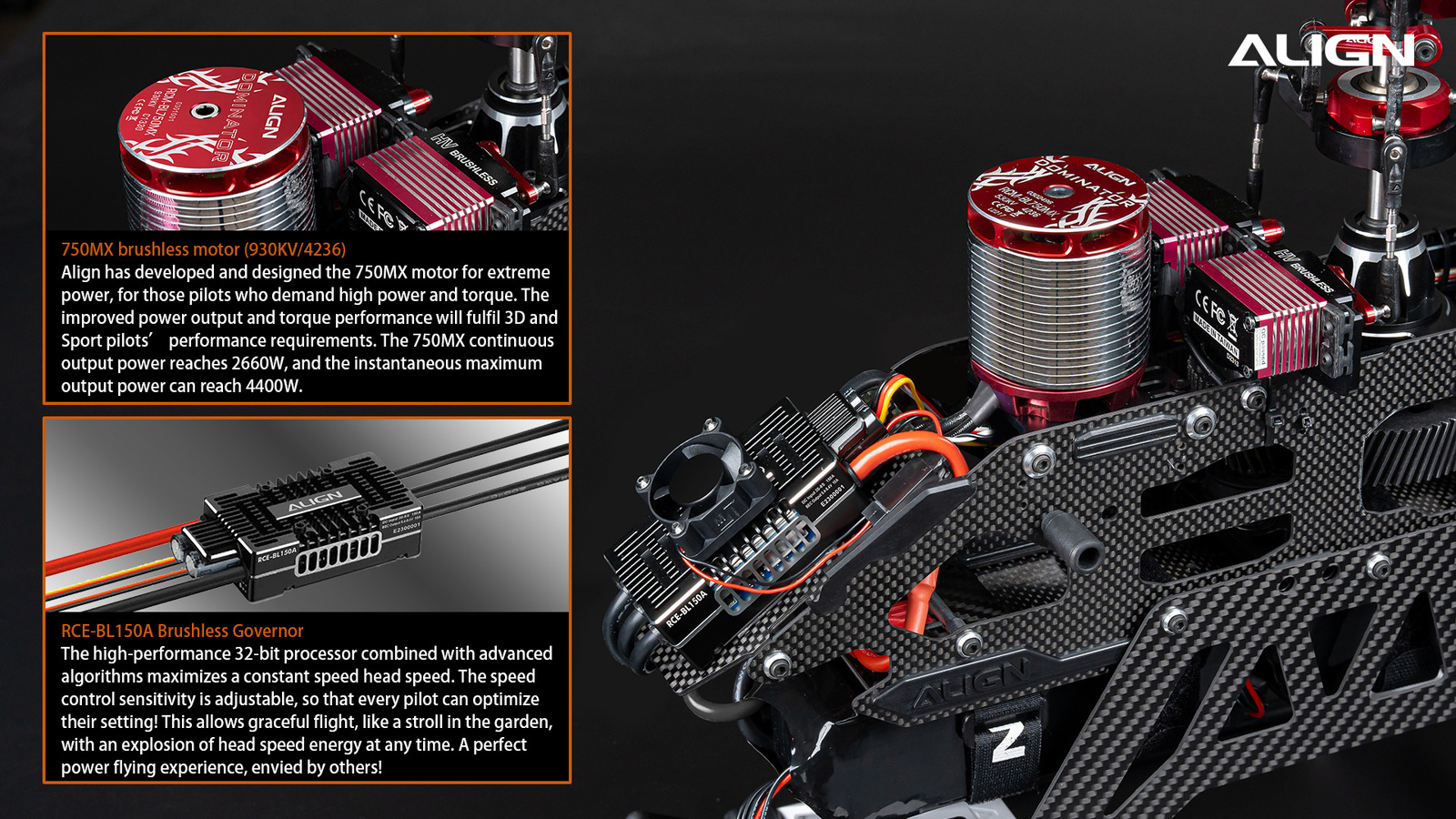

●750MX Brushless Motor(930KV/4236) x 1

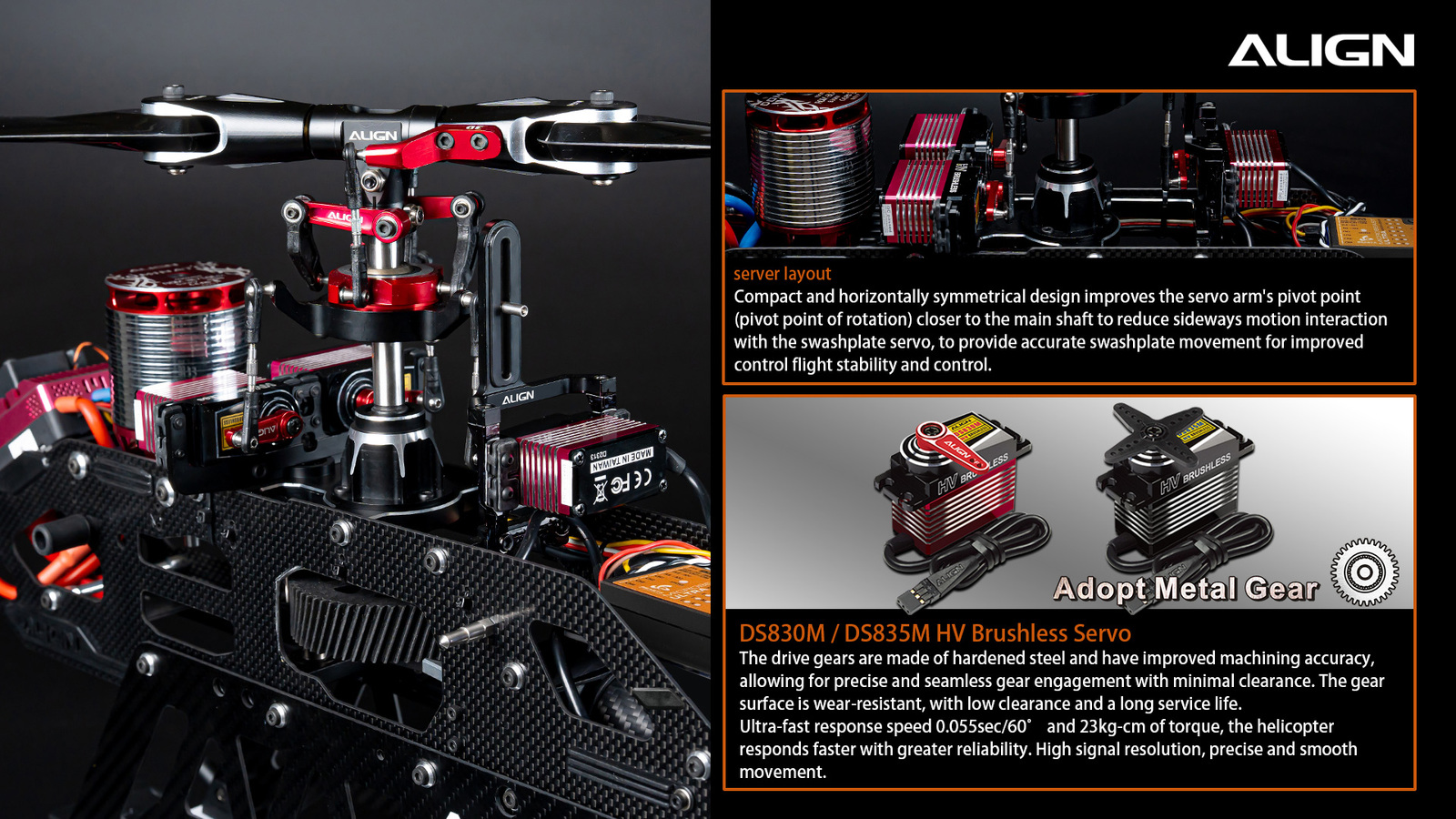

●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●MICROBEAST² Flybarless System x 1

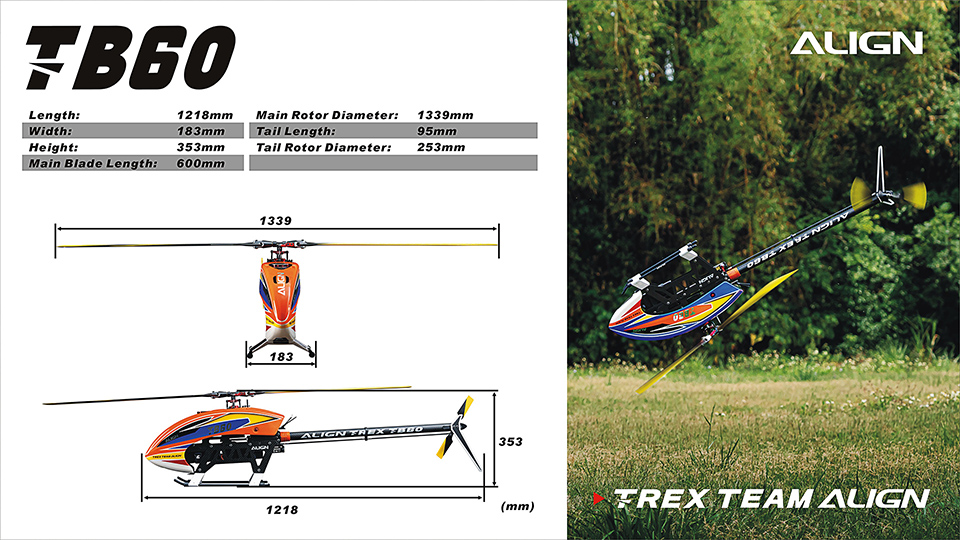

Specifications:

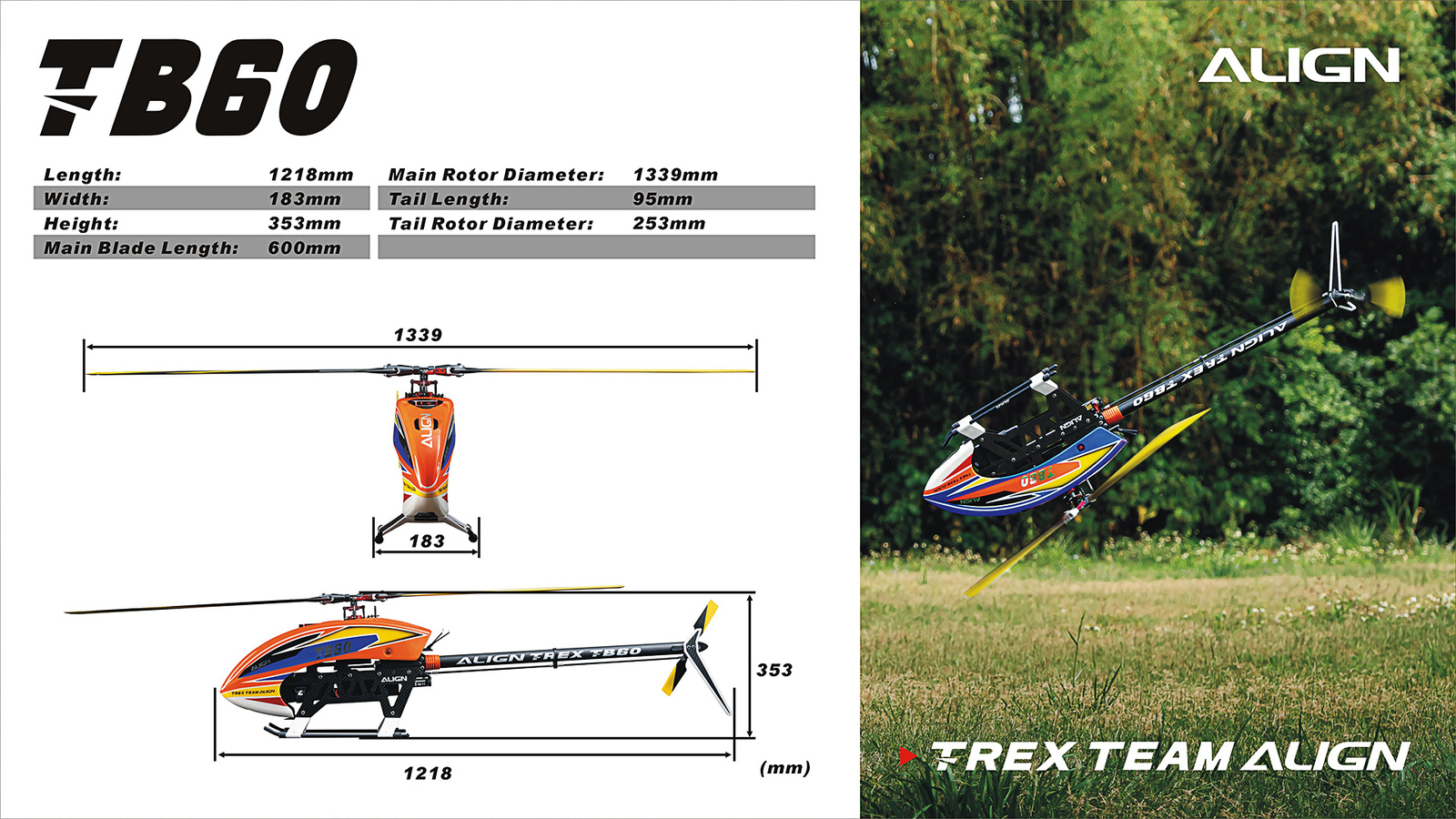

●Length: 1218mm
●Height: 353mm
●Width: 183mm
●Main Blade Length: 600mm
●Main Rotor Diameter: 1339mm

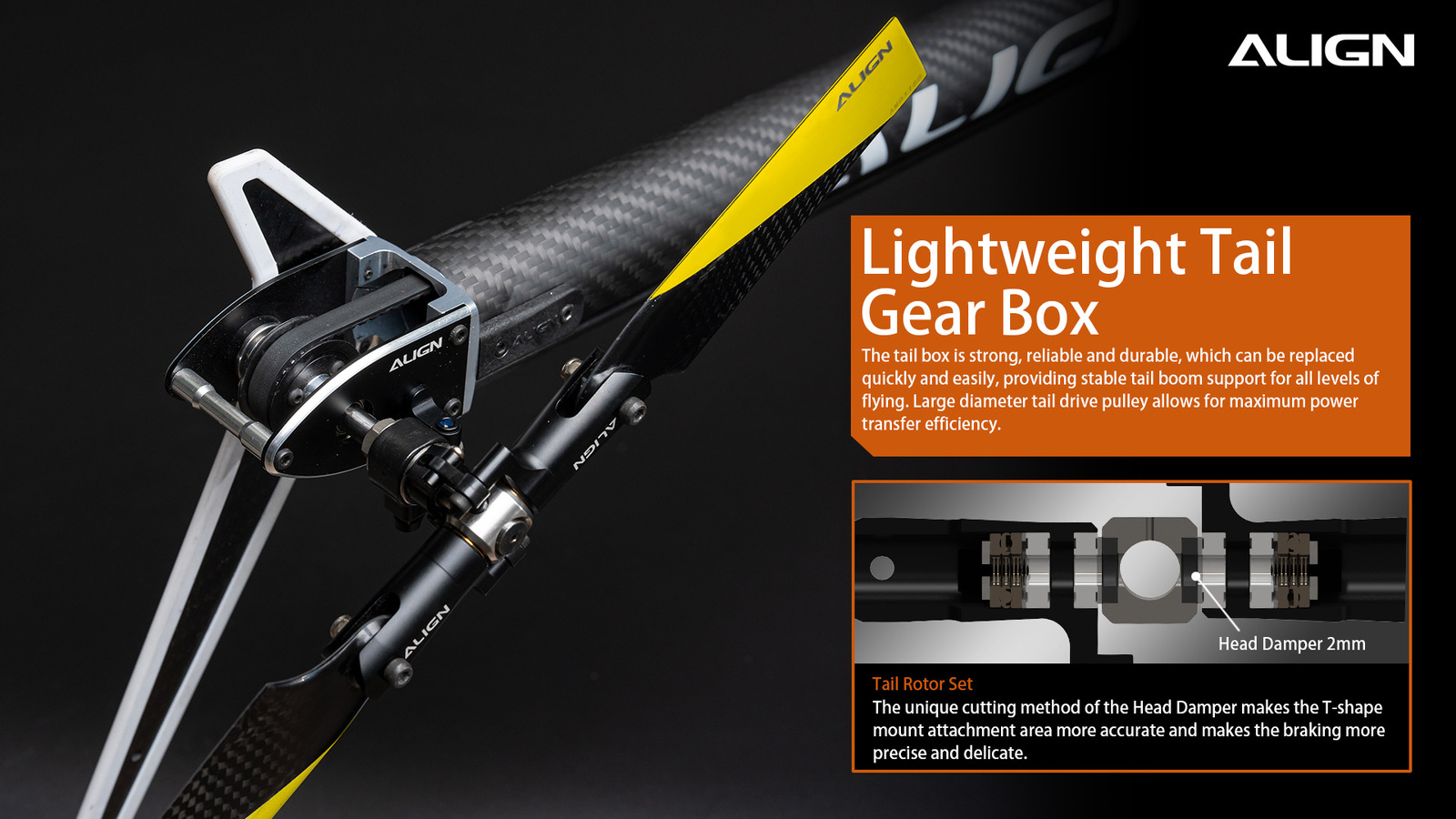

●Tail Length: 95mm
●Tail Rotor Diameter: 253mm

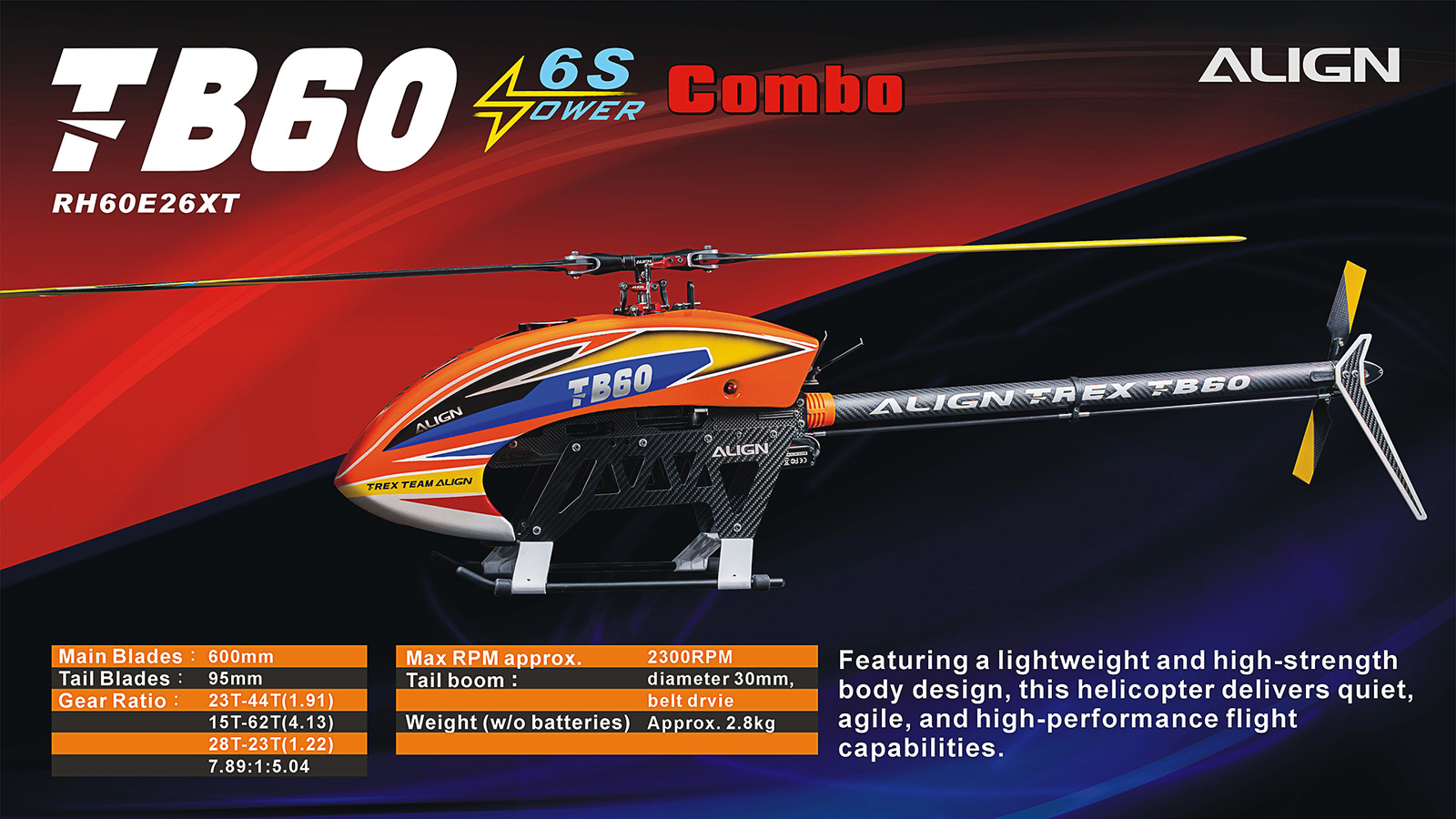

●Motor Belt Pulley: 23T

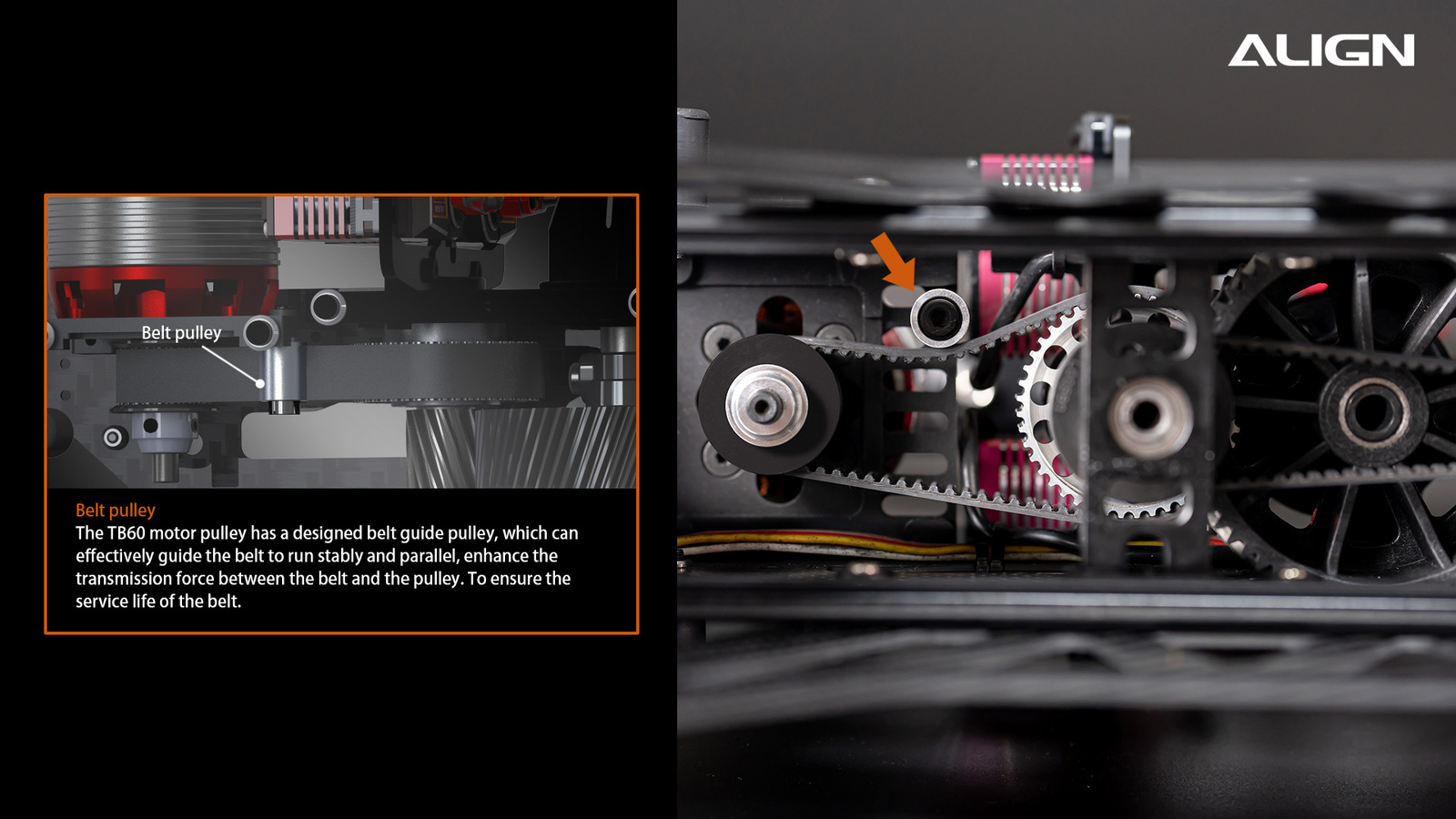

●Belt Pulley: 44T
●Front Drive Main Shaft: 15T

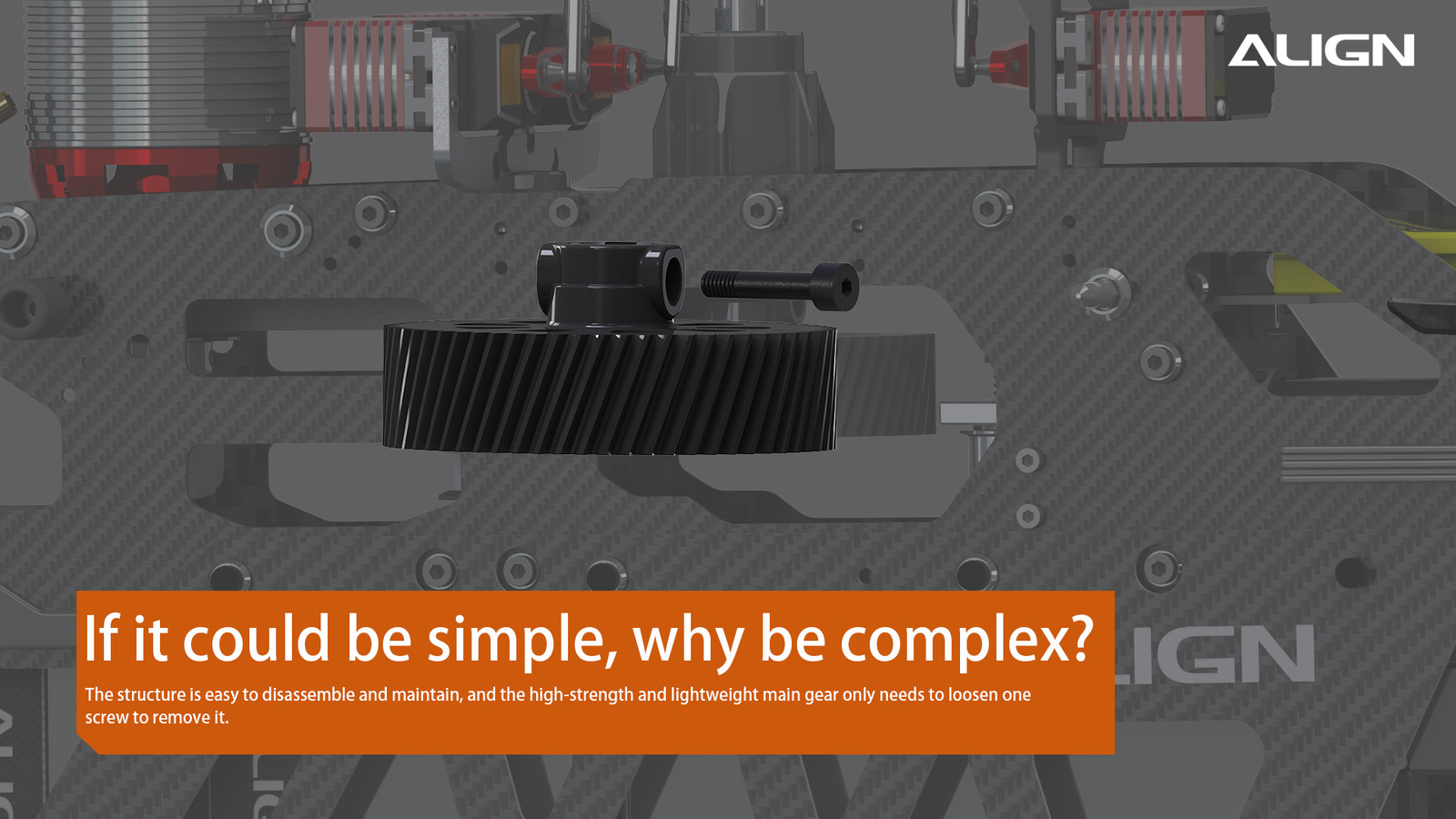

●Main Drive Gear: 62T
●Autorotation Tail Drive Gear: 28T
●Tail Drive Gear: 23T
●Drive Gear Ratio: 7.89:1:5.04
●Max RPM(approx.): 2300RPM
●Weight(w/o Batteies): Approx. 2.8kg

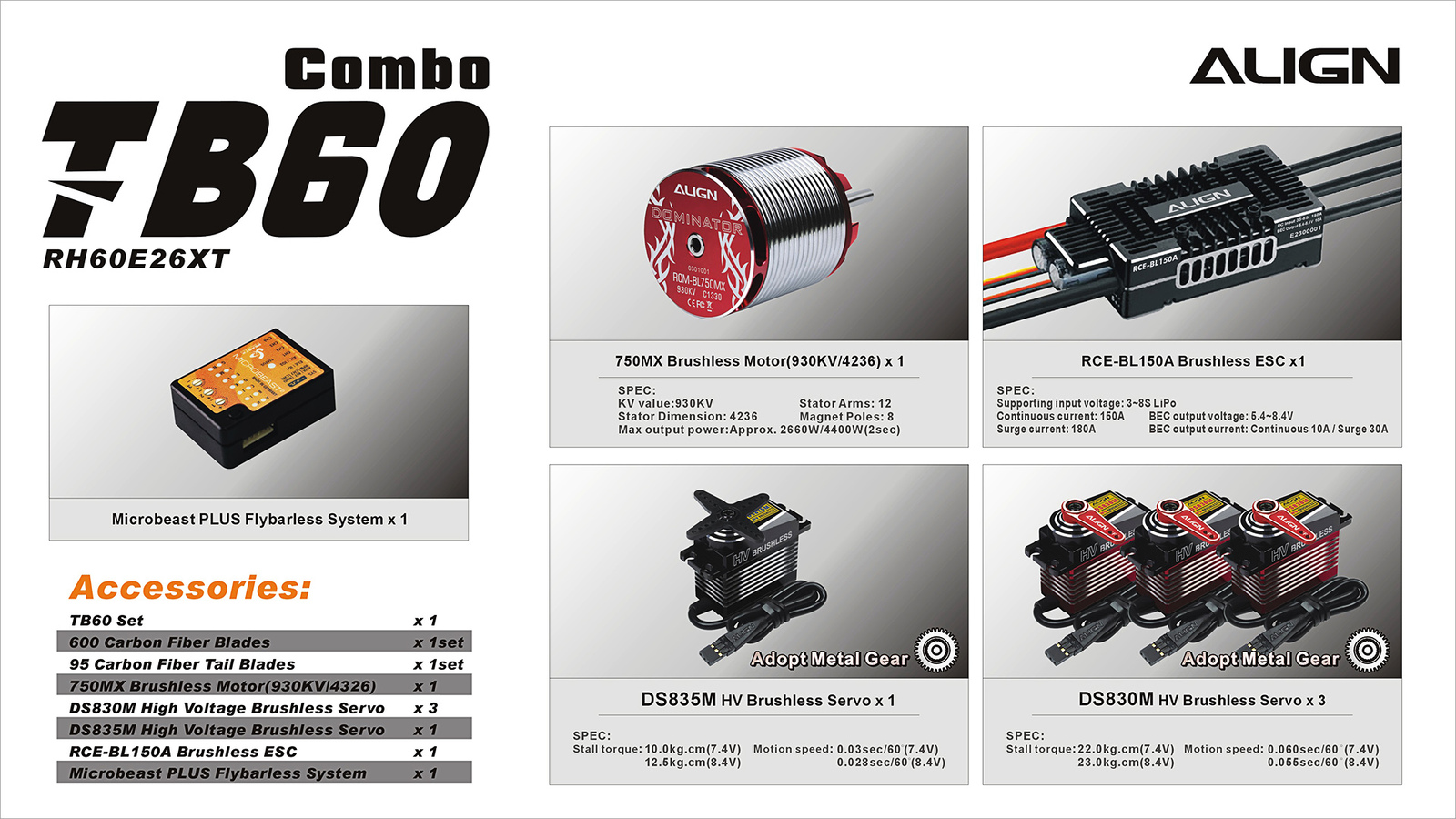

Accessories:

●TB60 Kit Set x 1 set
●600 Carbon Fiber Blades x 1 set
●95 Carbon Fiber Tail Blades x 1 set
●750MX Brushless Motor(930KV/4236) x 1
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●RCE-BL150A Brushless ESC x 1
●MICROBEAST² Flybarless System x 1
●Lube Pack x 1


Radio transmitter and electronic equipment required for assembly:

●Transmitter(6-channel or more, helicopter system)
●Receiver(6-channel or more) or Remoet Receiver
●6S Balance Charger
●6S Li-Po 2600 ~ 4600mAh x 2 (3300mAh suggestion)
●Digital Pitch Gauge
●Multi-function Tester

Download Manual for the TB60 6S Combo


MPN RH60E26XT
Brand Align
SKU RH60E26XW
Barcode # 4713413733064
Brand Align
Shipping Weight 6.0000kg
Shipping Width 0.280m
Shipping Height 0.280m
Shipping Length 0.760m
Shipping Cubic 0.059584000m3
