Align TB40 RC Helicopter

TB40 Electronics

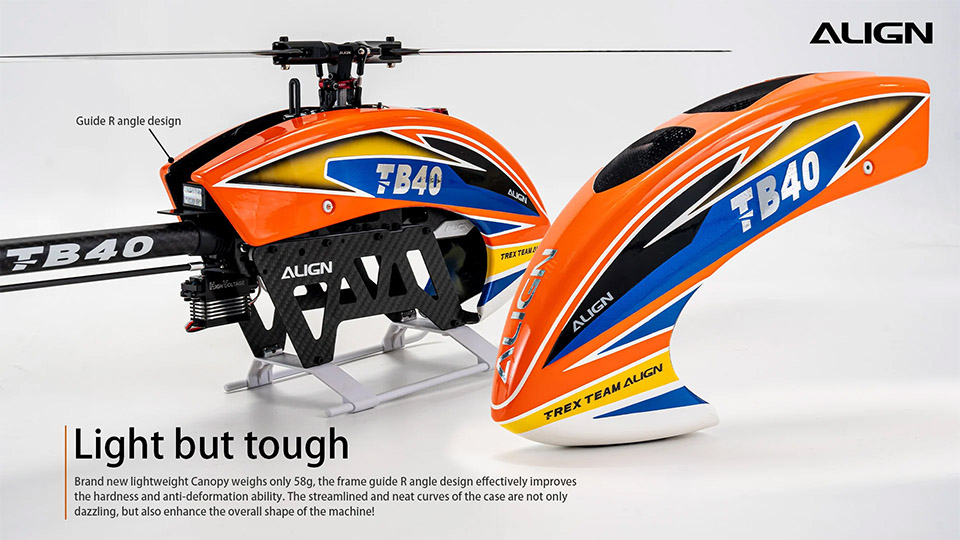

Canopy

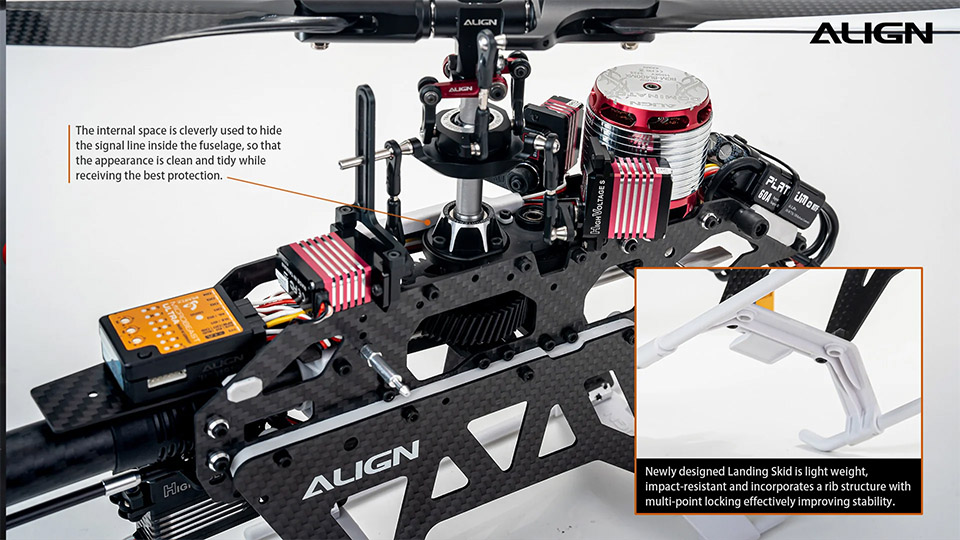

Main Frame

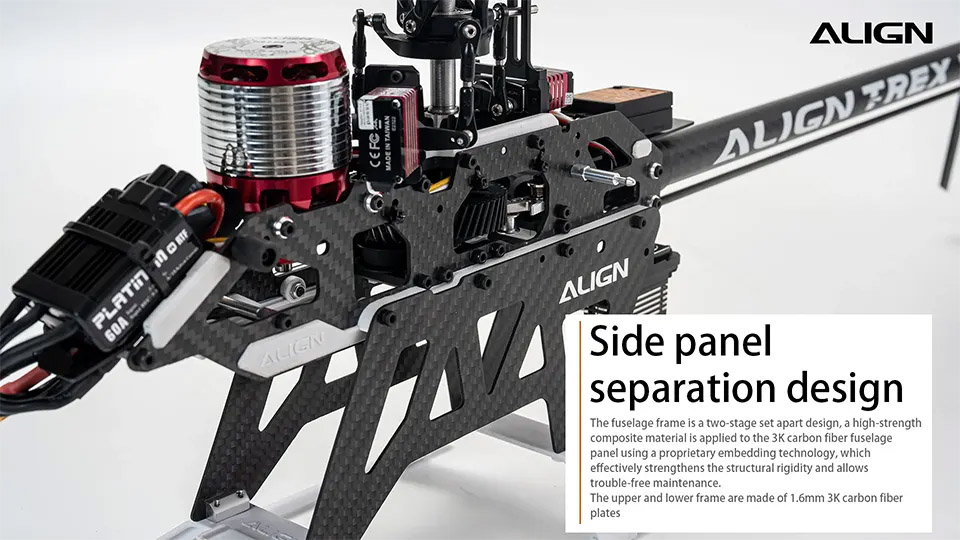

Side Frames

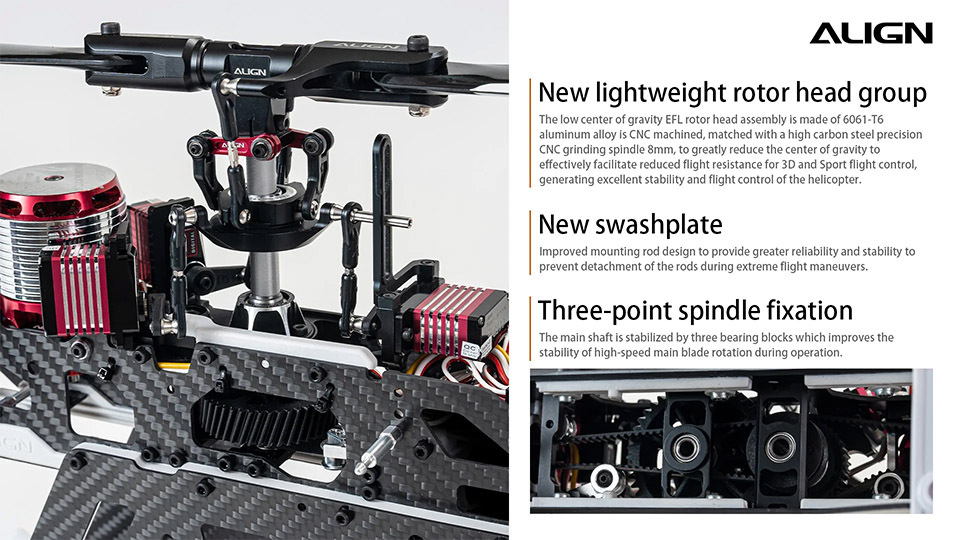

Rotor Head

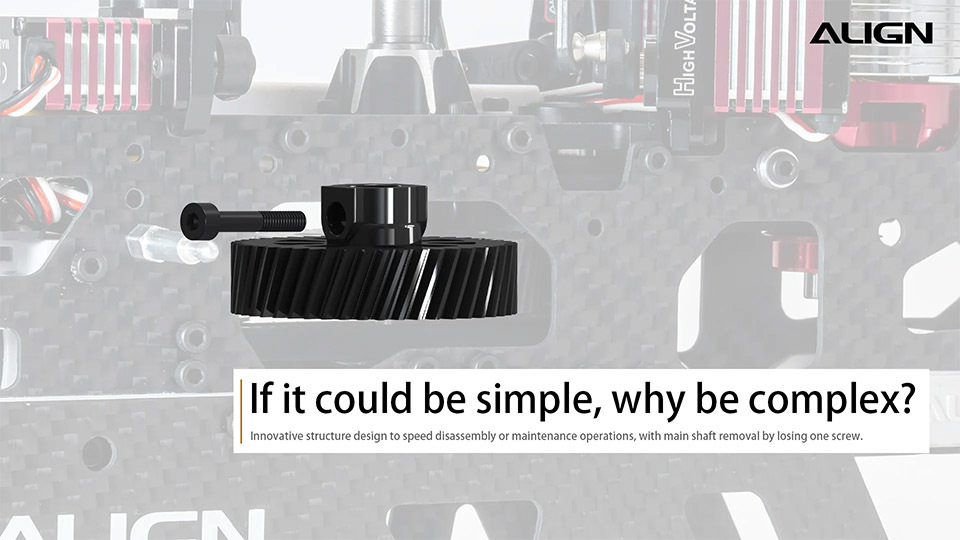

Main Gear

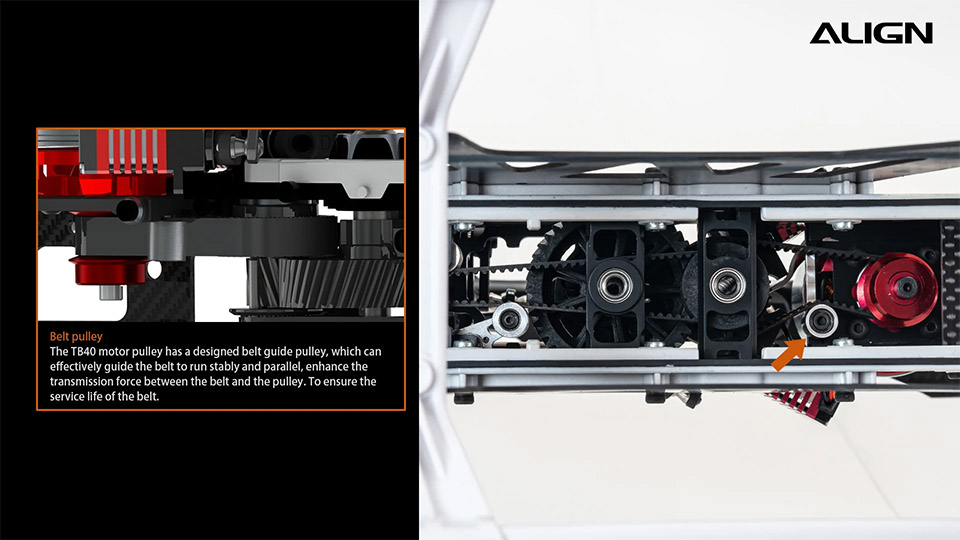

Belt Pulley

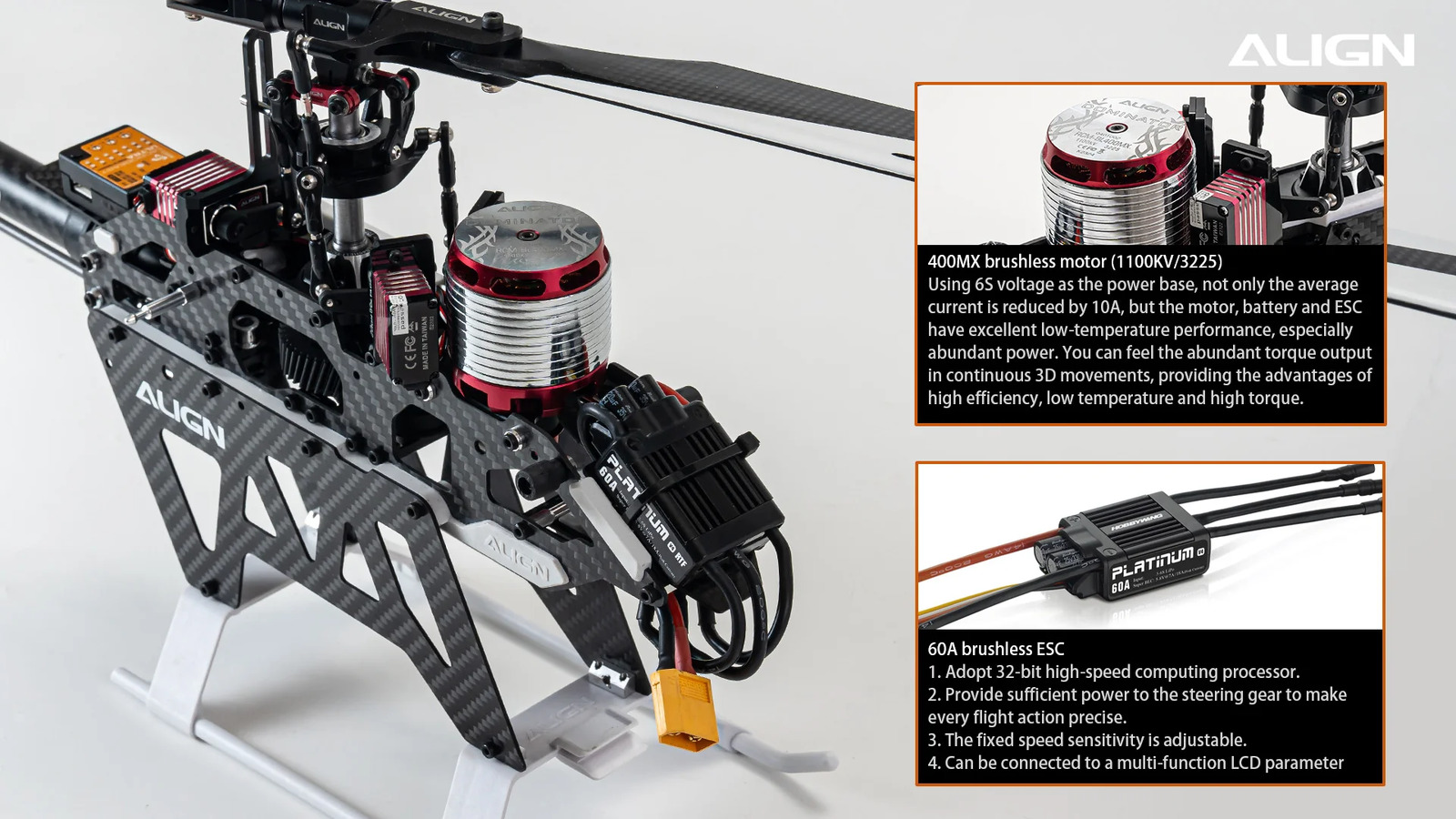

Brushless Motor and ESC

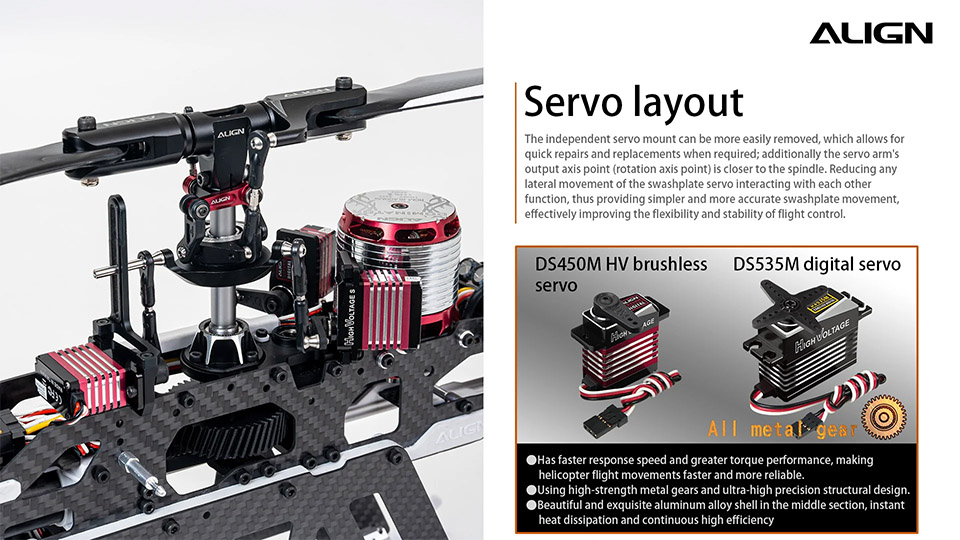

Servo Layout

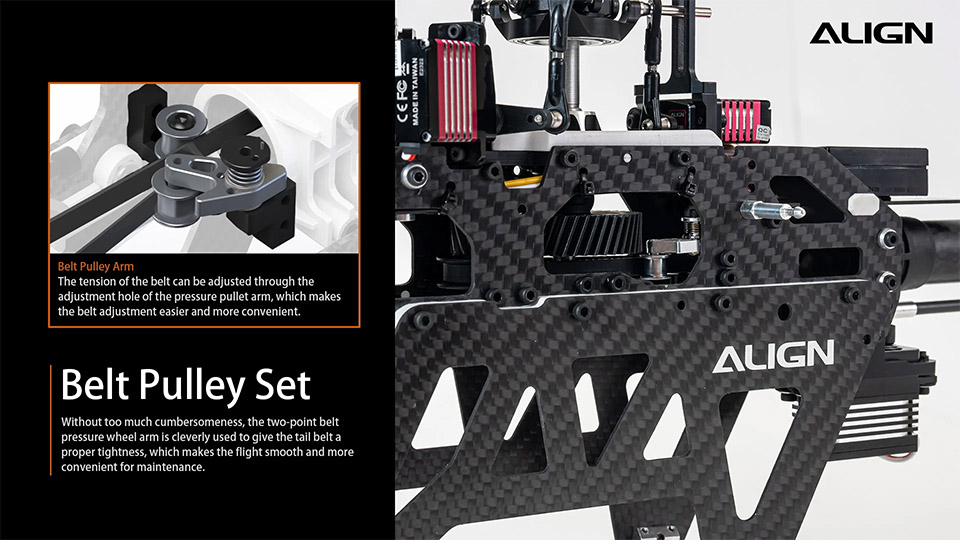

Belt Pulley Set

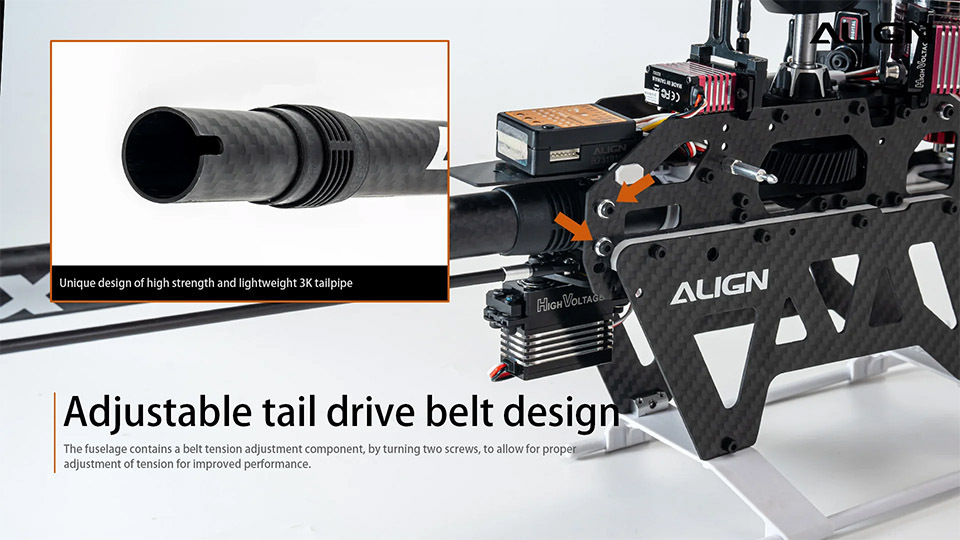

Adjustable Boom

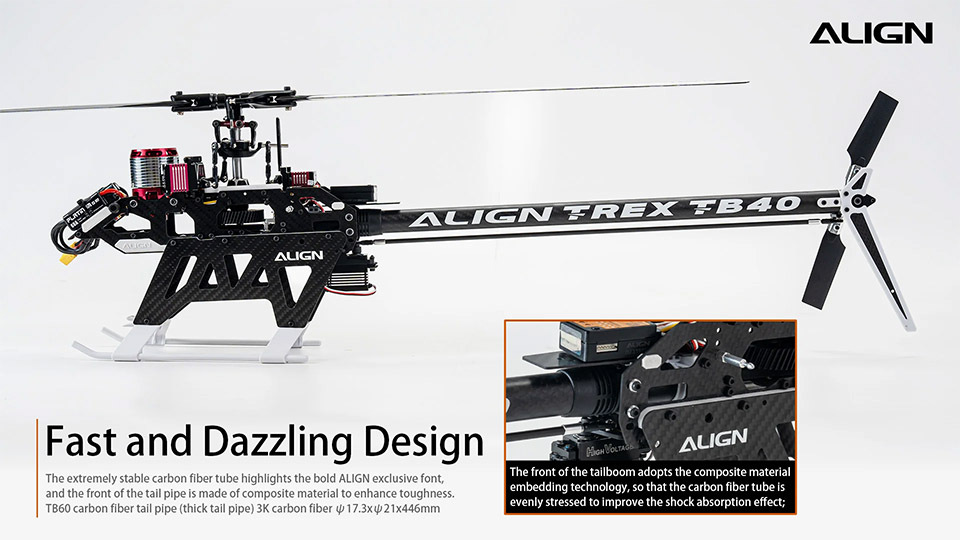

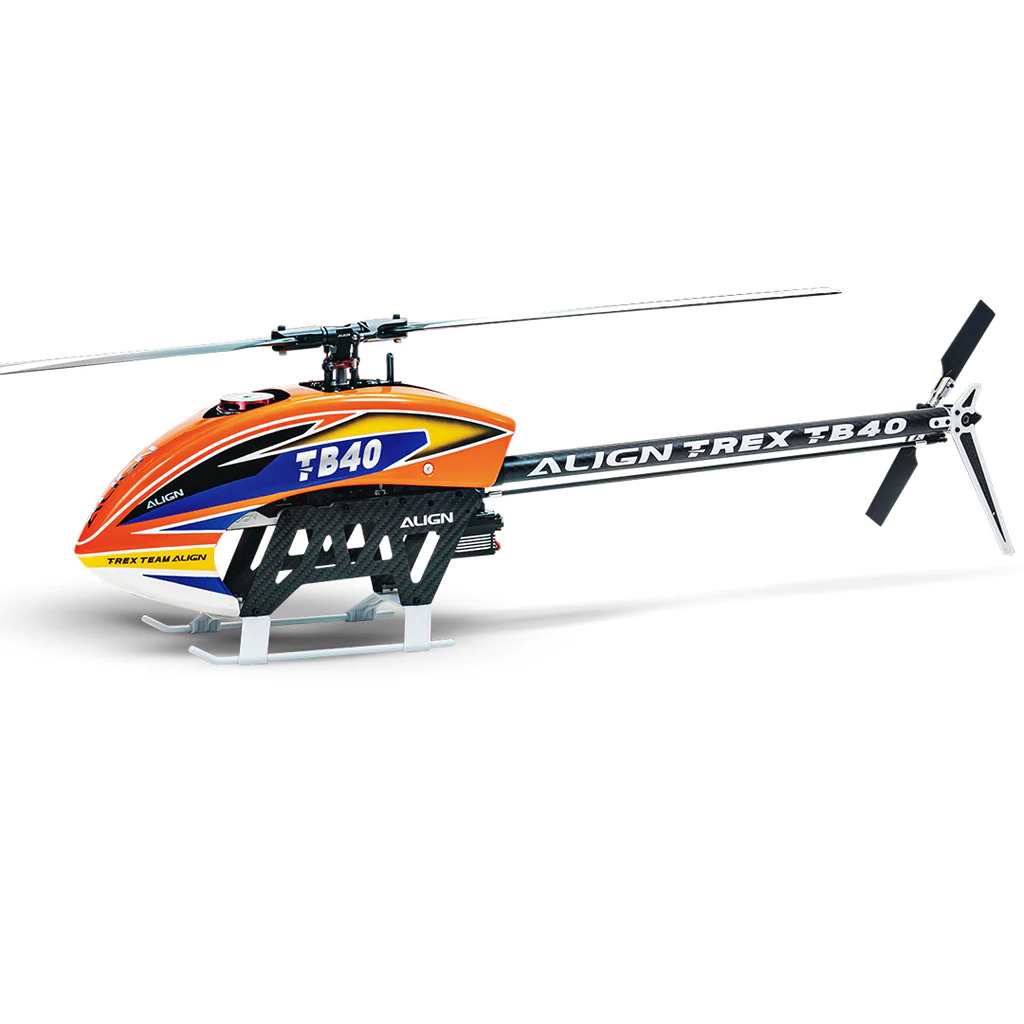

Align TREX TB40 Side View

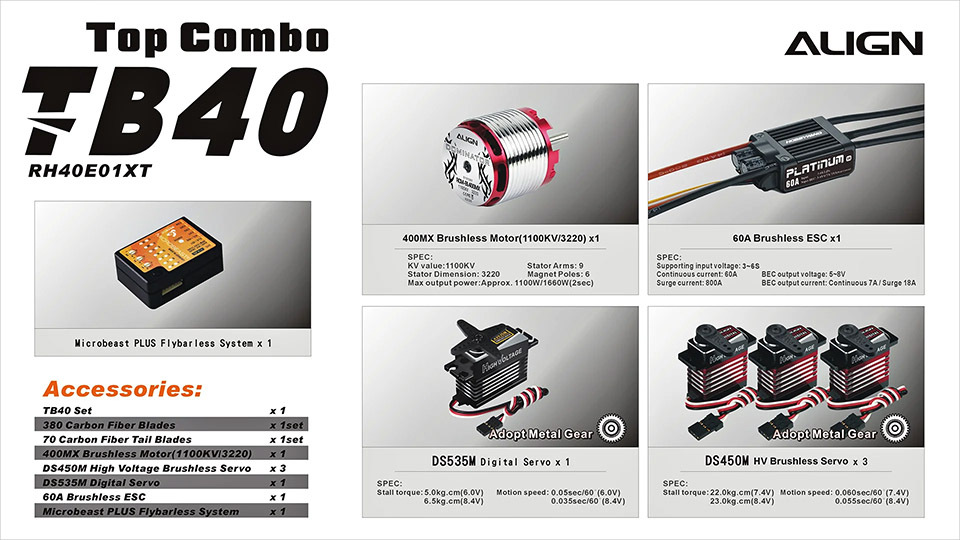

Electric equipmentStandard equipment

●60A Brushless ESC x 1
●400MX Brushless Motor(1100KV/3220) x 1
●DS450M Digital Servo x 3
●DS535M Digital Servo x 1
●MICROBEAST² Flybarless System x 1

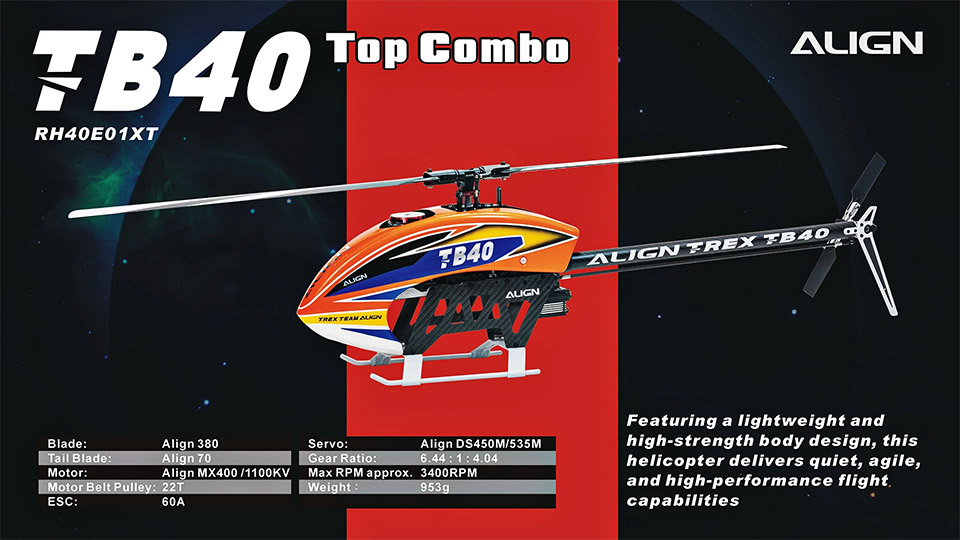

Specification

●Length: 747mm
●Height: 223mm
●Width: 103mm
●Main Blade Length: 380mm
●Main Rotor Diameter: 851mm
●Tail Length: 70mm
●Tail Rotor Diameter: 188mm
●400MX Brushless Motor(1100KV/3220)
●Motor Belt Pulley: 22T
●Drive Gear Ratio: 6.44:1:4.04
●Max RPM(approx.): 3400RPM
●Frame Weight(Batteries not included): Approx. 953g

Accessories

TB40 Kit Set x 1 set
●380 Carbon Fiber Blades x 1 set
●70 Carbon Fiber Tail Blades x 1 set
●400MX Brushless Motor(1100KV/3220) x 1
●DS450M Digital Servo x 3
●DS535M Digital Servo x 1
●60A Brushless ESC x 1
●MICROBEAST² Flybarless System x 1


Radio transmitter and electronic equipment required for assembly

●Transmitter(6-channel or more, helicopter system)
●Receiver(6-channel or more)
●RCC-6CX Intelligent Balance Charger
●22.2V 6S 1850~2200mAh Li-Po Battery
●Digital Pitch Gauge
●Multi-function Tester

Download Manual Align TB40 Manual

SKU RH40E01XW
Barcode # 4713413734061
Brand Align
Shipping Weight 2.5000kg
Shipping Width 0.180m
Shipping Height 0.120m
Shipping Length 0.480m
Shipping Cubic 0.010368000m3
