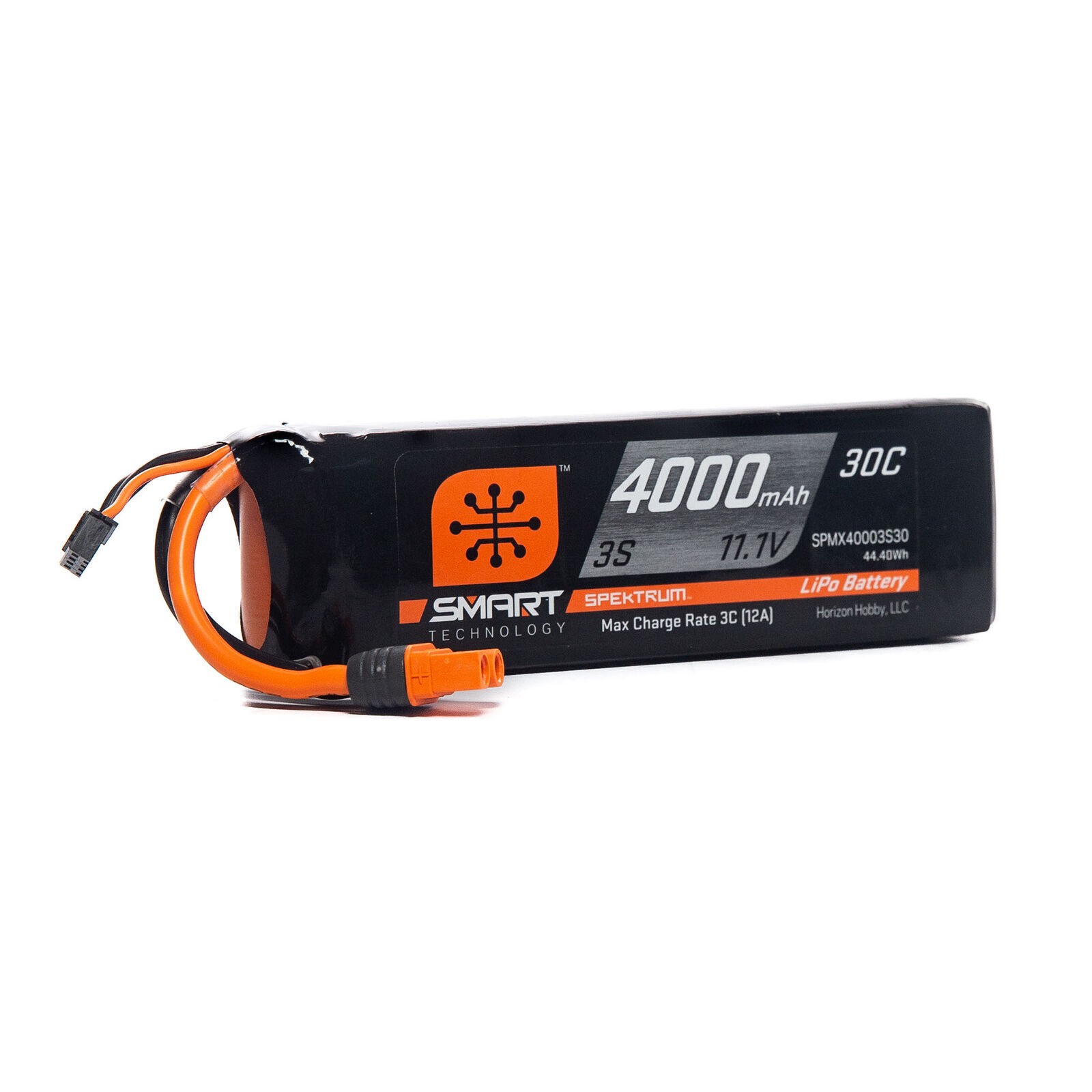

Name: 11.1V 4000mAh 3S 30C Smart LiPo Battery: IC3
Brand: Spektrum
Price: 130.00 AUD
Availability: InStock

Key Features

Integrated microchip stores unique parameters for each battery
Smart discharge allows batteries to automatically discharge to a safe voltage
Save time and hassle, while improving battery life
Protective outer metal alloy sheet helps dissipate heat, hold battery shape, and increase durability
No soldering required, equipped with IC3 and IC5 Connectors that are compatible with EC3 and EC5

Feature Overview

You'll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger "Start" button. Smart technology takes care of the rest.

Our new Spektrum Smart 30C LiPos come in a variety of popular sizes and are ready to drop into your RC aircraft for maximum performance, power, and reliability. These are the perfect packs for high performance models and power systems and a great upgrade to get more punch and power on nearly any setup.

Spektrum Smart LiPo Batteries Store Unique Data, Such As:

Battery Brand
Battery Type
Battery Capacity
Battery C Rating
Individual Cell Voltage
Battery Temperature
Charge/Discharge Cycles

Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you've chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the "Start" button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.

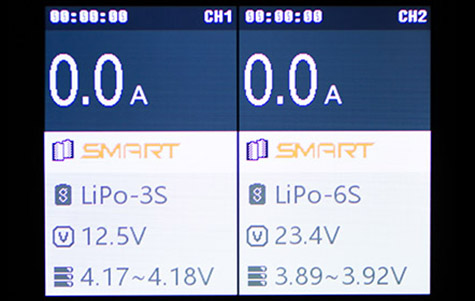

Smart Battery Technology

When connected to a Spektrum Smart charger, unique parameters and health of your Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can set and record preferred settings, such as charge rates and self-discharge options, so that all you have to do to charge the pack is press the "start" button. Smart technology will take care of the rest. Every Smart LiPo battery is factory assembled with the next-generation IC3™ and IC5™ output connector that utilizes a data transfer wire to relay saved information to your Smart Chargers.

Data Rich

An integrated microchip allows each Smart Battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature, and internal resistance. Additionally, each battery will save a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This allows you to make the most informed decision about each battery when you are getting your gear ready for a day at the field or the track

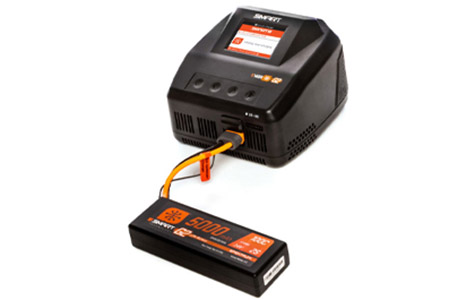

Simple and Quick

Preset charge, discharge, and storage parameters are automatically relayed to a Spektrum Smart Charger making charging as simple as pressing the “start” button. Charge rate of individual batteries can be user customized allowing you to take full advantage of packs with faster charge ratings. The integrated microchip on each battery will remember the last charging rate you set, so the next time you plug it in, these settings will automatically populate so all you have to do is press “Start.”

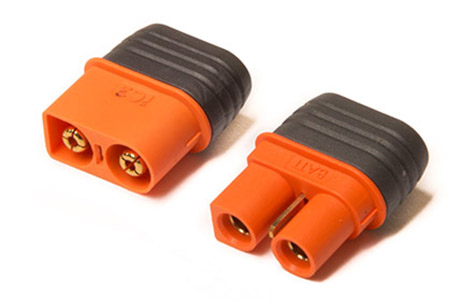

New IC3 & IC5 Connectors

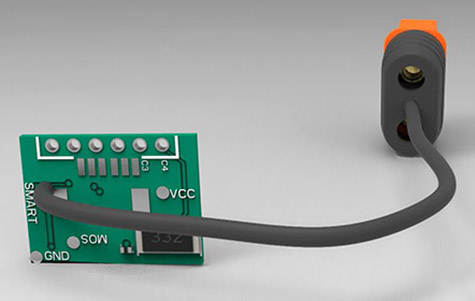

The innovative Smart connection is made possible by an installed microchip on every battery, feeding the unique information through a data cable to the new IC3 and IC5 connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. For those using the popular EC3 and EC5 connectors, there's no need to worry. The IC connector series is entirely backwards compatible with existing connectors so you can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device are all the benefits of Smart technology obvious.

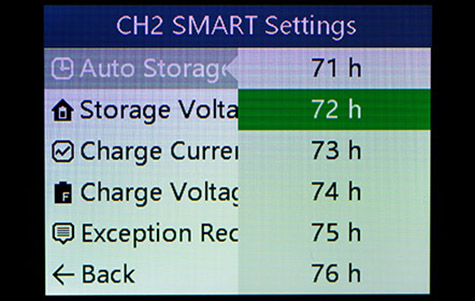

Smart Discharge

LiPo batteries with Spektrum Smart™ technology practically take care of themselves. When programmed with a Spektrum Smart Charger, Smart Batteries will automatically discharge to your predetermined storage voltage when they are left to rest for a time period you choose, between 12 and 240 hours. This feature will help to extend the life of your Smart Batteries by preventing your batteries from sitting fully charged for an extended period of time, which can damage the chemical integrity of Lithium Polymer cells. This unique feature results in longer battery life expectancy and better performance over the life of the pack.

Product Specifications

Battery Voltage	11.1V
Connector Type	IC3
Discharge Lead Length	2.36" (60 mm)
Maximum Charge Rate	5C
Product Length	5.5" (140 mm)
Normal/Standard Charge Current	4A
Watt Hours	44.4Wh
Hard Case	No
Maximum Burst Discharge Rate	30C
Product Height	0.94" (24 mm)
Battery Type	LiPo (3.7V per cell)
Capacity	4000mAh
Voltage	11.1V
Maximum Charge Current	20A
Application	Aircraft
Product Weight	8.1oz (230g)
Short Circuit Protection	Yes
Balance Lead Length	1.37" (35mm)
Battery Balance Connector	JST_XH
Charge Protection Circuitry	Yes
Number of Cells	3
Wire Gauge	12 AWG
Normal/Standard Charge Rate	1C
Product Width	1.69" (43 mm)
Technology	Smart
